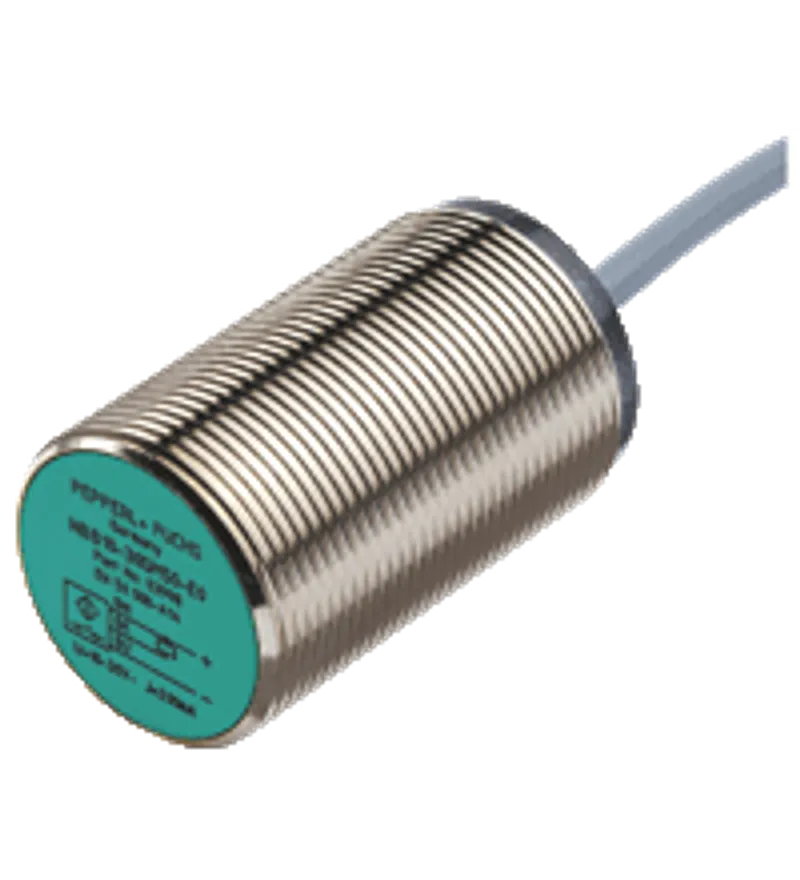

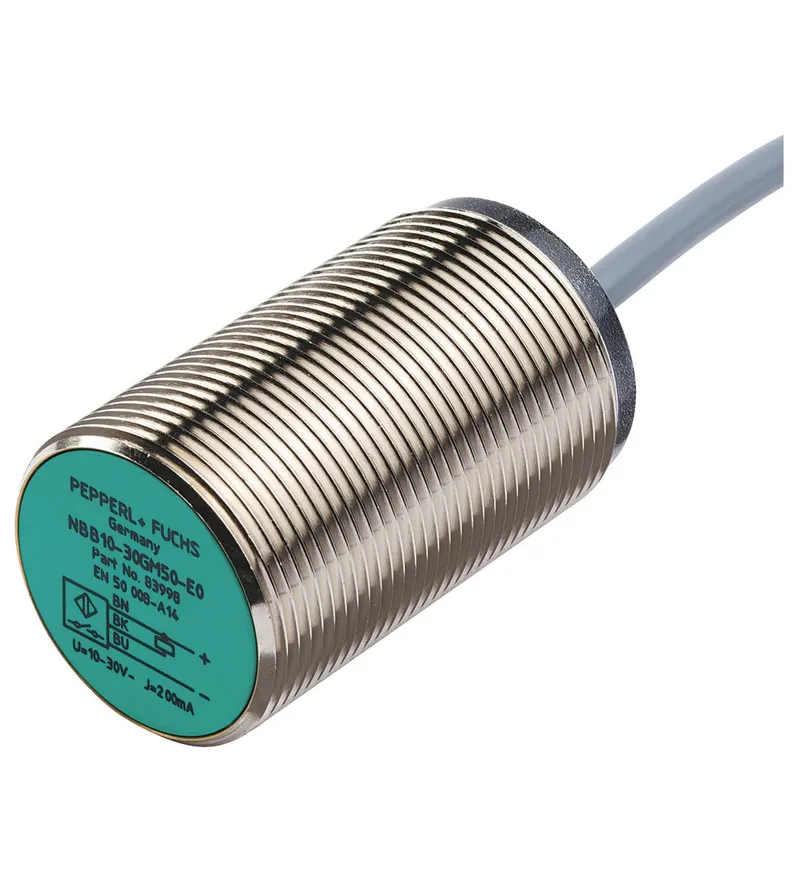

Pepperl Fuchs NBB10-30GM50-WO-10M – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NBB10-30GM50-WO-10M be shipped?
NBB10-30GM50-WO-10M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBB10-30GM50-WO-10M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBB10-30GM50-WO-10M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBB10-30GM50-WO-10M, subject to availability and destination.
• 10 mm flush
Switching function: Normally closed (NC), Output type: Two-wire, Installation: flush, Output polarity: AC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: AC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67, Material: PVC
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 199640 |
| Switching function | Normally closed (NC) |
| Output type | Two-wire |
| Rated operating distance | 10 mm sn |
| Installation | flush |
| Output polarity | AC |
| Assured operating distance | 0 ... 8.1 mm sa |
| Actual operating distance | 9 ... 11 mm sr |
| Reduction factor rAl | 0.33 |
| Reduction factor rCu | 0.28 |
| Reduction factor r304 | 0.81 |
| Output type | 2-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 20 ... 253 V UB |
| Switching frequency | 0 ... 20 Hz f |
| Hysteresis | 1 ... 10 % typ. 5 % H |
| Voltage drop | L > 50 mA); L < 50 mA) Ud |
| Momentary current (20 ms, 0.1 Hz) | 0 ... 1600 mA |
| Operating current | 5 ... 200 mA IL |
| Off-state current | 0 ... 1.7 mA Ir |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Enclosure Type Rating: Type 1 |
| CSA approval | cCSAus Listed, General Purpose |
| CCC approval | Certified by China Compulsory Certification (CCC) |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 6.4 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | grey |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.75 mm2 |
| Cable: Length | 10 m L |

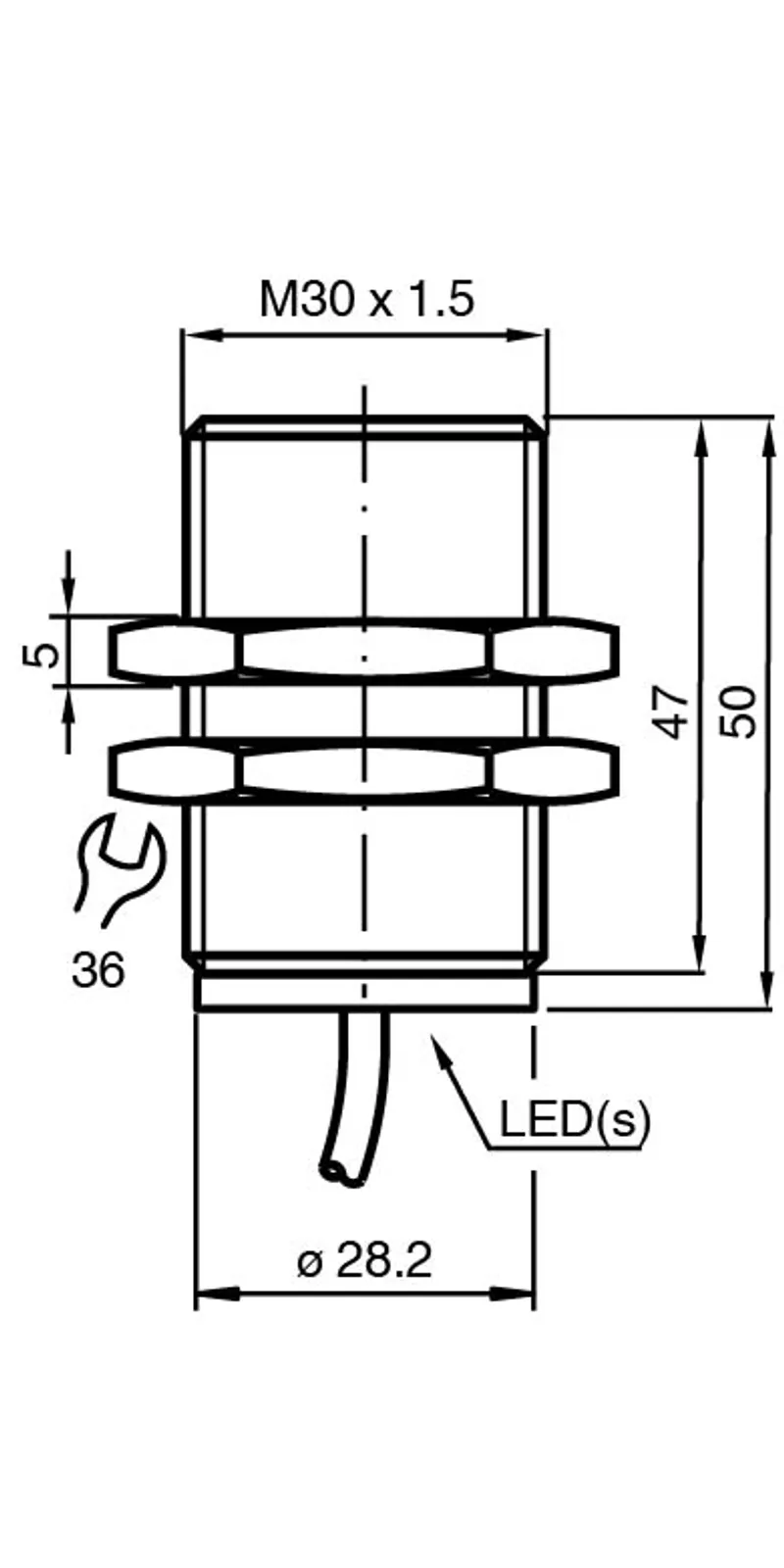

| Dimensions: Length | 50 mm |
| Dimensions: Diameter | 30 mm |
| Note | 1) In the temperature range below 0 °C, permissible operating voltage Ub 80...253 V Safety fuse ≤ 0.8 A (quick-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NBB10-30GM50-WO-10M | |
| Installation conditions | PDF · 1.1 MB |
CAD & dimension drawings
| 3-D model (STEP) NBB10-30GM50-WO-T-Y802858 | STP · 81 kB |
Certificates (5)
More Pepperl Fuchs parts
Available on requestInductive sensor NBB10-30GM50-E2-V1-M1

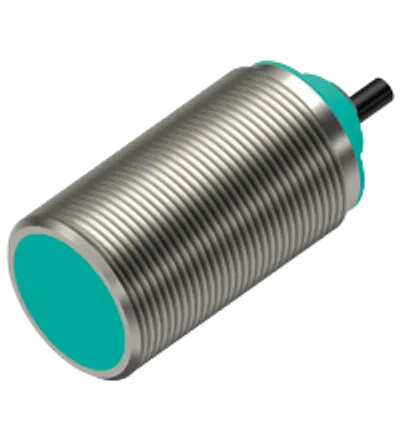

Available on requestInductive sensor NBB10-30GM50-E2-Y0141

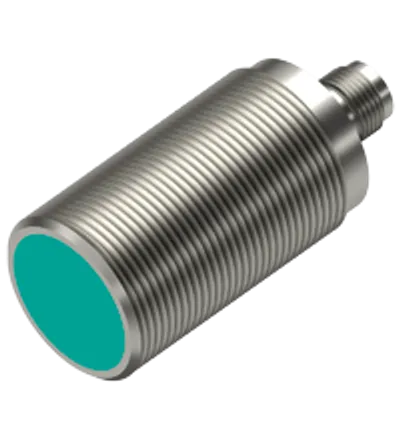

Available on requestInductive sensor NBB10-30GM50-E3-V1
Available on requestInductive sensor NBB10-30GM50-WOAvailable on requestInductive sensor NBB10-30GM50-WO-5MAvailable on requestInductive sensor NBB10-30GM50-WO-T-Y802858

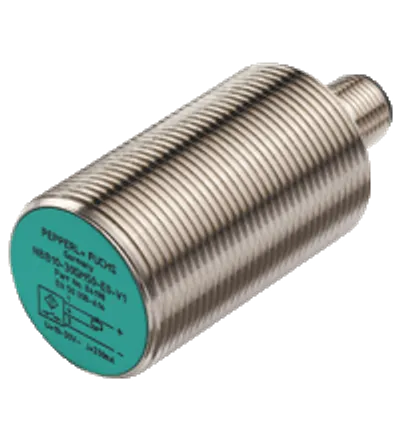

Available on requestInductive sensor NBB10-30GM50-WO-V12

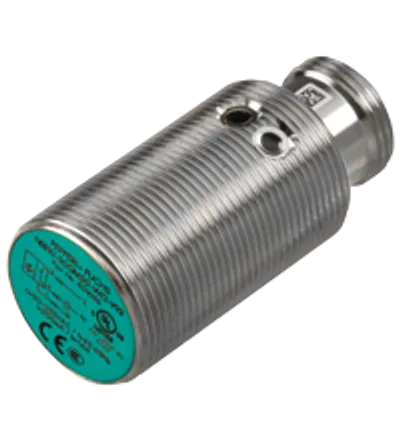

Available on requestInductive sensor NBB10-30GM50-WO-V93
