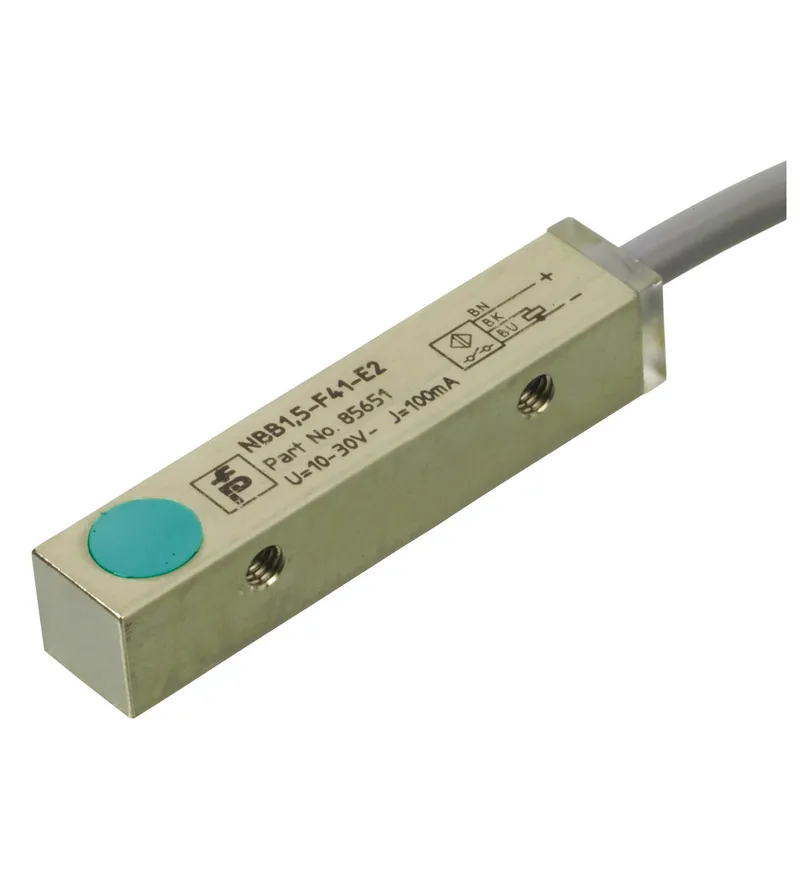

Pepperl Fuchs NBB1,5-F41-E2-Y315198 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NBB1,5-F41-E2-Y315198 be shipped?
NBB1,5-F41-E2-Y315198 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBB1,5-F41-E2-Y315198 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBB1,5-F41-E2-Y315198 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBB1,5-F41-E2-Y315198, subject to availability and destination.
• 1.5 mm flush
• 3-wire DC
• Metal housing
Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67, Material: PUR
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 315198 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 1.5 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 1.215 mm sa |
| Reduction factor rAl | 0.45 |
| Reduction factor rCu | 0.35 |
| Reduction factor r304 | 0.75 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V DC UB |
| Switching frequency | 0 ... 1500 Hz f |
| Hysteresis | typ. 3 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 100 mA IL |
| Off-state current | 0 ... 0.5 mA typ. Ir |
| No-load supply current | ≤ 15 mA I0 |
| Time delay before availability | ≤ 20 ms tv |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 1528 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 3 mm - 0.2 mm |
| Cable: Bending radius | > 12 x cable diameter |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.14 mm2 |
| Cable: Length | 2 m L |
| Mass | 13.5 g |

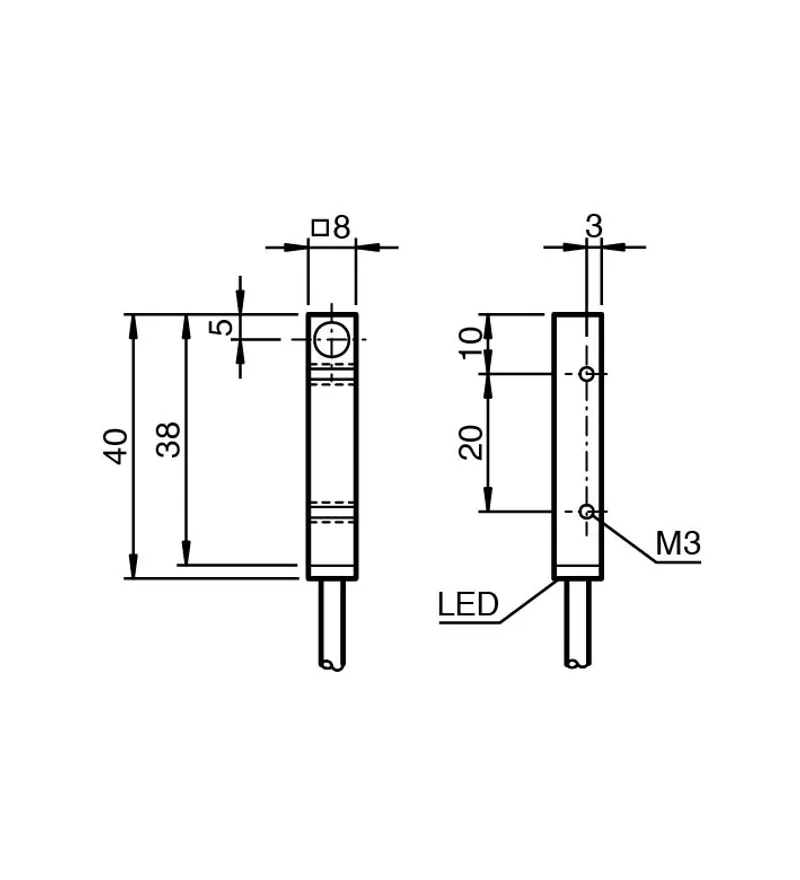

| Dimensions: Height | 8 mm |
| Dimensions: Width | 8 mm |
| Dimensions: Length | 40 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NBB1,5-F41-E2-Y315198 |
CAD & dimension drawings
| 3-D model (STEP) NBB1,5-F41-E2-5M | STP · 136 kB |
Certificates (3)
| China Information on CCC (CCC-Exempt Declaration (Pepperl+Fuchs)) | PDF · 467 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.2 MB |
More Pepperl Fuchs parts
Available on requestInductive sensor NBB0,8-F141-E0Available on requestInductive sensor NBB0,8-F141-E1Available on requestInductive sensor NBB0,8-F141-E2Available on requestInductive sensor NBB0,8-F141-E3

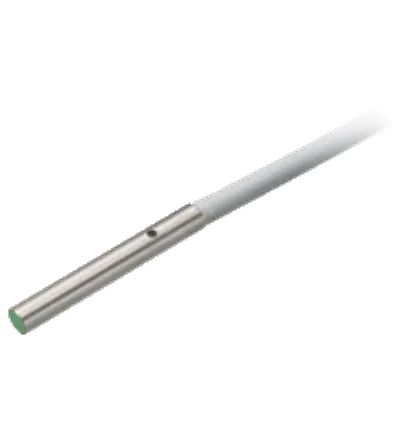

Available on requestInductive sensor NBB1-3M22-E0Available on requestInductive sensor NBB1-3M22-E0-0,3M-V3Available on requestInductive sensor NBB1-3M22-E0-0,6M-V1Available on requestInductive sensor NBB1-3M22-E2
