Pepperl Fuchs NBB0,6-3M22-E1
Inductive sensor
- MPN
- NBB0,6-3M22-E1
- Category
- Inductive Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs NBB0,6-3M22-E1?
0.6 mm flush
Miniature design
Switching function: Normally closed (NC), Output type: NPN, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PUR
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 218334 |
| Switching function | Normally closed (NC) |
| Output type | NPN |
| Rated operating distance | 0.6 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 0.486 mm sa |
| Reduction factor rAl | 0.4 |
| Reduction factor rCu | 0.29 |
| Reduction factor r304 | 0.76 |
| Reduction factor rBrass | 0.46 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 1300 Hz f |
| Hysteresis | typ. 5% H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 100 mA IL |
| Off-state current | 0 ... 0.1 mA typ. at 25 °C Ir |
| No-load supply current | ≤ 10 mA I0 |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PC |
| Degree of protection | IP67 |
| Cable: Cable diameter | 2.6 mm ± 0.1 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PUR |
| Cable: Color | grey |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.055 mm2 |
| Cable: Length | 2 m L |

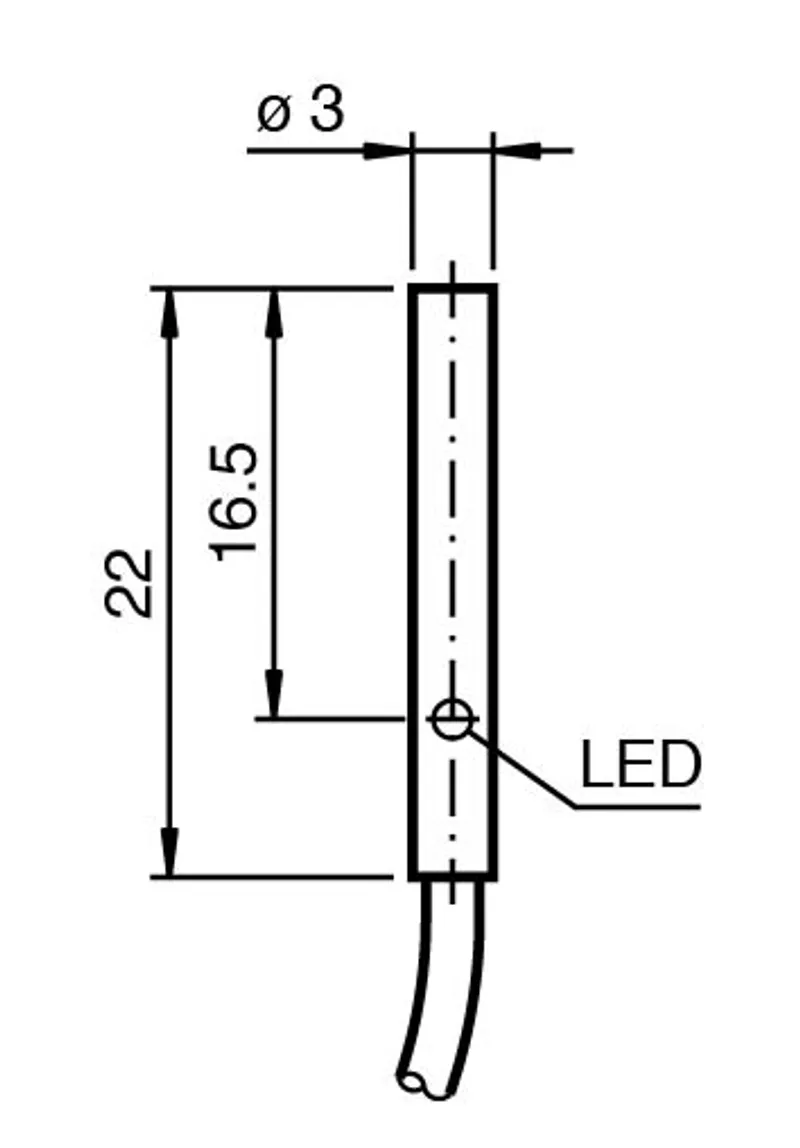

| Dimensions: Length | 22 mm |
| Dimensions: Diameter | 3 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
NBB0,6-3M22-E1: frequently asked questions
When can NBB0,6-3M22-E1 be shipped?
NBB0,6-3M22-E1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBB0,6-3M22-E1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBB0,6-3M22-E1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBB0,6-3M22-E1, subject to availability and destination.
