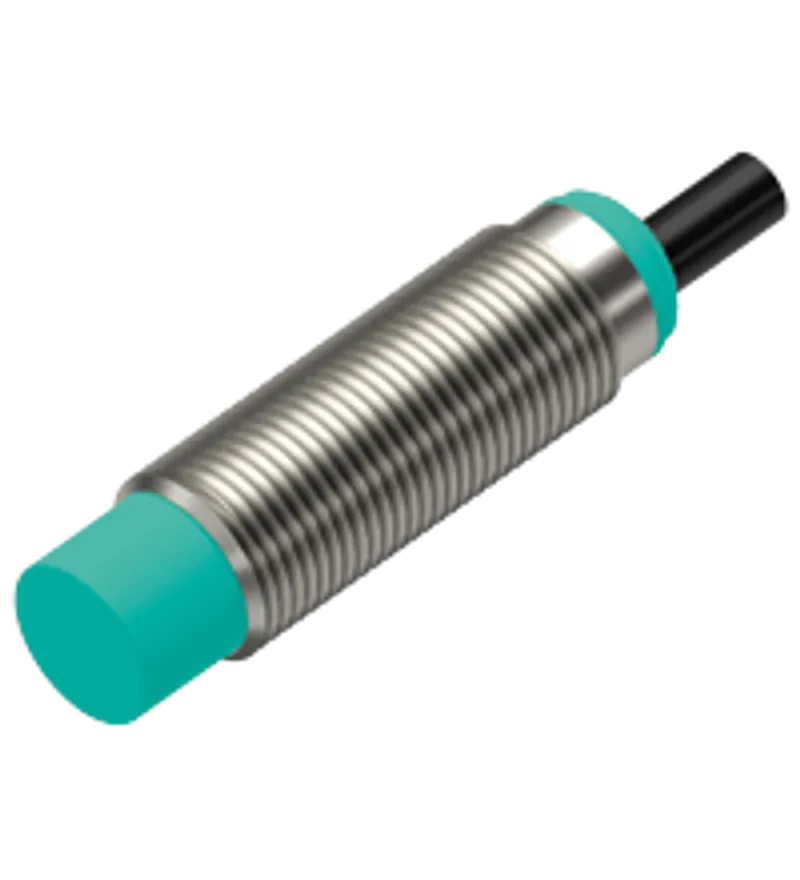

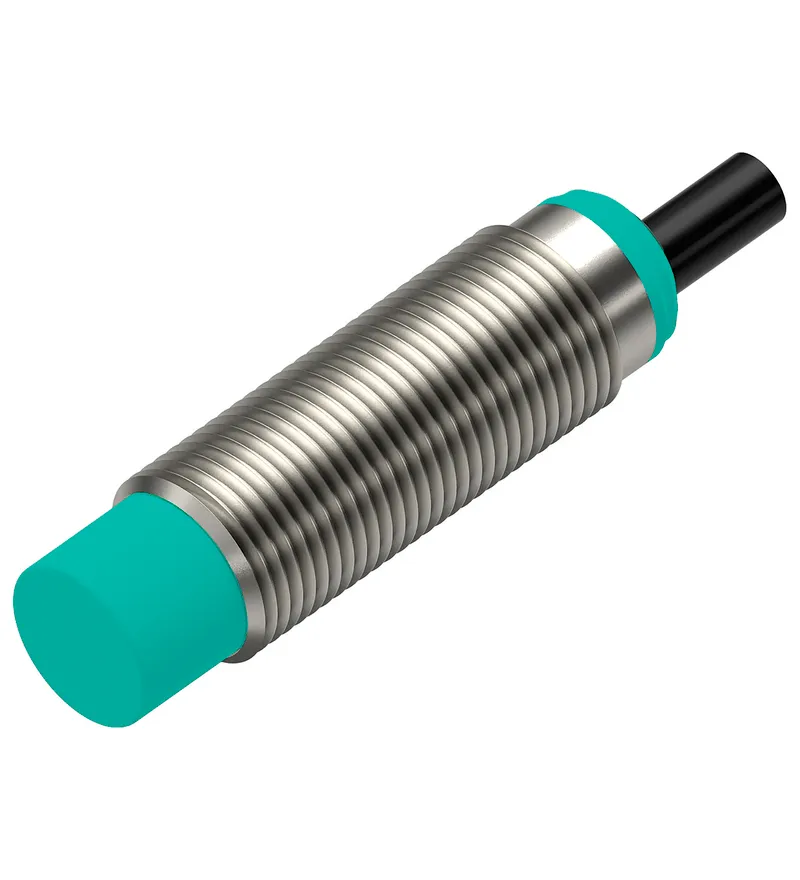

Pepperl Fuchs NAN7-12GM40-U – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NAN7-12GM40-U be shipped?
NAN7-12GM40-U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NAN7-12GM40-U in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NAN7-12GM40-U and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NAN7-12GM40-U, subject to availability and destination.
• Inductive analog sensor
• Output 0 V ... 10 V
• Measuring range 0 ... 7 mm
• Non-flush mountable
• Flexible use with versatile mounting opportunities
Output type: Analog voltage output, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: brass , white bronze coated, Degree of protection: IP65 / IP67, Material: PVC
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70145056-0003 |
| Output type | Analog voltage output |
| Installation | non-flush |
| Output polarity | DC |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 24 mm x 24 mm x 1 mm |
| Measuring range | 0 ... 7 mm |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 15 ... 30 V UB |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | current limited |
| Linearity error | ± 3 % of full-scale value |
| Temperature drift | ± 10 % of full-scale value |
| Repeat accuracy | ± 1 % of full-scale value |
| Recovery time | ≤ 50 ms |
| No-load supply current | 12 mA I0 |
| Status indicator | LED, yellow permanently on: damping element within measuring range slowly flashing (2 Hz): damping element outside measuring range fast flashing (10 Hz): fault state |
Safety-relevant product characteristics
| MTTFd | 941 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Analog output
| Output type | 0 ... 10 V |
| Slope of output characteristic | 1.4 V / mm |
| Load resistor | ≥ 500 Ω |
| Settling time | ≤ 100 ms |
Conformity
| PWIS conformity | VDMA 24364-C1/T100°C-W |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 EN IEC 60947-5-7 |
Approvals and certificates
| Protection class | II |
| Rated insulation voltage | 30 V Ui |
| Rated impulse withstand voltage | 500 V Uimp |
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | brass , white bronze coated |
| Sensing face | PBT , green |
| Degree of protection | IP65 / IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 4.3 mm ± 0.15 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | black |

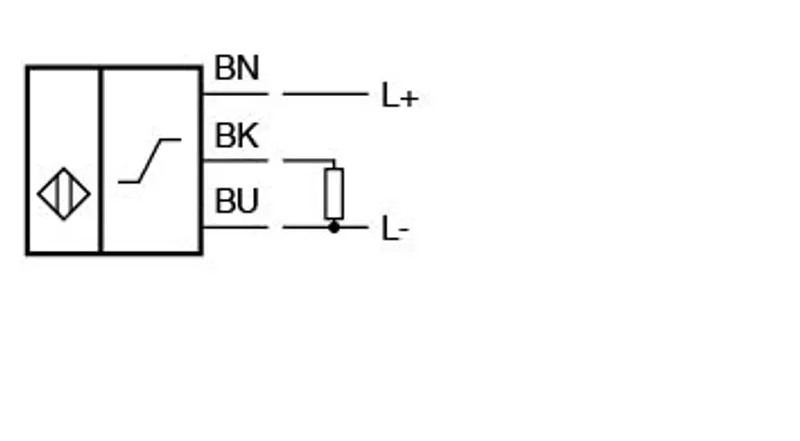

| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.34 mm2 |
| Cable: Length | 2 m L |
| Mass | 80 g |

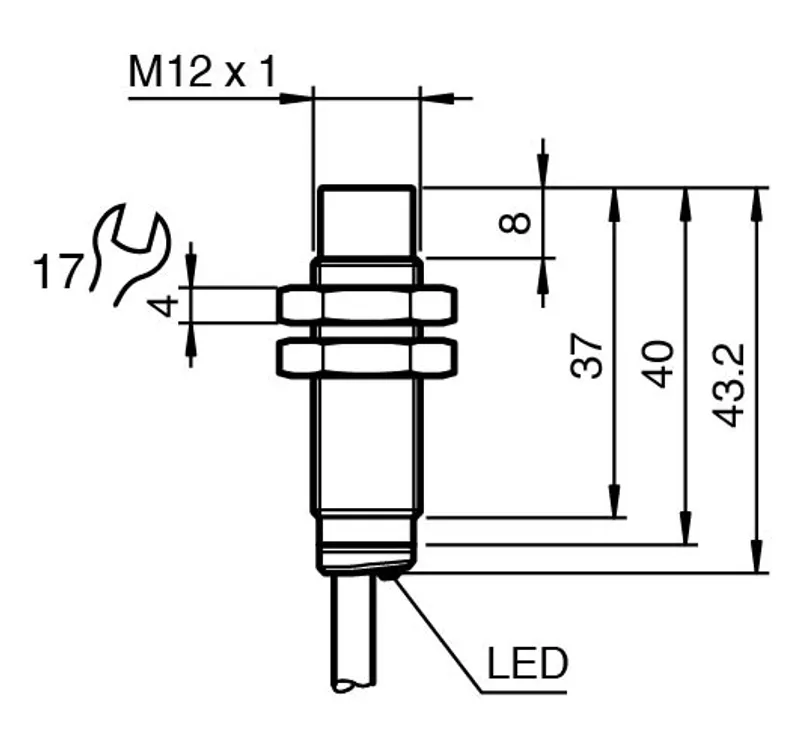

| Dimensions: Length | 43 mm |
| Dimensions: Diameter | 12 mm |
| Mounting | with nuts, M12 |
| Tightening torque | ≤ 10 Nm |
General information
| Scope of delivery | 2 self locking nuts in scope of delivery |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NAN7-12GM40-U | |
| Installation conditions | PDF · 579 kB |
CAD & dimension drawings
| 3-D model (STEP) NBN4-12GM40-E2-Y0288 | STP · 806 kB |
Certificates (3)
| Canada USA UL Ordinary Location (UL-US-2019259-5 / UL-CA-2015551-5) | PDF · 368 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
More Pepperl Fuchs parts

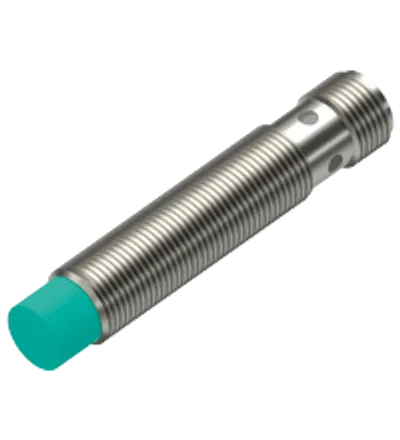

Available on requestInductive sensor NAN6-12GM50-U-V1

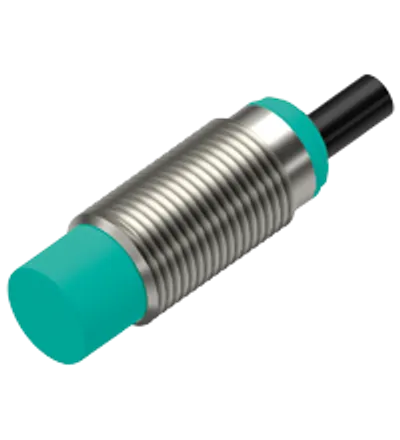

Available on requestInductive sensor NAN7-12GM30-E2-IO

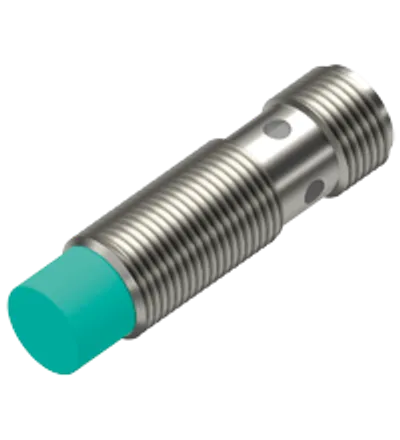

Available on requestInductive sensor NAN7-12GM30-E2-IO-V1

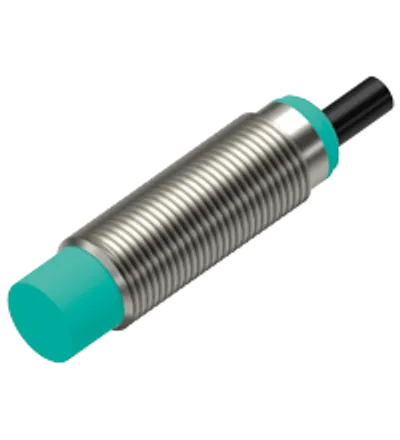

Available on requestInductive sensor NAN7-12GM40-I
Available on requestInductive sensor NAN8-18GM60-I
Available on requestInductive sensor NAN8-18GM60-I-V1

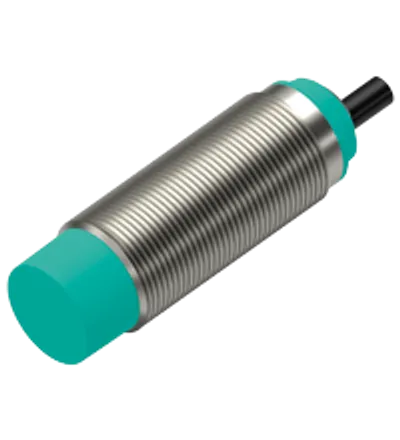

Available on requestInductive sensor NAN8-18GM60-U

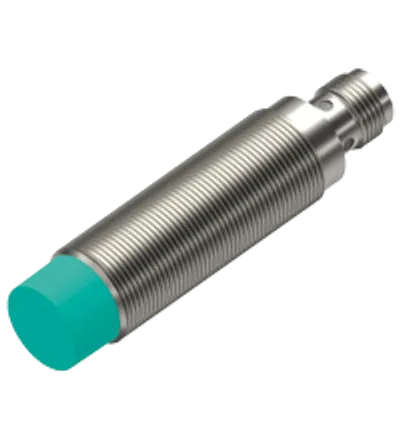

Available on requestInductive sensor NAN8-18GM60-U-V1
