Pepperl Fuchs MW-REF-M100
Radar corner reflector
- MPN
- MW-REF-M100
- Category
- Industrial Radar Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs MW-REF-M100?
Metal reflector to amplify the reflection signal
Increasing the reflective properties of objects with low radar cross section
Robust and weahterproof design
Simple and fast mounting

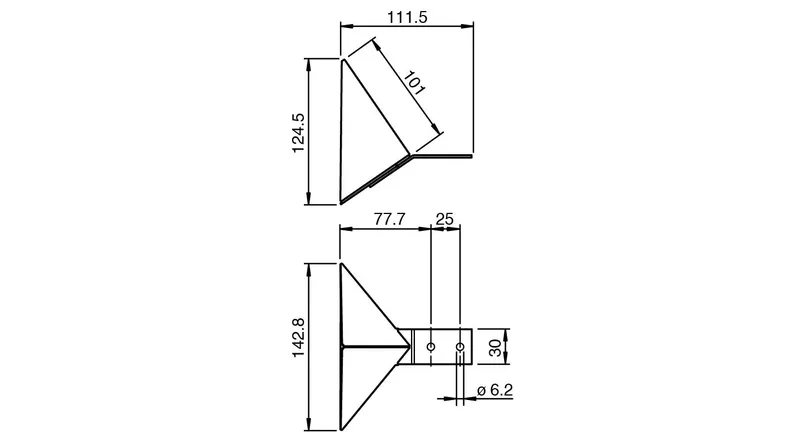

Radar corner reflector, triangular 142.8 x 124.5 x 111.5 mm, with 2 mounting holes, Metal reflector to amplify the reflection signal, Increasing the reflective properties of objects with low radar cross section, Robust and weahterproof design
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70138261 |
| Suitable components | industrial radar sensors |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Material | steel DC01, galvanized (electro-zink plated) |
| Mass | 159 g |
| Dimensions: Height | 124.5 mm |
| Dimensions: Width | 142.8 mm |
| Dimensions: Length | 111.5 mm |
| Mounting | mounting holes , Diameter: 6.2 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
MW-REF-M100: frequently asked questions
When can MW-REF-M100 be shipped?
MW-REF-M100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MW-REF-M100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MW-REF-M100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MW-REF-M100, subject to availability and destination.
