Pepperl Fuchs MNI40N

Name: Pepperl Fuchs MNI40N
Brand: Pepperl Fuchs
SKU: MNI40N

MPN: MNI40N · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Incremental Rotary Encoders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can MNI40N be shipped?

MNI40N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MNI40N in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MNI40N and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MNI40N, subject to availability and destination.

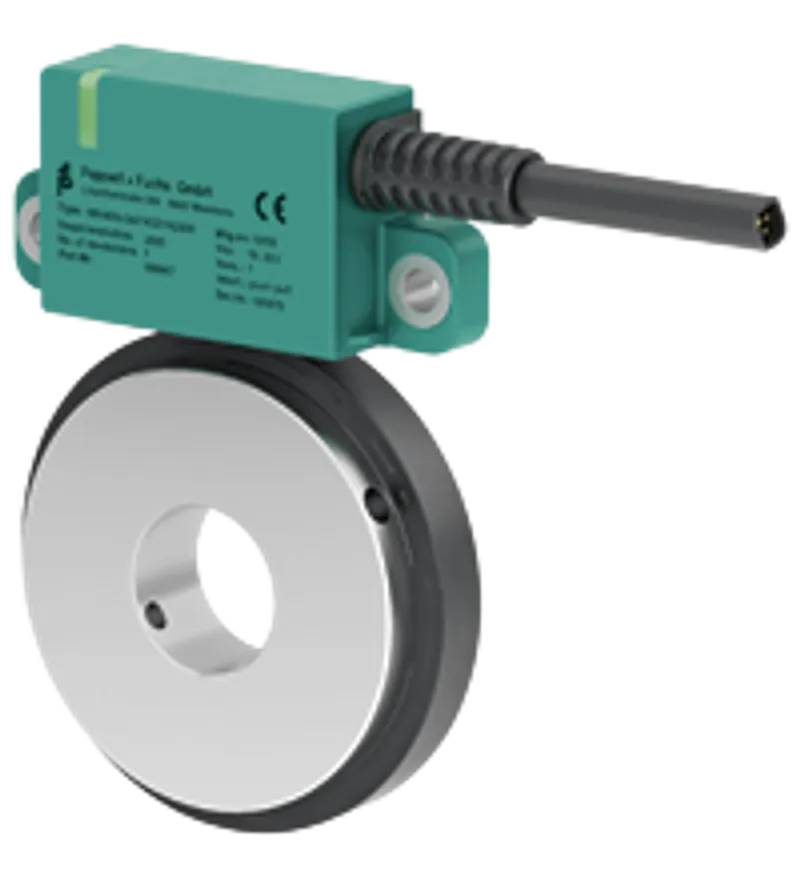

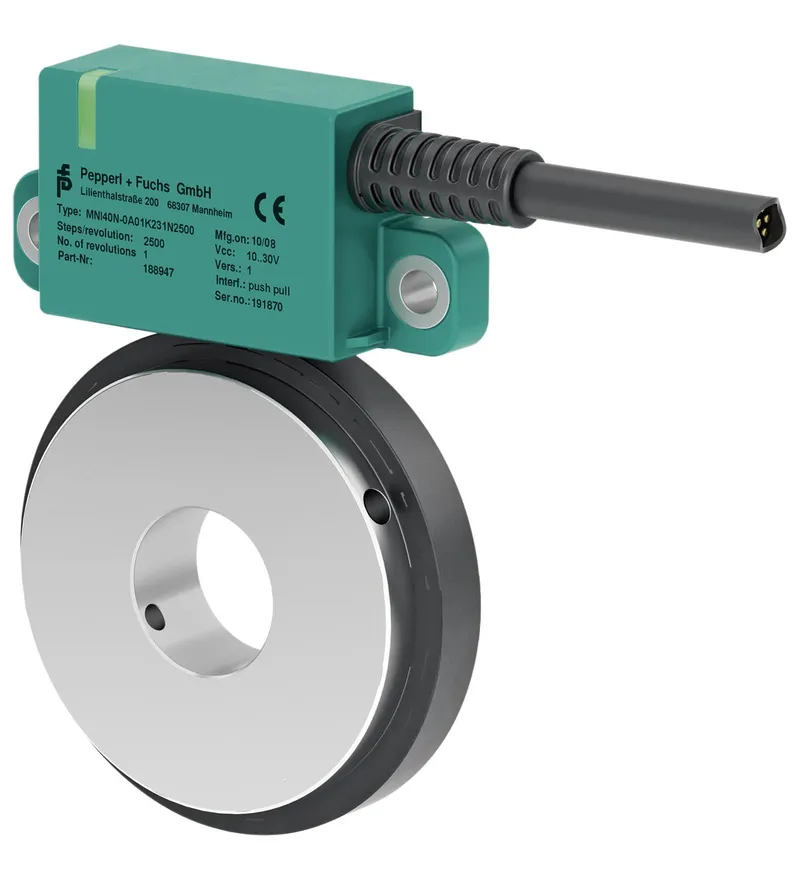

Incremental rotary encoder. Magnetic, non Contact, Clear function verification via two-color LEDs (red/green), Simple installation and adjustment using assistance functions reduce costs, Self-diagnostics including the magnetic wheel provide quality assurance, Internal intelligence provides easy setup and reliable operation , The elastomer coating of the magnetic wheel provides resistance to dirt as well as thermal and mechanical shock, Enclosure type: Rectangular type, Type of shaft: non-contact. Detection type: magnetic sampling. Pulse count: max. 7200. UL File Number: E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product.. MTTFd: 942 a. Diagnostic Coverage (DC): 0 %. LED red/green: Operating display / Alignment aid. Operating voltage: 10 ... 30 V DC 5 V DC for RS-422. No-load supply current: max. 55 mA. Output type: push-pull, incremental or RS-422, incremental. Voltage drop: < 2.5 V. Load current: max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof). Output frequency: max. 1 MHz. Cable: ∅4,7 mm, 4 x 2 x 0,128 mm2 connection with plug M12, 8-pin, L = 0.3 m. Degree of protection: DIN EN 60529, IP67 , IP68 , IP69K. Climatic testing: DIN EN 60068-2-30. Emitted interference: EN IEC 61000-6-4:2019. Noise immunity: EN IEC 61000-6-2:2019. Shock resistance: DIN EN 60068-2-27, 200 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 40 g, 10 ... 2000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. adapters providing field wiring on request. Maximum permissible ambient temperaturemax. 80 °C (max. 176 °F): . Maximum permissible ambient temperature: max. 80 °C (max. 176 °F). Operating temperature: -40 ... 100 °C (-40 ... 212 °F). Storage temperature: -40 ... 100 °C (-40 ... 212 °F). Material: . HousingPACablePURMagnetic wheelsteel 1.4021 (AISI 420)ferrite filled cured rubber: . Housing: PA. Cable: PUR. Magnetic wheel: steel 1.4021 (AISI 420)ferrite filled cured rubber. Mass: approx. 190 g. Rotational speed: max. 30000 min -1. Dimensions: . Width22.4 mmLength32 mm: . Width: 22.4 mm. Length: 32 mm

Specifications

General specifications

Detection type	magnetic sampling
Pulse count	max. 7200
UL File Number	E223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product.

Functional safety related parameters

MTTFd	942 a
Diagnostic Coverage (DC)	0 %

Indicators/operating means

LED red/green

Operating display / Alignment aid

Electrical specifications

Operating voltage	10 ... 30 V DC 5 V DC for RS-422 UB
No-load supply current	max. 55 mA I0

Output

Output type	push-pull, incremental or RS-422, incremental
Voltage drop	< 2.5 V Ud
Load current	max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof)
Output frequency	max. 1 MHz

Connection

Cable

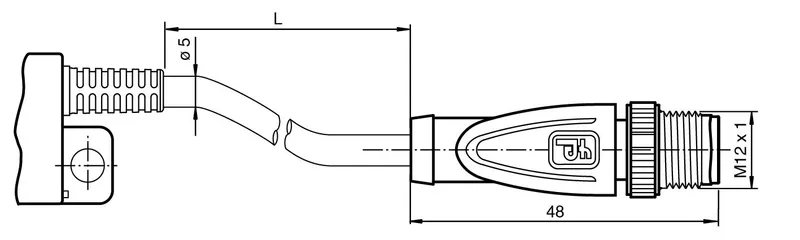

∅4,7 mm, 4 x 2 x 0,128 mm2 connection with plug M12, 8-pin, L = 0.3 m

Standard conformity

Degree of protection	DIN EN 60529, IP67 , IP68 , IP69K
Climatic testing	DIN EN 60068-2-30
Emitted interference	EN IEC 61000-6-4:2019
Noise immunity	EN IEC 61000-6-2:2019
Shock resistance	DIN EN 60068-2-27, 200 g, 6 ms
Vibration resistance	DIN EN 60068-2-6, 40 g, 10 ... 2000 Hz

Approvals and certificates

UL approval	cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. adapters providing field wiring on request
Maximum permissible ambient temperaturemax. 80 °C (max. 176 °F)	Maximum permissible ambient temperature
Maximum permissible ambient temperature	max. 80 °C (max. 176 °F)

Ambient conditions

Operating temperature	-40 ... 100 °C (-40 ... 212 °F)
Storage temperature	-40 ... 100 °C (-40 ... 212 °F)

Mechanical specifications

Material
HousingPACablePURMagnetic wheelsteel 1.4021 (AISI 420)ferrite filled cured rubber	Housing
Housing	PA
Cable	PUR
Magnetic wheel	steel 1.4021 (AISI 420)ferrite filled cured rubber
Mass	approx. 190 g
Rotational speed	max. 30000 min -1

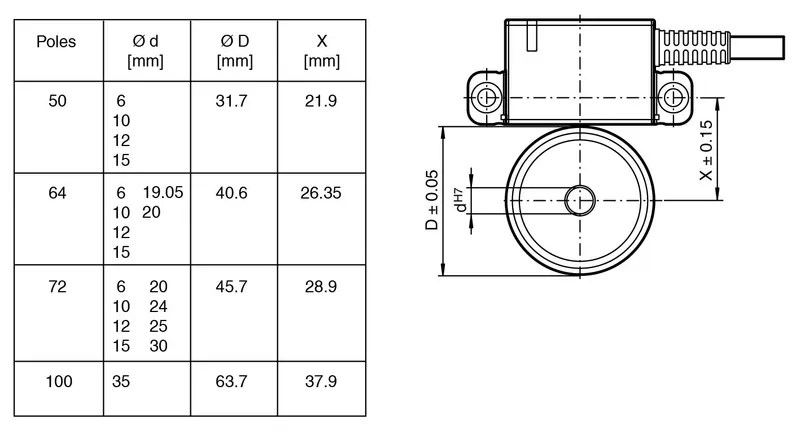

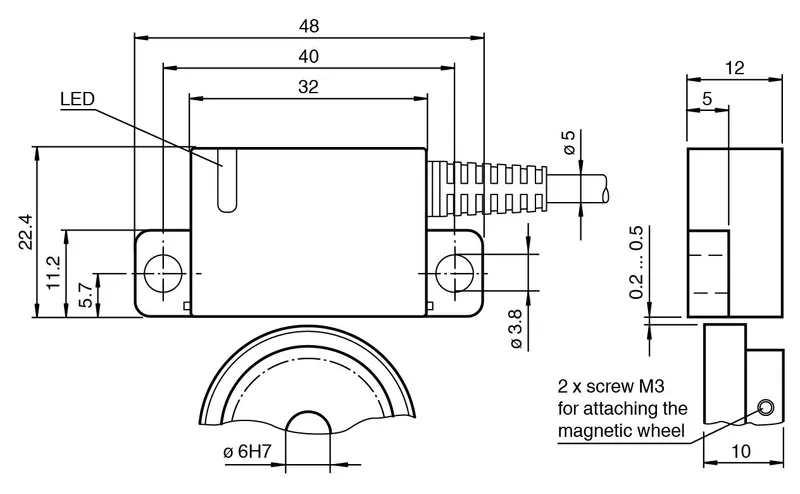

Dimensions
Width22.4 mmLength32 mm	Width
Width	22.4 mm
Length	32 mm
