Pepperl Fuchs ML100-8-H-350-RT-7635/103/115a – Background suppression sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ML100-8-H-350-RT-7635/103/115a be shipped?
ML100-8-H-350-RT-7635/103/115a is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ML100-8-H-350-RT-7635/103/115a in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ML100-8-H-350-RT-7635/103/115a and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ML100-8-H-350-RT-7635/103/115a, subject to availability and destination.
• Miniature design
• Easy to use
• Very bright, highly visible light spot
• Full metal thread mounting
• Highly visible LEDs for Power ON and switching state
• Not sensitive to ambient light
Triangulation sensor with background suppression, 350 mm adjustable detection range, red light, light/dark on, pnp output, fixed cable with M8 plug, Miniature design, Easy to use, Very bright, highly visible light spot, Full metal thread mounting, Highly visible LEDs for Power ON and switching state
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 308383 |
| Detection range | 5 ... 350 mm |
| Detection range min. | 5 ... 30 mm |
| Detection range max. | 5 ... 350 mm |
| Adjustment range | 30 ... 350 mm |
| Reference target | standard white, 100 mm x 100 mm |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | no |
| Black-white difference (6 %/90 %) | < 18 % at 350 mm |
| Diameter of the light spot | approx. 20 mm at a distance of 350 mm |
| Opening angle | approx. 4 ° |
| Optical face | frontal |
| Ambient light limit | EN 60947-5-2:2007+A1:2012 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 860 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: power on |
| Function indicator | LED yellow: lights when object is detected |
| Control elements | Sensing range adjuster |
| Control elements | Light-on/dark-on changeover switch |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 20 mA I0 |
Output
| Switching type | The switching type of the sensor is adjustable. The default setting is: light-on |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 500 Hz f |
| Response time | 1 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |

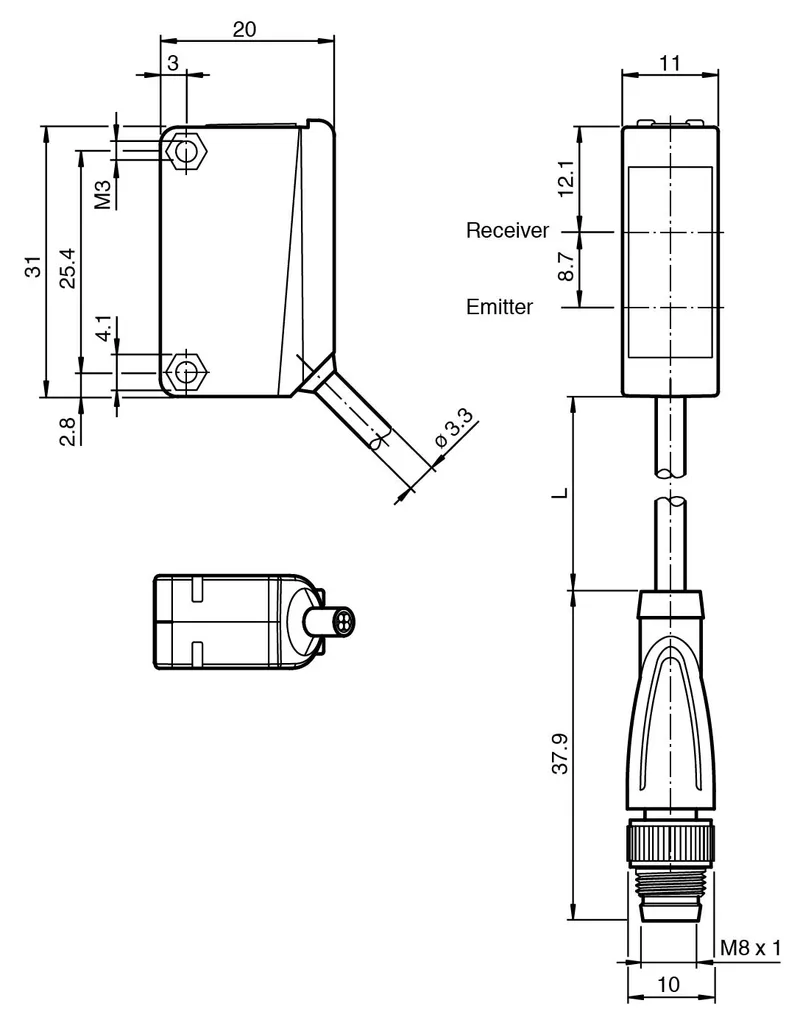

Mechanical specifications
| Degree of protection | IP67 |
| Connection | 65 mm fixed cable with M8 connector, 4-pin |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | PMMA |
| Mass | approx. 15 g |
| Tightening torque, fastening screws | 0.6 Nm |
| Dimensions: Height | 31 mm |
| Dimensions: Width | 11 mm |
| Dimensions: Depth | 20 mm |
| Cable length | 65 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet ML100-8-H-350-RT-7635/103/115a | |
| Instruction Manual | PDF · 150 kB |
| Commissioning Instructions | PDF · 541 kB |
CAD & dimension drawings
| 3-D model (STEP) ML100-8-H-3704 | STP · 1.0 MB |
Certificates (5)
| USA UL E87056 (UL-US-2015966-0 / UL-CA-2012696-0) | PDF · 563 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 200 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 171 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 318 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 235 kB |
