Pepperl Fuchs ML100-54-F/25/103/115a/154 – Retroreflective sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Retroreflective Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ML100-54-F/25/103/115a/154 be shipped?
ML100-54-F/25/103/115a/154 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ML100-54-F/25/103/115a/154 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ML100-54-F/25/103/115a/154 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ML100-54-F/25/103/115a/154, subject to availability and destination.
• No controls
• Miniature design
• Easy to use
• Clearly visible LEDs for Power ON, switching state and weak signal indication
• Very bright, highly visible light spot
• Full metal thread mounting
• Not sensitive to ambient light
• Optimized for small distances to any reflector
• Mounting optical reflective films down to a distance of 20 mm possible
Retroreflective sensor with polarization filter, plastic housing, 3 m detection range, red light, light on, DC version, PNP output, fixed cable with M8 plug, No controls, Miniature design, Easy to use, Clearly visible LEDs for Power ON, switching state and weak signal indication, Very bright, highly visible light spot
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70105368 |
| Effective detection range | 0 ... 2.7 m |
| Reflector distance | 0.02 ... 2.7 m ( 0.02 ... 1 m on OFR-100/100 optical reflective film ) |
| Threshold detection range | 3 m |
| Reference target | H50 reflector |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | yes |
| Diameter of the light spot | approx. 200 mm at a distance of 3 m |
| Opening angle | approx. 4 ° |
| Optical face | frontal |
| Ambient light limit | EN 60947-5-2 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 860 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED green: power on |
| Function indicator | LED yellow: lights up when receiving the light beam ; flashes when falling short of the operating reserve; OFF when light beam is interrupted |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | max. 10 % |
| No-load supply current | < 20 mA I0 |
Output
| Switching type | light-on |

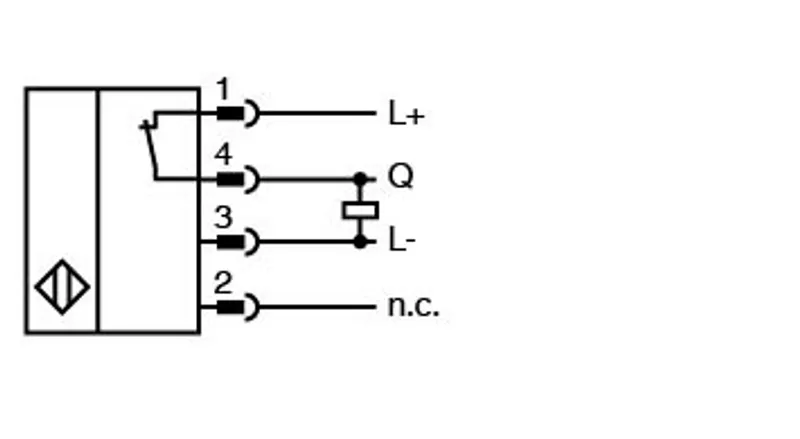

| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 1000 Hz f |
| Response time | 0.5 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 300 mm fixed cable with 4-pin, M8 x 1 connector |
| Material: Housing | PC (Polycarbonate) |
| Material: Optical face | PMMA |
| Mass | approx. 20 g |
| Tightening torque, fastening screws | 0.6 Nm |

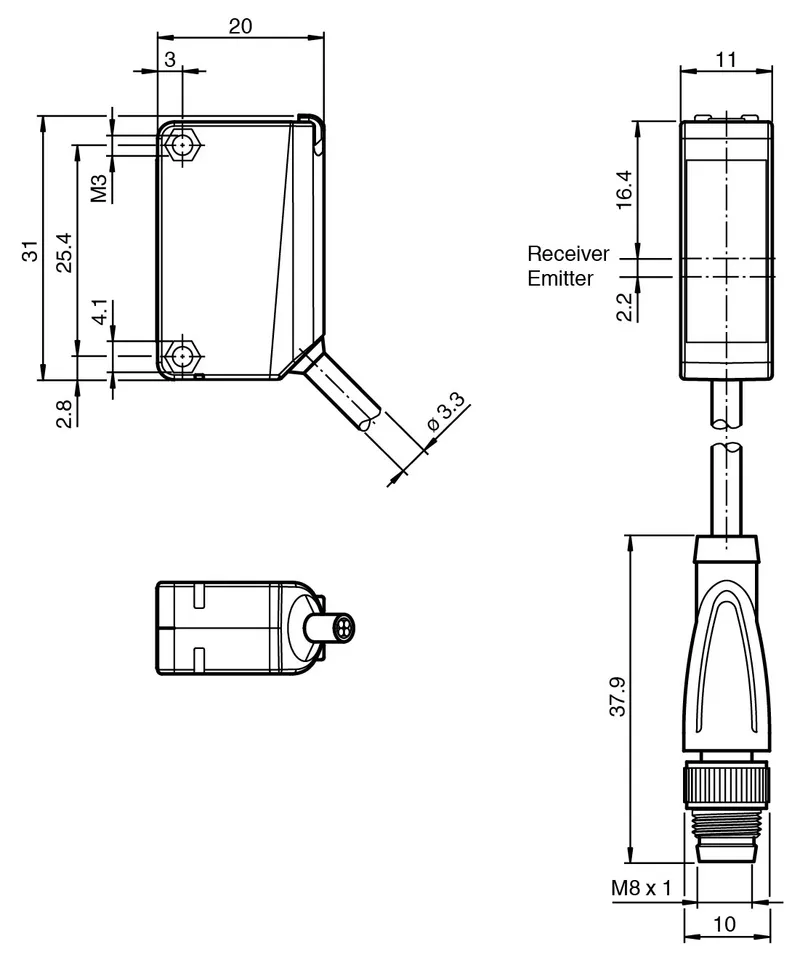

| Dimensions: Height | 31 mm |
| Dimensions: Width | 11 mm |
| Dimensions: Depth | 20 mm |
| Cable length | 0.3 m |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet ML100-54-F/25/103/115a/154 | |
| Instruction Manual | PDF · 150 kB |
Certificates (5)
| USA UL E87056 (UL-US-2015966-0 / UL-CA-2012696-0) | PDF · 563 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 200 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 171 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 318 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 235 kB |
