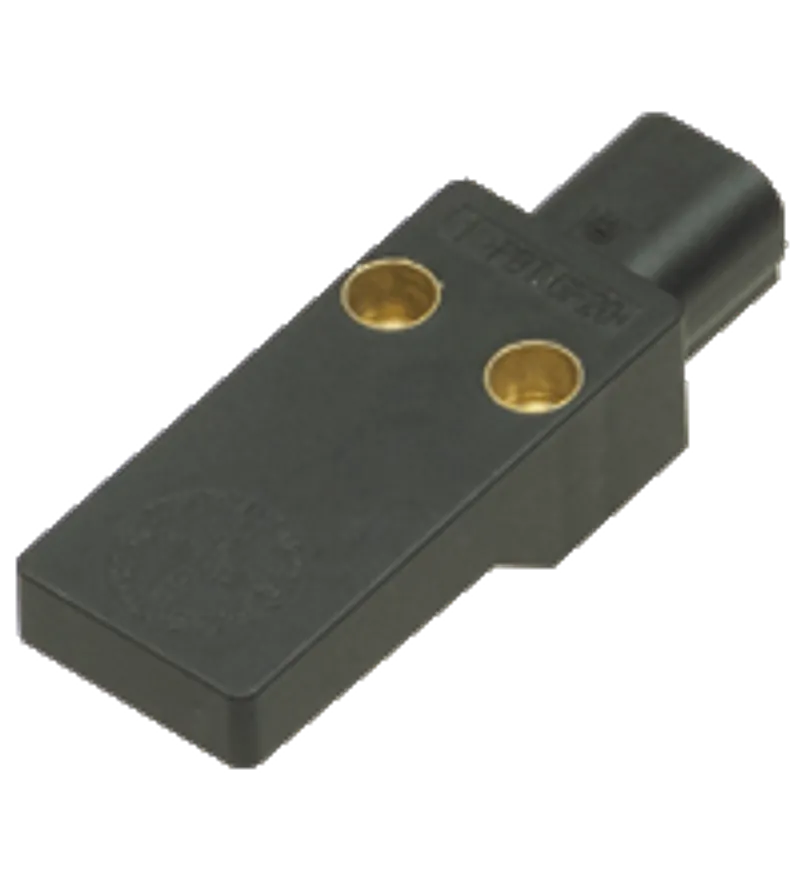

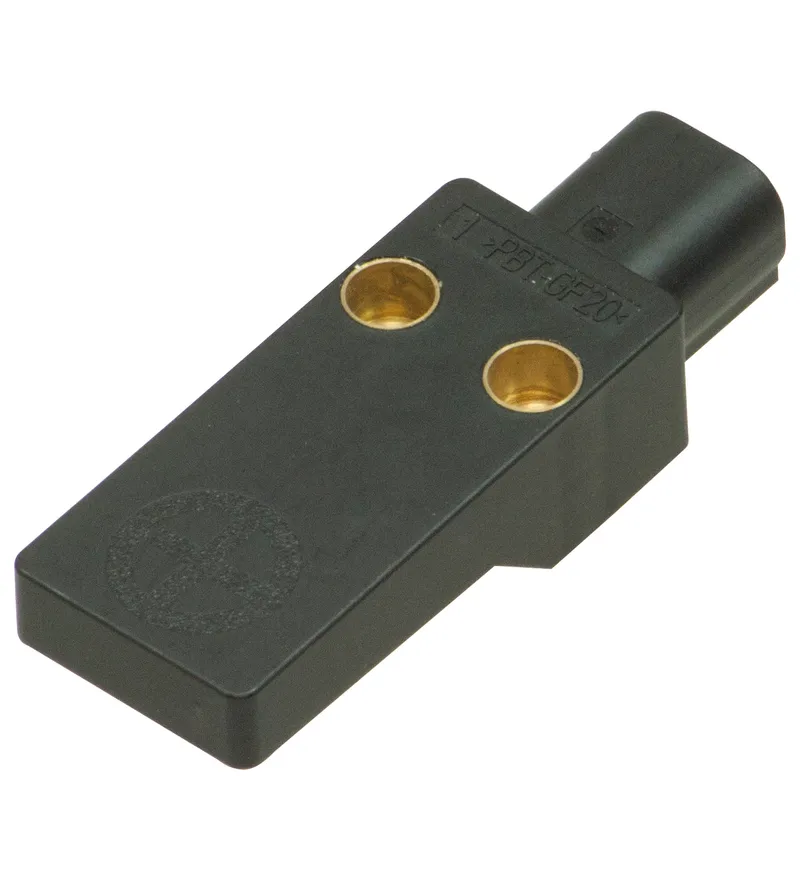

What is the Pepperl Fuchs MB15-F33X-PWM-AMP-Y70197494?

Direct assembled AMP connector

Special Puls Width Modulation PWM output

Wide voltage range

Output type: PWM output (PNP), Installation: non-flush, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 60 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: PBT , black, Degree of protection: IP67

Specifications

General specifications

Order code (Pepperl+Fuchs part number)70197494
Output typePWM output (PNP)
Identification Number7736370
Rated operating distance5 ... 15 mm sn
Installationnon-flush
Output type3-wire
LifecycleActive (current Pepperl+Fuchs product)

Nominal ratings

Operating voltage10 ... 60 V DC UB
Switching frequencymax. 10 Hz f
Reverse polarity protectionreverse polarity protected
Short-circuit protectionpulsing
Voltage drop≤ 2.5 V Ud
Operating current0 ... 50 mA IL
No-load supply current< 5 mA I0
Time delay before availability≤ 25 ms tv

Safety-relevant product characteristics

MTTFd930 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0 %

Compliance with standards and directives

Standard conformity: StandardsEN IEC 60947-5-2

Ambient conditions

Ambient temperature-35 ... 70 °C (-31 ... 158 °F)
Storage temperature-40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Connection typeConnector plug
Housing materialPBT , black
Degree of protectionIP67

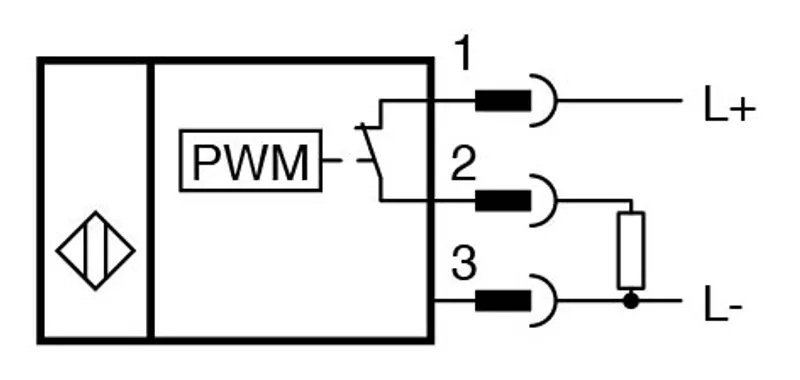

Connector: Number of pins3
Connector: Connection assemblyAMP connector housing

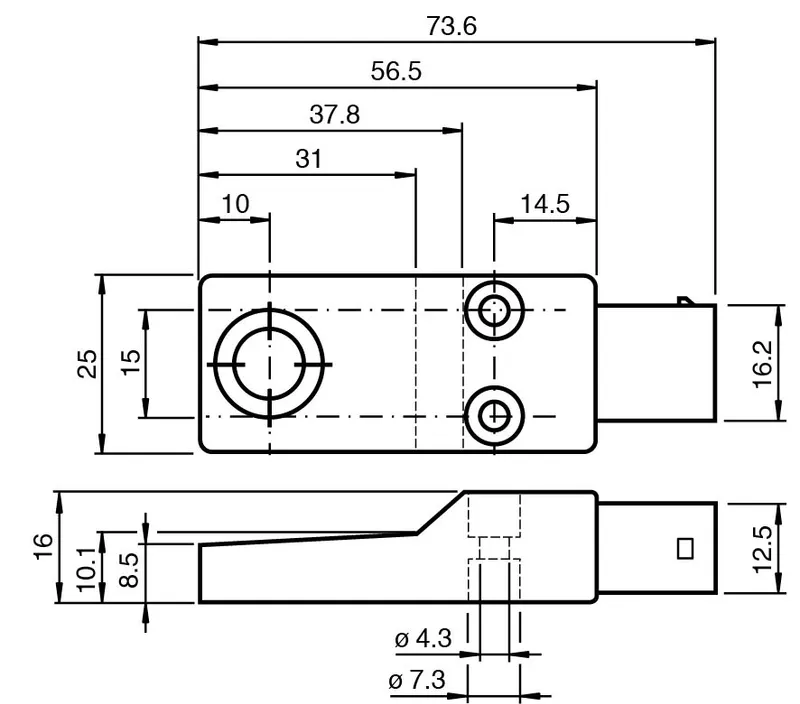

Dimensions: Height16 mm
Dimensions: Width25 mm
Dimensions: Length73 mm
NoteTightening torque: 5 Nm Fixing screws Magnet , plastic / brass
