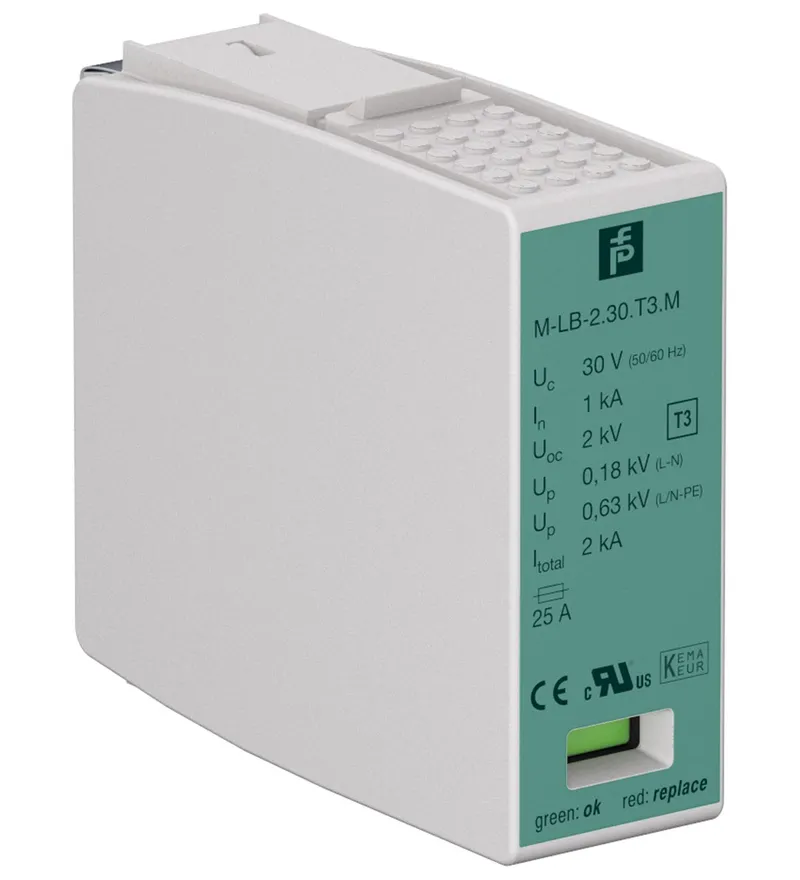

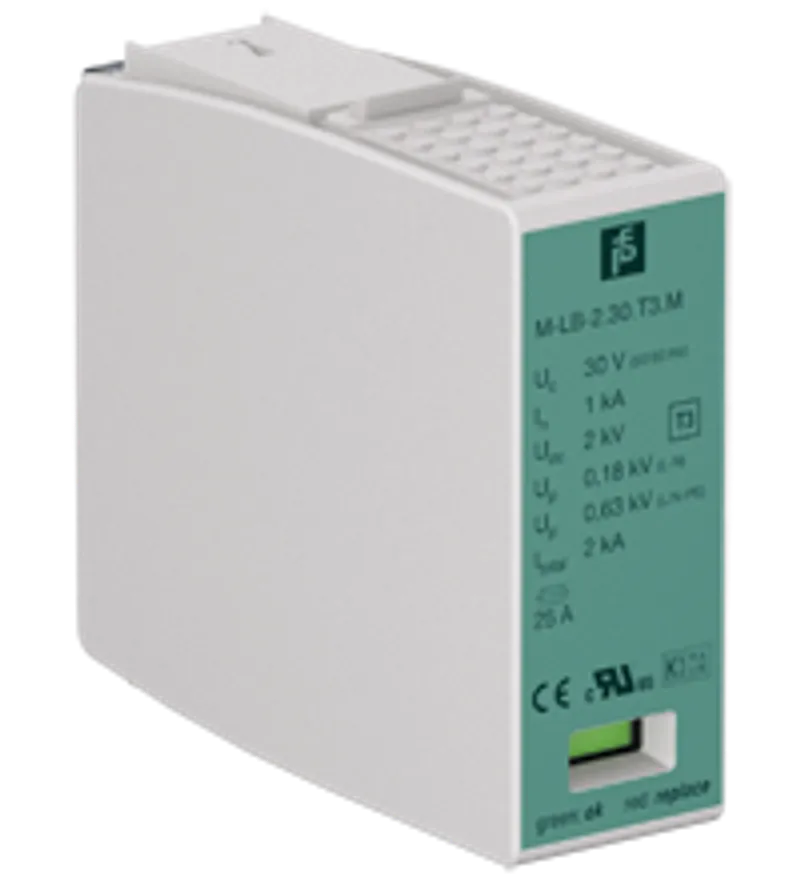

Pepperl Fuchs M-LB-2.30.T3.M – Protection Module for Surge Protection Barrier
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Devices for Supply Line Protection |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can M-LB-2.30.T3.M be shipped?
M-LB-2.30.T3.M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up M-LB-2.30.T3.M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for M-LB-2.30.T3.M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for M-LB-2.30.T3.M, subject to availability and destination.
• Protection module for 1 supply line
• Type 3 acc. to EN 61643-11
• Removable module for surge protection barrier M-LB-2.30.T3.D
• Easy replacement of protection modules wihtout tools
• High discharge capacity
• Module can be exchanged under voltage (hot swap)
Protection module for 1 supply line, Type 3 acc. to EN 61643-11, Removable module for surge protection barrier M-LB-2.30.T3.D, Easy replacement of protection modules wihtout tools, High discharge capacity, Module can be exchanged under voltage (hot swap), Device type: Type 3 acc. to EN 61643-11 , Class III acc. to IEC 61643-11, Number of protected supply lines: 1
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70172496 |
| Device type | Type 3 acc. to EN 61643-11 Class III acc. to IEC 61643-11 |
| Number of protected supply lines | 1 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Maximum continuous operating voltage | 30 V AC 30 V DC Uc |
| Nominal load current | 25 A IL |
| Nominal discharge current (8/20 µs) | 1 kA In |
| Max. surge current (8/20 µs) | 2 kA Imax |
Indicators/settings
| Display elements | status display operating state (green) fault indication (red) |
Directive conformity
| Low voltage: Directive 2014/35/EU | EN 61643-11:2012 |
Conformity
| Degree of protection | IEC 60529:2013 |
| Shock resistance | EN 60068-2:2010 |
| Vibration resistance | EN 60068-2:2010 |
Ambient conditions
| Ambient temperature | -40 ... 80 °C (-40 ... 176 °F) |
Mechanical specifications
| Degree of protection | IP20 |
| Material: Housing | thermoplastic, color grey , UL 94 V-0 |
| Mass | approx. 50 g |

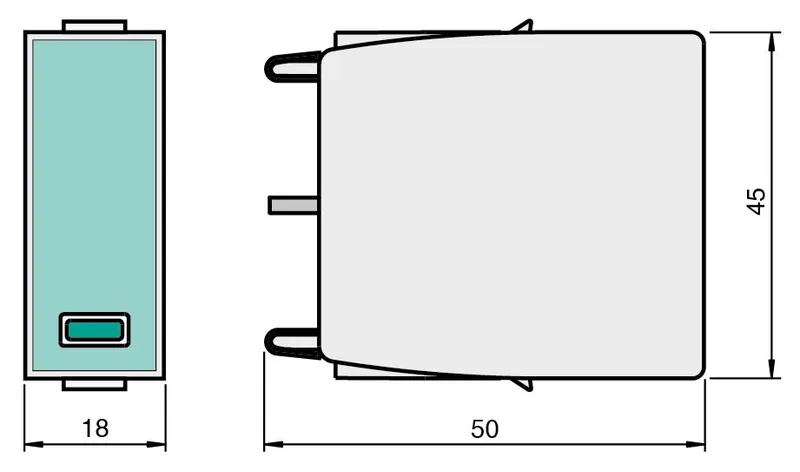

| Dimensions | 18 x 45 x 50 mm (0.7 x 1.8 x 2 inch) (W x H x D) , 1 TE acc. to DIN 43880 |
| Mounting | in the surge protection barrier M-LB-*.****.* |
International approvals
| UL approval | E346845 |
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet M-LB-2.30.T3.M |
Certificates (2)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 51 kB |
| USA UL Surge Protective Device UL (E346845 UL (VZCA2)) | PDF · 241 kB |
More Pepperl Fuchs parts

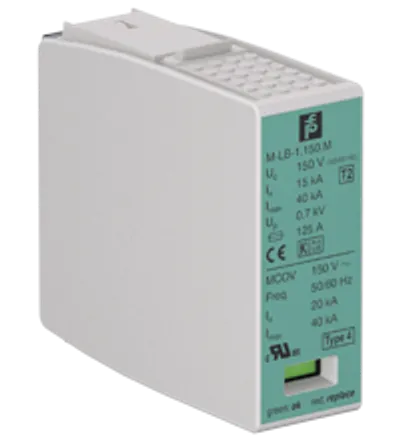

Available on requestProtection Module for Surge Protection Barrier M-LB-1.150.M

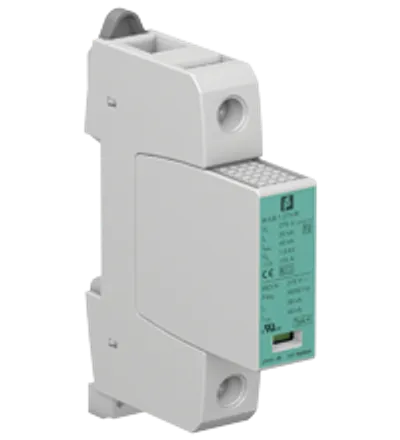

Available on requestSurge Protection Barrier M-LB-1.275.D

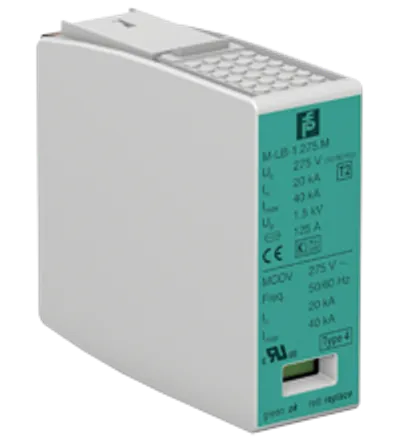

Available on requestProtection Module for Surge Protection Barrier M-LB-1.275.M
Available on requestProtection Module for Surge Protection Barrier M-LB-1.NPE.M

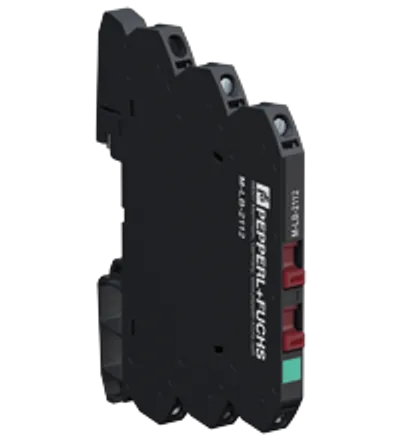

Available on requestSurge Protection Barrier M-LB-2112
Available on requestSurge Protection Barrier M-LB-2112.SP
Available on requestSurge Protection Barrier M-LB-2114

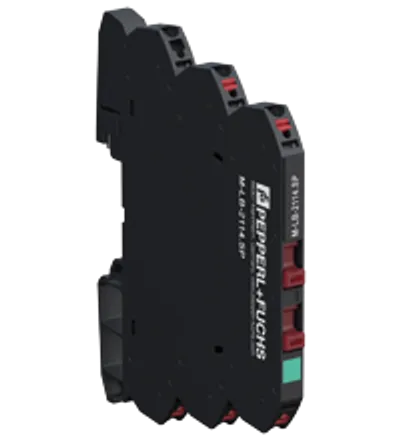

Available on requestSurge Protection Barrier M-LB-2114.SP
