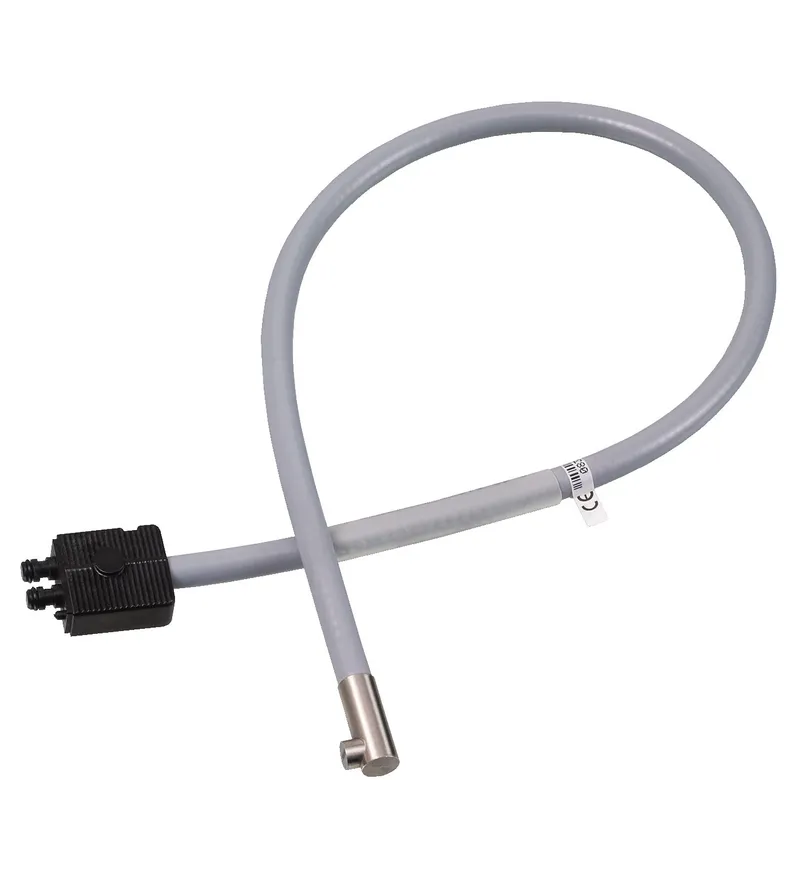

Glass fiber optic LLR 04-1,6-0,5-QW 1x4 — photo 2 of 2

Available on request

Pepperl Fuchs LLR 04-1,6-0,5-QW 1x4 – Glass fiber optic

MPN: LLR 04-1,6-0,5-QW 1x4 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can LLR 04-1,6-0,5-QW 1x4 be shipped?

LLR 04-1,6-0,5-QW 1x4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LLR 04-1,6-0,5-QW 1x4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LLR 04-1,6-0,5-QW 1x4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LLR 04-1,6-0,5-QW 1x4, subject to availability and destination.

• Optical face across the direction of fiber

• Chemical-resistant

Glass fiber optic - diffuse with metal silicone covering, Special features: High temperature, End piece: Thread / cylindrical right angle, Series: Glass fiber optic - diffuse, Sheathing: Metal-silicon, Device series: MLV41-LL

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	415992
Fiber optic length	500 mm l
Fiber optic diameter	7.3 mm d
Adapter form	04
End piece	Thread / cylindrical right angle
Bending radius	min. 25 mm
Fiber bundle diameter	1 x 2.15 mm / optical face: 1 x 3.6 mm2
Fiber configuration	statistical mixed Fv
Opening angle	approx. 69 °
Lifecycle	Active (current Pepperl+Fuchs product)

Ambient conditions

Ambient temperature	-20 ... 85 °C (-4 ... 185 °F) [Adapter] -40 ... 180 °C (-40 ... 356 °F) [End head and Covering]
Storage temperature	-20 ... 85 °C (-4 ... 185 °F)

Mechanical specifications

Degree of protection	IP65
Material: Optical face	glass
Material: Sheathing	Metal-silicon
Material: Core	Glass fiber
Material: End piece	Stainless steel 1.4305 / AISI 303
Material: Adapter	PVC
Extraction force	at probe at 20°C: 120 N
