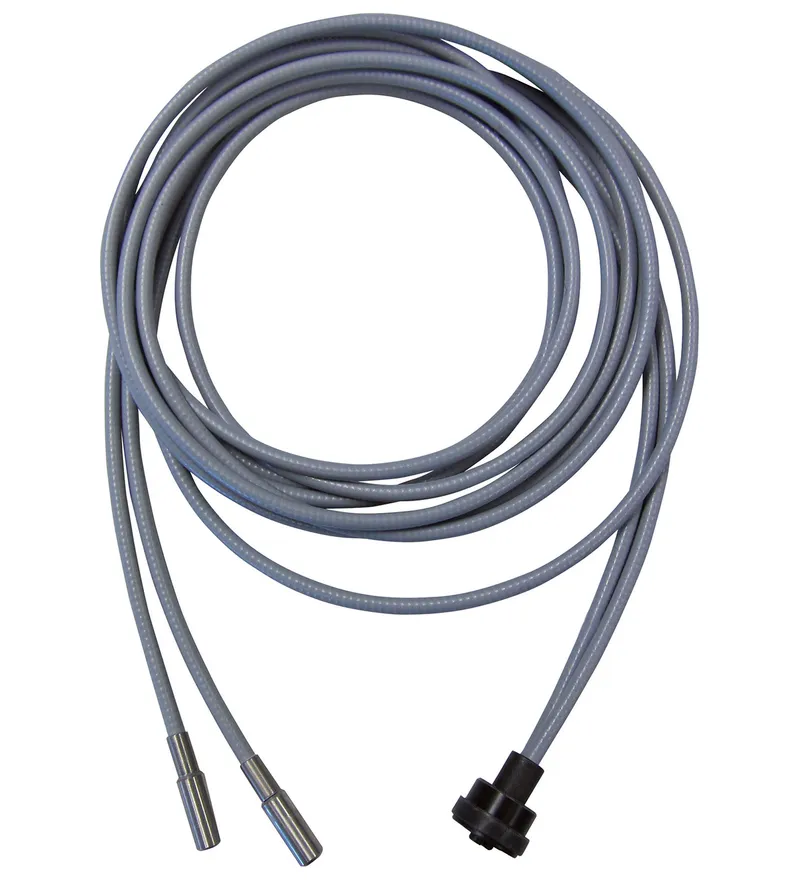

Pepperl Fuchs LLE 18/30-2,3-1,0-Z1 – Glass fiber optic
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LLE 18/30-2,3-1,0-Z1 be shipped?
LLE 18/30-2,3-1,0-Z1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LLE 18/30-2,3-1,0-Z1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LLE 18/30-2,3-1,0-Z1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LLE 18/30-2,3-1,0-Z1, subject to availability and destination.

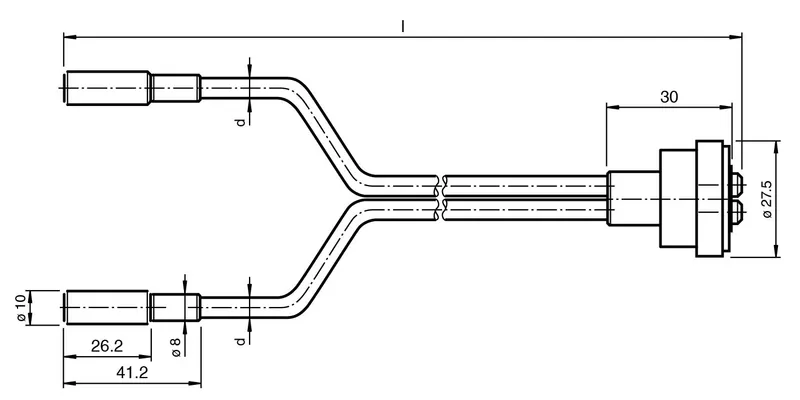

Glass fiber optic - thru-beam with metal silicon covering with beaming optics and cylinder head for fiberoptic devices RL5-LL and GLV30, length 1000 mm
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 415628 |
| Detection range | 300 mm |
| Fiber optic length | 1000 mm l |
| Fiber optic diameter | 5.9 mm d |
| Adapter form | 18/30 |
| End piece | Cylindrical and bundled lens |
| Bending radius | min. 22 mm |
| Fiber bundle diameter | 2.3 mm optical face: 4.2 mm2 |
| Opening angle | approx. 68 ° |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -20 ... 85 °C (-4 ... 185 °F) [Adapter] -40 ... 180 °C (-40 ... 356 °F) [End head and Covering] |
| Storage temperature | -20 ... 85 °C (-4 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP65 |
| Material: Optical face | glass |
| Material: Sheathing | Metal-silicon |
| Material: Core | Glass fiber |
| Material: End piece | Stainless steel 1.4305 / AISI 303 |
| Material: Adapter | Polyamide PA 6.6 |
| Extraction force | at probe at 20°C: 120 N |
Fiber optic amplifiers
| Device series | GLV30 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet LLE 18/30-2,3-1,0-Z1 |
More Pepperl Fuchs parts

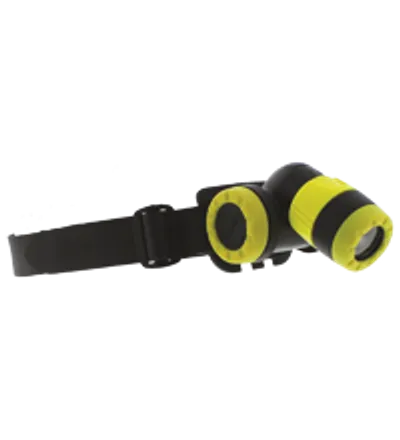

Available on requestHead lamp Lite-Ex PL 10e H 6°

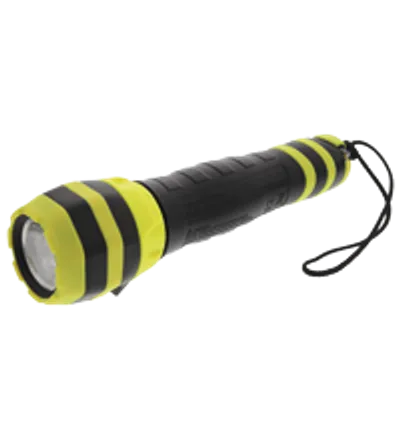

Available on requestFlashlight Lite-Ex PL 30e

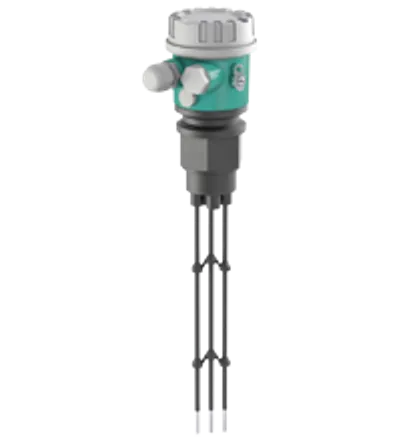

Available on requestConductive Limit Switch LKL-P1

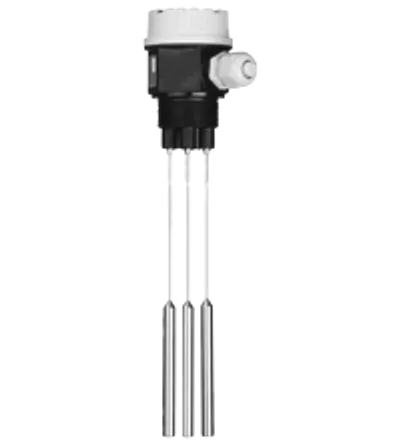

Available on requestConductive Limit Switch LKL-P2

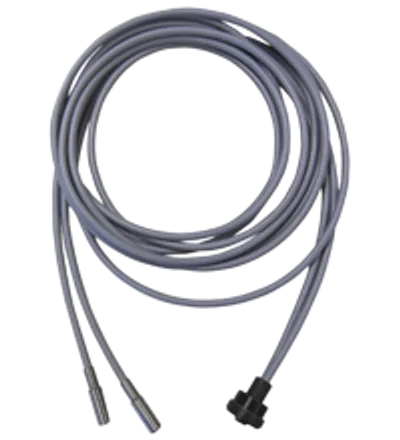

Available on requestGlass fiber optic LLE 18/30-2,3-2,0-Z1

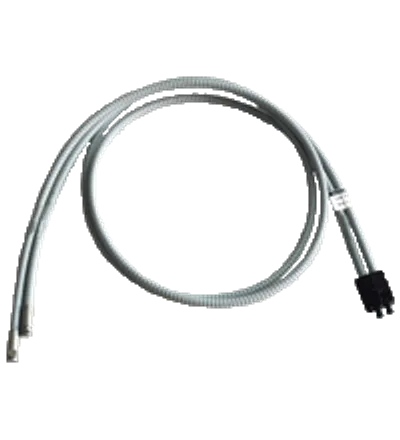

Available on requestGlass fiber optic LLE 04-1,6-0,4-WC3Available on requestGlass fiber optic LLE 04-1,6-0,5-WC3

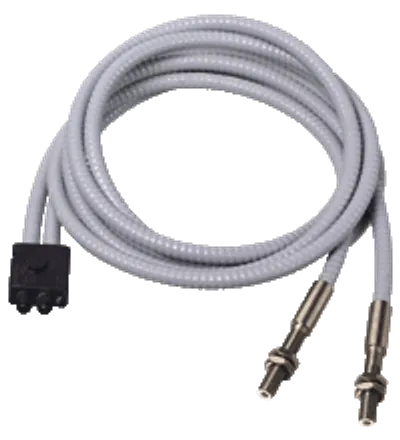

Available on requestGlass fiber optic LLE 04-1,6-1,0-G
