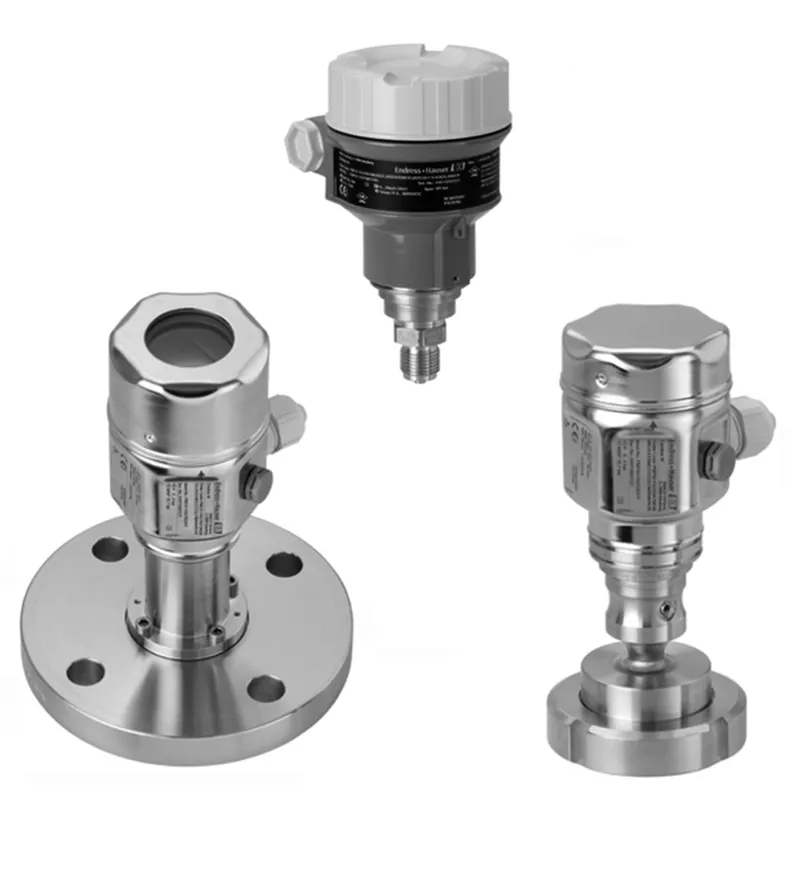

Pepperl Fuchs LHCR-51

Pressure Transmitter

MPN
LHCR-51
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs LHCR-51?

Device for hydrostatic pressure measurement in liquids or paste-like media

Rod version

Modular probe program to ensure optimum process adaptation

Temperature range up to 85 °C (185 °F)

Pressure range up to 10 bar (150 psi)

Easy commissioning without the need for an operating tool

Configurable by PACTware

Device for hydrostatic pressure measurement in liquids or paste-like media, Rod version, Modular probe program to ensure optimum process adaptation, Temperature range up to 85 °C (185 °F), Pressure range up to 10 bar (150 psi), Easy commissioning without the need for an operating tool, Configurable by PACTware

Specifications

General specifications

Order code (Pepperl+Fuchs part number)257465
Construction typedevice with rod probe
SeriesLHCR
LifecycleActive (current Pepperl+Fuchs product)

Supply

Rated voltageversions for safe area: 11.5 ... 35 V DC, HART, 2-wire 9 ... 32 V DC, PROFIBUS PA version for hazardous area see safety information (SI) Ur

Input

Measured variablehydrostatic pressure , relative pressure
Measuring range0.1 ... 10 bar max. turn down: 100:1

Output

Output signal4 ... 20 mA with superimposed digital communication protocol HART 6.0, 2-wire digital communication signal PROFIBUS PA (Profile 3.02)
Communication4 ... 20 mA HART (standard) PROFIBUS PA (option)

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EUEN 61326-1:2006 , EN 61326-2-3:2006 , EN 61326-2-5:2006
Low voltage: Directive 2014/35/EUEN 61010-1:2010

Conformity

Degree of protectionIEC 60529:2001

Measurement accuracy

Accuracyreference accuracy: 0.2 % (standard), 0.1 % (platinum) The reference accuracy comprises the non-linearity according to limit point setting, hysteresis and non-reproducibility acc. to IEC 60770. The data refer to the calibrated span.
Long-term driftup to 0.05 % of upper range limit (URL)/year up to 0.125 % of upper range limit (URL)/5 years

Operating conditions

Process conditions: Process temperature-40 ... 85 °C (-40 ... 185 °F)

Ambient conditions

Ambient temperature-40 ... 85 °C (-40 ... 185 °F) with display : -20 ... 70 °C (-4 ... 158 °F)
Storage temperature-40 ... 90 °C (-40 ... 194 °F)

Mechanical specifications

Degree of protectionIP66, NEMA 4X IP68, NEMA 6P (24 hours in water 1.83 m (6 ft) deep) IP69K (with separate housing and FEP cable)
Connectiongland M20 thread M20, G1/2, NPT1/2 device plug M12 HAN7D Harting connector, angled valve connector acc. ISO 4400, cable 5 m
Materialprocess connections: AISI 316L (1.4435 or 1.4404), Alloy C276 (2.4819) housing: - die-cast aluminum with protective powder-coating on polyester base, housing F31 - stainless steel AISI 316L (1.4404), housing F15 rod: AISI 316L (1.4404) or Alloy C276 (2.4819) process isolating diaphragm: Alloy C276 (2.4819), Rhodium Gold Alloy C276, Platinum Gold Alloy C276 sealing measuring cell: welded measuring cell or FKM Viton, EPDM, Kalrez
Process connectionthreads ISO 228: G1-1/2, threads ANSI: NPT1/2 flanges EN 1092-1: DN 40 ... DN 100, flanges ANSI 16.5: 2 ... 4 in, flanges JIS B2220

Data for application in connection with hazardous areas

EU-type examination certificatesee instruction manuals (SI)
Directive conformity: Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2009

International approvals

FM approvalsee instruction manuals (SI)
CSA approvalsee instruction manuals (SI)
IECEx approvalsee instruction manuals (SI)

Certificates and approvals

Drinking water approvalNSF61 approval
Overspill protectionsee approval (ZE)

General information

Supplementary documentationtechnical information (TI) manuals, brief instructions (BA, KA) instruction manuals (SI) control drawings (ZD) approval (ZE)
Supplementary informationEC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Accessories

Designationsee technical information (TI)

LHCR-51: frequently asked questions

When can LHCR-51 be shipped?

LHCR-51 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LHCR-51 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LHCR-51 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LHCR-51, subject to availability and destination.

More Pepperl Fuchs parts

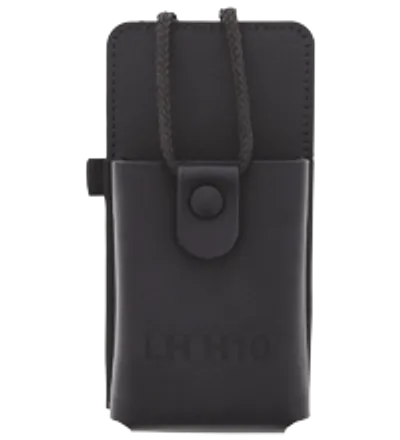

Pepperl Fuchs LH H10 – Leather holster
Pepperl Fuchs
LH H10

Leather holster

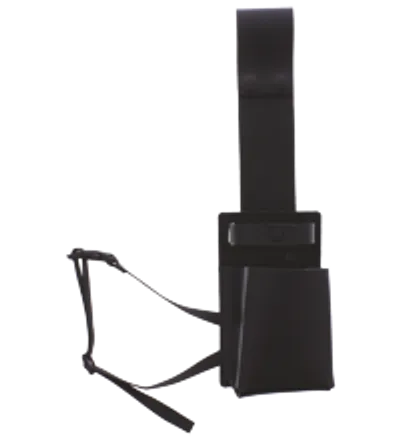

Pepperl Fuchs LH ID01 – Leather holster
Pepperl Fuchs
LH ID01

Leather holster

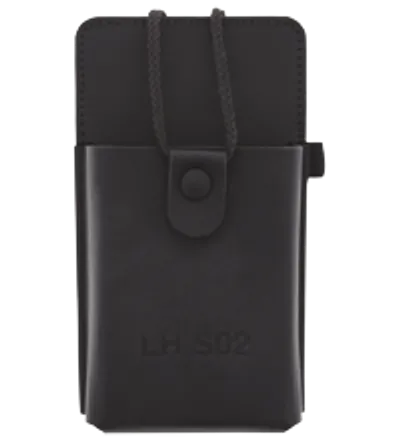

Pepperl Fuchs LH S02 – Leather holster
