Pepperl Fuchs LGS25-1200-IO/110/115b REC – Light grid
MPN: LGS25-1200-IO/110/115b REC · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Diffuse Mode Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LGS25-1200-IO/110/115b REC be shipped?
LGS25-1200-IO/110/115b REC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LGS25-1200-IO/110/115b REC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LGS25-1200-IO/110/115b REC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LGS25-1200-IO/110/115b REC, subject to availability and destination.
• Automation light grid
• Optical resolution 25 mm
• Super-fast object detection, even with 3-way beam crossover
• Software-free adjustment of height monitoring
• Object identification using integrated object recognition
• IO-Link interface for service and process data
• Optional temperature range to -30 °C
Automation light grid with beam spacing of 25 mm, IO-Link interface, push-pull output, fixed cable with M12 plug, Automation light grid, Optical resolution 25 mm, Super-fast object detection, even with 3-way beam crossover, Software-free adjustment of height monitoring, Object identification using integrated object recognition
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70115789 |
| Effective detection range | Standard : 0.3 ... 6 m Option /35: 0.5 ... 8 m |
| Threshold detection range | Standard : 7.5 m Option /35: 10 m |
| Light source | IRED |
| Light type | modulated infrared light , 850 nm |
| Field height | see Table 1, max. 3200 mm |
| Beam crossover | Factory setting: three beam crossing, deactivateable |
| Beam blanking | adjustable max. 2 fixed suppressible beam areas (blanking) |
| Beam spacing | 25 mm |
| Number of beams | see Table 1, max. 129 |
| Operating mode | Emitter: Emitter power adjustable in two ranges |
| Optical resolution | without beam crossover: 25 mm with beam crossover: 12.5 mm with in 25% and 75% of the range |
| Opening angle | 10 ° |
| Ambient light limit | > 50000 Lux (if external light source is outside the opening angle) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 34 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 60 % |
Indicators/operating means
| Operation indicator | Power on: LED green, statically lit , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) |
| Function indicator | Emitter: Yellow LED, illuminates at high emitting power, off at low emitting power Receiver: Yellow LED: illuminates when an object is detected flashes when falling short of the operating reserve (4 Hz) Error message: Yellow LED flashes (8 Hz) in emitter and receiver |
| Control elements | Receiver: 2 touch buttons for programming |
| Parameterization indicator | IO link communication: green LED goes out briefly (1 Hz) |
Electrical specifications
| Operating voltage | 18 ... 30 V DC UB |
| Ripple | 10 % |
| No-load supply current | Emitter ≤: 50 mA Receiver: ≤ 150 mA (without outputs) I0 |
| Time delay before availability | see Table 1, max. 2.3 s tv |
Interface
| Interface type | IO-Link |
| Protocol | IO-Link V1.0 |
| Mode | COM2 (38.4 kBit/s) |
Input
| Test input | Emitter switch-off with +UB or 0 V at pin 4 (emitter) |
| Function input | Range input activation from 1.6 m (or 2 m in case of option /35) with +UB or 0 V on pin 2 (emitter) Teach-In input for programming on pin 8 (receiver) |
Output
| Stability alarm output | Stability Control (SC) 1 PNP, short-circuit protected, reverse polarity protected on pin 2 (receiver) |
| Switching type | Factory setting: dark on , Switchable to light-on mode |
| Signal output | Switching output (detection field C/Q) 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected on pin 4 (receiver), Height monitoring (H1, H2. H3) 3 push-pull (4 in 1) outputs, short-circuit proof, reverse polarity protected on pin 5, pin 6, pin 7 (receiver) |
| Switching threshold | Factory setting: The signal tracking for the threshold value is deactivated, increasing the optical resolution by a maximum of 4 mm; switchable to active signal tracking |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | ≤ 2 V DC Ud |
| Switching frequency | see Table 1, max. 134 Hz f |
| Response time | see Table 1, max. 12 ms |
| Timer function | Off-delay programmable from 0 ... 1.25 s in 5 ms steps (adjustment via IO-Link only) |
Conformity
| Communication interface | IEC 61131-9 |
| Product standard | EN 60947-5-2 |
Approvals and certificates
| Protection class | III ( IEC 61140 ) |
| UL approval | cULus Listed |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | Standard : -10 ... 60 °C (14 ... 140 °F) Option /146: -30 ... 60 °C (-22 ... 140 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
Mechanical specifications
| Conductor cross section | min. 0.25 mm2 |
| Degree of protection | IP67 |
| Connection | Emitter: connecting cable with 4-pin, M12 x 1 connector , 330 mm total length Receiver: connecting cable with 8-pin, M12 x 1 connector , 350 mm total length |
| Material: Housing | extruded aluminum section , Silver anodized |
| Material: Optical face | Plastic pane , Polycarbonate |
| Mass | see Table 1, max. 1750 g (per profile) |
| Dimensions: Width | 20 mm |
| Dimensions: Depth | 30.5 mm |
| Dimensions: Length | 3360 mm see Table 1, max. |
| Cable length | max. 30 m |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
| 3-D model (STEP) LGS25-1200-IO/110/115b REC | STP · 3.4 MB |
| 3-D model (STEP) LGS25-1200-IO/110/115b REC | STP · 1.9 MB |
| 3-D model (STEP) LGS25-1200-IO/110/115b REC | STP · 1.9 MB |
| 3-D model (STEP) LGS25-1200-IO/110/115b REC | STP · 1.8 MB |
| 3-D model (STEP) LGS25-1200-IO/110/115b REC | STP · 1.8 MB |
| 3-D model (STEP) LGS25-1200-IO/110/115b REC | STP · 3.0 MB |
| 3-D model (STEP) LGS25-1200-IO/110/115b REC | STP · 1.8 MB |
| 3-D model (STEP) LGS25-1200-IO/110/115b REC | STP · 2.9 MB |
| 3-D model (STEP) LGS25-1200-IO/110/115b REC | STP · 1.8 MB |
| 3-D model (STEP) LGS25-1200-IO/110/115b REC | STP · 1.7 MB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts

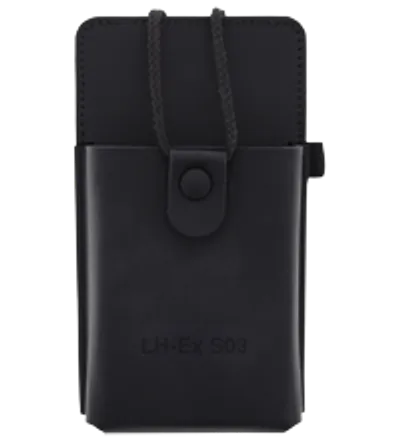

Available on requestLeather holster LH-EX S03MPN: LH-EX S03 · Pepperl Fuchs
