Home / Pepperl Fuchs / Safety Thru-Beam Sensors / Safety light grid LG01B-2520-56A-5-R3-C3-F00-S15

Safety light grid LG01B-2520-56A-5-R3-C3-F00-S15 — photo 1 of 3

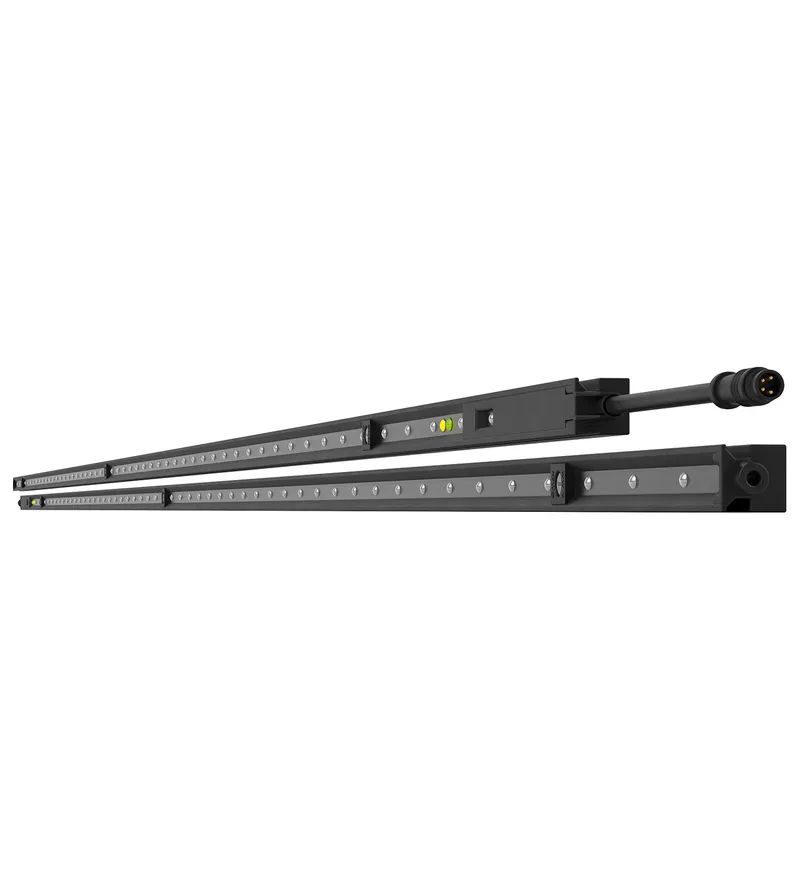

Safety light grid LG01B-2520-56A-5-R3-C3-F00-S15 — photo 2 of 3

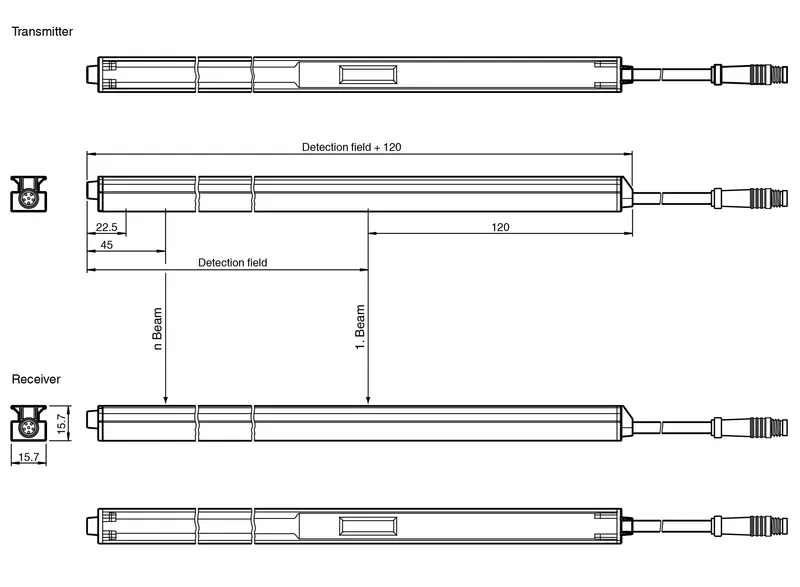

Safety light grid LG01B-2520-56A-5-R3-C3-F00-S15 — photo 3 of 3

Available on request

Pepperl Fuchs LG01B-2520-56A-5-R3-C3-F00-S15 – Safety light grid

MPN: LG01B-2520-56A-5-R3-C3-F00-S15 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Safety Thru-Beam Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can LG01B-2520-56A-5-R3-C3-F00-S15 be shipped?

LG01B-2520-56A-5-R3-C3-F00-S15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LG01B-2520-56A-5-R3-C3-F00-S15 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LG01B-2520-56A-5-R3-C3-F00-S15 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LG01B-2520-56A-5-R3-C3-F00-S15, subject to availability and destination.

• Cost-optimized series for standard tasks

• High degree of protection (IP67)

• Direct assembly

• Relay output

Cost-optimized series for standard tasks, High degree of protection (IP67), Direct assembly, Relay output, Operating voltage: 10 ... 30 V DC, Test input: high active or low active, Connection: fixed cable with M8 plug, 6-pin, Housing: black anodized aluminum Epoxy resin molded

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	64318922
Effective detection range	1.6 ... 10 m
Threshold detection range	14 m
Number of protective field beams	56
Light source	IRED
Light type	infrared
Marking	CE
Target size	50 mm
Protection field height	2520 mm
Opening angle	eff. 5 °
Optical face	frontal
Ambient light limit	100000 Lux
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

Operation indicator	Emitter: LED green Receiver: LED green
Function indicator	Emitter: yellow LED Receiver: LED red: lit when the light beam is interrupted LED green: lights up when light beam is free
Stability alarm indicator	available

Electrical specifications

Operating voltage	10 ... 30 V DC UB
Operating current	Emitter: approx. 30 mA (24 V) receiver: approx. 20 mA (24 V) IB
Power consumption	approx. 1.2 W P0

Input

Test input

high active or low active

Output

Output type	relay
Switching type	light/dark on
Signal output	100 mA , short-circuit protected , potential-free
Energized/De-energized delay	< 800 ms
Response time	≤ 100 ms

Conformity

Product standard

EN ISO 13849 , EN 12978 , EN 61000-6-2, EN 61000-6-3

Ambient conditions

Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-30 ... 70 °C (-22 ... 158 °F)
Relative humidity	max. 95 %, non-condensing

Mechanical specifications

Degree of protection	IP67 according to EN 60529
Connection	fixed cable with M8 plug, 6-pin
Material: Housing	black anodized aluminum Epoxy resin molded
Mass	approx. 1612 g
Dimensions: Height	2640 mm
Dimensions: Width	16 mm
Dimensions: Depth	16 mm
