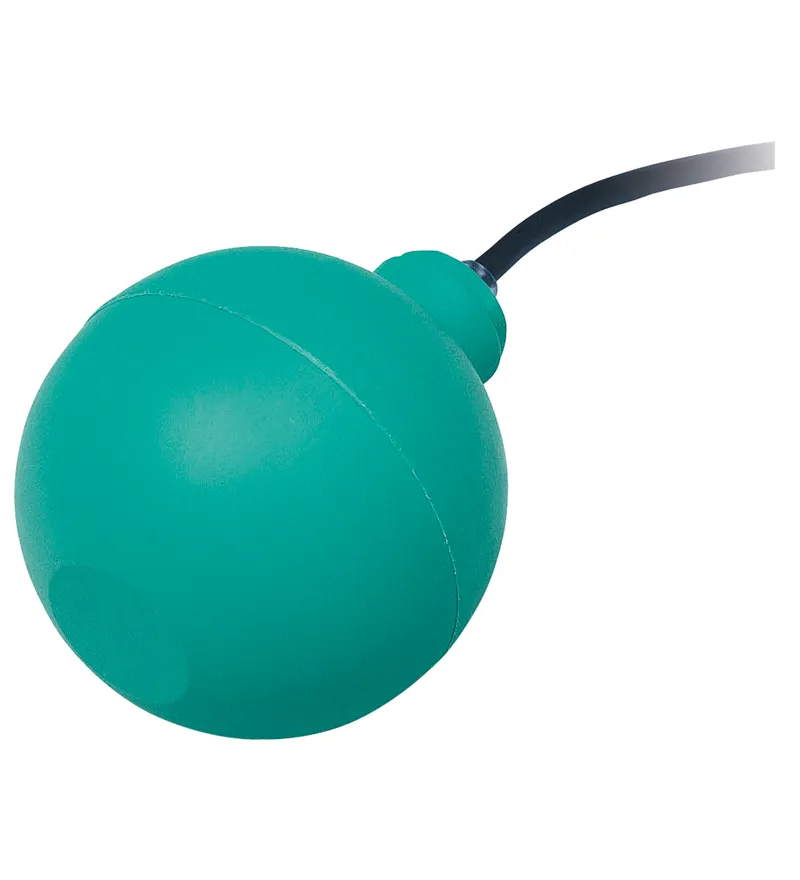

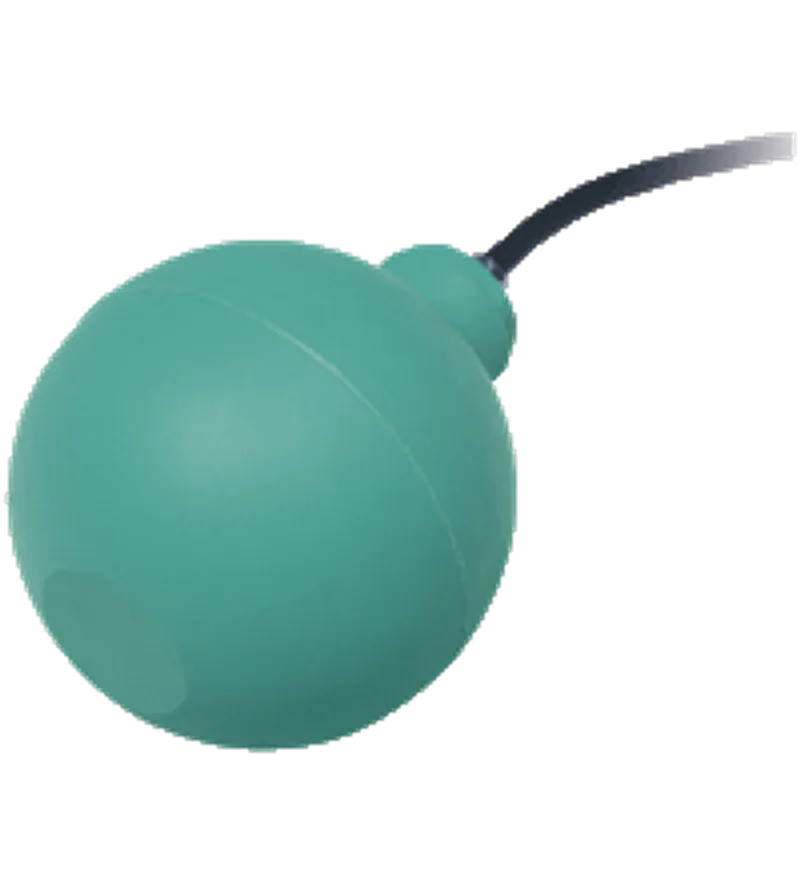

Pepperl Fuchs LFL2-BK-U-PUR10-EMS – Float Switch
MPN: LFL2-BK-U-PUR10-EMS · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Float Switches |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LFL2-BK-U-PUR10-EMS be shipped?
LFL2-BK-U-PUR10-EMS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LFL2-BK-U-PUR10-EMS in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LFL2-BK-U-PUR10-EMS and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LFL2-BK-U-PUR10-EMS, subject to availability and destination.
• Switch element: microswitch, mercury-free
• Limit value detection for fluids
• Ball design: high buoyancy
Switch element: microswitch, mercury-free, Limit value detection for fluids, Ball design: high buoyancy
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 288564 |
| Series | LFL2-**-U |
| Construction type | ball design |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Contact loading | 250 V AC/3 A; 150 V DC/0.25 A resistive load; 60 V DC/1 A resistive load |
| Rated insulation voltage | 300 V |
| Pulse withstand voltage | 4 kV |
| Electrical life | ≥ 5 x 104 switching cycles |
Directive conformity
| Low voltage: Directive 2014/35/EU | EN 60947-5-1:2004 + Cor.:2005 + A1:2009 |
Conformity
| Degree of protection | IEC 60529:2001 |
Application
| Description | microswitch with switching ball, change-over contact |
Function and system design
| Equipment architecture | This device may be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements. |
Approvals and certificates
| CCC approval | Certified by China Compulsory Certification (CCC) |
Operating conditions
| Installation conditions: Installation instructions | range of application and minimum length between mounting and float: ≥ 100 mm (4 inch), preferred for fuels, heating oils, oily fluidsmounting: The float switch is mounted by means of a counter weight or rods (e. g. float switch combination) from the top. The pivot of the cable should always be horizontal. |
| Process conditions: Process pressure (static pressure) | ≤ 2 bar (29 psi) at 20 °C (68 °F) |
| Process conditions: Density | ≥ 0.6 g/cm3 |
Ambient conditions
| Ambient temperature | 5 ... 70 °C (41 ... 158 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Altitude | ≤ 2000 m above MSL |
Mechanical specifications
| Degree of protection | IP68 |
| Cable: Length | 10 m L |
Mechanical construction
| Material | float: PP (Polypropylene) cable: PUR, highly flexible (3 x 0.50 mm2) |
| Switching point | switch angle, measured against the horizontal: - upper switch point 25° ±10° - lower switch point 6° ±6° |
General information
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet LFL2-BK-U-PUR10-EMS | |
| Instruction Manual | PDF · 43 kB |

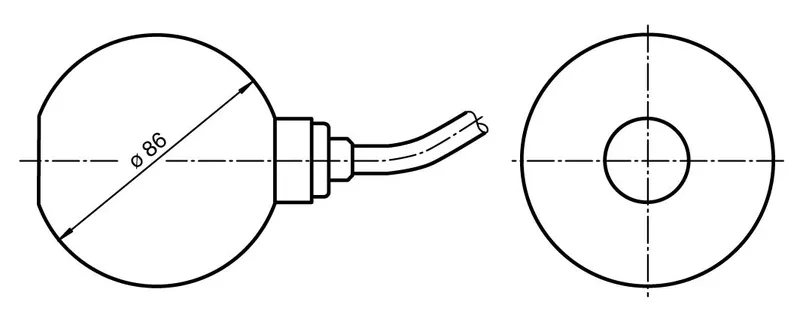

CAD & dimension drawings
| 3-D model (STEP) LFL1-*K-N-***** | STP · 493 kB |
Certificates (3)
| China CQC CCC (2024010305728088) | PDF · 2.0 MB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.3 MB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts
Available on requestLeather holster Leather holster for Lite-Ex PL 30eMPN: Leather holster for Lite-Ex PL 30e · Pepperl Fuchs
Price on request
Request a quote

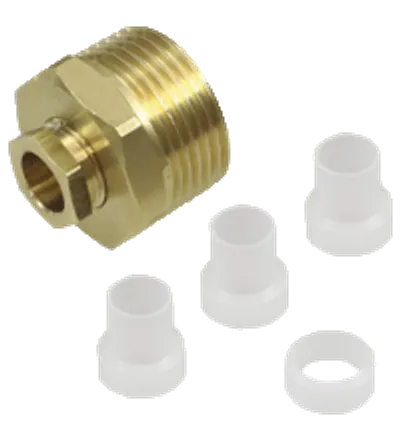

Available on requestGland screw connection LFL-Z132MPN: LFL-Z132 · Pepperl Fuchs
Price on request
Request a quote

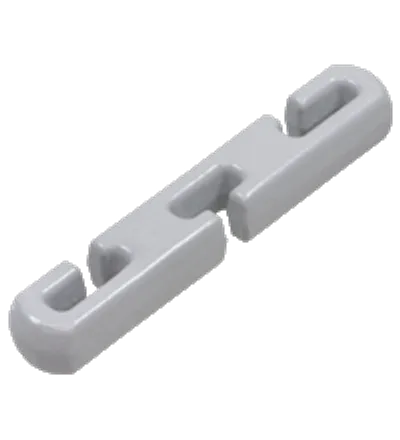

Available on requestCounter Weight LFL-Z32MPN: LFL-Z32 · Pepperl Fuchs
Price on request
Request a quote

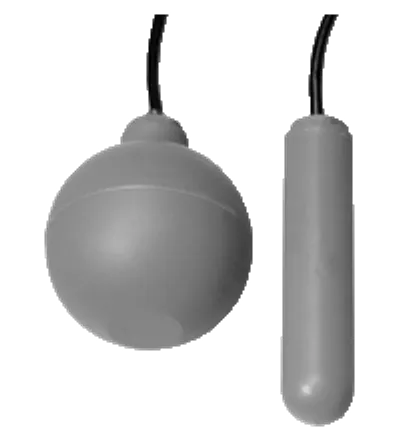

Available on requestFloat Switch LFL1-*K-N-*****MPN: LFL1-*K-N-***** · Pepperl Fuchs
Price on request
Request a quote

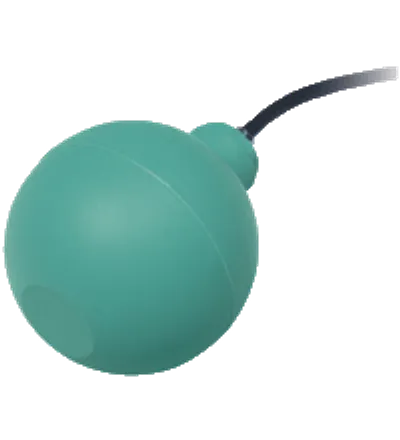

Available on requestFloat Switch LFL2-BK-U-PUR15-EMSMPN: LFL2-BK-U-PUR15-EMS · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestFloat Switch LFL2-BK-U-PUR5-EMSMPN: LFL2-BK-U-PUR5-EMS · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestFloat Switch LFL2-BK-U-TPK5-EMSMPN: LFL2-BK-U-TPK5-EMS · Pepperl Fuchs
Price on request
Request a quote

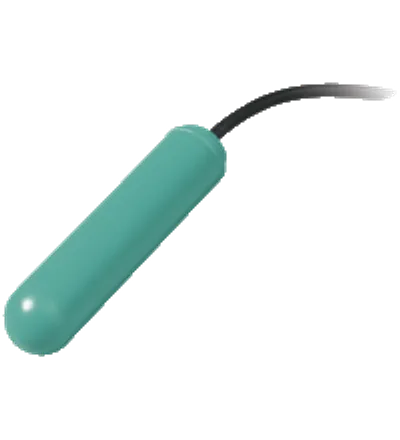

Available on requestFloat Switch LFL2-CK-U-PUR5-EMSMPN: LFL2-CK-U-PUR5-EMS · Pepperl Fuchs
