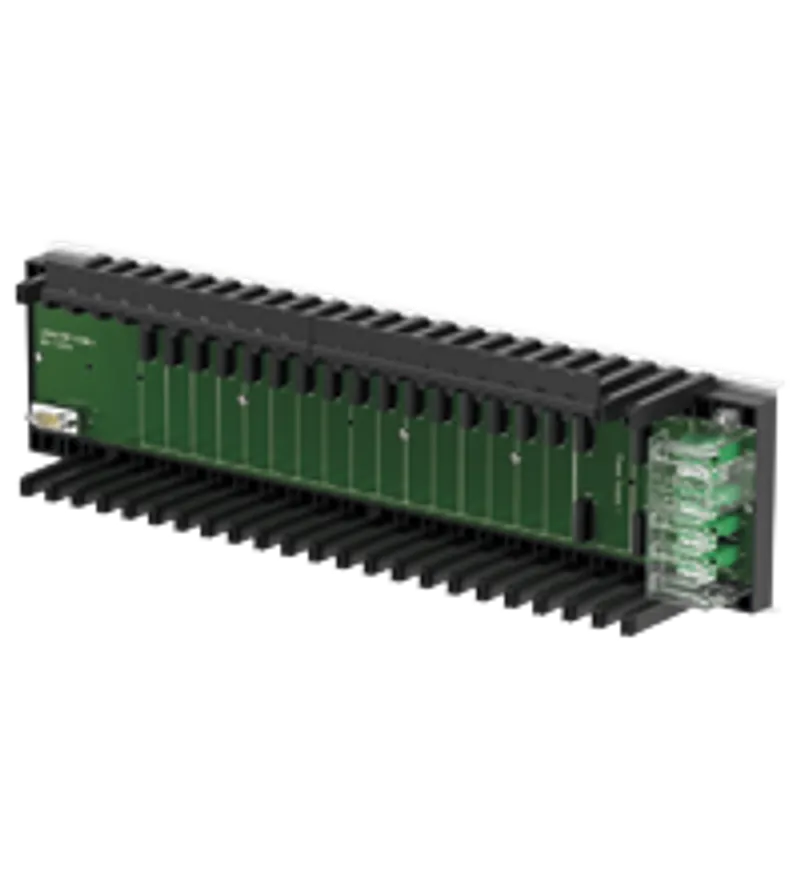

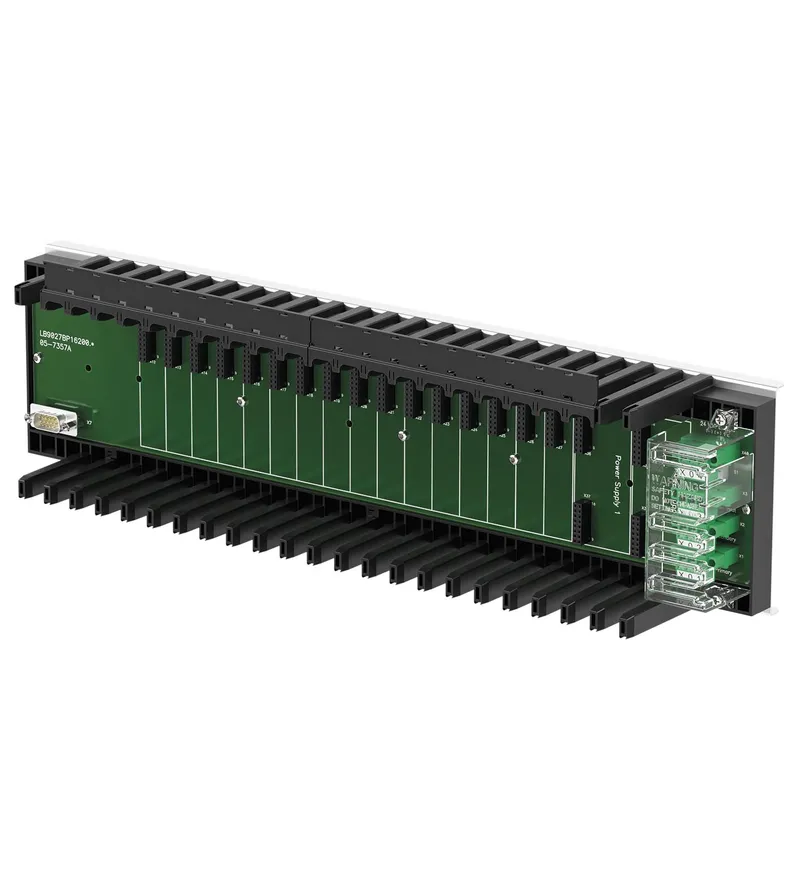

Pepperl Fuchs LB9027BP16200.2 – Extension Backplane
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LB9027BP16200.2 be shipped?
LB9027BP16200.2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB9027BP16200.2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB9027BP16200.2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9027BP16200.2, subject to availability and destination.
• Backplane for LB-System
• Fieldbus type determined by base backplane
• Max. 16 slots for I/O modules
• Mounting in Zone 2, Class I/Div.2 or in the safe area
Backplane for LB-System, Fieldbus type determined by base backplane, Max. 16 slots for I/O modules, Mounting in Zone 2, Class I/Div.2 or in the safe area, Number of modules: 16, Fieldbus type: PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU/TCP , depending on the base backplane
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70175200 |
| Suitable components | Backplane LB9026BP16210.2.E , LB9026BP16210.2 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Slots
| Supply | 2 |
| I/O modules (single width) | max. 16 |
| I/O modules (dual width) | max. 8 |
Supply
| Maximum safe voltage Um | 60 V DC (SELV/PELV) |
| Input voltage range | 18 ... 32 V DC (SELV/PELV) U |
| Redundancy | no |
Fieldbus connection
| Fieldbus type | PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU/TCP , depending on the base backplane |
| Redundancy | no |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
Conformity
| Electromagnetic compatibility | NE 21 |
| Degree of protection | EN 60529 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) , 70 °C (non-Ex) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Altitude | max. 2000 m |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles frequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
Mechanical specifications
| Degree of protection | IP20 |
| Mass | approx. 1340 g |
| Dimensions | (W x H x D) 440 x 127 x 80 mm (17.3 x 5 x 3.15 inch) , without modules |
| Height | 127 mm |
| Width | 440 mm |
| Depth | 80 mm |
Data for application in connection with hazardous areas
| Certificate | BVS 16 ATEX E 089 X |
| Marking | II 3G Ex ec IIC T4 Gc |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-7:2015+A1:2018 |
International approvals
| IECEx approval | IECEx BVS 16.0047X |
| Approved for | Ex ec IIC T4 Gc |
General information
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet LB9027BP16200.2 | |
| Hardware Manual LB-Remote-I/O-System | PDF · 7.2 MB |
| Instruction Manual | PDF · 170 kB |
Certificates (5)
| DEKRA EXAM ATEX Category 3 G (BVS 16 ATEX E 089 X) | PDF · 3.5 MB |
| Brasil TUV Rheinland Brazil (TÜV 18.0040 X) | PDF · 1.2 MB |
| DNV Marine (TAA0000034) | PDF · 97 kB |
| Europe DEKRA EXAM ATEX Category 3 G (BVS 16 ATEX E 089 X) | PDF · 1.4 MB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 335 kB |
More Pepperl Fuchs parts

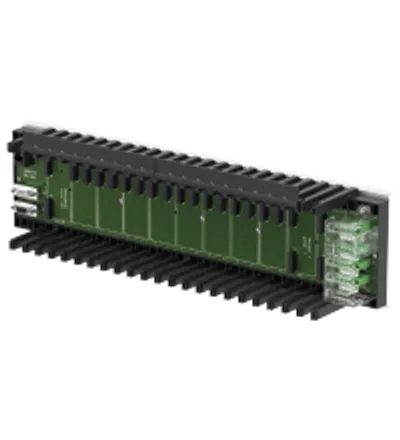

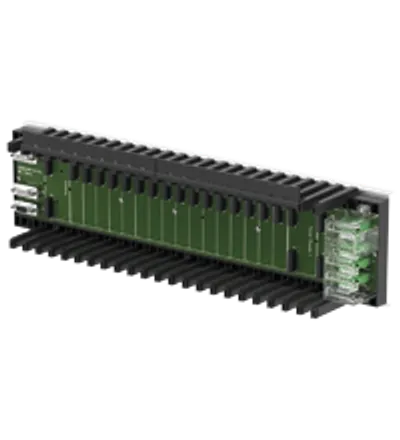

Available on requestBase Backplane LB9026BP16210.2
Available on requestBase Backplane LB9026BP16210.2.EAvailable on requestBase Backplane LB9026BP16210.0.EAvailable on requestBase Backplane LB9026BP16210.1

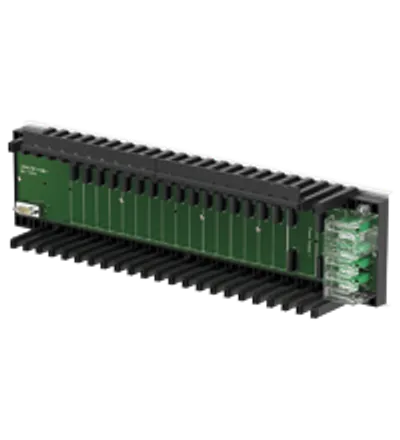

Available on requestExtension Backplane LB9027BP16200.1

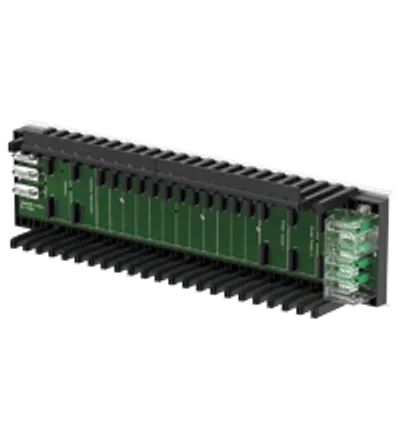

Available on requestRedundancy Base Backplane LB9029BP12320.2Available on requestRedundancy Base Backplane LB9029BP12320.1

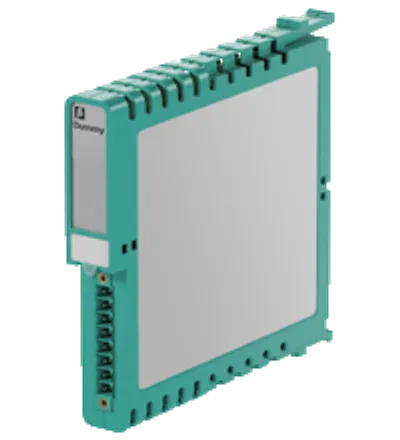

Available on requestPlace Holder Module LB9099
