Pepperl Fuchs LB9014A

Terminal Block

MPN: LB9014A
Category: FB (Zone 1)

Price and lead time confirmed within 1 business day

Discontinued by Pepperl Fuchs — we can still source the original LB9014A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pepperl Fuchs parts? We buy surplus →

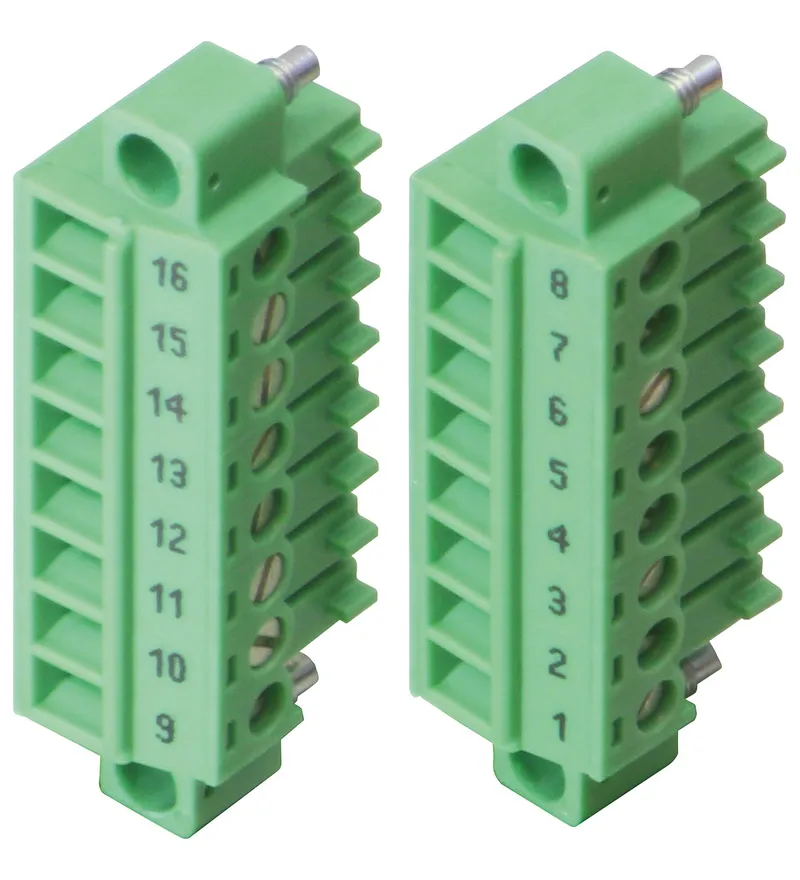

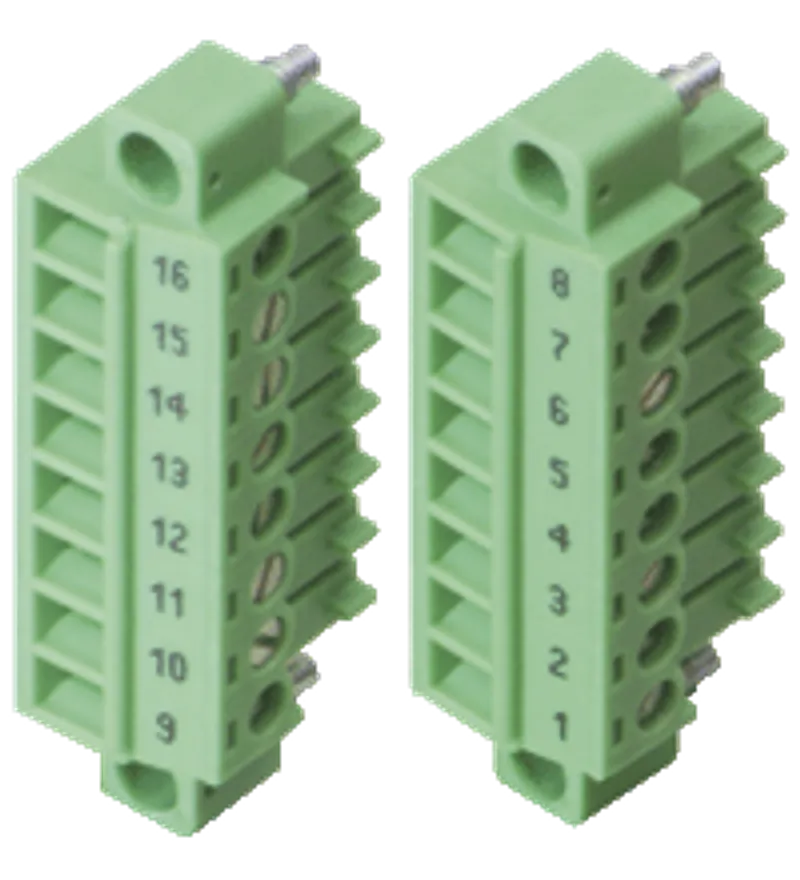

What is the Pepperl Fuchs LB9014A?

Screw terminal

For LB modules

2 x 8-pole

Labeled 1 ... 8 and 9 ... 16

Color green

For non-intrinsically safe or Ex ic applications

Screw terminal, For LB modules, 2 x 8-pole, Labeled 1 ... 8 and 9 ... 16, Color green, For non-intrinsically safe or Ex ic applications, Construction type: screw terminal

Pepperl+Fuchs has archived the LB9014A: it is no longer part of the current range. PartnerPLC sources discontinued Pepperl+Fuchs parts on the surplus market for maintenance and repair of existing installations — request a quote for availability, condition, price and lead time.

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	542017
Number of pins	2 x 8
Labeling	1 ... 8 & 9 ... 16
Lifecycle	Discontinued — archived by Pepperl+Fuchs

Electrical specifications

Rated voltage	160 V Ur
Rated current	8 A Ir

Mechanical specifications

Core cross section	0.14 ... 1.5 mm2
Housing	green
Mass	approx. 5 g
Dimensions	(W x H x D) 40.9 mm x 11.1 mm x 15.3 mm
Height	11.1 mm
Width	40.9 mm
Depth	15.3 mm
Construction type	screw terminal

International approvals

EAC approval	Russia: RU C-IT.MIII06.B.00129
Marine approval: Lloyd Register	15/20021
Marine approval: American Bureau of Shipping	T1450280/UN

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

EPLAN macro LB9014AEDZ · 5 kB

Certificates (1)

South Africa MASC (MASC MS/20-8436X)PDF · 978 kB

LB9014A: frequently asked questions

Can I still buy the LB9014A now that it is discontinued?

Yes. Pepperl Fuchs has discontinued the LB9014A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can LB9014A be shipped?

LB9014A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LB9014A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LB9014A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9014A, subject to availability and destination.
