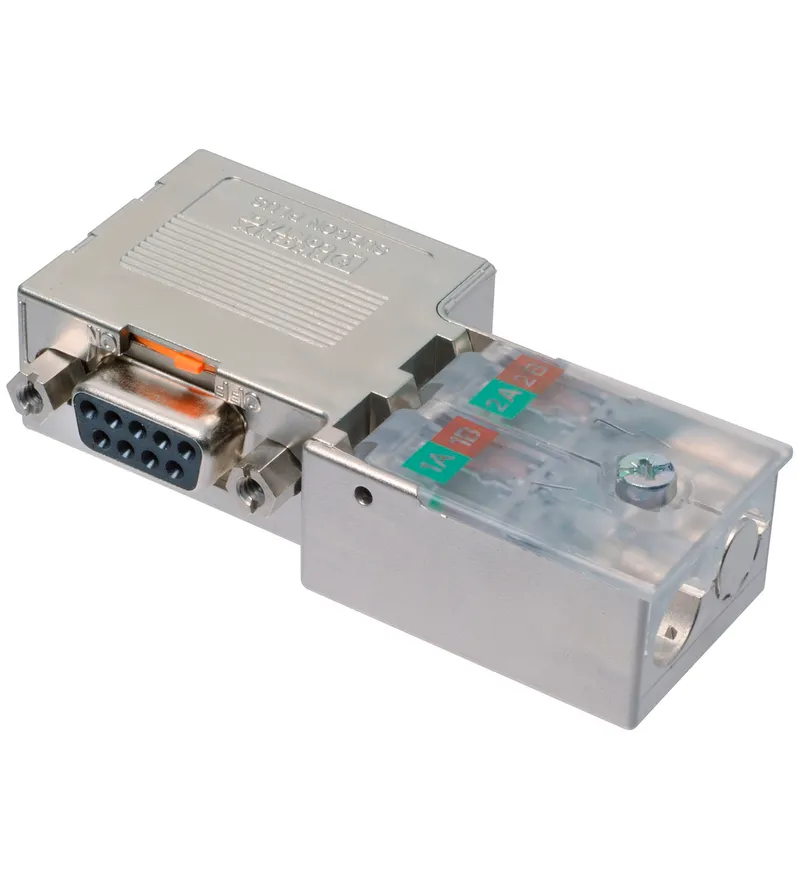

Pepperl Fuchs LB9003A
D-Sub plug 9-pin
- MPN
- LB9003A
- Category
- FB (Zone 1)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs LB9003A?
For PROFIBUS DP, MODBUS, RS 485
Cable feed below 90°
With switchable bus termination resistor
With connector for bus monitor or class 2 master
For PROFIBUS DP, MODBUS, RS 485, Cable feed below 90°, With switchable bus termination resistor, With connector for bus monitor or class 2 master
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 542007 |
| Rated voltage | 60 V AC/DC Ur |
| Rated current | 1 A Ir |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Interface
| Interface type | PROFIBUS DP |
| Transfer rate | max. 12 MBit/s |
| Connector pinout | 3, 5, 6, 8 |
Ambient conditions
| Ambient temperature | -20 ... 75 °C (-4 ... 167 °F) |
| Storage temperature | -25 ... 80 °C (-13 ... 176 °F) |
Mechanical specifications
| Core cross section | max. 1.5 mm2 |
| Cable diameter | 7.6 ... 8.4 mm |
| Cable gland | screw terminals |
| Material: Housing | metallized ABS |
| Mass | approx. 40 g |

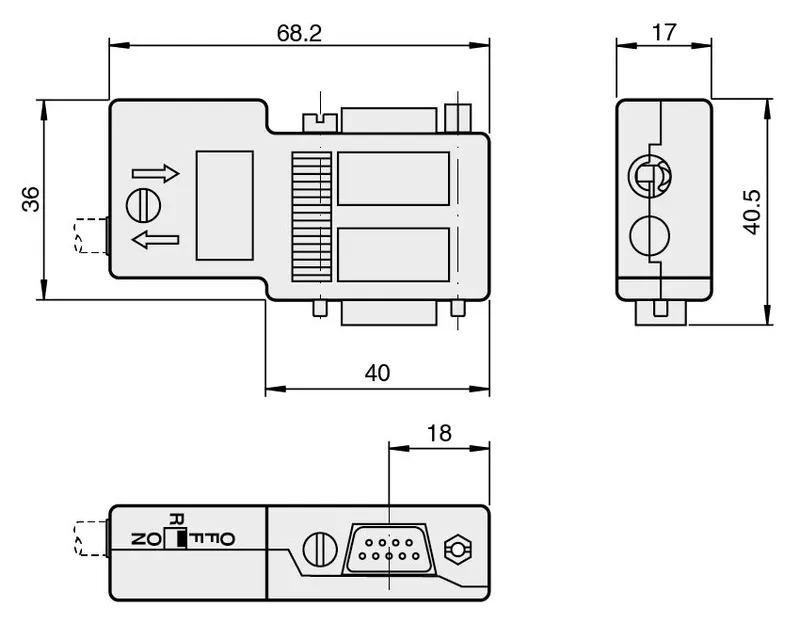

| Dimensions | (W x H x D) 68.2 mm x 40.5 mm x 17 mm |
International approvals
| EAC approval | Russia: RU C-IT.MIII06.B.00129 |
| Marine approval: Lloyd Register | 15/20021 |
| Marine approval: American Bureau of Shipping | T1450280/UN |
