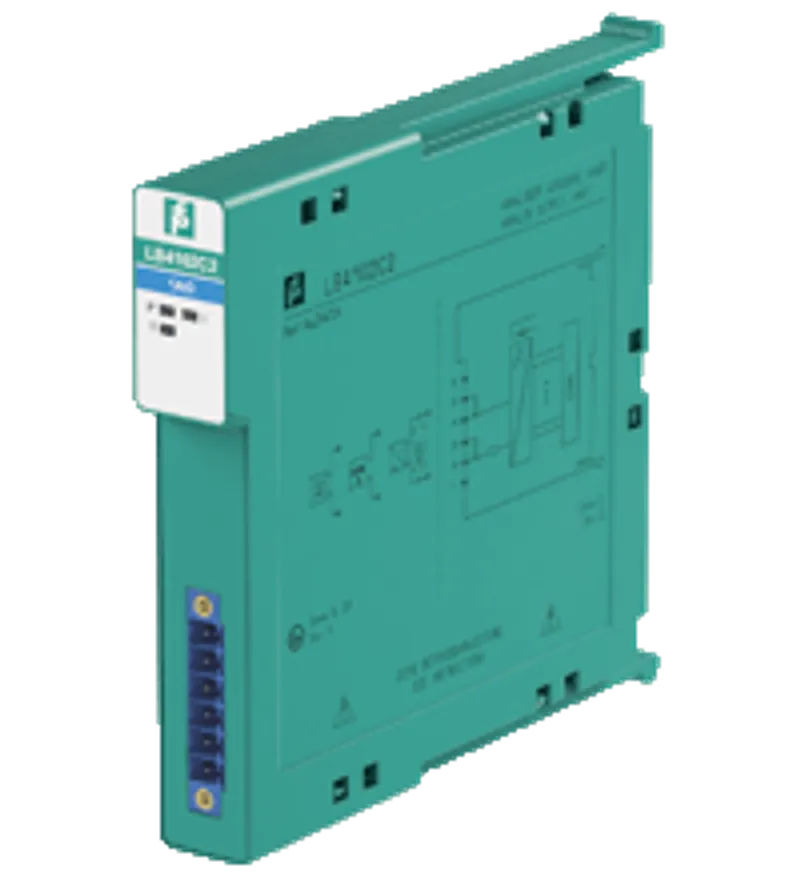

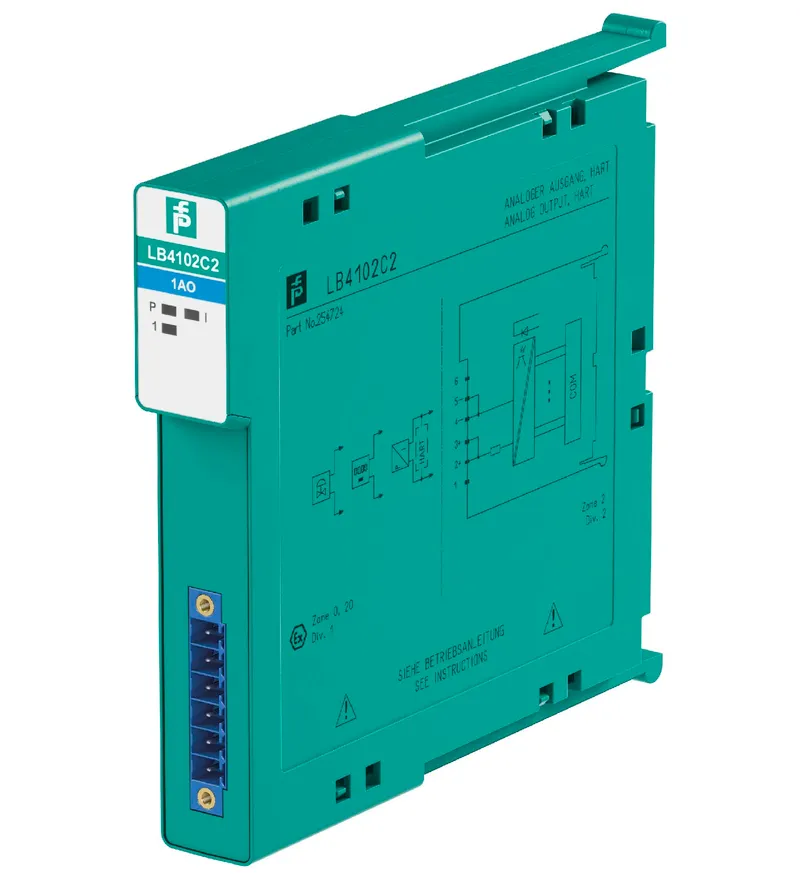

Pepperl Fuchs LB4102C2 – HART Output Isolator with Shutdown Input
MPN: LB4102C2 · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | H-System (Termination Board Mounting) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LB4102C2 be shipped?
LB4102C2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB4102C2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB4102C2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB4102C2, subject to availability and destination.
• 1-channel
• Output Ex ia
• Mounting in Zone 2, Class I/Div.2 or in the safe area
• Module can be exchanged under voltage
• Analog output module for 0/4 mA ... 20 mA
• HART communication via field bus or service bus
• Simulation mode for service operations (forcing)
• Line fault detection (LFD)
• Permanently self-monitoring
• Output with bus-independent safety shutdown
1-channel, Output Ex ia, Mounting in Zone 2, Class I/Div.2 or in the safe area, Module can be exchanged under voltage, Explosion protection: Ex ia, SIL/IEC 61508, Field device: Proportional Valve, Field device [2]: I/P converters, Field device [3]: on-site display
Specifications
Slots
| Order code (Pepperl+Fuchs part number) | 254724 |
| Occupied slots | 1 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 2 |
Supply
| Connection | backplane bus |
| Rated voltage | 12 V DC , only in connection with the power supplies LB9*** Ur |
| Power dissipation | 0.8 W |
| Power consumption | 0.95 W |
Internal bus
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
Analog output
| Number of channels | 1 |
| Suitable field devices: Field device | Proportional Valve |
| Suitable field devices: Field device [2] | I/P converters |
| Suitable field devices: Field device [3] | on-site display |
| Connection | channel I: 2/3+, 4/5- |
| Current | 0 ... 25 mA short-circuit protected |
| Line fault detection | can be switched on/off for each channel via configuration tool , configurable via configuration tool |
| Short-circuit | No |
| Open-circuit | deviation of preset output value > 0.5 mA |
| Load | 750 Ω max. |
| HART communication | yes |
| HART secondary variable | MODBUS: yes; all other bus systems: no |
| Watchdog | within 0.5 s the device goes in safe state, e.g. after loss of communication |
Transfer characteristics
| Deviation: After calibration | 0.1 % of the signal range at 20 °C (68 °F) |
| Deviation: Influence of ambient temperature | 0.1 %/10 K of the signal range |
| Refresh time | 100 ms |
Indicators/settings
| LED indication | Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1) red: line fault (lead breakage or short circuit) |
| Coding | optional mechanical coding via front socket |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
Conformity
| Electromagnetic compatibility | NE 21:2007 |
| Degree of protection | IEC 60529:2000 |
| Environmental test | EN 60068-2-14:2009 |
| Shock resistance | EN 60068-2-27:2009 |
| Vibration resistance | EN 60068-2-6:2008 |
| Damaging gas | EN 60068-2-42:2003 |
| Relative humidity | EN 60068-2-78:2001 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Altitude | max. 2000 m |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles frequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
Mechanical specifications
| Degree of protection | IP20 when mounted on backplane |
| Connection | removable front connector with screw flange (accessory) wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2) |
| Mass | approx. 90 g |
| Dimensions: Height | 100 mm |
| Dimensions: Width | 16 mm |
| Dimensions: Depth | 102 mm |
Data for application in connection with hazardous areas
| EU-type examination certificate | BVS 11 ATEX E 116 X |
| Marking | II 3(1) G Ex nA [ia Ga] IIC T4 Gc[exsign] I (M1) [Ex ia Ma] I[exsign] II (1) D [Ex ia Da] IIIC |
| Output: Voltage | 27 V Uo |
| Output: Current | 87 mA Io |
| Output: Power | 575 mW (linear characteristic) Po |
| Galvanic isolation: Output/power supply, internal bus | safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN IEC 60079-11:2024 EN 60079-15:2010 |
International approvals
| ATEX approval | BVS 11 ATEX E 116X |
| UL approval | E106378 |
| IECEx approval: IECEx certificate | IECEx BVS 11.0068X |
| IECEx approval: IECEx marking | Ex nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I |
General information
| System information | The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet LB4102C2 | |
| Instruction Manual | PDF · 184 kB |
| Hardware Manual LB-Remote-I/O-System | PDF · 7.2 MB |
CAD & dimension drawings
| 3-D model (STEP) LB5101A | STP · 2.1 MB |
| EPLAN macro LB4102C2 | EDZ · 124 kB |
Certificates (9)
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts
Available on requestHART Transmitter Power Supply, Input Isolator LB3105A2MPN: LB3105A2 · Pepperl Fuchs
Price on request
Request a quote
Available on requestHART Transmitter Power Supply LB3106AMPN: LB3106A · Pepperl Fuchs
Price on request
Request a quote

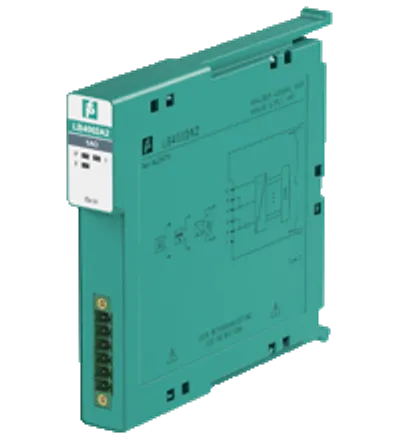

Available on requestHART Output Isolator LB4002A2MPN: LB4002A2 · Pepperl Fuchs
Price on request
Request a quote
Available on requestHART Output Isolator with Shutdown Input LB4005C2MPN: LB4005C2 · Pepperl Fuchs
Price on request
Request a quote
Available on requestHART Output Isolator with Shutdown Input LB4105C2MPN: LB4105C2 · Pepperl Fuchs
Price on request
Request a quote
Available on requestHART Output Isolator with Shutdown Input LB4106CMPN: LB4106C · Pepperl Fuchs
Price on request
Request a quote
Available on requestRTD Converter LB5004AMPN: LB5004A · Pepperl Fuchs
Price on request
Request a quote

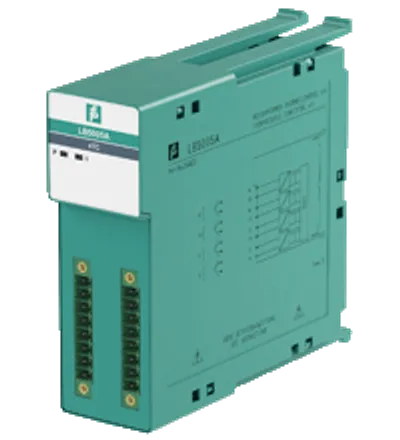

Available on requestThermocouple Converter LB5005AMPN: LB5005A · Pepperl Fuchs
