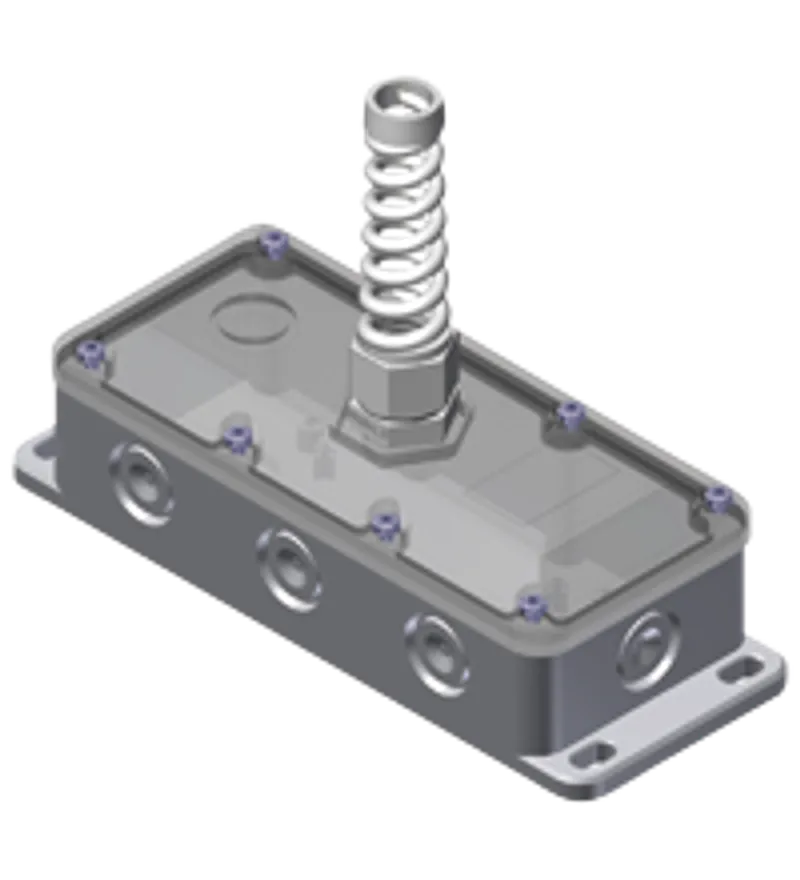

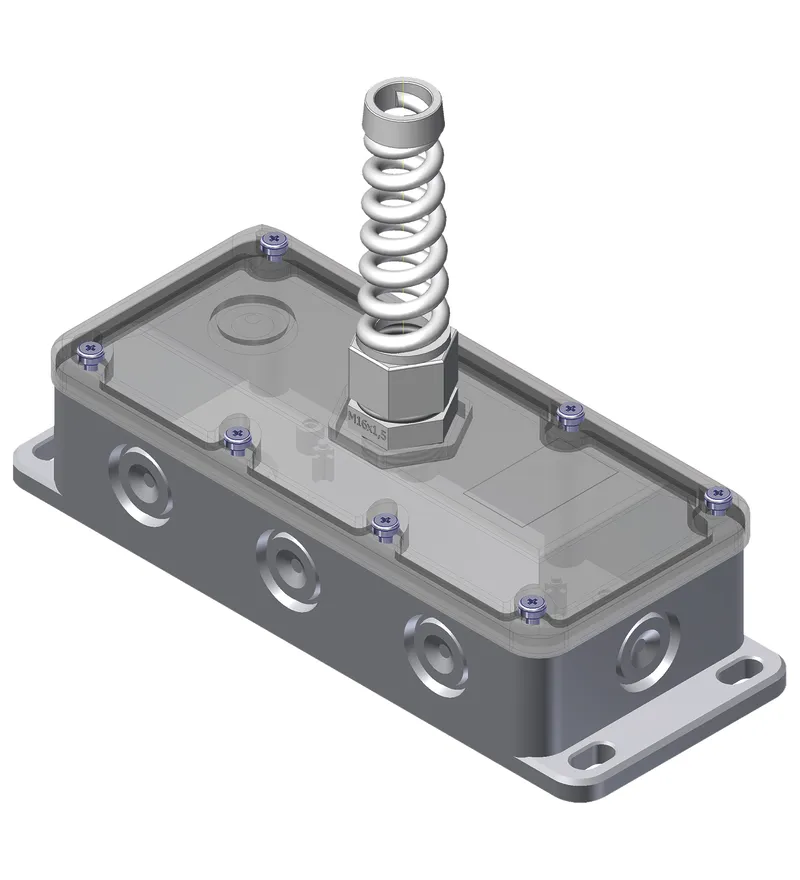

Pepperl Fuchs LAD 4 / 90° Modul 2 – Junction box
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial Gates |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LAD 4 / 90° Modul 2 be shipped?
LAD 4 / 90° Modul 2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LAD 4 / 90° Modul 2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LAD 4 / 90° Modul 2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LAD 4 / 90° Modul 2, subject to availability and destination.
• large terminal compartment
• high degree of protection (IP66)
• impact-resistant plastic
• 90° cable outlet
• pre-formed cable glands
large terminal compartment, high degree of protection (IP66), impact-resistant plastic, 90° cable outlet, pre-formed cable glands, Connection: spring terminal, 5-pin, white Cable cross section 2.5 mm2
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 64316776 |
| Marking | CE |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Degree of protection | IP66 |
| Connection | spring terminal, 5-pin, white Cable cross section 2.5 mm2 |
| Material: Housing | ABS, UL94 HB light gray |
| Mass | approx. 180 g |

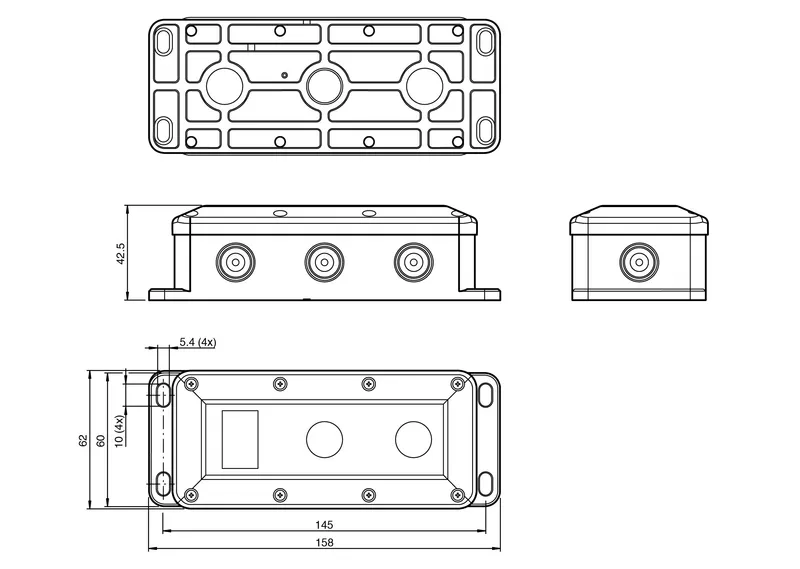

| Dimensions: Height | 62 mm |
| Dimensions: Width | 158 mm |
| Dimensions: Depth | 43 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet LAD 4 / 90° Modul 2 |
