Home / Pepperl Fuchs / Industrial Gates / Pepperl Fuchs LAD 3

Pepperl Fuchs

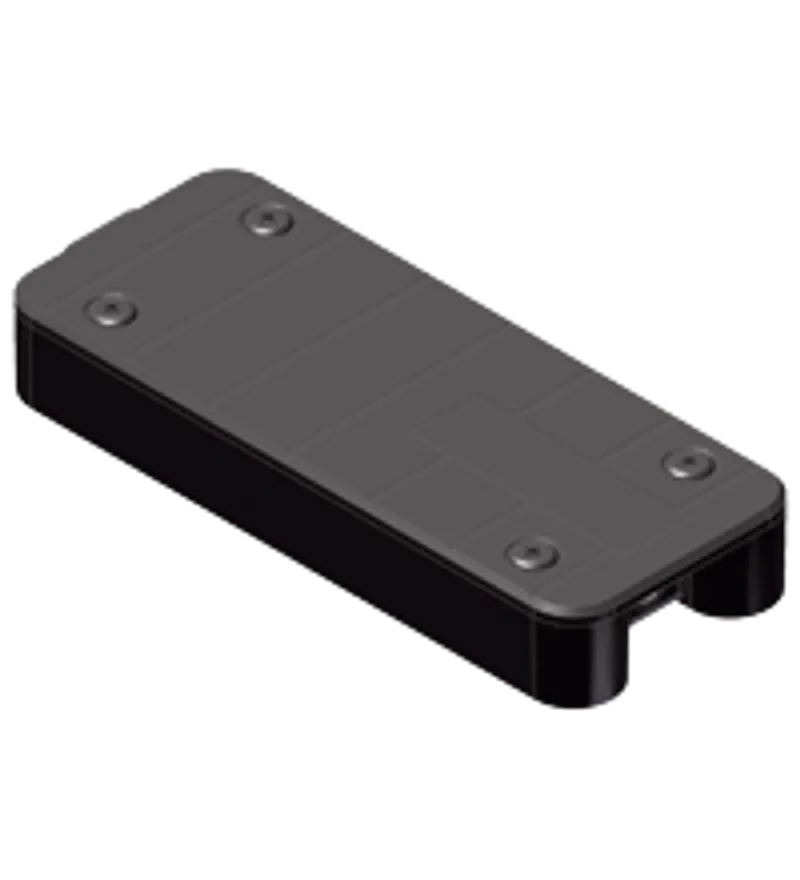

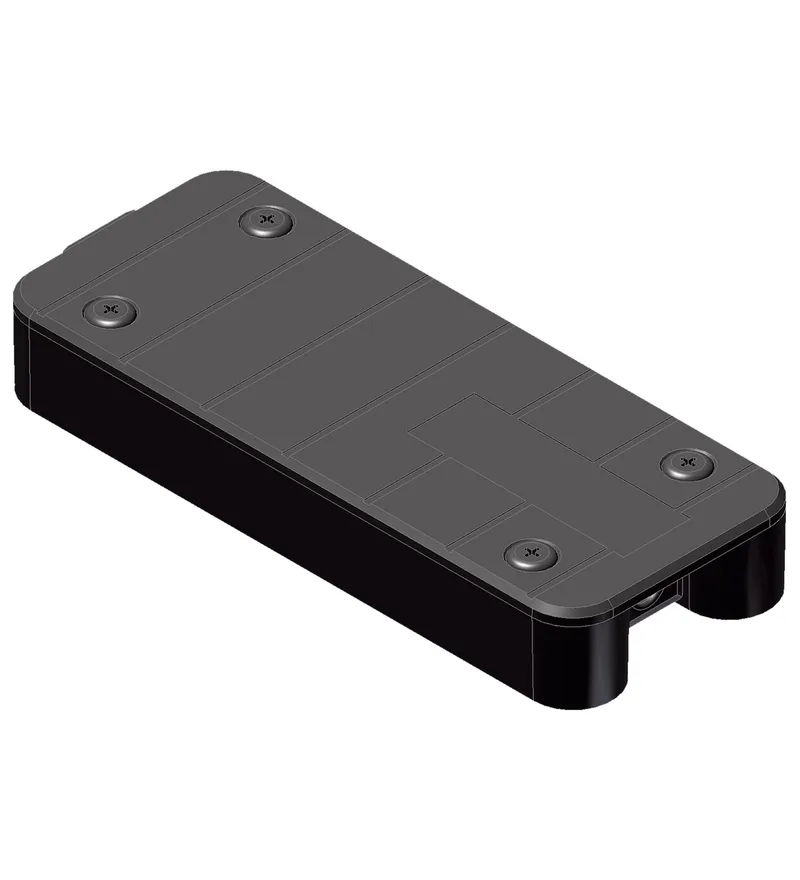

Pepperl Fuchs LAD 3

Junction box

MPN: LAD 3
Category: Industrial Gates

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs LAD 3?

very flat design

Degree of protection IP65

strain relief for spiral cable

connection PCB with screw terminals

suitable for roller shutters

very flat design, Degree of protection IP65, strain relief for spiral cable, connection PCB with screw terminals, suitable for roller shutters, Connection: screw terminals , lead cross section 2 x 1 mm2

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	64316492
Marking	CE
Lifecycle	Active (current Pepperl+Fuchs product)

Mechanical specifications

Degree of protection	IP65
Connection	screw terminals , lead cross section 2 x 1 mm2
Material: Housing	PA 6 GF30 black or light gray
Mass	approx. 50 g

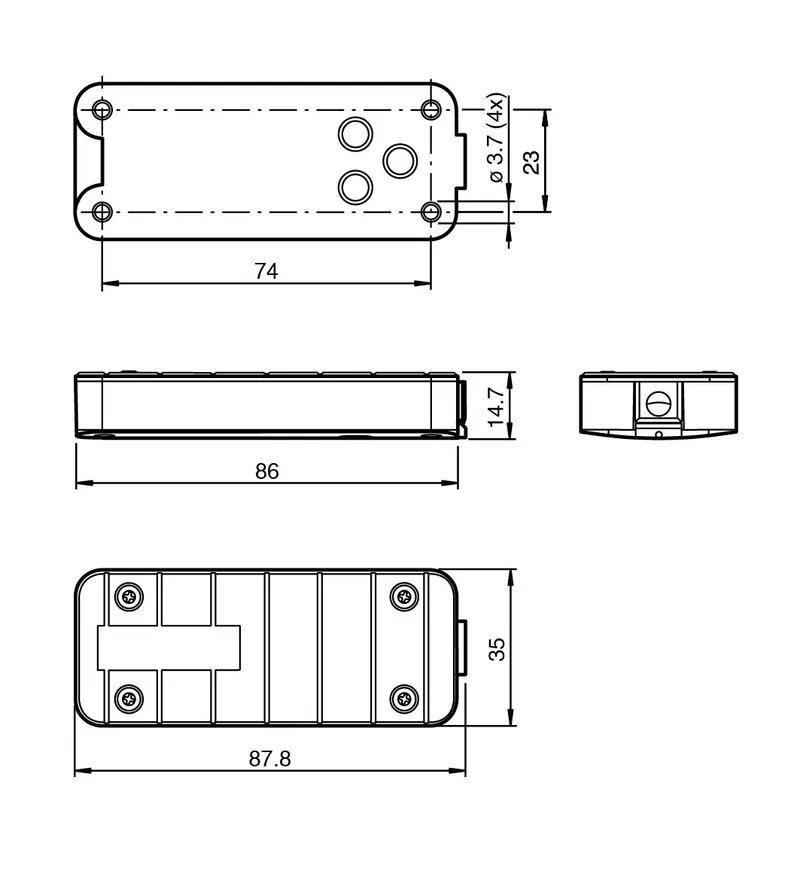

Dimensions: Height	35 mm
Dimensions: Width	86 mm
Dimensions: Depth	13 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet LAD 3PDF
