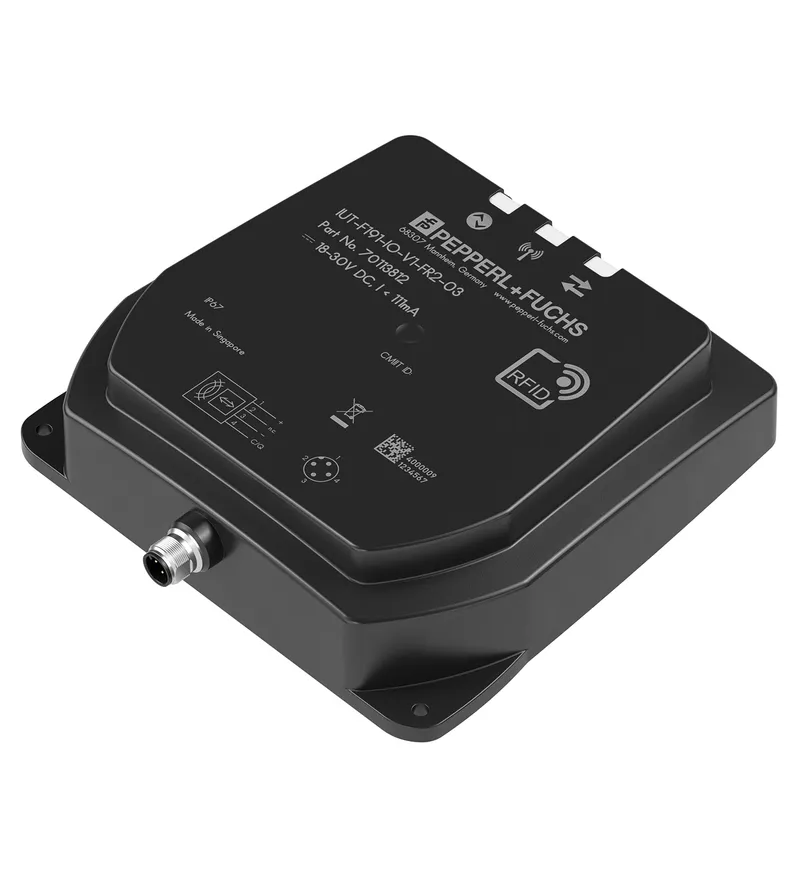

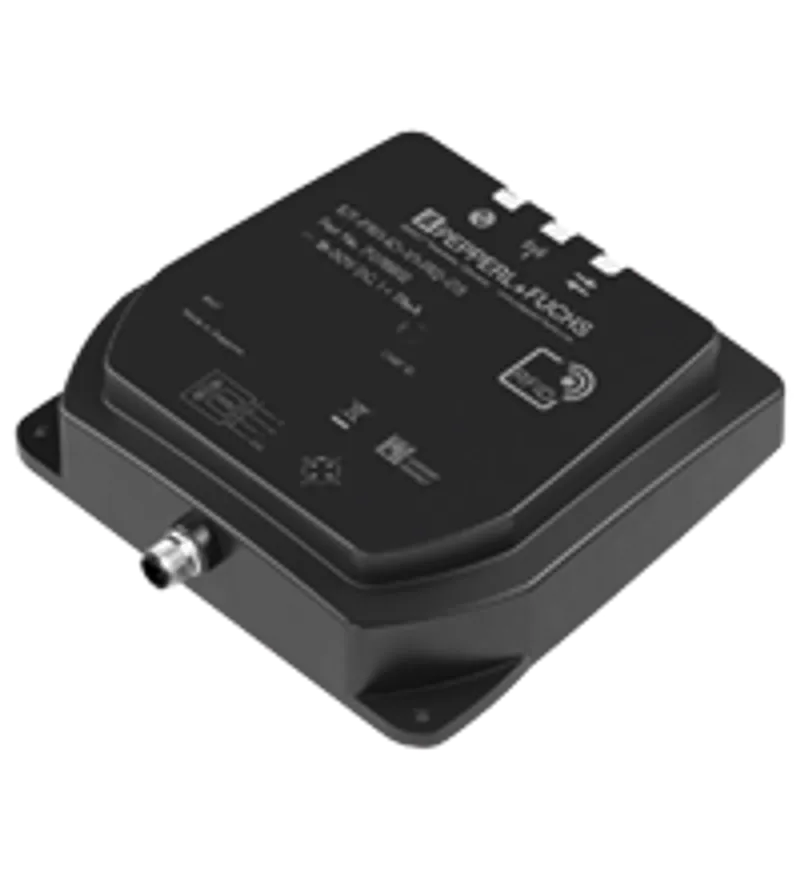

Pepperl Fuchs IUT-F191-IO-V1-FR2-13 – RFID read/write device
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | RFID Read/Write Devices |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can IUT-F191-IO-V1-FR2-13 be shipped?
IUT-F191-IO-V1-FR2-13 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IUT-F191-IO-V1-FR2-13 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IUT-F191-IO-V1-FR2-13 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IUT-F191-IO-V1-FR2-13, subject to availability and destination.
• Flexible UHF read/write device with short detection range
• Ready-made PLC function blocks designed for quick and easy system integration
• Compact and robust housing for harsh industrial environments
• Multi-tag reading of up to 20 tags ensures increased productivity
• Circular antenna polarization ensures reliable transponder detection and improves process flow
• For connection to IO-Link master
• Degree of protection IP67
UHF RFID read/write device with IO-Link, Malaysia
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70185227 |
| Operating frequency | 919 MHz … 923 MHz: Malaysia Transmission licenses for other countries on request |
| Emitted power | 3 … 100 mW ERP adjustable |
| Operating distance | typ. 1 m |
| MTBF | 127 a (Operation at +40 °C) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED green/red | Solid green: power on green flashing with short interruption (1 Hz): IO-Link mode |
| LED yellow | Read/write operation successful |
| LED blue | Transmission mode |
Electrical specifications
| Operating voltage | 18 ... 30 V DC (IO-Link) UB |
| Current consumption | ≤ 90 mA ( at 24 V DC ) |
Interface
| Interface type | IO-Link |
| IO-Link revision | 1.1 |
| Device profile | Identification and Diagnosis - I&D |
| Process data | Input 32 Byte Output 32 Byte |
| Vendor ID | 1 (0x0001) |
| Device ID | 4194835 (0x400213) |
| Transfer rate | COM3 (230.4 kbits/s) |
| Min. cycle time | 4 ms |
| SIO mode support | no |
| Compatible master port type | Class A Class B |
Standard conformity
| Degree of protection | EN 60529 |
| Communication interface | IEC 61131-9 / IO-Link V1.1.5 |
| RFID | ISO/IEC 18000-63 |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) (Operation with nontransmission periods) -25 ... 60 °C (-13 ... 140 °F) (Continuous transmission mode) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP67 |

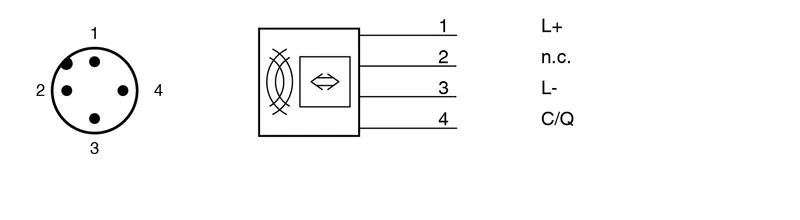

| Connection | connector M12 x 1 |
| Material: Housing | PA 6.6 |
| Material: Base | Aluminum |
| Mass | 700 g |

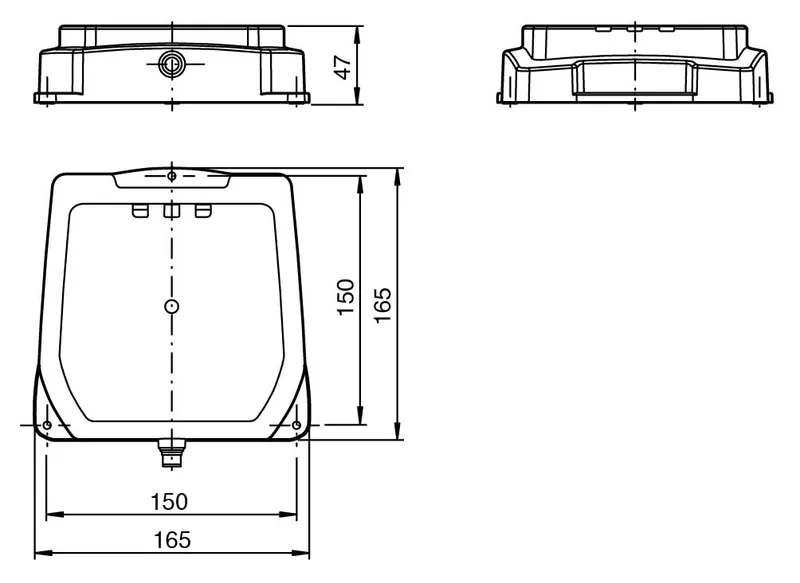

| Dimensions: Height | 47 mm |
| Dimensions: Width | 165 mm |
| Dimensions: Length | 165 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (2)
| Malaysia Radio Approval (RGNF/33A/0625/S(25-2795)) | PDF · 201 kB |
| IO-Link Manufacturer Declaration (CERT-6856) | PDF · 257 kB |
More Pepperl Fuchs parts

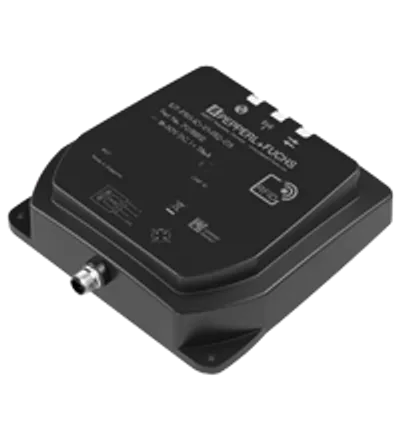

Available on requestRFID read/write device IUT-F191-IO-V1-FR2-03Available on requestRFID read/write device IUT-F191-IO-V1-FR2-07Available on requestRFID read/write device IUT-F191-IO-V1-FR2-09Available on requestRFID read/write device IUT-F191-IO-V1-FR2-10Available on requestRFID read/write device IUT-F191-IO-V1-FR2-17

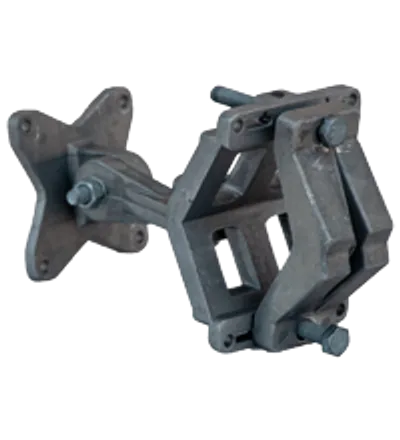

Available on requestMounting aid IUZ-MH100

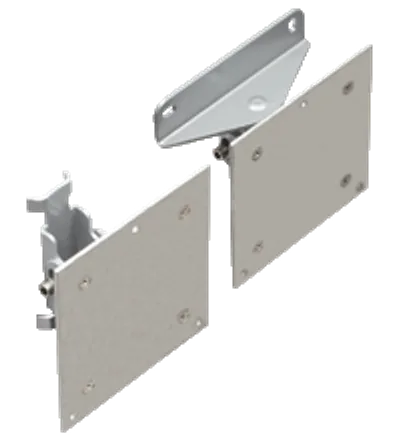

Available on requestMounting aid IUZ-MH12

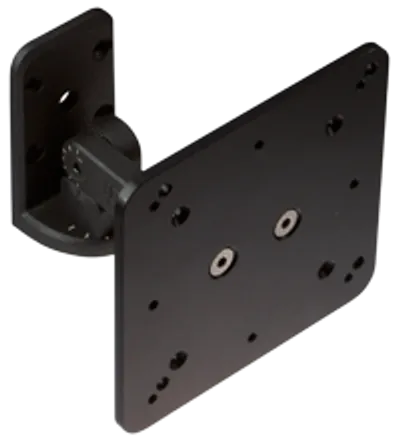

Available on requestMounting aid IUZ-MH13
