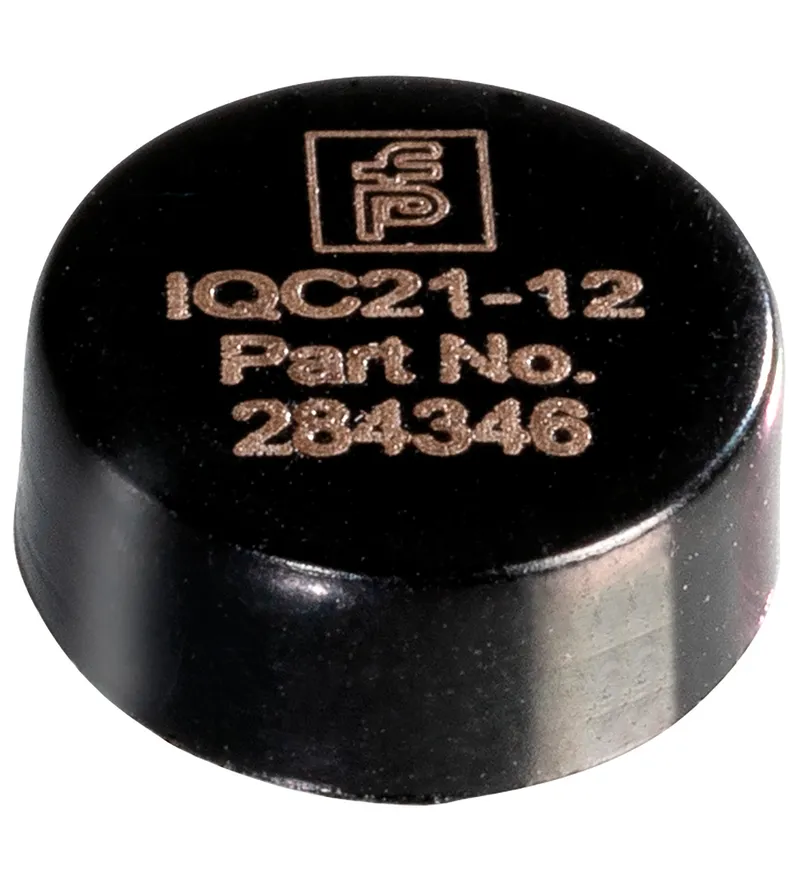

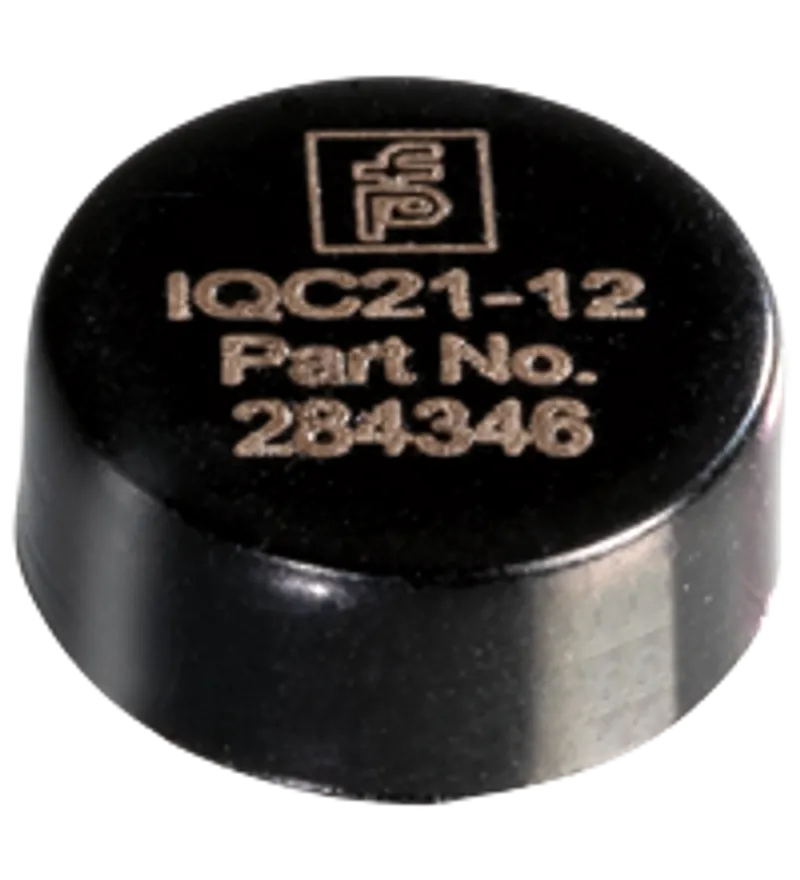

Pepperl Fuchs IQC21-12 50pcs – RFID Transponder
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | RFID Tags |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can IQC21-12 50pcs be shipped?
IQC21-12 50pcs is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IQC21-12 50pcs in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IQC21-12 50pcs and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IQC21-12 50pcs, subject to availability and destination.
• Operating frequency 13.56 MHz
• Conforms to ISO 15693
• 64 bit Fixcode
• 896 bits memory available
• Degree of protection IP67
• Packaging unit: 50 pieces
Data carrier
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 284346 |
| Operating frequency | 13.56 MHz |
| Transfer rate | 26 kBit/s |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Memory
| Chip Type | I-CODE SLIX (NXP) |
| EEPROM | 896 Bit |
| UID | 64 Bit |
| Memory organization | 4 bytes/block |
| Read cycles | unlimited |
| Write cycles | > 100000 |
| Data retention period | 50 years at 55 °C (131 °F) |
Directive conformity
| Radio equipment: Directive 2014/53/EU | EN 300330 |
| RoHS: Directive 2011/65/EU (RoHS) | IEC/EN 63000 |
Standard conformity
| Degree of protection | EN 60529 |
| RFID | ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3 |
Ambient conditions
| Ambient temperature | -20 ... 85 °C (-4 ... 185 °F) |
| Storage temperature | -20 ... 85 °C (-4 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Material: Housing | PC (Polycarbonate) |
| Material: Encapsulation compound | Epoxy |
| Installation: On metal | yes |
| Installation: In air | yes |

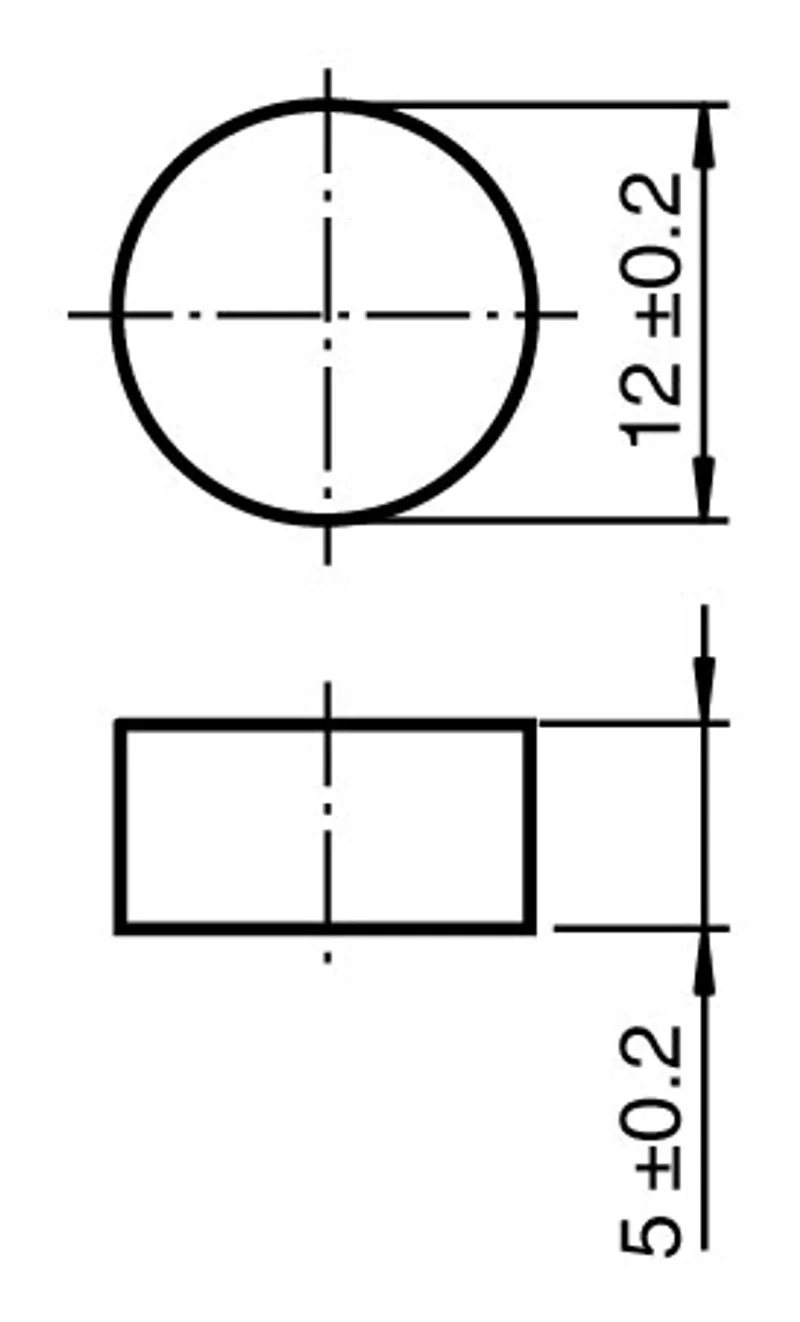

| Dimensions: Height | 5 mm |
| Dimensions: Height tolerance | ± 0.2 mm |
| Dimensions: Diameter | 12 mm |
| Dimensions: Diameter tolerance | + 0.2 mm |
| Construction type | Cylindrical |
| Note | Packaging unit, 50-piece |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet IQC21-12 50pcs |
Certificates (3)
| Simplified EU Declaration of Conformity | PDF · 62 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 230 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 115 kB |
More Pepperl Fuchs parts
Available on requestRead/write station IPT1-FP
Available on requestFlat housing IPZ-MH50Available on requestFlat housing IPZ-MH50 100pcs
Available on requestRFID Transponder IQC21-10 10pcs

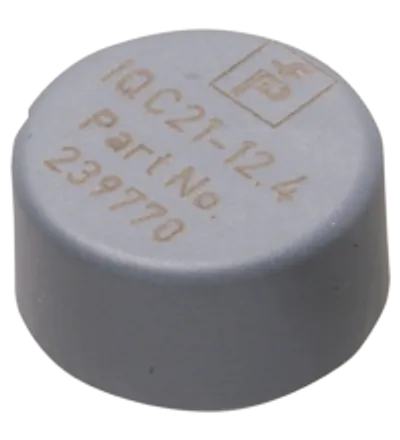

Available on requestRFID Transponder IQC21-12.4 10pcs

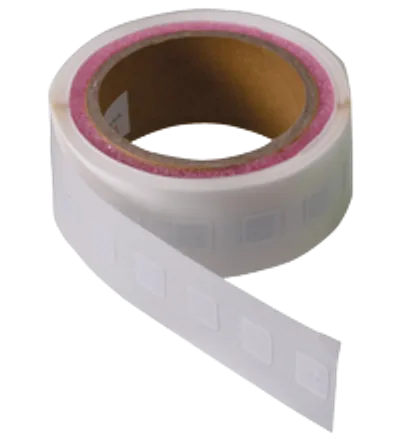

Available on requestRFID Transponder IQC21-15L15 500pcs

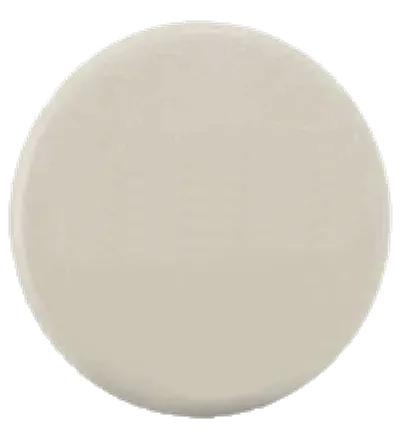

Available on requestRFID Transponder IQC21-16 50pcs

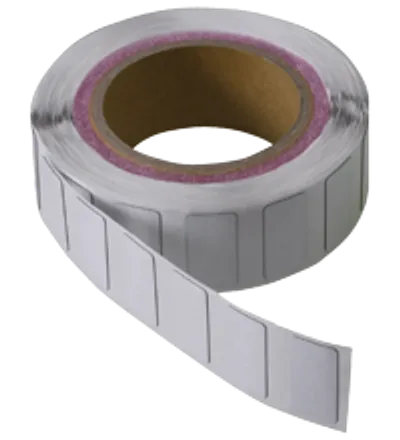

Available on requestRFID Transponder IQC21-18L35-M 500pcs
