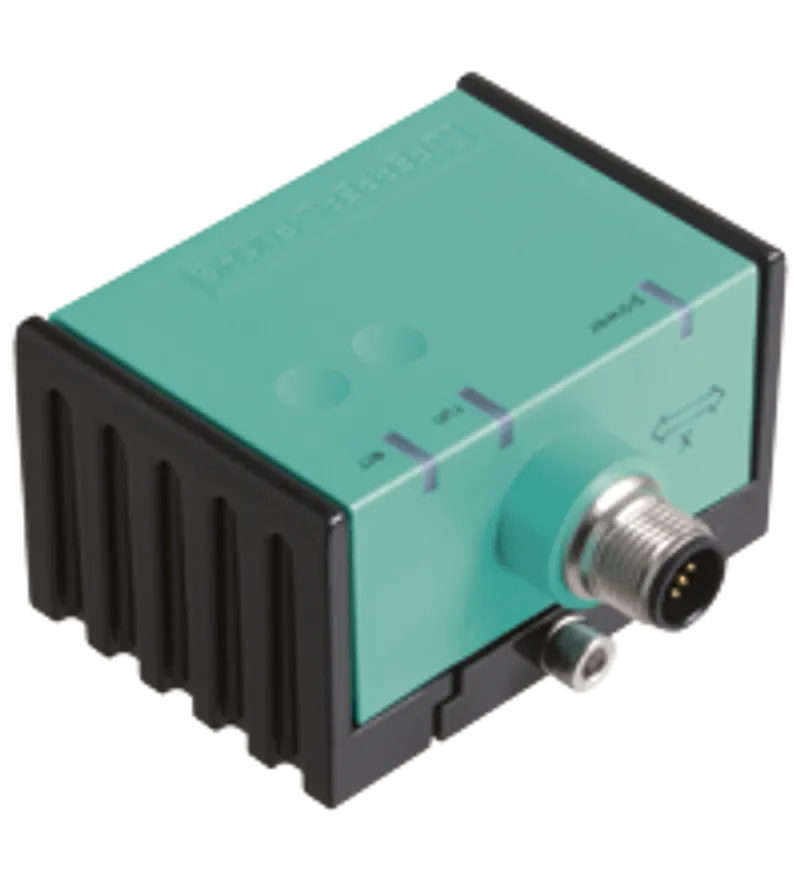

Pepperl Fuchs INX360D-F99-B16-V15 – Inclination sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Static Inclination Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can INX360D-F99-B16-V15 be shipped?
INX360D-F99-B16-V15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up INX360D-F99-B16-V15 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for INX360D-F99-B16-V15 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for INX360D-F99-B16-V15, subject to availability and destination.
• E1-Type approval
• Measuring range 0 ... 360°
• High shock resistance
• Extended temperature range -40 ... +85 °C
• CANopen interface
• Increased noise immunity 100 V/m
E1-Type approval, Measuring range 0 ... 360°, High shock resistance, Extended temperature range , -40 ... +85 °C, CANopen interface, Increased noise immunity 100 V/m
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 212422 |
| Type | Inclination sensor, 1-axis |
| Measuring range | 0 ... 360 ° |
| Absolute accuracy | ≤ ± 0.5 ° |
| Response delay | ≤ 20 ms |
| Resolution | ≤ 0.1 ° |
| Repeat accuracy | ≤ ± 0.1 ° |
| Temperature influence | ≤ 0.027 °/K |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 300 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Operation indicator | LED, green |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| No-load supply current | ≤ 50 mA I0 |
| Time delay before availability | ≤ 2.5 s tv |
Interface
| Interface type | CANopen |
| Device profile | CiA410, Ver. 1.2 |
| Data output code | binary code |
| Node ID | 1 ... 127 , programmable |
| Transfer rate | 125 kBit/s , 250 kBit/s , 500 kBit/s , 1 MBit/s , programmable |
| Termination | external |
| Cycle time | ≥ 20 ms |
Compliance with standards and directives
| Standard conformity: Shock and impact resistance | 100 g according to DIN EN 60068-2-27 |
| Standard conformity: Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
Approvals and certificates
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| E1 Type approval | 10R-04 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications

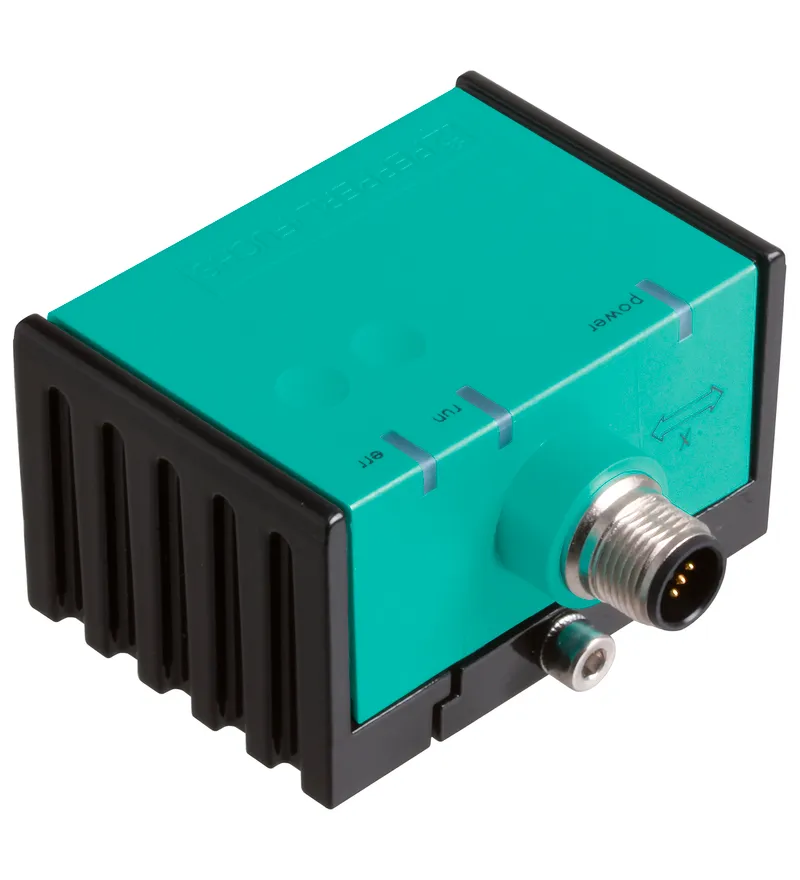

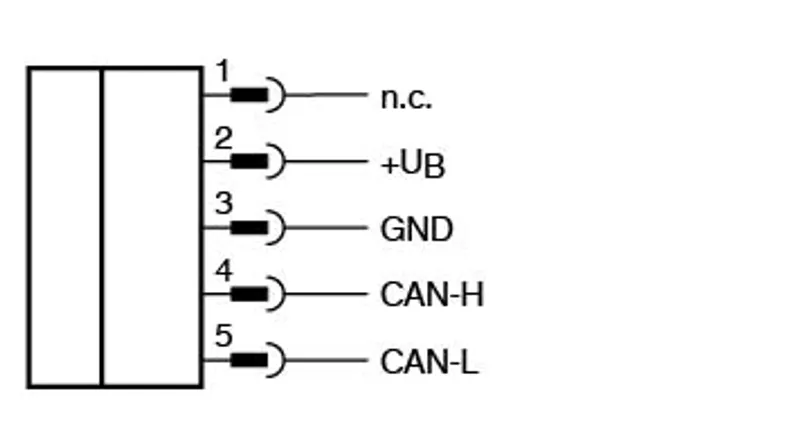

| Connection type | 5-pin, M12 x 1 connector |
| Housing material | PA |
| Degree of protection | IP68 / IP69K |
| Mass | 240 g |

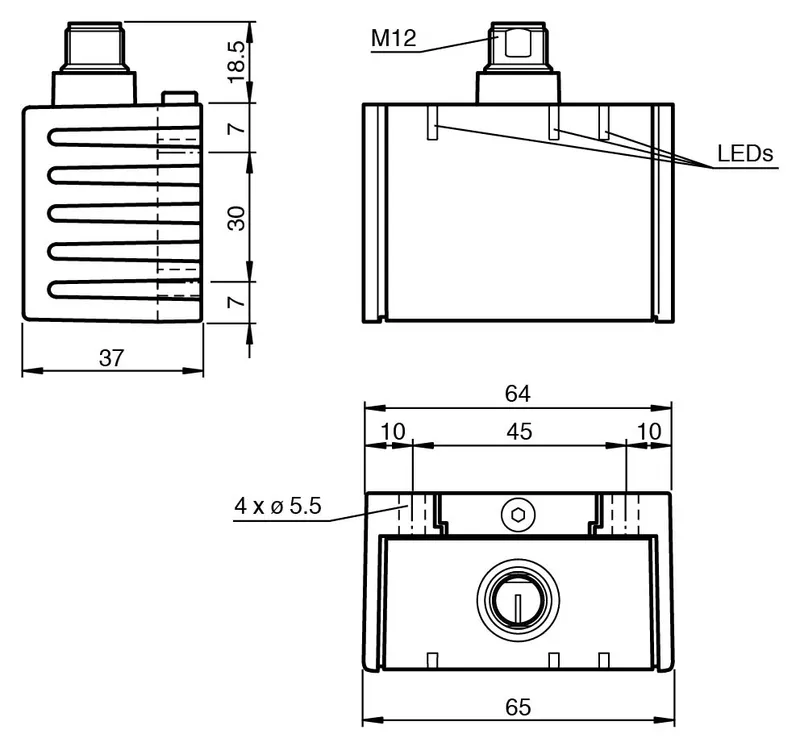

| Dimensions: Height | 37 mm |
| Dimensions: Width | 45 mm |
| Dimensions: Length | 65 mm |
Factory settings
| Node ID | 1 |
| Transfer rate | 250 kBit/s |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet INX360D-F99-B16-V15 | |
| Manual | PDF · 917 kB |
CAD & dimension drawings
| 3-D model (STEP) INY030D-F99-B16-V15 | STP · 1.1 MB |
| EPLAN macro INX360D-F99-B16-V15 | EDZ · 86 kB |
Certificates (3)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 140 kB |
| KBA (10R-06 7567) | PDF · 547 kB |
| Canada USA UL Ordinary Location (UL-US-L87056-11-41301991-3 / UL-CA-L87056-31-41301991-3) | PDF · 1.8 MB |
