Pepperl Fuchs ICE3-8IOL-K45P-RJ45-EX – IO-Link master
MPN: ICE3-8IOL-K45P-RJ45-EX · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Serial Gateways |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ICE3-8IOL-K45P-RJ45-EX be shipped?
ICE3-8IOL-K45P-RJ45-EX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ICE3-8IOL-K45P-RJ45-EX in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ICE3-8IOL-K45P-RJ45-EX and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ICE3-8IOL-K45P-RJ45-EX, subject to availability and destination.
• Web-based configuration of module and IO-Link devices
• Integrated IODD storage for more than 100 IODDs
• Downloadable module configuration
• PROFINET IO, Modbus/TCP and OPC UA Support
• Pluggable push-in connectors
• Certified for use in Zone 2 and Class I, Division 2
PROFINET IO IO-Link master with 8 inputs/outputs, DIN rail, push-in terminals
Specifications
Indicators/operating means
| Order code (Pepperl+Fuchs part number) | 70195319 |
| LED indication | see manual |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Rated operating voltage | 18 ... 30 V DC Ue |
| General information | Redundant power |
| Nominal voltage | 24 V DC UN |
| Nominal current | 3.7 A |
| Current consumption | typ. 155 mA |
| Current loading capacity | Total current 3.2 A per module |
Interface 1
| Interface type | Industrial Ethernet |
| Physical | RJ45 |
| Protocol | PROFINET IO with media redundancy protocol (MRP) + Modbus TCP + OPC UA + MQTT (including Sparkplug B support) Modbus max PDI: 33 times / sec OPC UA max PDI update rate: 20 times / sec MQTT max PDI update rate: 10 times / sec |
| Transfer rate | 10/100 Mbps |
Inputs/Outputs
| Number/Type | 8 x IO-Link Class A (X1 - X8) Configurable as: Max. 8 IO-Link and 8 digital inputs Max. 16 digital inputs Max. 8 digital inputs and 8 digital outputs short-circuit protected |
| Sensor supply | max. 200 mA per port via L+ (pin 1) |
| Output current | max. 200 mA per port Via C/Q (pin 4) Ie |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61000-6-2:2005 , EN 61000-6-4:2007 + A1:2011 , EN 61131-2:2007 |
Standard conformity
| Degree of protection | EN 60529 |
| Fieldbus standard | Type 1 according to IEC 61131-2, EN 61131-9 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | max. 95 % |
| Altitude | 0 ... 2000 m |
| Shock and impact resistance | 15g, 11ms, half-sine |
| Vibration resistance | 5-8Hz, 3.5mm displacement, 8.4-150Hz, 1.0g acceleration |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | Power Supply push-in connector Fieldbus RJ45 Inputs/Outputs push-in connectors |
| Material: Housing | Polyamide, UL94V-0 |
| Mass | 250 g |
| Dimensions: Height | 118.2 mm |
| Dimensions: Width | 45.2 mm |
| Dimensions: Length | 113.6 mm |
| Construction type | Cabinet module |
| Mounting | DIN mounting rail |
Data for application in connection with hazardous areas
| Certificate | UL 25 ATEX 3354X |
| Marking | II 3G Ex ec IIC T4 Gc |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018 , EN IEC 60079-0:2018/A11:2024 , EN 60079-7:2015 , EN IEC 60079-7:2015/A1:2018 |
International approvals
| UL approval | E492874 |
| Approved for | Class I, Division 2, Groups A - D T4 |
| IECEx approval: IECEx certificate | IECEx ULD 25.0005X |
| IECEx approval: IECEx marking | Ex ec IIC T4 Gc |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet ICE3-8IOL-K45P-RJ45-EX | |
| Instruction Manual | PDF · 176 kB |
CAD & dimension drawings
| EPLAN macro ICE3-8IOL-K45P-RJ45-EX | EDZ · 11.0 MB |
| 3-D model (STEP) ICE3-8IOL-K45P-RJ45-EX | STP · 18.0 MB |
Certificates (4)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 582 kB |
| PNO V (Z12477) | PDF · 240 kB |
| Canada, USA UL (UL-US-2591491-0 and UL-US-2591492-0) | PDF · 300 kB |
| IO-Link Manufacturer Declaration (CERT-6404A) | PDF · 562 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts
Available on requestIO-Link master ICE2-8IOL1-G65L-V1DMPN: ICE2-8IOL1-G65L-V1D · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestIO-Link master ICE3-8IOL-G65L-V1DMPN: ICE3-8IOL-G65L-V1D · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestIO-Link master ICE3-8IOL-G65L-V1D-YMPN: ICE3-8IOL-G65L-V1D-Y · Pepperl Fuchs
Price on request
Request a quote
Available on requestIO-Link master ICE3-8IOL-K45P-RJ45MPN: ICE3-8IOL-K45P-RJ45 · Pepperl Fuchs
Price on request
Request a quote
Available on requestIO-Link master ICE3-8IOL-K45S-RJ45MPN: ICE3-8IOL-K45S-RJ45 · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestIO-Link master ICE3-8IOL-K45S-RJ45-EXMPN: ICE3-8IOL-K45S-RJ45-EX · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestIO-Link master ICE3-8IOL1-G65L-V1DMPN: ICE3-8IOL1-G65L-V1D · Pepperl Fuchs
Price on request
Request a quote

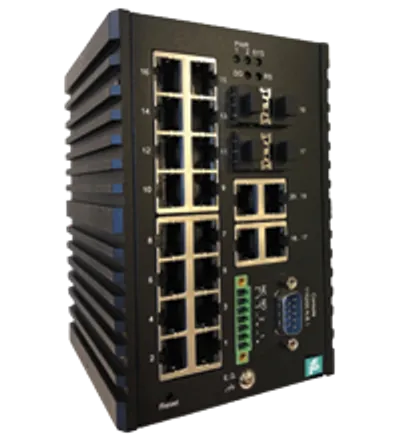

Available on requestEthernet switch managed gigabit ICRL-M-16RJ45/4CP-G-DINMPN: ICRL-M-16RJ45/4CP-G-DIN · Pepperl Fuchs
