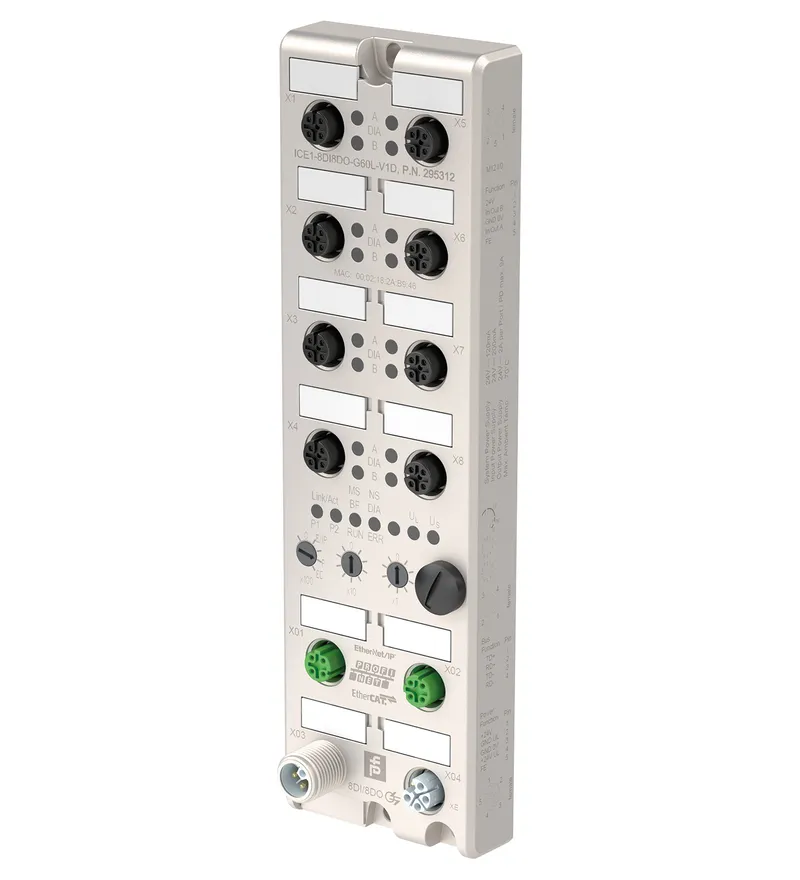

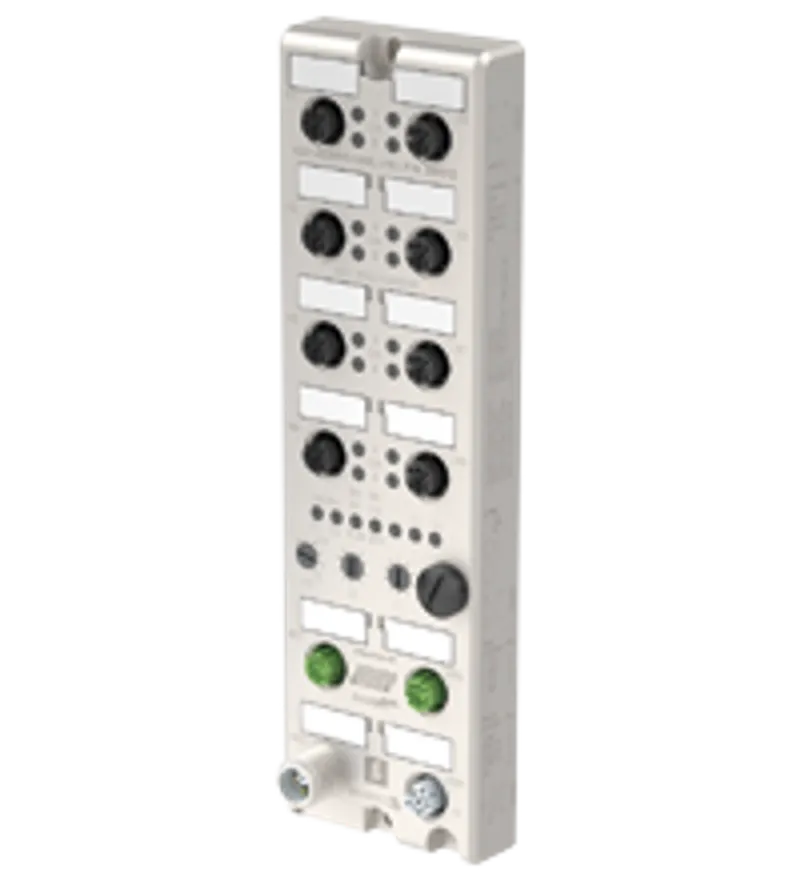

Pepperl Fuchs ICE1-8IOL-S2-G60L-V1D – IO-Link master
MPN: ICE1-8IOL-S2-G60L-V1D · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Serial Gateways |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ICE1-8IOL-S2-G60L-V1D be shipped?
ICE1-8IOL-S2-G60L-V1D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ICE1-8IOL-S2-G60L-V1D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ICE1-8IOL-S2-G60L-V1D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ICE1-8IOL-S2-G60L-V1D, subject to availability and destination.
• Multiprotocol-compatible
• M12 power connector
• Sturdy metallic housing
• Web-based configuration
• PROFINET S2 system redundancy
Ethernet IO-Link master with PROFINET S2 redundancy
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70103603 |
| UL File Number | E223772 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTF | 582 a |
Indicators/operating means
| LED indication | see manual |
| Rotary switch | Setting the fieldbus protocol |
Electrical specifications
| Rated operating voltage | 18 ... 30 V Ue |
| Nominal voltage | 24 V DC |
| Current consumption | typ. 200 mA |
| Current loading capacity | Max. 2 x 16 A per module (Loop-through current via L-coded power supply) Total current: max. 9 A per module |
| Galvanic isolation | between US and UL |
Interface 1
| Interface type | Industrial Ethernet |
| Physical | M12, D-coded |
| Protocol | PROFINET IO with media redundancy protocol (MRP) and S2 system redundancy. EtherNet/IP with Device Level Ring (DLR) |
| Transfer rate | 10/100 Mbps |
Inputs/Outputs
| Number/Type | 4 x IO-Link Class A (X1 – X4) 4 x IO-Link Class B (X5 – X8) Configurable as: max. 8 IO-Link and 4 digital inputs and outputs max. 12 digital inputs and 4 digital outputs max. 12 digital outputs and 4 digital inputs short-circuit protected |
| Sensor supply | max. 500 mA per port (X1 - X8) via L+ (pin 1) |
| Output current | max. 500 mA per port (X1 - X8) Via C/Q (pin 4) In addition, a maximum of 2 A per port (X5 – X8) Via UAux (pin 2) Ie |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011 |
Standard conformity
| Degree of protection | EN 60529:2000 |
| Fieldbus standard | Type 1 according to IEC 61131-2 |
| Emitted interference | EN 61000-6-4:2007+A1:2011 |
| Noise immunity | EN 61000-6-2:2005 |
| Shock resistance | EN 61131-2:2004 |
Ambient conditions
| Ambient temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Cold start temperature | -40 °C (-40 °F) |
| Relative humidity | max. 95 % |
| Altitude | 0 ... 2000 m |
| Shock and impact resistance | 50 g, 11 ms, all axes |
| Vibration resistance | 15 g at 5 - 500 Hz |
| Pollution degree | 3 |
Mechanical specifications
| Contact elements | PA |
| Degree of protection | IP65 / IP67 / IP69K |

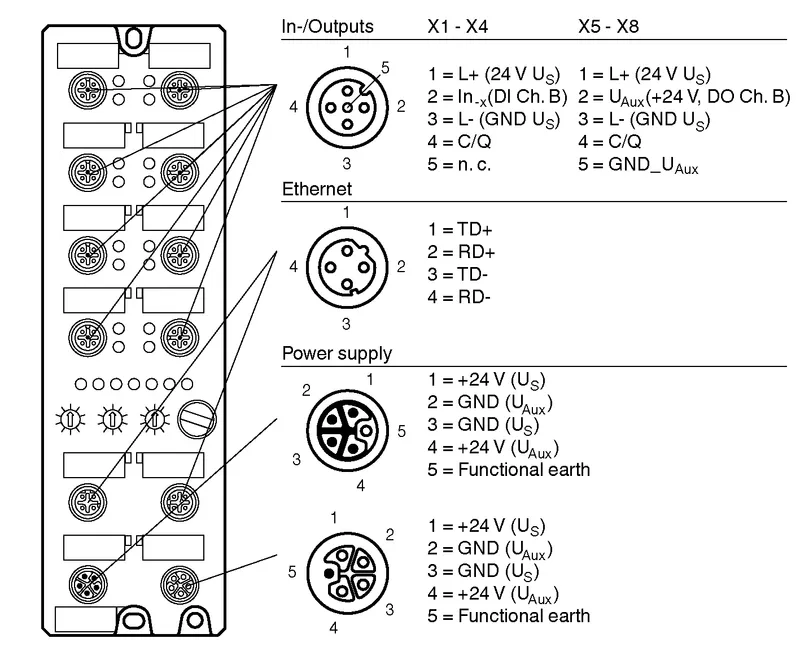

| Connection | Power Supply M12, L-coded Fieldbus M12, D-coded Inputs/Outputs M12, A-coded |
| Material: Contacts | CuSn, gold-plated CuNi, gold-plated |
| Material: Housing | Diecast zinc |
| Material: Seal | FKM |
| Mass | 500 g |
| Tightening torque, fastening screws | 1 Nm |
| Tightening torque, cable gland | 0.6 Nm |

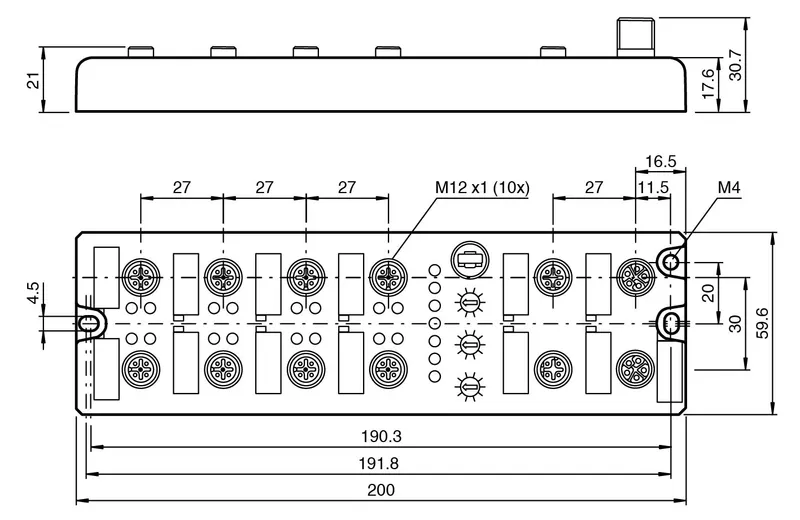

| Dimensions: Height | 200 mm |
| Dimensions: Width | 59.6 mm |
| Dimensions: Length | 21 mm |
| Construction type | Field housing |
| Tightening torque of clamping screws | 0.5 Nm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet ICE1-8IOL-S2-G60L-V1D | |
| Manual | PDF · 4.7 MB |
CAD & dimension drawings
| 3-D model (STEP) ICE1-8IOL-S2-G60L-V1D | STP · 12.7 MB |
| EPLAN macro ICE1-8IOL-S2-G60L-V1D | EDZ · 72 kB |
Certificates (4)
| Canada, USA UL (CoC E223772 RptRef E223772-20170316) | PDF · 273 kB |
| PNO Certificate of Conformity (Z12767) | PDF · 240 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 202 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 176 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts
Available on requestFieldbus module ICE1-8DI8DO-G60L-C1-V1DMPN: ICE1-8DI8DO-G60L-C1-V1D · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestFieldbus module ICE1-8DI8DO-G60L-V1DMPN: ICE1-8DI8DO-G60L-V1D · Pepperl Fuchs
Price on request
Request a quote

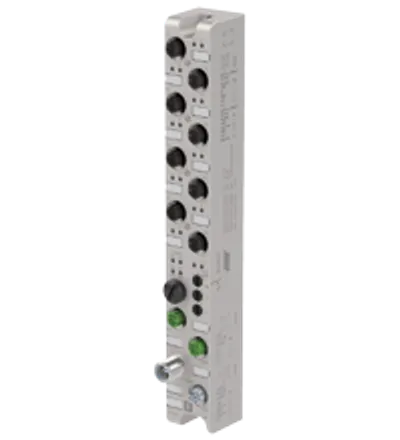

Available on requestIO-Link master ICE1-8IOL-G30L-V1DMPN: ICE1-8IOL-G30L-V1D · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestIO-Link master ICE1-8IOL-G60L-V1DMPN: ICE1-8IOL-G60L-V1D · Pepperl Fuchs
Price on request
Request a quote

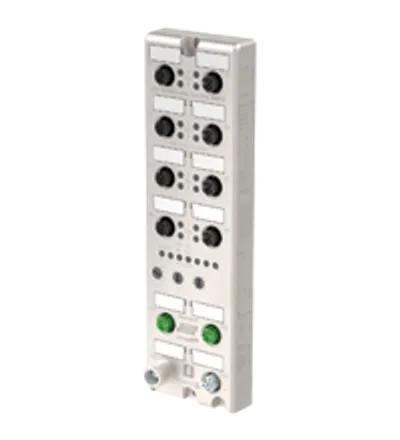

Available on requestIO-Link master ICE11-8IOL-G60L-V1DMPN: ICE11-8IOL-G60L-V1D · Pepperl Fuchs
