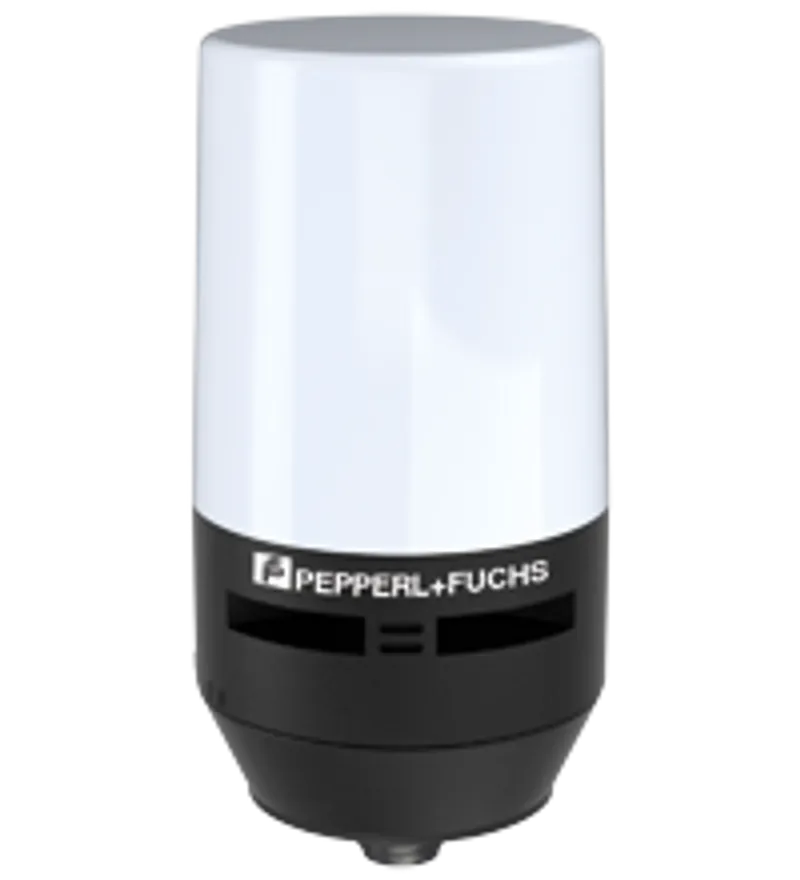

IO-Link signal light ICA-SB-MCS-55MM1-IO-V1 — photo 1 of 3

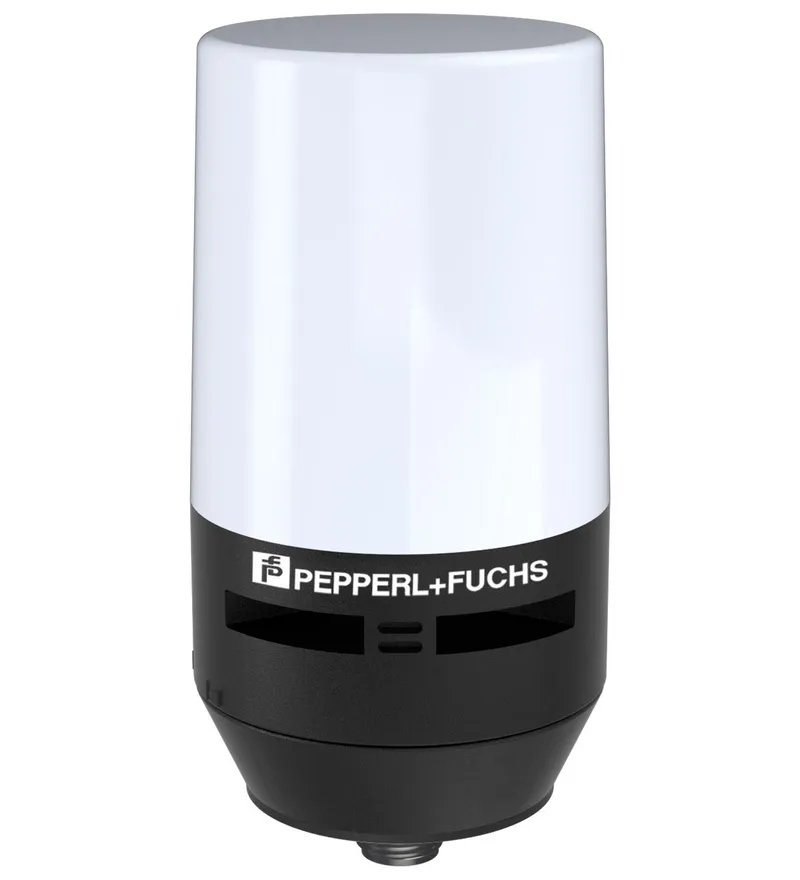

IO-Link signal light ICA-SB-MCS-55MM1-IO-V1 — photo 2 of 3

IO-Link signal light ICA-SB-MCS-55MM1-IO-V1 — photo 3 of 3

Available on request

Pepperl Fuchs ICA-SB-MCS-55MM1-IO-V1 – IO-Link signal light

MPN: ICA-SB-MCS-55MM1-IO-V1 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Serial Gateways
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ICA-SB-MCS-55MM1-IO-V1 be shipped?

ICA-SB-MCS-55MM1-IO-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ICA-SB-MCS-55MM1-IO-V1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ICA-SB-MCS-55MM1-IO-V1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ICA-SB-MCS-55MM1-IO-V1, subject to availability and destination.

• IO-Link interface

• Compact signal light with a diameter of 55 cm

• M12 plug connection

• Over 1 million colors configurable

• Built-in siren (85 dB)

IO-Link signal light with siren

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70189432
Light type	LED Light color: MC > 1 000 000 colors, configurable via IO-Link Signal patterns: blink, flash, continous
Signal type	Multi-tone, 10 tones, adjustable Volume max. 85 dB at a distance of 1 m Volume adjustable
Color	black
Frequency	Flash frequency can be configured
Lifecycle	Active (current Pepperl+Fuchs product)

Electrical specifications

Insulation voltage	Ui = 50 V / Uimp = 330 V Ui
Rated operating voltage	24 V DC ± 20 % Ue
Rated operating current	55 mA Ie
Surge protection	Category I
Inrush current	350 mA

Interface

Interface type	IO-Link ( via C/Q = pin 4 )
IO-Link revision	1.1
Device profile	Identification and Diagnosis - I&D Firmware update
Process data	Outputs 8 Byte - light = 6 Byte - Sound = 2 Byte
Vendor ID	1 (0x0001)
Device ID	983842 (0x0F0322)
Transfer rate	COM2 (38.4 kBit/s)
Min. cycle time	5 ms
SIO mode support	no

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

EN 61000-6-2:2005-08 EN 61000-6-4:2007-01 EN 61000-6-4/A1:2011-02

Standard conformity

Communication interface	IEC 61131-9 / IO-Link V1.1.3
Emitted interference	EN 61000-6-4:2007-01 EN 61000-6-4/A1:2011-02

Ambient conditions

Ambient temperature	-20 ... 50 °C (-4 ... 122 °F)
Pollution degree	3 (2 in connection area)

Mechanical specifications

Degree of protection	IP65 / IP69K
Protection class	3
Material	PC
Installation	Floor mounting, pipe mounting
Mass	92 g

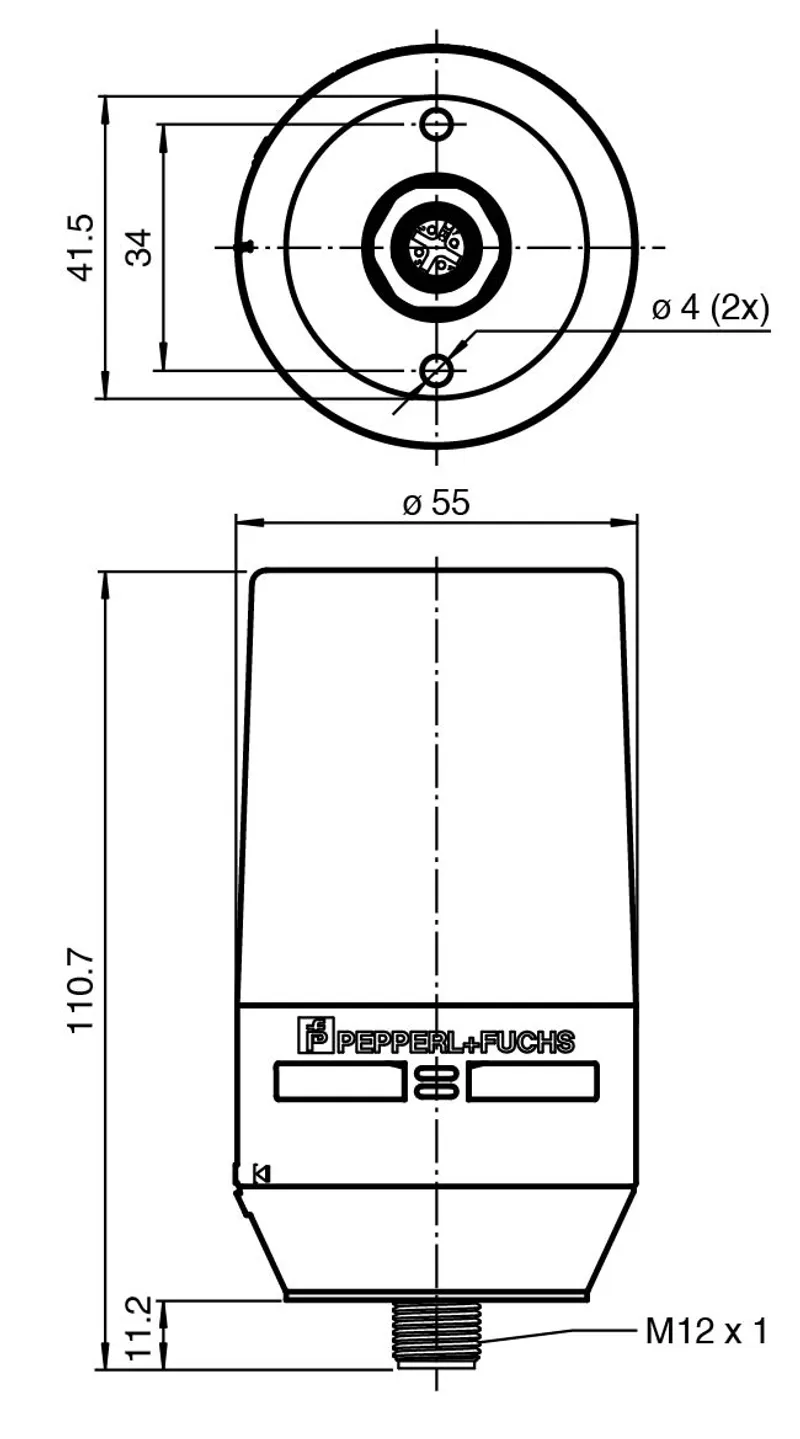

Dimensions: Height	111 mm
Dimensions: Diameter	55 mm
Connection possibilities	M12 plug, 4-pin
Life span	Optical: max. 50,000 hAcoustic: min. 5000 h

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet ICA-SB-MCS-55MM1-IO-V1	PDF
Brief Instructions	PDF · 297 kB
Installation and user instructions for offline parameterization of IO-Link sensors	PDF · 1.8 MB

Certificates (1)

EU Declaration of Conformity (Pepperl+Fuchs)

PDF · 719 kB
