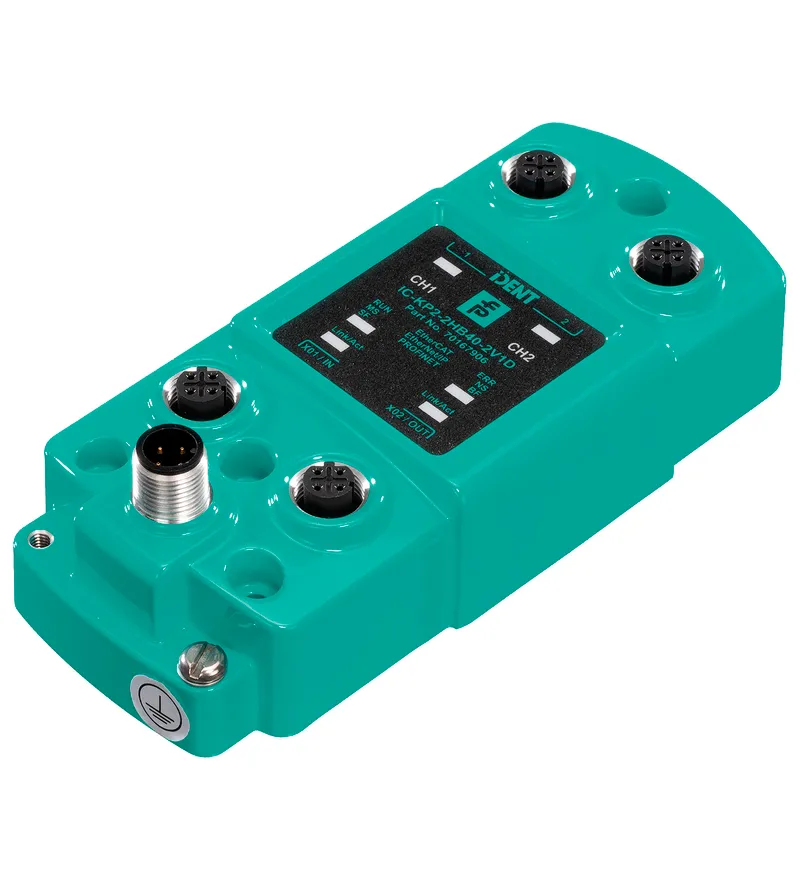

RFID evaluation unit IC-KP2-2HB40-2V1D — photo 2 of 4

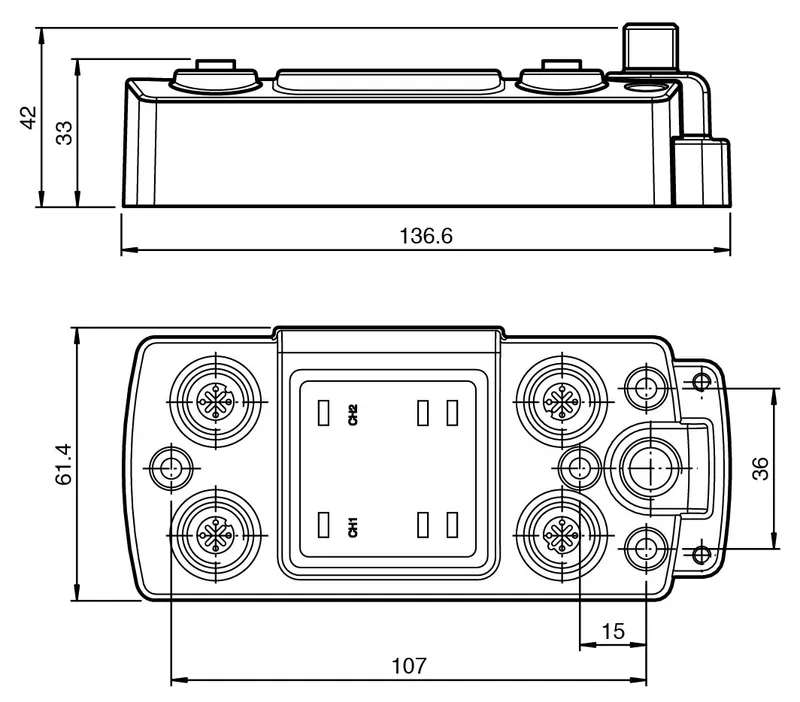

RFID evaluation unit IC-KP2-2HB40-2V1D — photo 3 of 4

RFID evaluation unit IC-KP2-2HB40-2V1D — photo 4 of 4

Available on request

Pepperl Fuchs IC-KP2-2HB40-2V1D – RFID evaluation unit

MPN: IC-KP2-2HB40-2V1D · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	RFID Evaluation Units
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can IC-KP2-2HB40-2V1D be shipped?

IC-KP2-2HB40-2V1D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IC-KP2-2HB40-2V1D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IC-KP2-2HB40-2V1D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IC-KP2-2HB40-2V1D, subject to availability and destination.

• LED status indicator of bus communication and read/write heads

• Network loop through by means of integrated 2 port switch

• Max. 2 read/write heads can be connected

• Alternatively 1 read/write head and 1 trigger sensor can be connected

IDENTControl Compact RFID evaluation unit with Ethernet interface for PROFINET and EtherNet/IP protocols

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70167906
Number of read/write heads	max. 2 alternatively 1 read/write head and 1 trigger sensor
MTBF	79 a (Operation at +40 °C)
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

LEDs 1, 2	Status indicator for read/write heads green: command at read/write head activeyellow: approx. 1 second long, if command was successfully executed
LEDs CH1, CH2	green: read head detected red: Configuration error
LED Link/Act	green: network connection yellow: flashes in rhythm with the transmitted data
LED RUN, MS, SF	green/red: depending on the protocol Run, Module Status, System Failure
LED ERR, NS, BF	green/red: depending on the protocol Error, Network Status, Bus Failure
Rotary switch	Mode

Electrical specifications

Rated operating voltage	20 ... 30 V DC , PELV Ue
Ripple	≤ 10 % at 30 V DC
Current consumption	≤ 4 A incl. read/write heads
Power consumption	3.5 W Without read/write heads P0
Galvanic isolation	basic insulation acc. to DIN EN 50178, rated insulation voltage of 50 Veff

Interface 1

Physical	Ethernet
Protocol	HTTP (REST API) HTTPS (REST API) EtherNet/IP PROFINET IO ICMP LLDP NTP SNMP
Transfer rate	10 MBit/s or 100 MBit/s

Interface 2

Physical	Ethernet
Protocol	HTTP (REST API) HTTPS (REST API) EtherNet/IP PROFINET IO ICMP LLDP NTP SNMP
Transfer rate	10 MBit/s or 100 MBit/s

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU	EN 61000-6-2 EN 61000-6-4
RoHS: Directive 2011/65/EU (RoHS)	IEC/EN 63000

Standard conformity

Degree of protection

IEC 60529

Approvals and certificates

UL approval

E223772 cULus Listed, Class 2 Power Source, Type 1 enclosure

Ambient conditions

Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Climatic conditions	air humidity max. 96 % Salt spray resistant to EN 60068-2-52
Shock and impact resistance	Oscillation (Sine): 5 g, 10 - 1000 Hz to EN 60068-2-6 Shock (Half-sine): 30 g, 11 ms in accordance with EN 60068-2-27

Mechanical specifications

Degree of protection	IP67

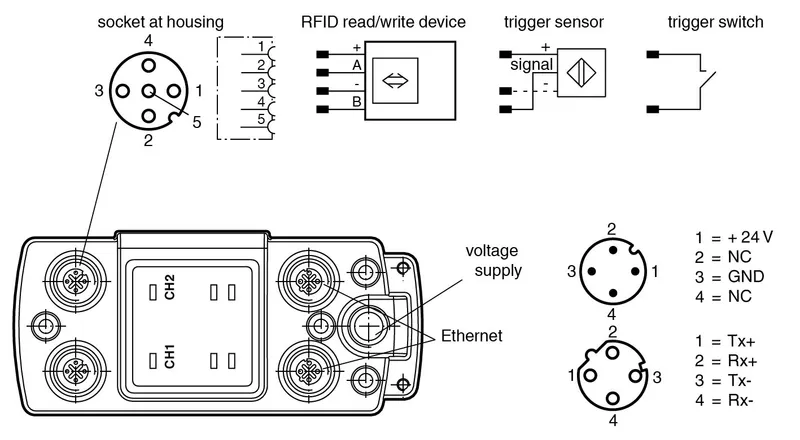

Connection	Read/write heads: shielded, 4-pin, M12 connector Power supply: M12 connector Protective earth: M4 earthing screw Ethernet: M12 plug connection
Material: Housing	powder coated aluminum
Installation	screw fixing
Mass	approx. 300 g
Dimensions: Height	42 mm
Dimensions: Width	62 mm
Dimensions: Length	137 mm
