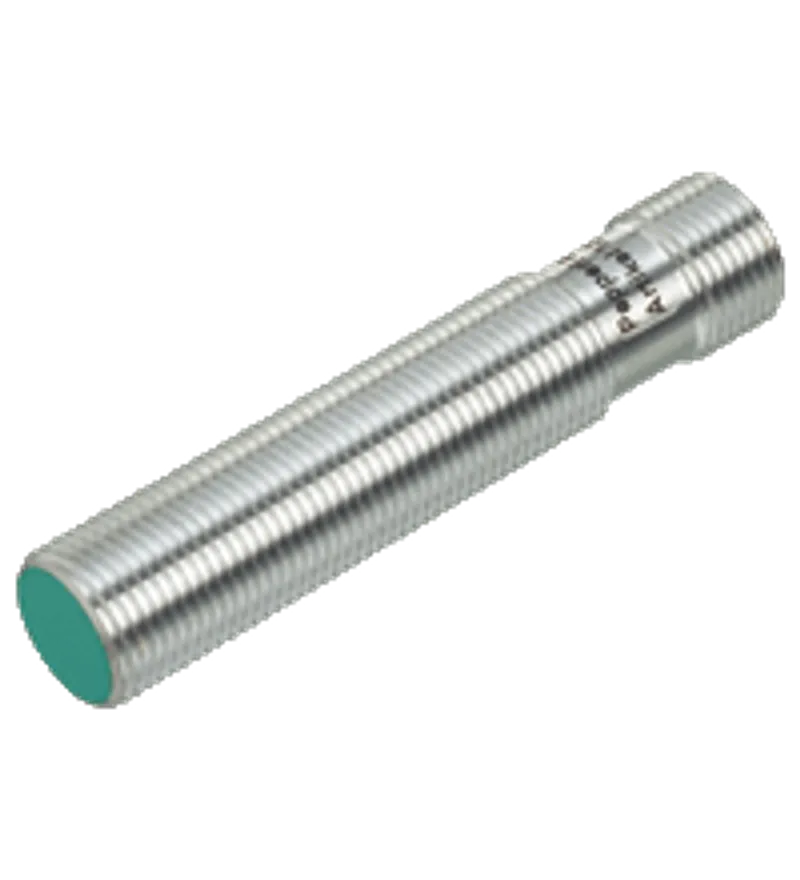

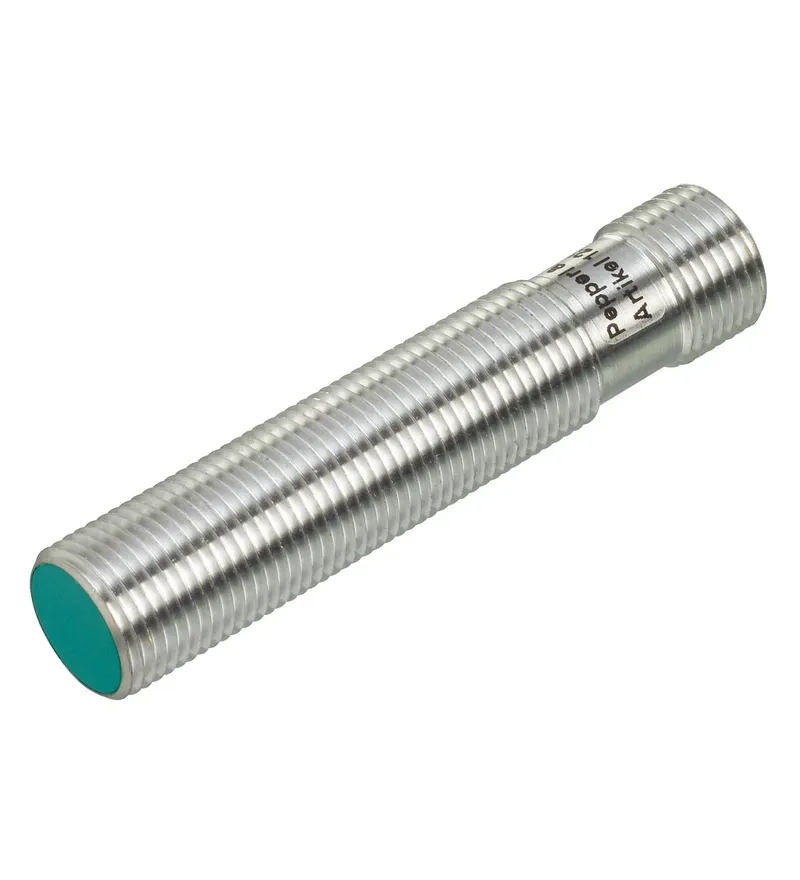

Pepperl Fuchs IA6-12GM50-IU-V1-Y70109009 – Inductive analog sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can IA6-12GM50-IU-V1-Y70109009 be shipped?
IA6-12GM50-IU-V1-Y70109009 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IA6-12GM50-IU-V1-Y70109009 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IA6-12GM50-IU-V1-Y70109009 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IA6-12GM50-IU-V1-Y70109009, subject to availability and destination.
• Inductive analog sensor
• Analog output 1 mA ... 5 mA/ 0 V ... 5 V
• 0...6 mm quasi flush
Output type: Analog current output or analog voltage output, Installation: quasi flush, Output polarity: DC, Output type: 4-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 30 V , residual ripple 20 % UB, Type of voltage: DC, Output type: 0 ... 5 V / 1 ... 5 mA, Connection type: Connector plug, Housing material: chromium plated brass, Degree of protection: IP67, Threading: M12 x 1
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70109009 |
| Output type | Analog current output or analog voltage output |
| Installation | quasi flush |
| Output polarity | DC |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 18 mm x 18 mm x 1 mm |
| Reduction factor rAl | 0.33 |
| Reduction factor rCu | 0.28 |
| Reduction factor r304 | 0.8 |
| Reduction factor rBrass | 0.43 |
| Measuring range | 0 ... 6 mm |
| Output type | 4-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Installation conditions: A | 2 mm |
| Installation conditions: B | 12 mm |
| Installation conditions: C | 18 mm |
| Installation conditions: F | 14 mm |
| Operating voltage | 10 ... 30 V , residual ripple 20 % UB UB |
| Limit frequency (3dB) | 1000 Hz |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Repeat accuracy | ± 0.32 mm R |
| Resolution | 0 ... 1 µm |
| No-load supply current | ≤ 10 mA I0 |
Safety-relevant product characteristics
| MTTFd | 551 a |
| Diagnostic Coverage (DC) | 0 % |
Analog output
| Output type | 0 ... 5 V / 1 ... 5 mA |
| Load resistor | Current output A2: 1 kΩ (UB=10V) / 5 kΩ (UB=30V) |
| Load current | Voltage output A1: ≤ 10 mA |
| Recovery time | 20 ms |
| Adjustment tolerance zero point | ≤ ± 10 % of full-scale value |
| Temperature drift | ± 5 % (0 ... 70 °C)± 10 % (-25 ... 0 °C) |
| Residual ripple | 20 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | Connector plug |
| Housing material | chromium plated brass |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Connector: Threading | M12 x 1 |
| Connector: Number of pins | 4 |
| Mass | 27 g |
| Dimensions: Length | 60 mm |
| Dimensions: Diameter | 12 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet IA6-12GM50-IU-V1-Y70109009 |

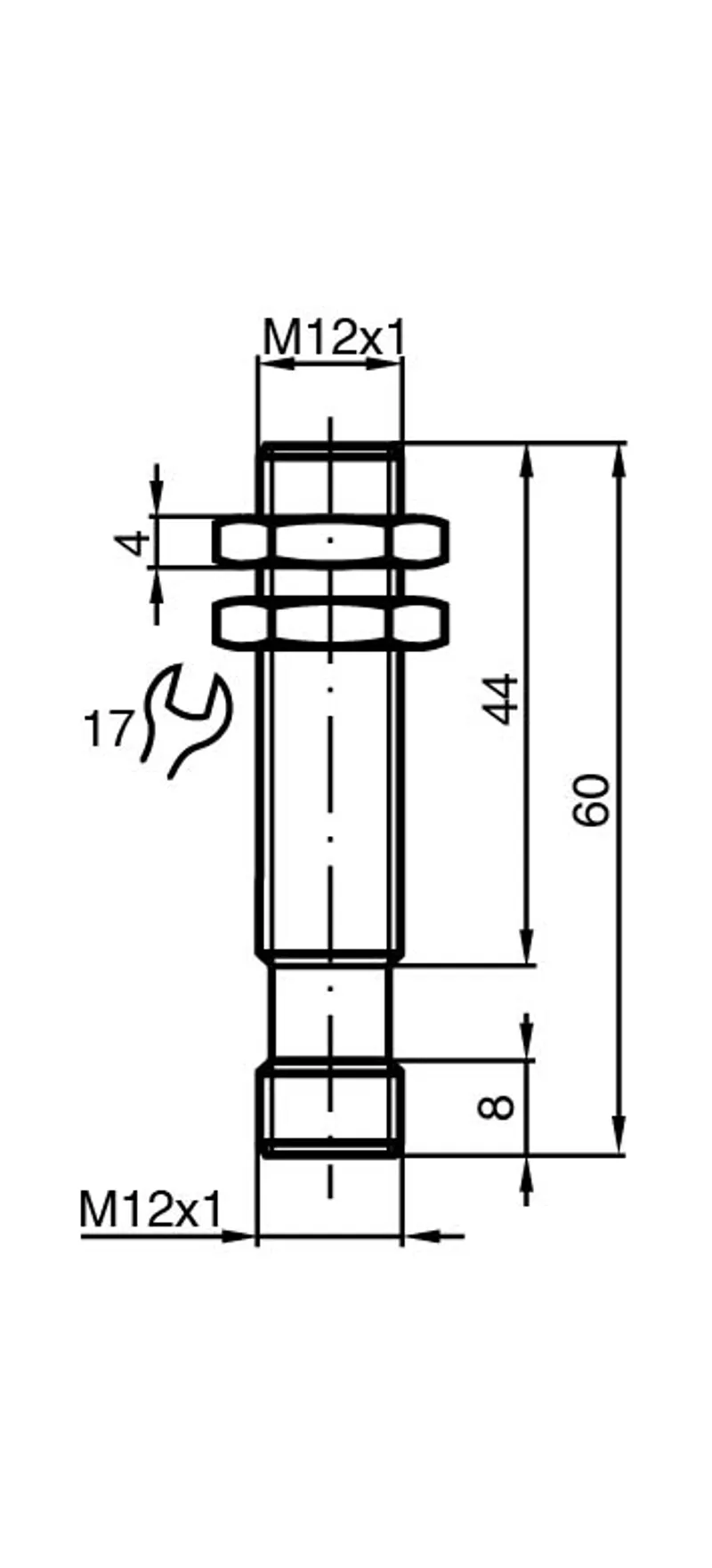

CAD & dimension drawings
| 3-D model (STEP) IA6-12GM50-IU-V1-Y70109009 | STP · 58 kB |
Certificates (3)
| China Information on CCC (CCC-Exempt Declaration (Pepperl+Fuchs)) | PDF · 467 kB |
| Canada USA UL Ordinary Location (E87056) | PDF · 462 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 1.2 MB |
More Pepperl Fuchs parts
Available on requestProtective tape HYM1000

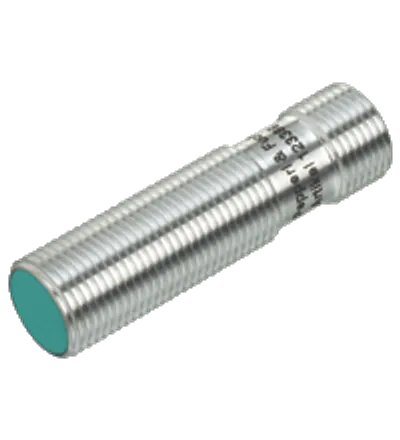

Available on requestInductive analog sensor IA6-12GM35-IU-V1
Available on requestInductive analog sensor IA6-12GM50-IU-V1

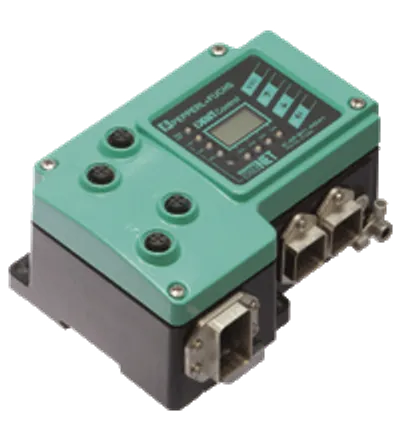

Available on requestRFID evaluation unit IC-KP-B17-AIDA1

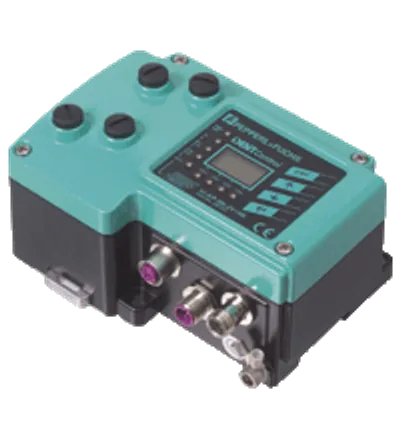

Available on requestRFID evaluation unit IC-KP-B6-2V15B
