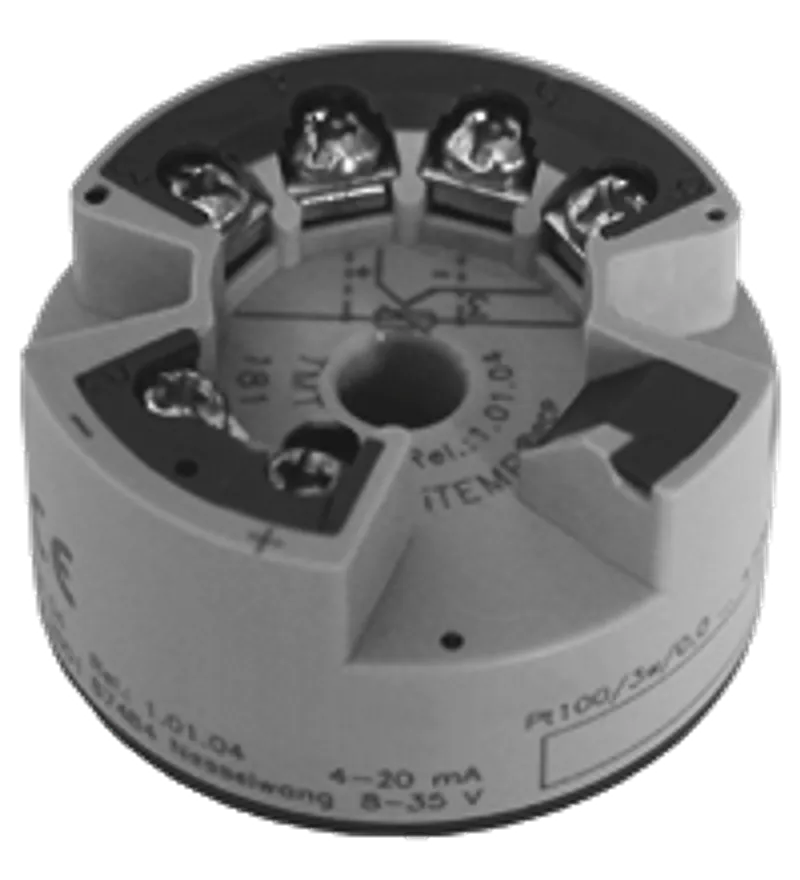

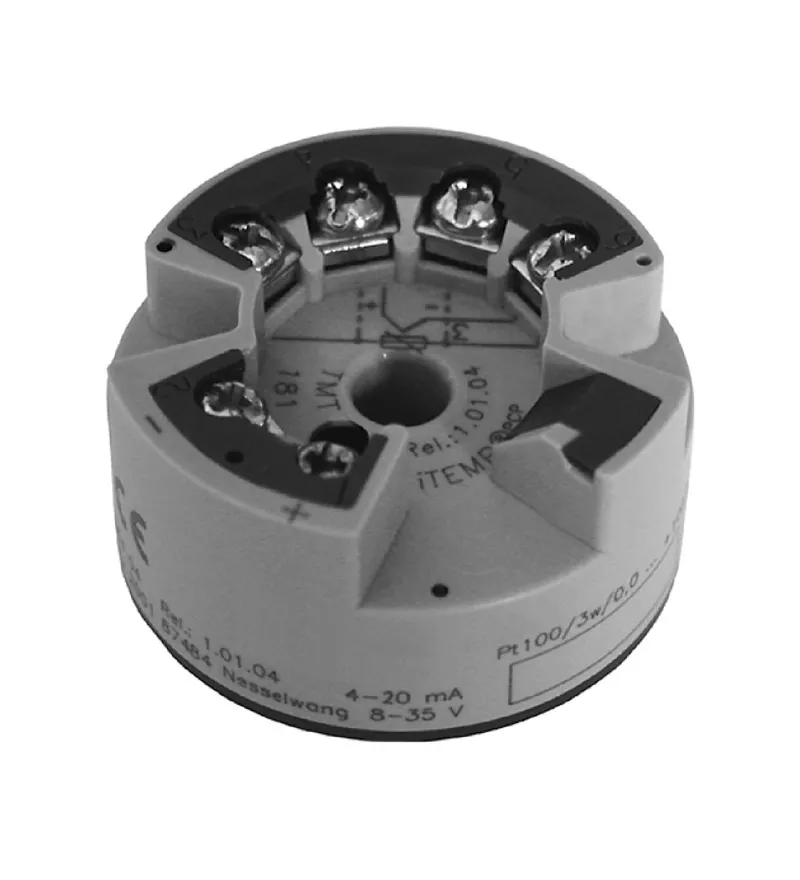

What is the Pepperl Fuchs HUT?
2-, 3- and 4-wire technology, 4 mA ... 20 mA analog output
High accuracy in total ambient temperature range
Universally PC programmable for various signals
Fault signal on sensor break or short circuit, presettable to NAMUR NE43
Online configuration during measurement using SETUP connector
Customer specific linearization
EMC acc. to NAMUR NE 21
2-, 3- and 4-wire technology, 4 mA ... 20 mA analog output, High accuracy in total ambient temperature range, Universally PC programmable for various signals, Fault signal on sensor break or short circuit, presettable to NAMUR NE43, Online configuration during measurement using SETUP connector, Customer specific linearization, EMC acc. to NAMUR NE 21
Specifications
Supply
| Order code (Pepperl+Fuchs part number) | T42713 |
| Connection | terminals 1, 2 |
| Rated voltage | 8 ... 35 V DC 8 ... 30 V DC for hazardous area Ur |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Input
| Sensor types | resistance thermometer (RTD): - Pt100, Pt500, Pt1000 acc. to IEC 751 and Ni100, Ni500, Ni1000 acc. to DIN 43760 resistance transmitter (Ω) thermocouple (TC): - B (PtRh30-PtRh6), C (W5Re-W26Re), D (W3Re-W25Re), E (NiCr-CuNi), J (Fe-CuNi), K (NiCr-Ni), L (Fe-CuNi), N (NiCrSi-NiSi), R (PtRh13-Pt), S (PtRh10-Pt), T (Cu-CuNi), U (Cu-CuNi), MoRe5-MoRe41 acc. to IEC 584, part 1 voltage transmitter (mV) |
| Connection | resistance thermometer (RTD): - 2-wire connection: terminals 3, 6 - 3-wire connection: terminals 3, 5, 6 - 4-wire connection: terminals 3, 4, 5, 6 resistance transmitter (Ω): - 2-wire connection: terminals 3, 6 - 3-wire connection: terminals 3, 5, 6 - 4-wire connection: terminals 3, 4, 5, 6 thermocouple (TC): terminals 4, 6 |
| Cold junction compensation | internal (Pt100) or external (0 ... 80 °C (273 ... 353 K)), accuracy ± 1 K |
| Lead resistance | resistance thermometer (RTD): max. 11 Ω per line |
| Current | resistance thermometer (RTD): sensor current ≤ 0.6 mA thermocouple (TC): sensor current 30 mA |
Output
| Connection | terminals 1, 2 |
| Current limit | ≤ 25 mA |
| Load | (Vs - 8)/0.025 A |
| Switch-on delay | 4 s , during power up Ia = 3.8 mA ton |
| Output signal | 4 ... 20 mA, 20 ... 4 mA temperature linear, resistance linear, voltage linear |
| Residual ripple | Upp ≤ 5 V at Ub ≥ 13 V, fmax = 1 kHz |
| Response time | 1 s |
| Self current consumption | max. 3.5 mA |
| Signal on alarm | measuring range undercut: linear drop to 3.8 mA exceeding measuring range: linear rise to 20.5 mA sensor breakage, sensor short circuit: ≤ 3.6 mA oder ≥ 21.0 mA can be set up |
Galvanic isolation
| Input/Output | safe galvanic isolation acc. to EN 50020, 3.75 kV AC |
Measurement accuracy
| Reference operating conditions | calibration temperature 23 °C (296 K) ± 5 K |
| Maximum measured error | resistance thermometer (RTD): 0.2 ... 0.5 K or 0.08 ... 0.2 % resistance transmitter (Ω): ± 0.1 ... 1.5 Ω or 0.08 ... 0.12 % thermocouple (TC): typ. 0.5 ... 2.0 K or 0.08 % voltage transmitter: ± 20 µV or 0.08 % |
Operating conditions
| Ambient conditions: Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) , for hazardous area see certificate |
| Ambient conditions: Storage temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Ambient conditions: Vibration resistance | 4 g/2 ... 150 Hz |
| Ambient conditions: Relative humidity | moisture condensation allowable |
Mechanical specifications
| Degree of protection | IP00/IP66 installed |
| Connection | Terminals for wires max. 1.75 mm 2, undetachable screws |
| Material | housing: PC potting: PUR |
| Mass | approx. 40 g |

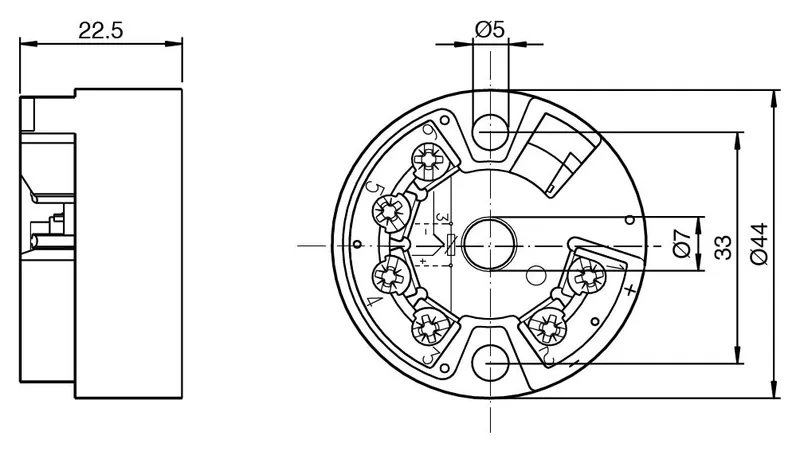

| Dimensions | ∅44 x 22,5 mm (1.7 x 0.9 inch) |
Mechanical construction
| Construction type | connection head acc. to DIN 43729 form B, field housing |
Indication and operation
| Configuration | via PC operating software, configuration set TXU 10L interface: PC interface connection cable TTL-/-RS 232 with plug |
Certificates and approvals
| Explosion-hazardous area | ZELM 07 ATEX 0352 X , for additional certificates see www.pepperl-fuchs.com |
| Type of protection | II 1G Ex ia IIC T6/T5/T4 |
General information
| Directive conformity: Directive 2004/108/EC (EMC) | emitted interference and noise immunity to EN 61326-1:2006 and EN 61326-2-3:2006 |
| Directive conformity: Directive 94/9/EC (ATEX) | EN 60079-0:2006, EN 60079-11:2007, EN 60079-26:2007 |
| Conformity: Electromagnetic compatibility | NE 21 |
| Conformity: Degree of protection | EN 60529 |
| Conformity: Climate class | EN 60654, class C |
| Conformity: Vibration resistance | EN 60068-2-6 |
| Supplementary documentation | technical information TI070O operating instructions KA141O safety information SI085O (ZELM 07 ATEX 0352 X) |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
