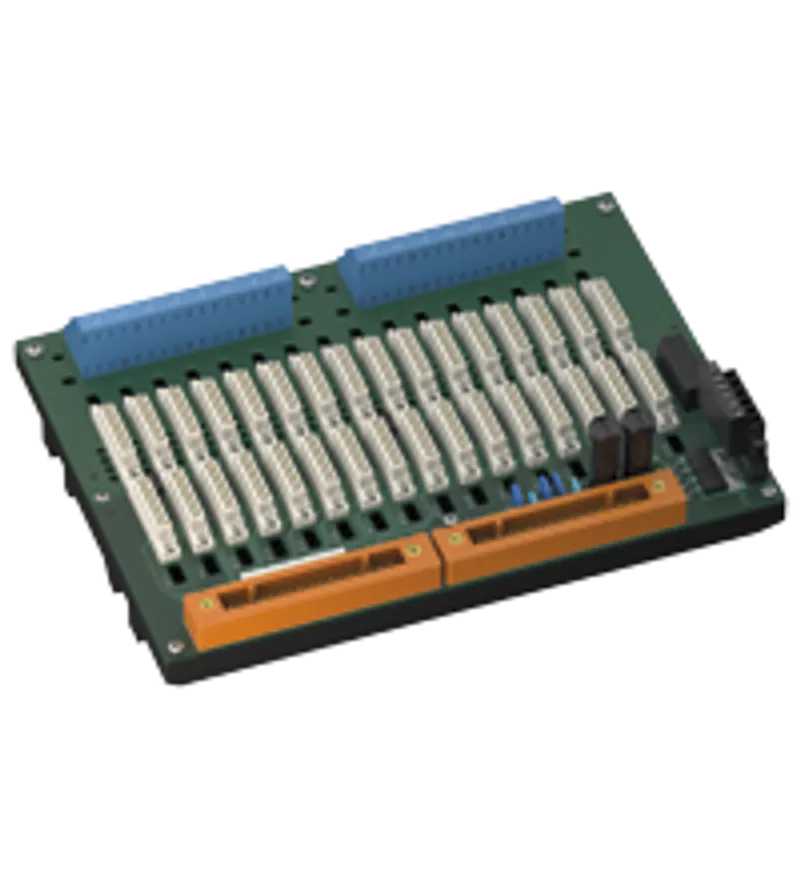

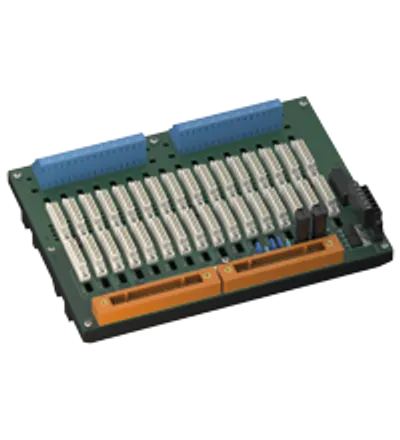

Termination Board HiCTB16-YRS-RRB-AK-CC-DO16-Y1 — photo 1 of 2

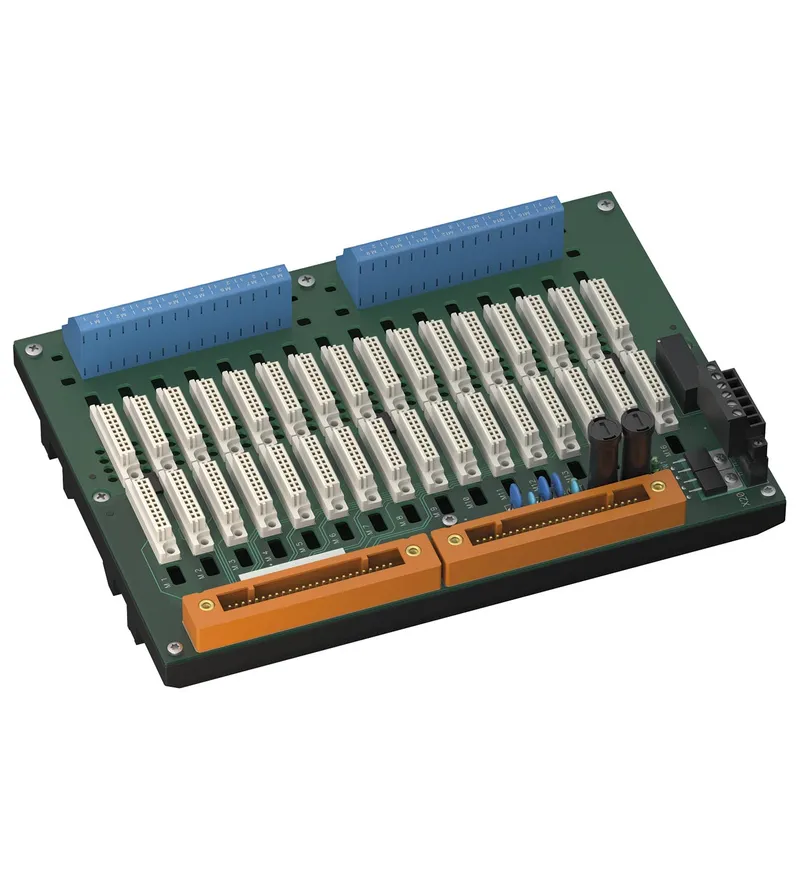

Termination Board HiCTB16-YRS-RRB-AK-CC-DO16-Y1 — photo 2 of 2

Available on request

Pepperl Fuchs HiCTB16-YRS-RRB-AK-CC-DO16-Y1 – Termination Board

MPN: HiCTB16-YRS-RRB-AK-CC-DO16-Y1 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	K-System (DIN Rail Mounting)
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can HiCTB16-YRS-RRB-AK-CC-DO16-Y1 be shipped?

HiCTB16-YRS-RRB-AK-CC-DO16-Y1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HiCTB16-YRS-RRB-AK-CC-DO16-Y1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HiCTB16-YRS-RRB-AK-CC-DO16-Y1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HiCTB16-YRS-RRB-AK-CC-DO16-Y1, subject to availability and destination.

• System board for Yokogawa ProSafe-RS

• For 16-channel DO card SDV541

• For 16 modules

• Recommended modules: HiC2883 (DO), HiC5861 (DO), HiC5863 (DO)

• 24 V DC supply

• Hazardous area: spring terminals, blue

• Non-hazardous area: Yokogawa system connector, 50-pin

System board for Yokogawa ProSafe-RS, For 16-channel DO card SDV541, For 16 modules, Recommended modules: HiC2883 (DO), HiC5861 (DO), HiC5863 (DO), 24 V DC supply, Hazardous area: spring terminals, blue, Non-hazardous area: Yokogawa system connector, 50-pin, Number of modules: 16, Signal type: Digital Output, Manufacturer: Yokogawa, Control system type: ProSafe-RS

Specifications

Supply

Order code (Pepperl+Fuchs part number)	303404
Connection	X20: terminals 3, 5(+); 4, 6(-)
Nominal voltage	24 V DC , in consideration of rated voltage of used isolators
Voltage drop	0.9 V , voltage drop across the series diode on the termination board must be considered
Ripple	≤ 10 %
Fusing	4 A , in each case for 16 modules
Power dissipation	≤ 500 mW , without modules
Reverse polarity protection	yes
Lifecycle	Active (current Pepperl+Fuchs product)

Redundancy

Supply

Redundancy available. The supply for the isolators is decoupled, monitored and fused.

Fault indication output

Connection	X20: terminals 1, 2
Output type	volt-free contact
Switch behaviour	no fault: relay contact closed power supply fault: relay contact open
Contact loading	30 V DC , 1 A

Indicators/settings

Display elements

LEDs PWR ON (Termination Board power supply) - LED power supply I, green LED - LED power supply II, green LED LED FAULT (fault indication), red LED - LED flashes: power supply fault

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

EN 61326-1:2013 (industrial locations)

Conformity

Electromagnetic compatibility	NE 21:2017 For further information see system description.
Degree of protection	IEC 60529:2001

Ambient conditions

Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Degree of protection	IP20
Connection: Field side	explosion hazardous area: spring terminals , blue
Connection: Control side	non-explosion hazardous area: Yokogawa system connector, 50-pin
Connection: Supply	pluggable screw terminals , black
Connection: Fault output	pluggable screw terminals , black
Core cross section	spring terminals: rigid: 0.2 ... 2.5 mm2 flexible: 0.25 ... 1.5 mm2
Material	housing: polycarbonate
Mass	approx. 625 g
Dimensions	240 x 175 x 153 mm (9.45 x 6.9 x 6.02 inch) (W x H x D) , depth including module assembly
Height	175 mm
Width	240 mm
Depth	153 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001

Data for application in connection with hazardous areas

EU-type examination certificate	CESI 06 ATEX 022
Marking	II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Non-hazardous area: Maximum safe voltage	250 V (Attention! Um is no rated voltage.)
Galvanic isolation: Field circuit/control circuit	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity: Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 50303:2000

International approvals

IECEx approval: IECEx certificate	IECEx CES 06.0003
IECEx approval: IECEx marking	[Ex ia Ga] IIC [Ex ia Da] IIIC [Ex ia Ma] I

General information

Supplementary information

Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
