Pepperl Fuchs FSY-*-Y2 – K-System Custom Cable
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FSY-*-Y2 be shipped?
FSY-*-Y2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FSY-*-Y2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FSY-*-Y2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FSY-*-Y2, subject to availability and destination.
• Connects the K*D*-* isolators to the K-System termination board MB-PF-PEMEX-70197037
• Universal usage for all signal types (AI, AO, DI, DO)
Connects the K*D*-* isolators to the K-System termination board MB-PF-PEMEX-70197037, Universal usage for all signal types (AI, AO, DI, DO)
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T232200 |
| Rated voltage | max. 30 V Ur |
| Rated current | max. 1 A Ir |
| Lead resistance | approx. 5 mΩ |
| Cable inductance | approx. 0.02 µH |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Connection | wire end ferrules , green 6-pin socket, white |
| Material: Connector | wire end ferrules : polypropylene PP socket : PA 66 |
| Material: Core insulation | PVC |
| Cable: Diameter | 1.63 mm |
| Cable: Color | black |
| Cable: Cores | 22 AWG |

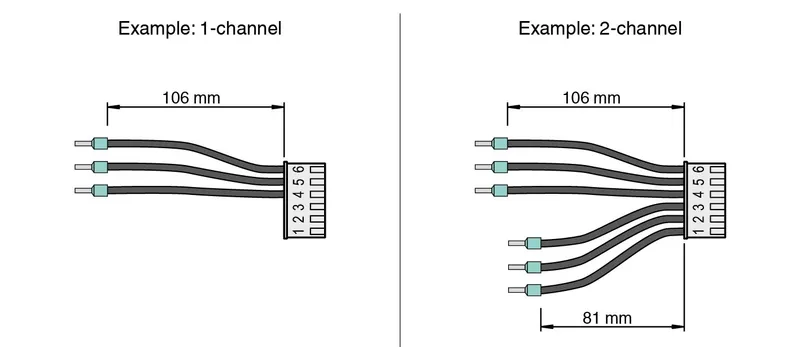

| Mass | approx. 15 g (2-channel version) approx. 10 g (1-channel version) |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Manual Isolators and Termination Boards K-system | PDF · 6.2 MB |
Certificates (1)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 161 kB |
More Pepperl Fuchs parts

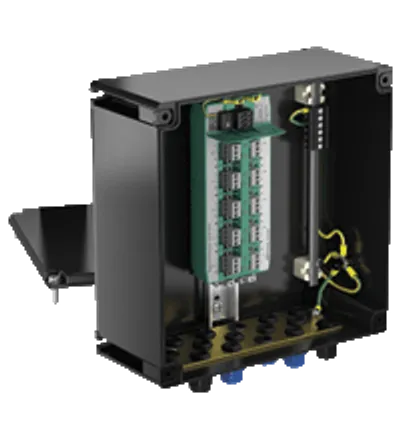

Available on requestSegment Protector Junction Box, Polyester (GRP) F.SP5.P**.B**.1.0.***.***.***0

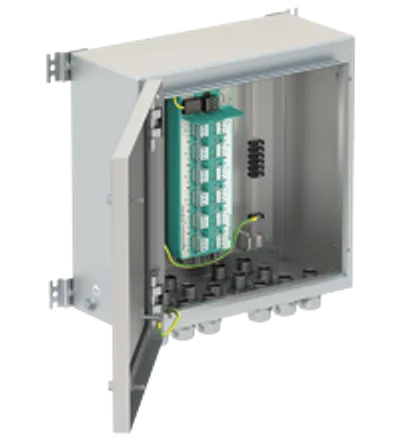

Available on requestSegment Protector Junction Box F.SP5.T**.***.1.*.***.***.****

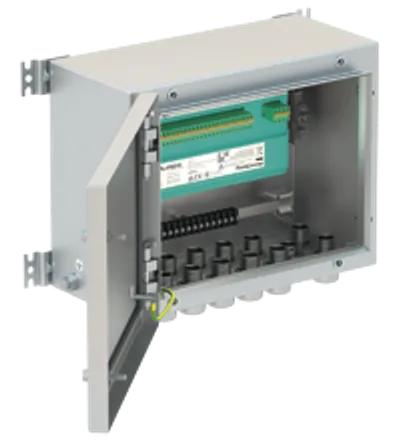

Available on requestSegment Protector Junction Box F.SPE.T**.A**.1.0.***.***.****

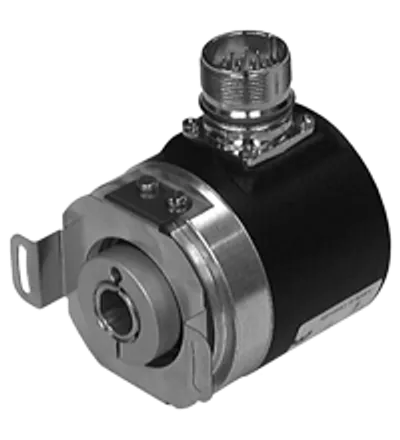

Available on requestSingleturn absolute rotary encoder FSS58

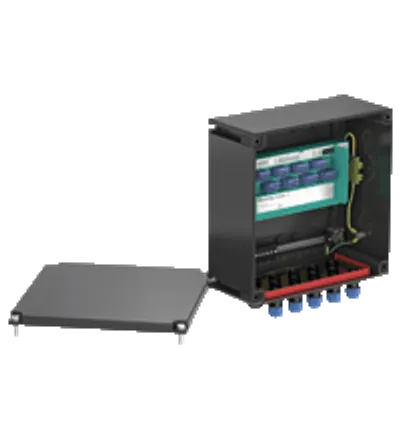

Available on requestTemperature Multi-Input Junction Box, Polyester (GRP) F.TI0.P12.*08.P.0.***.***.**00

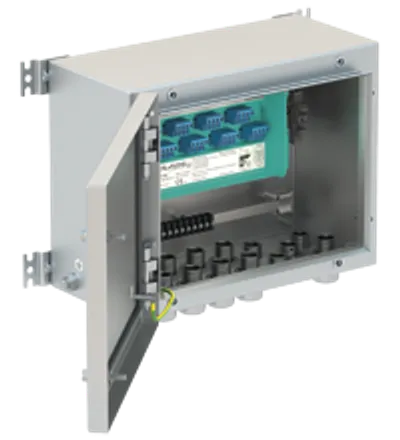

Available on requestTemperature Multi-Input Junction Box F.TI0.T12.*08.P.0.***.***.**00
