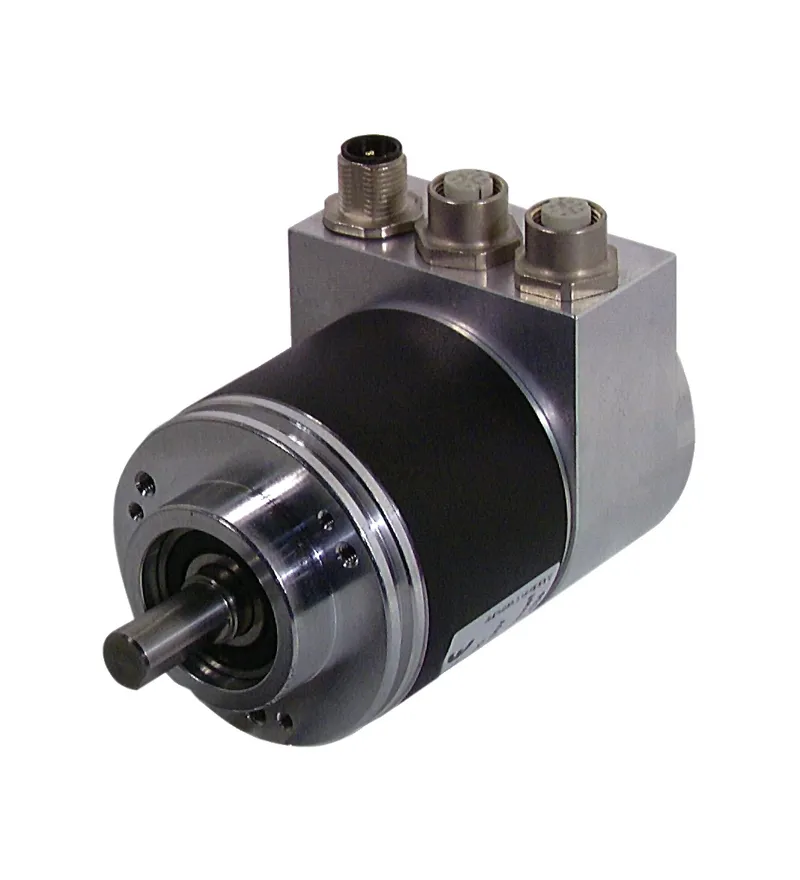

Pepperl Fuchs EVM58N-011IZR0BY-1213 – Multiturn absolute rotary encoder
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Absolute Rotary Encoders |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EVM58N-011IZR0BY-1213 be shipped?
EVM58N-011IZR0BY-1213 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EVM58N-011IZR0BY-1213 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EVM58N-011IZR0BY-1213 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EVM58N-011IZR0BY-1213, subject to availability and destination.
• Industrial standard housing ∅58 mm
• EtherNet/IP
• 25-bit multiturn
• Clamping flange
• Network loop through by means of integrated 2 port switch
• IP address resettable
• No DIP switches for address setting
• Multi-protocol capable (ENIP-PNIO)
• Compatible with Rockwell/ Allen Bradley/ Schneider control
• Mechanical compatibility with all major encoders with fieldbus interface
• Rotary axis functionality
• Status LEDs
• Ethernet IP declaration of conformity
• CIP encoder profile
Industrial standard housing ∅58 mm, EtherNet/IP, 25-bit multiturn, Clamping flange, Network loop through by means of integrated 2 port switch, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: EtherNet/IP, Detection type: photoelectric sampling, Interface type: EtherNet/IP, Physical : Ethernet
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 233235 |
| Detection type | photoelectric sampling |
| Device type | Multiturn absolute rotary encoder |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 120 a |
| Mission Time (TM) | 20 a |
| L10 | 1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load |
| Diagnostic Coverage (DC) | 0 % |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Power consumption | max. 4 W P0 |
| Linearity | ± 0.5 LSB (12 Bit) , |
| Output code | binary code |
| Code course (counting direction) | programmable, cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending) |
Interface
| Interface type | EtherNet/IP |
| Device profile | firmware 8.5 / P+F version 1.0 |
| Resolution: Single turn | 13 Bit |
| Resolution: Multiturn | 12 Bit |
| Resolution: Overall resolution | 25 Bit |
| Physical | Ethernet |
| Transfer rate | 100 MBit/s |
Connection
| Connector | Ethernet: 2 sockets M12 x 1, 4-pin, D-coded Supply: 1 plug M12 x 1, 4-pin, A-coded |
Standard conformity
| Degree of protection | DIN EN 60529, shaft side: IP64 housing side: IP67 |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz |
Approvals and certificates
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
Ambient conditions
| Operating temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

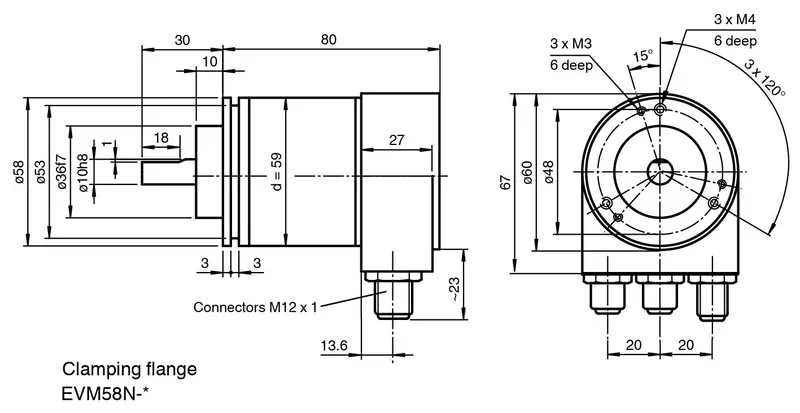

Mechanical specifications
| Material | housing: powder coated aluminum flange: aluminum shaft: stainless steel |
| Mass | approx. 700 g |
| Rotational speed | max. 12000 min -1 |
| Moment of inertia | 30 gcm2 |
| Starting torque | ≤ 3 Ncm (version without shaft seal) |
| Shaft load: Axial | 40 N |
| Shaft load: Radial | 110 N |
| Dimensions: Diameter | 59 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet EVM58N-011IZR0BY-1213 | |
| Commissioning Instructions | PDF · 416 kB |
More Pepperl Fuchs parts
Available on requestMultiturn absolute rotary encoder EVM58-EC

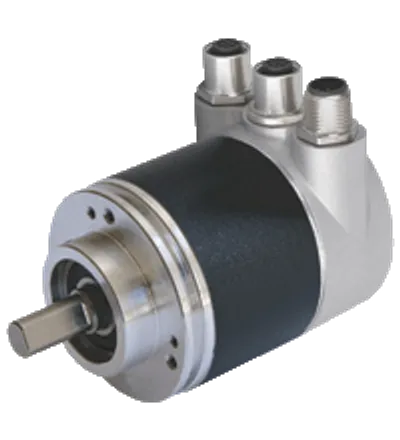

Available on requestMultiturn absolute rotary encoder EVM58-IZAvailable on requestMultiturn absolute rotary encoder EVM58-PZ
