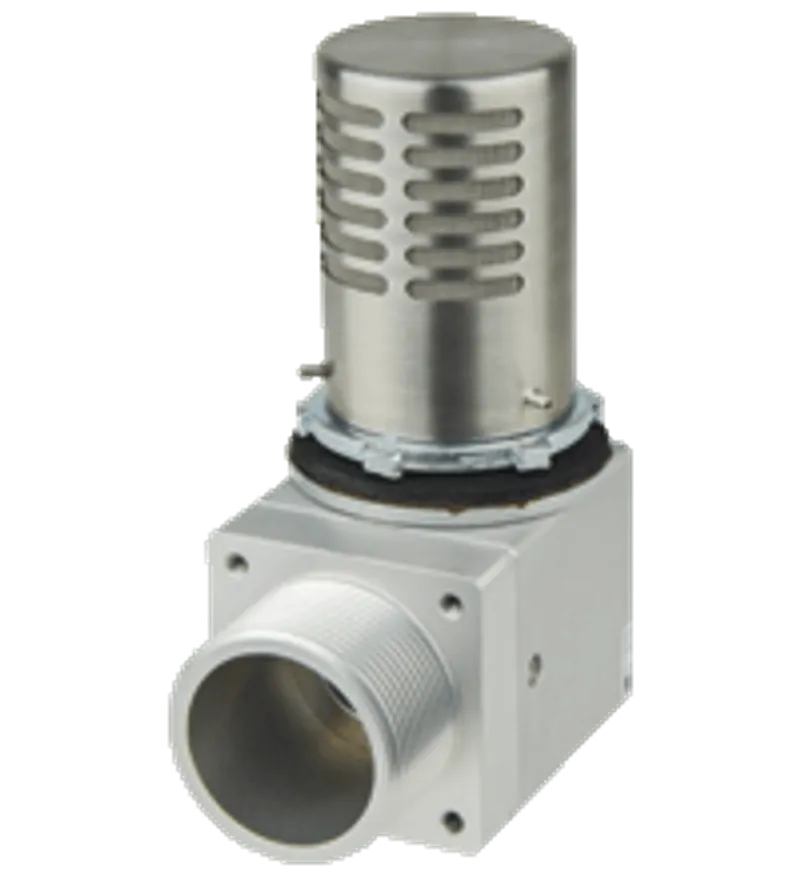

7500 series vent EPV-7500-AA-03 — photo 1 of 3

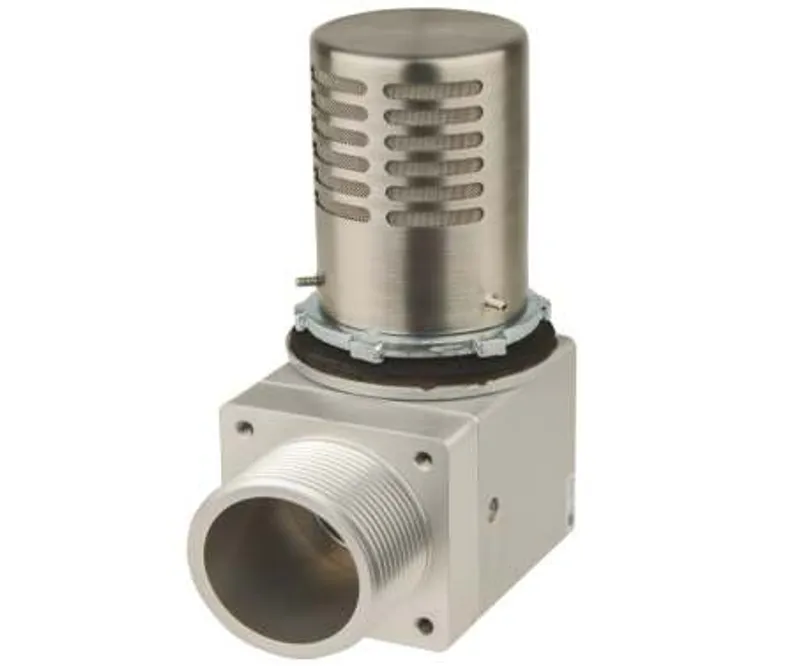

7500 series vent EPV-7500-AA-03 — photo 2 of 3

7500 series vent EPV-7500-AA-03 — photo 3 of 3

Available on request

Pepperl Fuchs EPV-7500-AA-03 – 7500 series vent

MPN: EPV-7500-AA-03 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Purge and Pressurization System (Type Z)
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can EPV-7500-AA-03 be shipped?

EPV-7500-AA-03 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EPV-7500-AA-03 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EPV-7500-AA-03 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EPV-7500-AA-03, subject to availability and destination.

• Must be used in conjunction with a 7500-01-AA* or 7500-MTD-* purge and pressurization control unit

• Low cost, universal mounting, easy to use

• Not gravity dependent

• Various enclosure protection vents for different applications

• Rugged, corrosion-resistant housing

• Mechanical with no cables

• Global third-party approvals for Class I, II, Div. 2 and Zone 2/22

• The -03 version of the EPV-7500 has a leakage rate of <1 L/min.

7500 series purge and pressurization system vent, aluminum body and cap

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70182269
Equipment architecture	max. enclosure size 12.7 m3 (450 ft3)
Series	7500
System	Type Z Purge ; Ex pzc Purge
Hazardous environment	gas or dust
Lifecycle	Active (current Pepperl+Fuchs product)

Pneumatic parameters

Protective gas supply	compressed air or inert gas, 40 µm filter, free from oil
Maximum pressure	See tables
Purge flow rate	See tables
Flow rate for leakage compensation	EPV-7500....-01: Less than 11.8 l/min (0.42 scfm) @ 0.63 mbar (0.25 in. w.c.) Less than 30.6 l/min (1.08 scfm) @ 1.9 mbar (0.75 in. w.c.) EPV-7500....-02: Less than 9.4 l/min (0.33 scfm) @ 0.63 mbar (0.25 in. w.c.) Less than 22.6 l/min (0.8 scfm) @ 1.9 mbar (0.75 in. w.c.) EPV-7500....-03 and EPV-7500-AA-04: Less than 1 l/min (0.035 scfm) @ 0.63 mbar (0.25 in w.c.) Less than 1 l/min (0.035 scfm) @ 1.9 mbar (0.75 in w.c.)
Breaking pressure	EPV-7500....-01: 2.0 mbar (0.8 in. w.c.) EPV-7500-...-02: 3.5 mbar (1.4 in. w.c.) EPV-7500-...-03: 3.8 mbar (1.5 in. w.c.) EPV-7500-AA-04: 3.5 mbar (1.4 in. w.c.)

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU	EN 61326-1:2013 , FCC CFR 47, part 15, subpart B: 2017, Class A ICES-003, Issue 6:2016, Class A ITE
RoHS: Directive 2011/65/EU (RoHS)	EN 50581:2012

Conformity

Degree of protection

Directive conformity: see Declaration of Conformity

Ambient conditions

Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Storage temperature	-40 ... 80 °C (-40 ... 176 °F)
Relative humidity	5 ... 90 %, non-condensing
Vibration resistance	5 ... 100 Hz , 1 g, 12 m/s2, all axes
Impact resistance	30 g, 11 ms, all axes

Mechanical specifications

Degree of protection	EPV-7500....-01/02/04: mounting only Type 4X / IP66 EPV-7500....-03: Mounting and unit Type 4X / IP66
Material: Housing	EPV-7500-AA... body and cap: 6061-T6 aluminum EPV-7500-SS... body: 6061-T6 aluminumcap: AISI 316L (1.4404) stainless steel
Material: Spark arrestor	304 Stainless steel
Installation	- any orientation to enclosure - not gravity dependent - internal and external mounting possible
Mass	approx. 1000 g (2.2 lb)

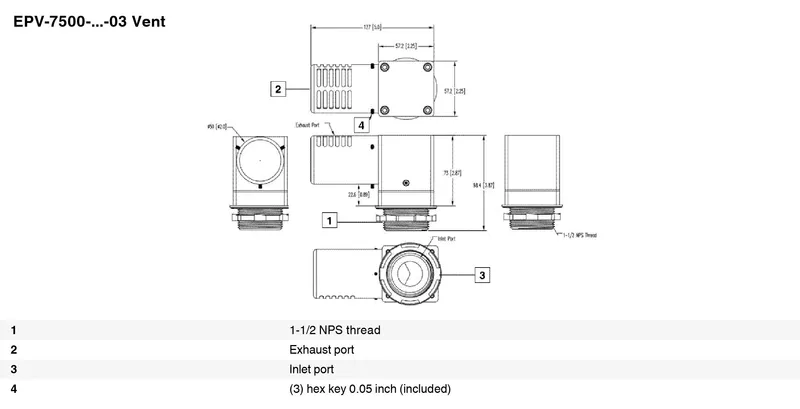

Dimensions	See "Dimensions" section.
Mounting	EPV-7500-...-01/02/03: mounting hole 1.5 in NPT knockout (50.8 mm) hole sealing nut (provided) EPV-7500-AA-04: mounting hole 37 mm with sealing nut (provided)

Data for application in connection with hazardous areas

Certificate: Marking	II 3GD (part of DEMKO 18 ATEX 2025 X)
Directive conformity: Directive 2014/34/EU	IEC/EN 60079-0 , IEC/EN 60079-2 , IEC/EN 60079-7 , IEC/EN 60079-15 , IEC/EN 60079-31 , Supplements: EN 61010-1:2010, EN 61326-3:2008, EN 61000-6-2:2005

International approvals

UL approval: cULus	Class I, Division 2, Groups A, B, C, D T4 (-40 °C ≤ Ta ≤ 70 °C)Class I, Division 2, Groups A, B, C, D, T6 (-40 °C ≤ Ta ≤ 50 °C)Class II, Division 2, Groups F, G T4 (-40 °C ≤ Ta ≤ 70 °C)Class II, Division 2, Groups F, G T6 (-40 °C ≤ Ta ≤ 50 °C)
IECEx approval	part of IECEx UL 18.0022X
