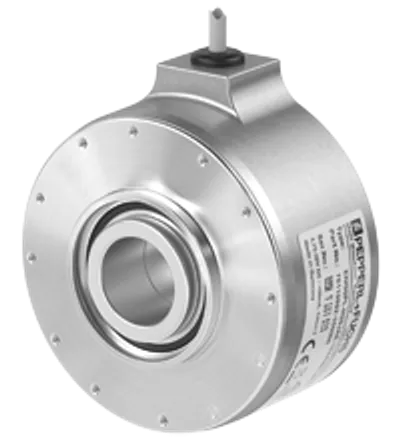

Pepperl Fuchs ENI90HD-R*HCS* – Incremental rotary encoder
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Incremental Rotary Encoders |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ENI90HD-R*HCS* be shipped?
ENI90HD-R*HCS* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ENI90HD-R*HCS* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ENI90HD-R*HCS* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ENI90HD-R*HCS*, subject to availability and destination.

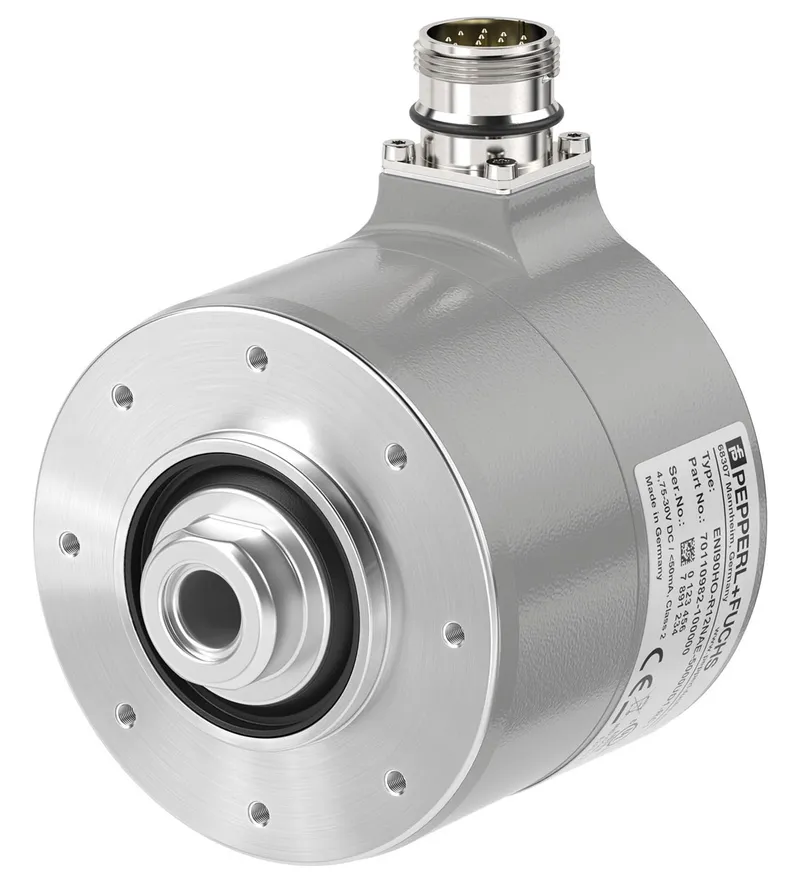

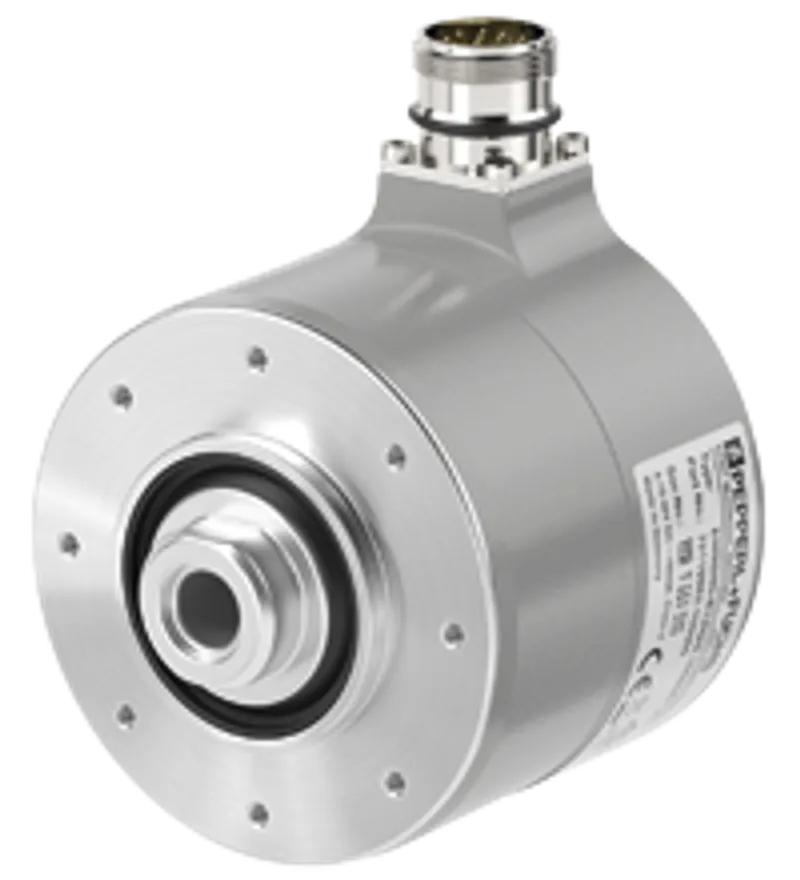

• Housing ∅ 93 mm
• Up to 5000 pulses
• High current output driver HCTL
• Short-circuit proof output
• BlueBeam technology for ultimate precision
• Recessed hollow shaft
Housing ∅ 93 mm, Up to 5000 pulses, High current output driver HCTL , Short-circuit proof output, BlueBeam technology for ultimate precision, Enclosure type: 93 mm, Type of shaft: Recessed hollow shaft, Interface: push-pull, incremental, Application: Heavy-duty encoder, Detection type: photoelectric sampling, Output type: HCHTL
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T223045 |
| Detection type | photoelectric sampling |
| Pulse count | max. 5000 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | 9 ... 30 V DC , Reverse polarity protection UB |
| No-load supply current | max. 100 mA I0 |
Output
| Output type | HCHTL |
| Permissible cable length | max. 300 m with a wire cross section ≥0.34 mm2 |
| Load resistor | ≥ 1 kΩ |
| Voltage drop | high level max. UB -6 V low level max. 5 V Ud |
| Load current | max. per channel +/- 200 mA , short-circuit protected |
| Output frequency | max. 200 kHz |
| Rise time | ≤ 2 µs |
| Phase position A to B: Pulse counts < 3600 | 90 ° ± 9 ° electrical |
| Phase position A to B: Pulse counts ≥ 3600 | 90 ° ± 25 ° electrical |
| Duty cycle | 1/2 ± 10 % |
Connection

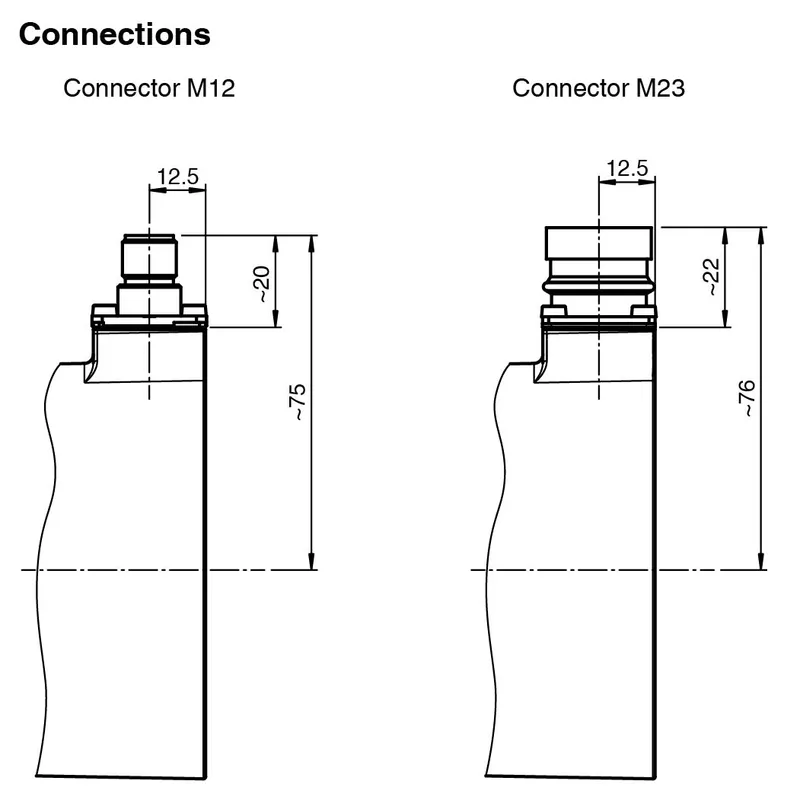

| Connector | M12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin , clockwise rotation M23 connector, 12-pin , counter clockwise rotation |
| Terminal compartment | Cable duct for cable diameter ∅4.0 mm ... 9.5 mm |
Standard conformity
| Degree of protection | DIN EN 60529, IP65, IP66, IP67 |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation |
| Emitted interference | EN IEC 61000-6-4:2019 |
| Noise immunity | EN IEC 61000-6-2:2019 |
| Shock resistance | DIN EN 60068-2-27, 200 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz |
Approvals and certificates
| UL approval | E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request |
Ambient conditions
| Operating temperature | -40 ... 70 °C (-40 ... 158 °F) -40 ... 80 °C (-40 ... 176 °F) (for dielectric strength version) |
| Storage temperature | -40 ... 80 °C (-40 ... 176 °F) |

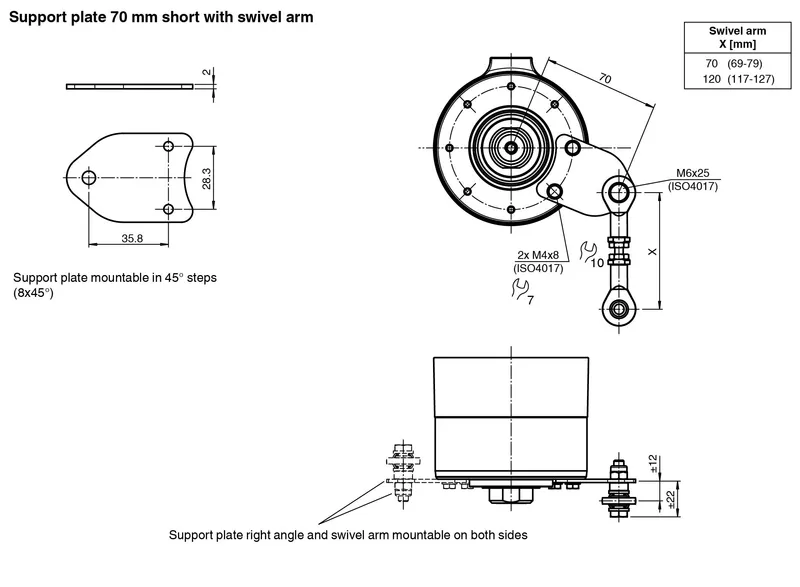

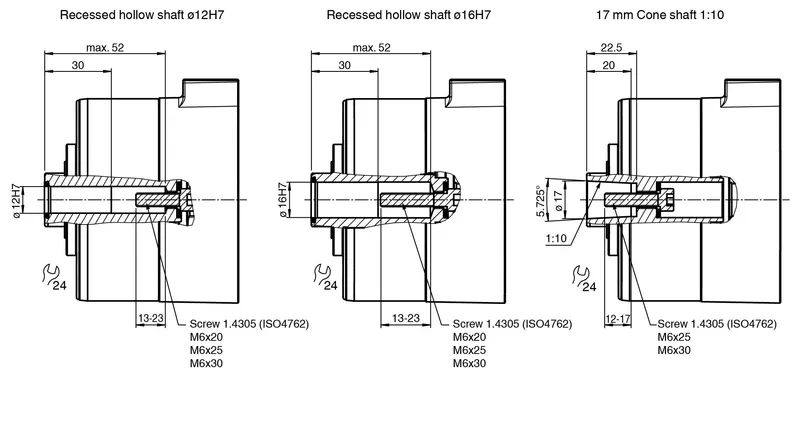

Mechanical specifications
| Material: Housing | powder coated aluminum |
| Material: Flange | aluminum, blank |
| Material: Shaft | Stainless steel 1.4305 / AISI 303 |
| Mass | < 1100 g without cable |
| Rotational speed | max. 6000 min -1 for IP65 max. 3000 min -1 for IP66/IP67 |
| Starting torque | ≤ 0.1 Nm for IP65 ≤ 0.15 Nm for IP66/IP67 |
| Shaft insulation | max. 2.5 kV (for dielectric strength version) |
| Shaft load: Axial | ≤ 100 N |
| Shaft load: Radial | ≤ 300 N |

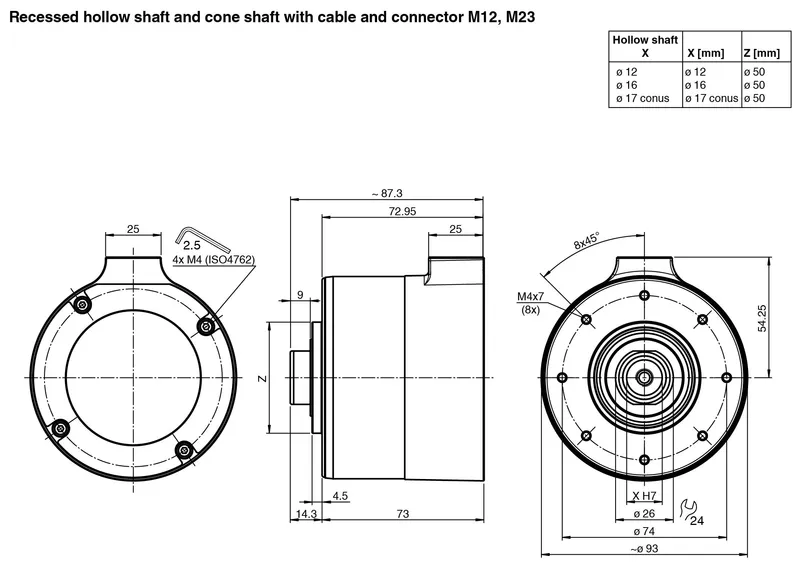

| Dimensions: Length | 84.5 mm |
| Dimensions: Diameter | 93 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Certificates (2)
| Canada, USA UL General Purpose (CoC UL-US-L223176-11-02907102-1 / UL-CA-L223176-31-02907102-1) | PDF · 558 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 259 kB |
