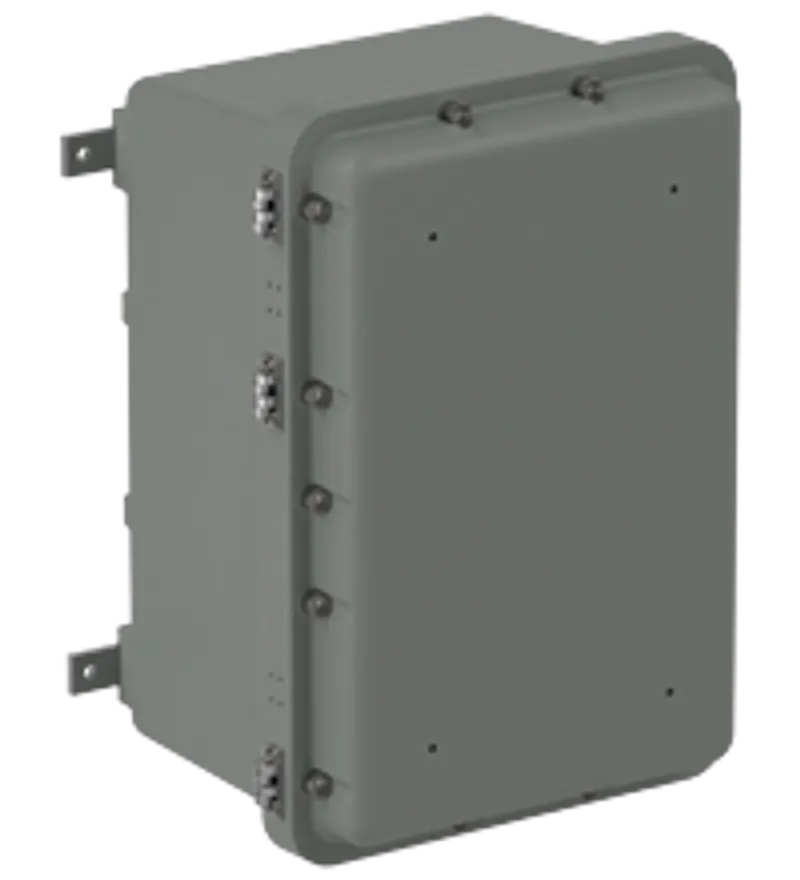

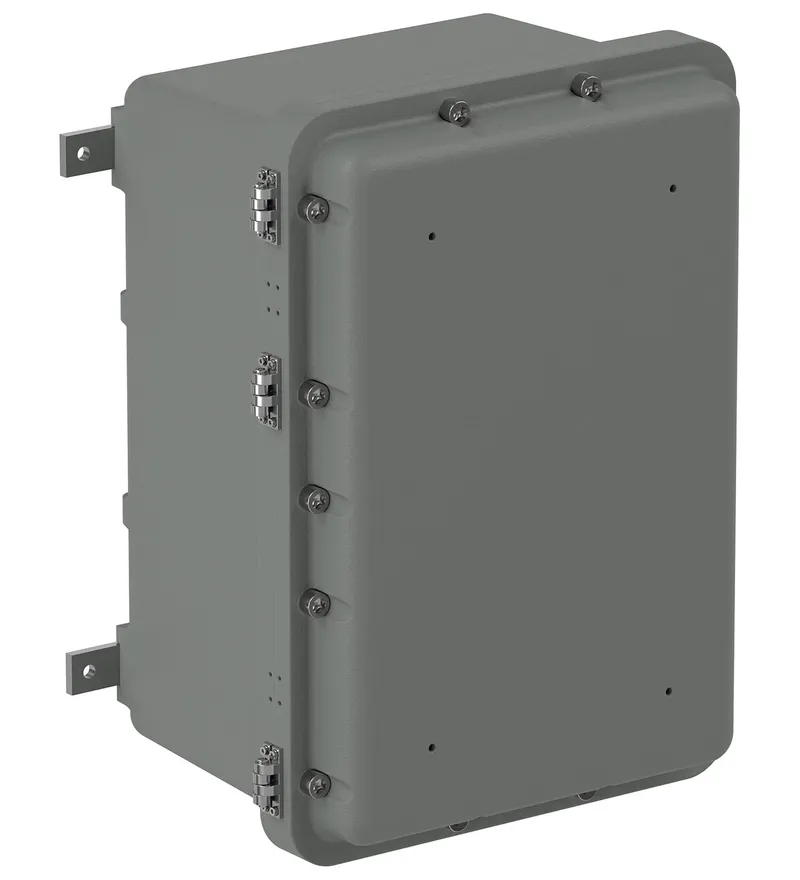

Pepperl Fuchs EJBL* – Solutions Ex d IIB + H2 based on Aluminum Enclosures
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Terminal and Junction Boxes (Ex e, Ex i, Ex op) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EJBL* be shipped?
EJBL* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EJBL* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EJBL* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EJBL*, subject to availability and destination.
• Copper-free aluminum enclosure
• Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22
• Ex d and Ex tb certified
• Gas group IIB+H2
• Degree of protection IP66
• Various enclosure size and design variants
• Customizable configuration of operators, cable entry quantities and cable gland types as per specification
• Integration of electrical components and operating elements as per customer specification
Copper-free aluminum enclosure, Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex d and Ex tb certified, Gas group IIB+H2, Degree of protection IP66, Various enclosure size and design variants, Customizable configuration of operators, cable entry quantities and cable gland types as per specification, Integration of electrical components and operating elements as per customer specification
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T232455 |
| Operating voltage | 1500 V DC / 1000 V AC max. for ATEX / IECEx |
| Operating current | 1600 A max. |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure cover | detachable , optional hinges ( AISI 316 (1.4401) stainless steel ) and door stopper ( AISI 316 (1.4401) stainless steel |
| Cover fixing | stainless steel socket cap head screws |
| Screws | see data table |
| Material of screws | AISI 316 (1.4401) stainless steel |
| Yield stress | min. 600 N/mm2 for ATEX / IECEx |
| Cover seal | none |
| Degree of protection | IP66 |
| Cable entry | see data table |
| Material: Enclosure | aluminum alloy |
| Material: Finish | epoxy coated RAL 7005 (grey) |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |

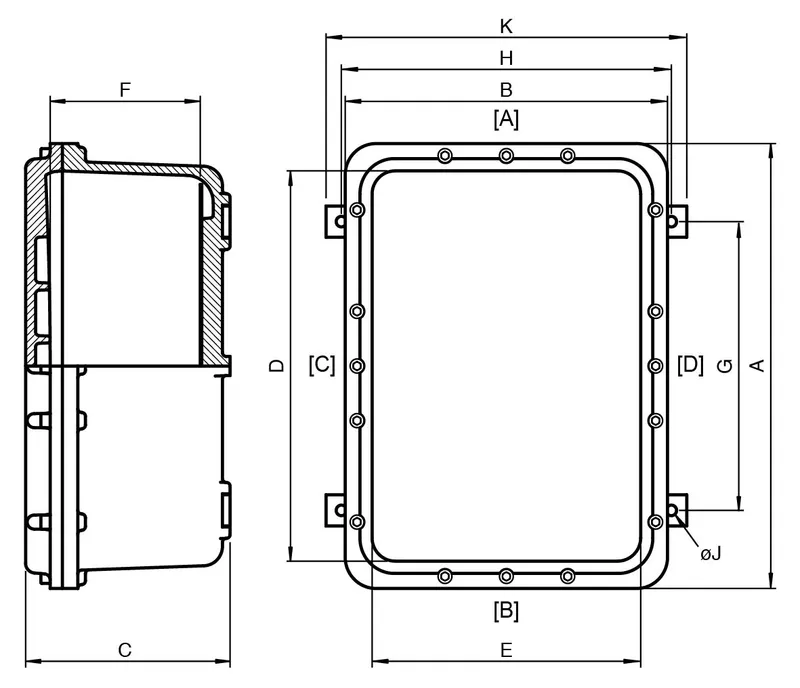

| Dimensions | see data table values might differ slightly due to casting and manufacturing tolerances dimensions are valid for standard enclosures and IP66 variants only |
| Mounting | see data table |
| Grounding | M6 external grounding points |
Ambient conditions
| Ambient temperature | depending on integrated components and selected enclosure size see data table |
Data for application in connection with hazardous areas
| EU-type examination certificate | FIDITAS 26 ATEX 0002U INERIS 14 ATEX 0022X |
| Marking | II 2 GD Ex db IIB+H2 T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss |
| Maximum power dissipation | see data table maximum power dissipation at T4/+40 °C enclosure without window |
International approvals
| IECEx approval | IECEx FIDI 26.0006U IECEx INE 14.0029X |
| Further approvals | available on request |
Conformity
| Degree of protection | EN60529 |
| CE marking | 2829, see type label |
General information
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Instruction Manual | PDF · 173 kB |
| Brief Instructions - Control Panels/Control Stations | PDF · 539 kB |
| Brief Instructions - Empty Enclosure | PDF · 527 kB |
| Instruction Manual EJB empty enclosures | PDF · 171 kB |
Certificates (3)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 457 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 395 kB |
| Europe Fiditas ATEX (FIDI 26 ATEX 0002U) | PDF · 2.9 MB |
More Pepperl Fuchs parts

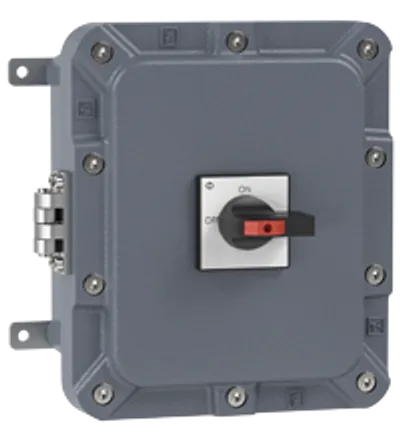

Available on requestSwitch Disconnector Ex d IIB 63 A 4 Pole, Aluminum Enclosure EJB4A.D.PS.DIS.063.3PN.2NOAvailable on requestSwitch Disconnector Ex d IIB 100 A 4 Pole, Aluminum Enclosure EJB4A.D.PS.DIS.100.3PN.2NO

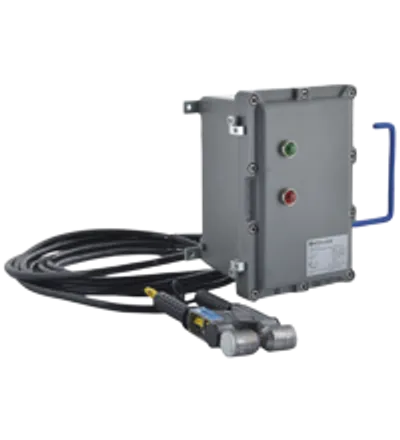

Available on requestElectronic Earthing System (Resistive and Capacitive) EJB6A*DMT*

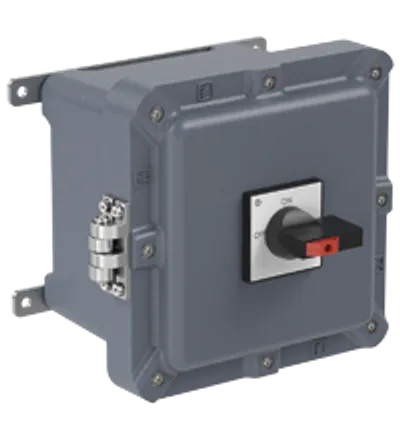

Available on requestSwitch Disconnectors Ex d IIB EJB*.D.PS.DIS.*

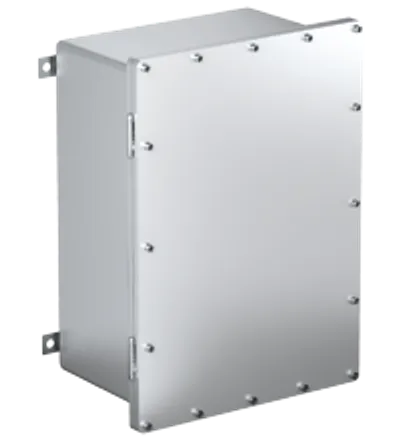

Available on requestSolutions Ex d IIB or CID1 / CIID1 based on Stainless Steel Enclosures EJBX*Available on requestElectronic Earthing System (Resistive and Capacitive) EJBX6A*DMT*
Available on requestThru-beam sensor EL25-20M-LR-SET

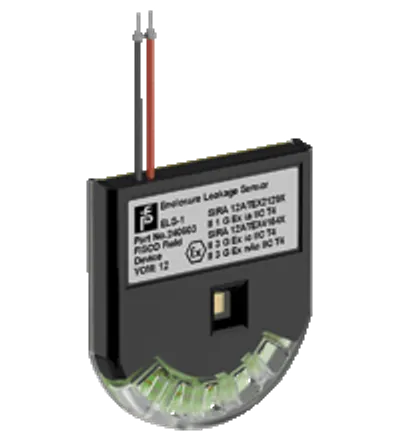

Available on requestEnclosure Leakage Sensor ELS-1
