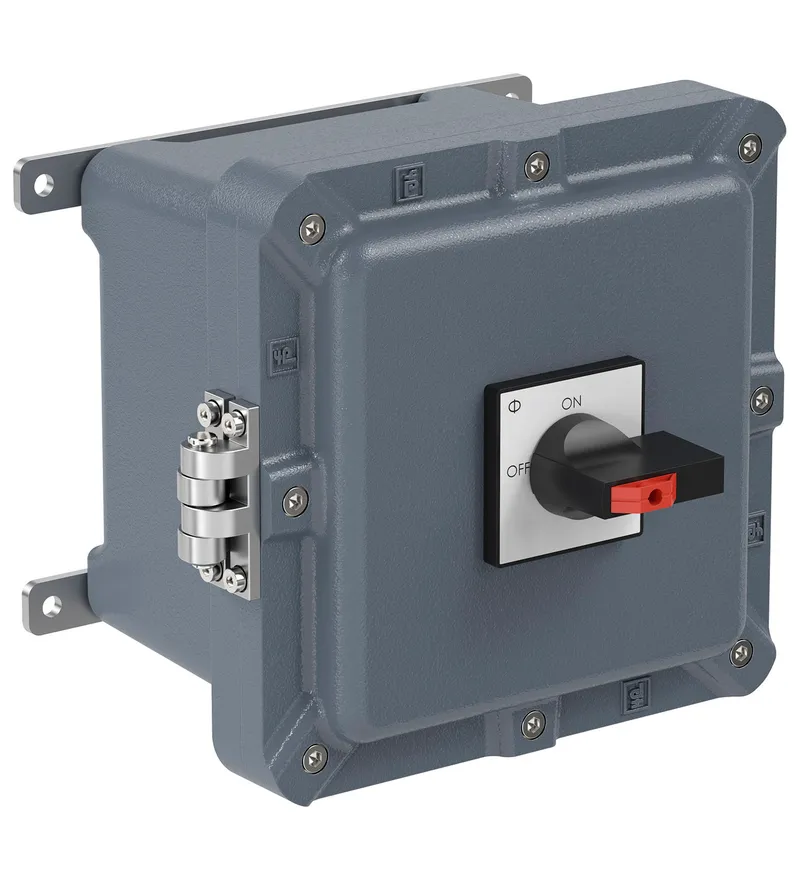

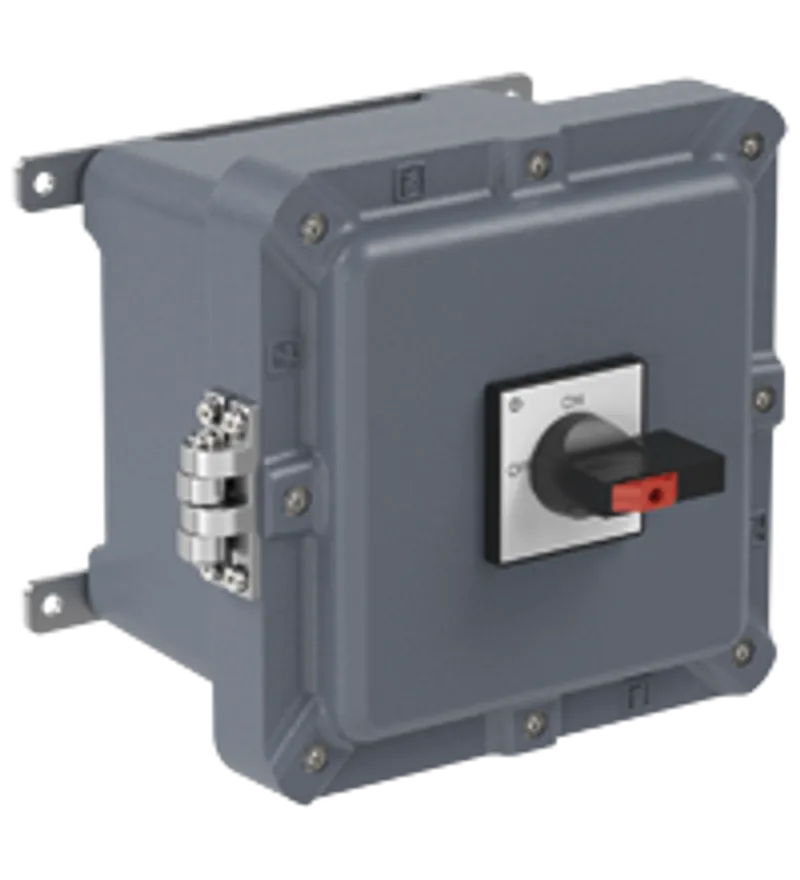

Pepperl Fuchs EJB2A.D.PS.DIS.025.3PN.2NO – Switch Disconnector Ex d IIB 25 A 4 Pole, Aluminum Enclosure
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EJB2A.D.PS.DIS.025.3PN.2NO be shipped?
EJB2A.D.PS.DIS.025.3PN.2NO is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EJB2A.D.PS.DIS.025.3PN.2NO in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EJB2A.D.PS.DIS.025.3PN.2NO and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EJB2A.D.PS.DIS.025.3PN.2NO, subject to availability and destination.
• Switch disconnector, 2 position with left OFF - 4x NO
• Labeling '0 - I'
• Auxiliary contacts - 2x NO
• Installation in Zone 1, Zone 2, Zone 21 and Zone 22
• Aluminum enclosure
• Ex d and Ex tb certified
• Padlockable switch
• Degree of protection IP66
Switch disconnector, 2 position with left OFF - 4x NO, Labeling '0 - I', Auxiliary contacts - 2x NO, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Aluminum enclosure, Ex d and Ex tb certified, Padlockable switch, Degree of protection IP66, Function: switch disconnector, Enclosure: aluminum alloy
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 70163931 |
| Operating voltage | 690 V max. |
| Rated impulse withstand voltage | 6 kV |
| Rated frequency | 50Hz |
| Short circuit current limitation | recommended: 35 A, gG |
| Operating current | 25 A max. |
| Terminal capacity: Main terminals capacity | 2x 1 mm2 ... 6 mm2 |
| Terminal capacity: Main terminals torque | 1.25 Nm |
| Terminal capacity: Grounding terminals capacity | 2x 0.05 mm2 ... 4 mm2 |
| Terminal capacity: Grounding terminals torque | 0.6 Nm max. |
| Rated insulation voltage | 690 V |
| Function | switch disconnector |
| Color | black |
| Contact configuration | 4x NO |
| Switching configuration | 2 position with left OFF |
| Usage category | AC23: 690 V AC - 25 A AC3: 690 V AC - 25 A |
| Number of poles | 4 |
| Auxiliary contacts | 2x NO delayed, advanced opening |
| Auxiliary contacts usage category | AC15: 500 V AC - 1.0 A / 440 V AC - 1.5 A / 240 V AC - 2.5 A |
| Operator action | engage - engage |
| Lockable | in 'OFF' position |
| Labeling | 0 - I |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Enclosure range | EJB |
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel socket cap head screws |
| Screws | M6 |
| Number | 8 |
| Tightening torque | 15 Nm |
| Yield stress | min. 450 N/mm2 |
| Degree of protection | IP66 |
| Cable entry face B: M20 quantity | 1 |
| Cable entry face B: M20 series | Stopping Plugs, Metal, Hexagon Head |
| Cable entry face B: M20 type | SP.MD.M20.BN.* |
| Cable entry face B: M25 quantity | 2 |
| Cable entry face B: M25 series | Stopping Plugs, Metal, Hexagon Head |
| Cable entry face B: M25 type | SP.MD.M25.BN.* |
| Defined entry area | face B |
| Material: Enclosure | aluminum alloy |
| Material: Finish | epoxy coated RAL 7005 (grey) |
| Mass | approx. 16.4 kg |

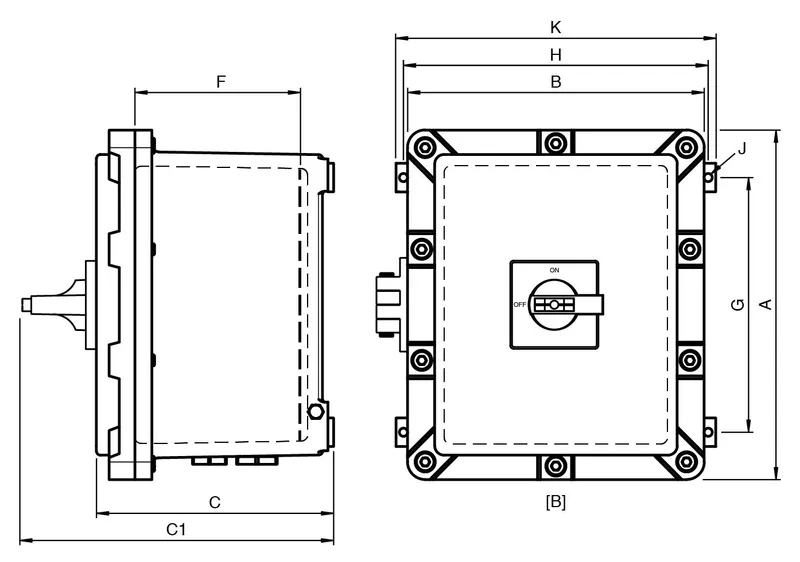

| Dimensions | values might differ slightly due to casting and manufacturing tolerances |
| External dimension (A) | 220 mm |
| External dimension (B) | 220 mm |
| External dimension (C) | 169 mm |
| External dimension with operating element (C1) | 222.9 mm |
| Mounting holes distance (G) | 157 mm |
| Mounting holes distance (H) | 206 mm |
| Mounting holes diameter (J) | 8 mm |
| Maximum external dimension (K) | 247 mm |
| Tightening torque: Nut torque at enclosure (SW1) | see datasheets of stopping plugs |
| Grounding | M6 external grounding points |
Ambient conditions
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) @ T6 |
Data for application in connection with hazardous areas
| EU-type examination certificate | INERIS 14 ATEX 0022X |
| Marking | II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx INE 14.0029X |
| UKCA approval | CML 21 UKEX 1424X |
| Further approvals | further on request |
Conformity
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet EJB2A.D.PS.DIS.025.3PN.2NO | |
| Instruction Manual EJB | PDF · 262 kB |
Certificates (3)
| Europe INERIS ATEX (INERIS 14 ATEX 0022X) | PDF · 869 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 395 kB |
| UK-Type Examination Certificate (CML 21UKEX1424X) | PDF · 151 kB |
More Pepperl Fuchs parts

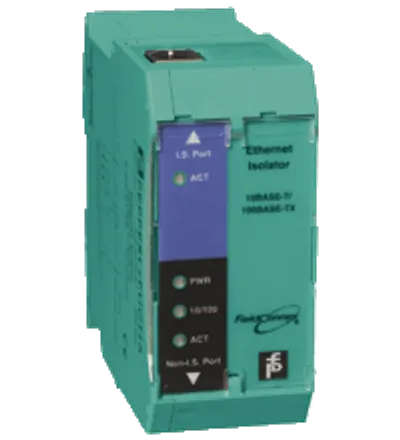

Available on requestEthernet Isolator EI-0D2-10Y-10B-LT

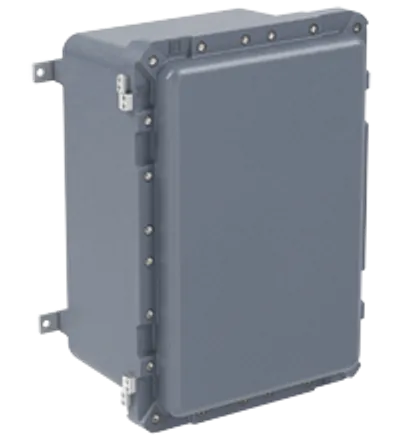

Available on requestSolutions Ex d IIB or CID1 / CIID1 based on Aluminum Enclosures EJB*

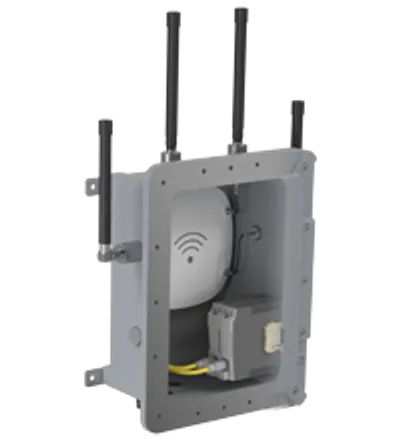

Available on requestWireless Access Point (Ex d) EJB10A.I.CP-Y*

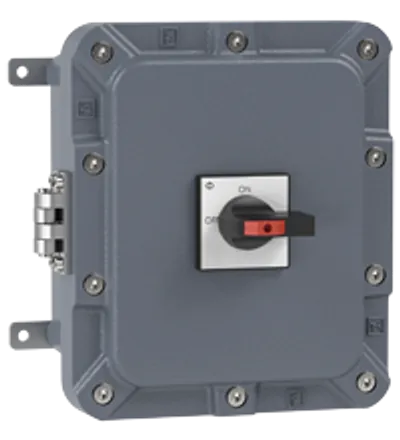

Available on requestSwitch Disconnector Ex d IIB 63 A 4 Pole, Aluminum Enclosure EJB4A.D.PS.DIS.063.3PN.2NOAvailable on requestSwitch Disconnector Ex d IIB 100 A 4 Pole, Aluminum Enclosure EJB4A.D.PS.DIS.100.3PN.2NO

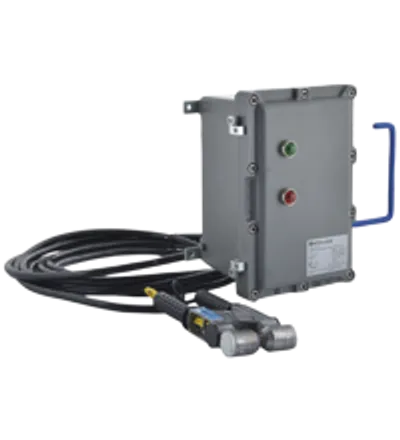

Available on requestElectronic Earthing System (Resistive and Capacitive) EJB6A*DMT*

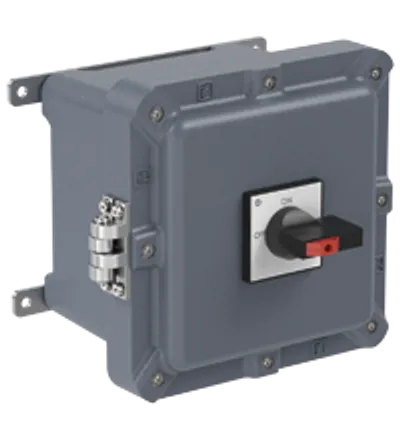

Available on requestSwitch Disconnectors Ex d IIB EJB*.D.PS.DIS.*
