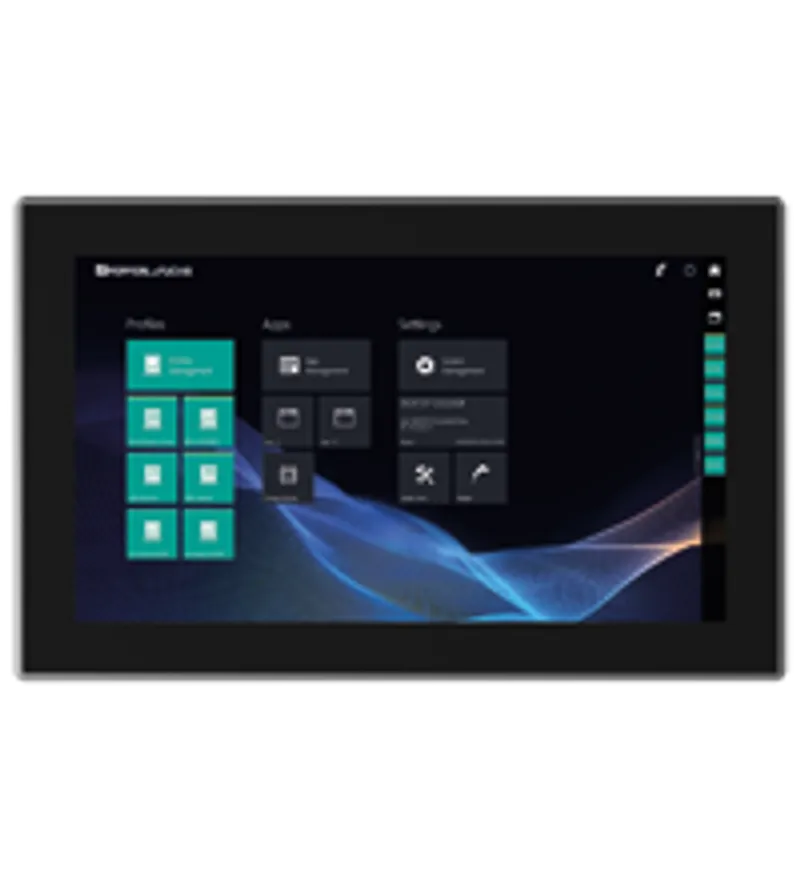

Display Unit DPU3200-22GT-304A-V1-N0 — photo 1 of 3

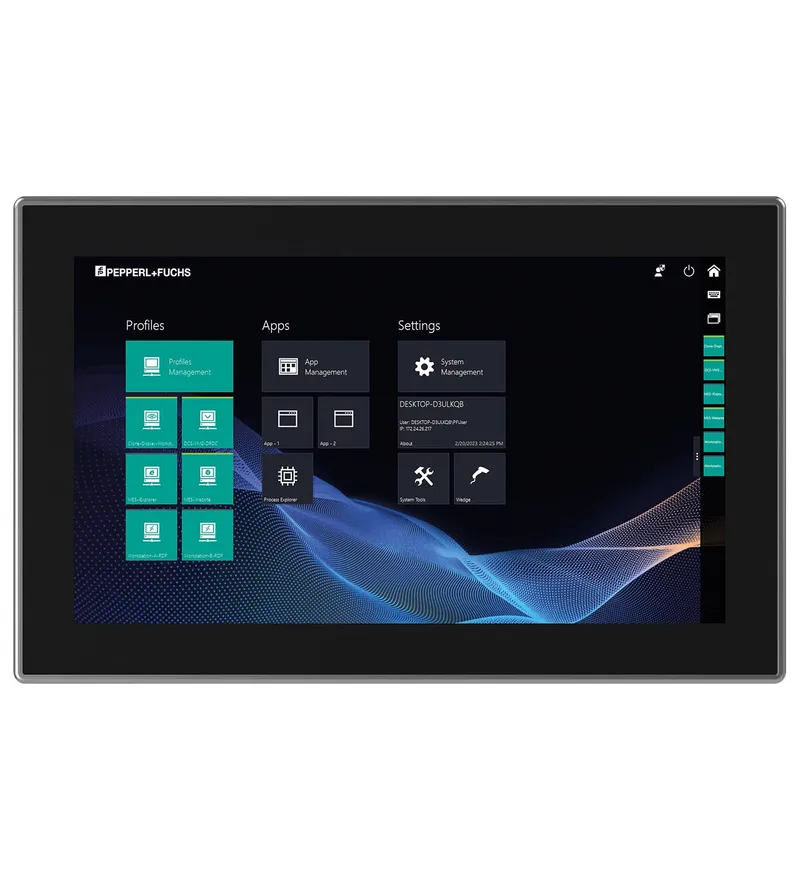

Display Unit DPU3200-22GT-304A-V1-N0 — photo 2 of 3

Display Unit DPU3200-22GT-304A-V1-N0 — photo 3 of 3

Available on request

Pepperl Fuchs DPU3200-22GT-304A-V1-N0 – Display Unit

MPN: DPU3200-22GT-304A-V1-N0 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Replacement Components
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Recommended replacement	DPU3200-22KT-304A-V1-N0

Shipping & availability

When can DPU3200-22GT-304A-V1-N0 be shipped?

DPU3200-22GT-304A-V1-N0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DPU3200-22GT-304A-V1-N0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DPU3200-22GT-304A-V1-N0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DPU3200-22GT-304A-V1-N0, subject to availability and destination.

• 10 point multi-touch sensor option allows design of modern user interfaces

• Highly resistant to cleaning agents with stainless steel bezel and seamless glass design

• Design optimized for easy cleanability

• Low-power consumption and heat dissipation due to LED backlight technology

Display Unit, 10 point multi-touch sensor option allows design of modern user interfaces, Highly resistant to cleaning agents with stainless steel bezel and seamless glass design, Design optimized for easy cleanability, Low-power consumption and heat dissipation due to LED backlight technology

Specifications

Supply

Order code (Pepperl+Fuchs part number)	70128300
Power consumption	typical 22 W
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

Display: Type	LC display with LED backlight
Display: Screen size	54.61 cm (21.5 inch)
Display: Resolution	1920x1080 (Full HD) , Aspect ratio 16:9
Display: Color depth	24 bit (16.7 M) color
Display: Contrast ratio	1000:1 (typical)
Display: Brightness	250 cd/m2 (nit)
Display: Viewing angle	178° in all directions
Display: Life span	Back lamp life: 30.000 hrs typical half life , at 25 °C (77 °F)
Input devices: Touch screen	10-finger multi-touch, glove friendly

Interface

Interface type

USB touch screen signal, LVDS-video signal and inverter LCD backlight pins for VisuNet FLX computing unit connection

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU	DIN EN 55035:2018-04
RoHS: Directive 2011/65/EU (RoHS)	EN IEC 63000:2018

Ambient conditions

Operating temperature	0 ... 45 °C (32 ... 113 °F)
Storage temperature	-20 ... 65 °C (-4 ... 149 °F)
Relative humidity	max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78
Shock resistance	18 shocks 15 g , 11 ms all axis, IEC 60068-2-27
Vibration resistance	10 ... 150 Hz, +/- 0.075 mm , 1g, 10 cycles per axis according to EN60068-2-6

Mechanical specifications

Degree of protection	Front side: IP66 Back side: IP20 (when mounted to the computing unit from Pepperl+Fuchs)
Material	Front bezel: Stainless steel AISI304 (glass, silicone gasket) Backside: Painted aluminum sheet metal
Surface	front: glass (optional with stainless steel bezel)
Mass	approx. 6 kg

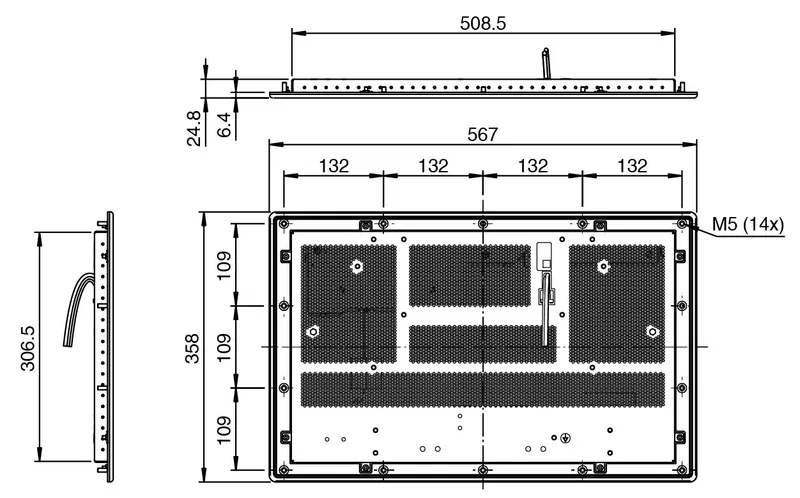

Dimensions	567 mm x 358 mm x 23.5 mm
Cut out dimensions	535 mm x 333.5 mm +/- 1 mm
