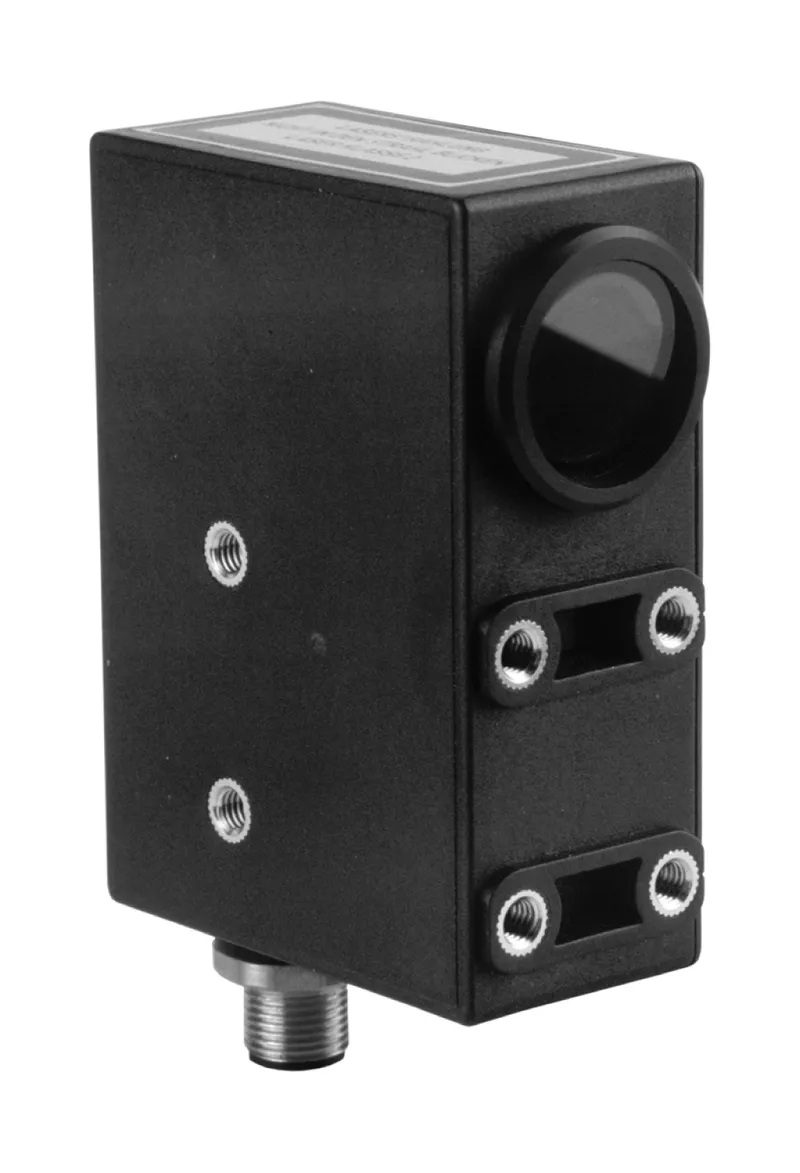

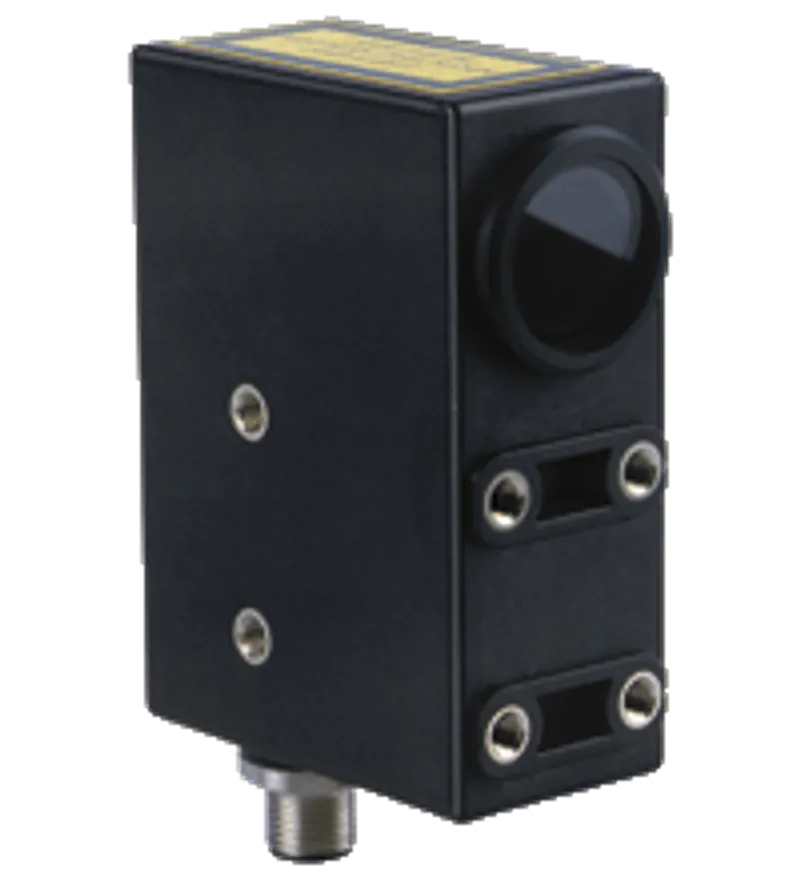

Pepperl Fuchs DK10-LAS/49
Print mark contrast sensor
- MPN
- DK10-LAS/49
- Category
- Print Mark Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs DK10-LAS/49?
Laser print mark contrast sensor for recording very small print marks
Large focus depth range from 3 mm ... 300 mm
Laser class 2, eyesafe
Adjustable sensitivity
30 µs response time, suitable for extremely rapid scanning processes
Print mark contrast sensor, 300 mm detection range, red laser light, laser class 2, light/dark on, sensitivity adjuster, NPN output, PNP output, M12 plug, Laser print mark contrast sensor for recording very small print marks, Large focus depth range from 3 mm ... 300 mm, Laser class 2, eyesafe, Adjustable sensitivity, 30 µs response time, suitable for extremely rapid scanning processes
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 418067 |
| Sensor range | 300 mm |
| Detection range | 3 ... 300 mm |
| Light source | laser diode |
| Light type | modulated visible red light |
| Laser nominal ratings: Note | LASER LIGHT , DO NOT STARE INTO BEAM |
| Laser nominal ratings: Laser class | 2 |
| Laser nominal ratings: Wave length | 650 nm |
| Laser nominal ratings: Beam divergence | < 1.5 mrad |
| Laser nominal ratings: Pulse length | 1.5 µs |
| Laser nominal ratings: Repetition rate | 108.7 kHz |
| Laser nominal ratings: max. pulse energy | 2.1 nJ |
| Light spot representation | approx. 0.8 mm at a distance of 300 mm |
| Ambient light limit: Continuous light | 40000 Lux |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 550 a |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Function indicator | LED yellow: lights up if receiver is lit (light on), lights up if receiver is not lit (dark on) |
| Control elements | Light-on/dark-on changeover switch, sensitivity adjuster |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | 10 % |
| No-load supply current | ≤ 55 mA I0 |
Input
| Test input | emitter deactivation with +Ub |
Output
| Switching type | light/dark on switchable |
| Signal output | 1 PNP and 1 NPN short-circuit protected, open collector, synchronized-switching |
| Switching voltage | max. 30 V DC |
| Switching current | max. 200 mA |
| Switching frequency | 16.5 kHz f |
| Response time | 30 µs |
Conformity
| Product standard | EN 60947-5-2 |
| Laser safety | IEC 60825-1:2014 |
Compliance with standards and directives
| Standard conformity: Shock and impact resistance | IEC / EN 60068. half-sine, 40 g in each X, Y and Z directions |
| Standard conformity: Vibration resistance | IEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions |
Approvals and certificates
| UL approval | cULus Listed , Class 2 power source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| FDA approval | IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019. |
Ambient conditions
| Ambient temperature | -10 ... 50 °C (14 ... 122 °F) |
| Storage temperature | -20 ... 75 °C (-4 ... 167 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 5-pin, M12 x 1 connector |
| Material: Housing | PC (glass-fiber-reinforced Makrolon) |
| Material: Optical face | glass |
| Mass | 200 g |

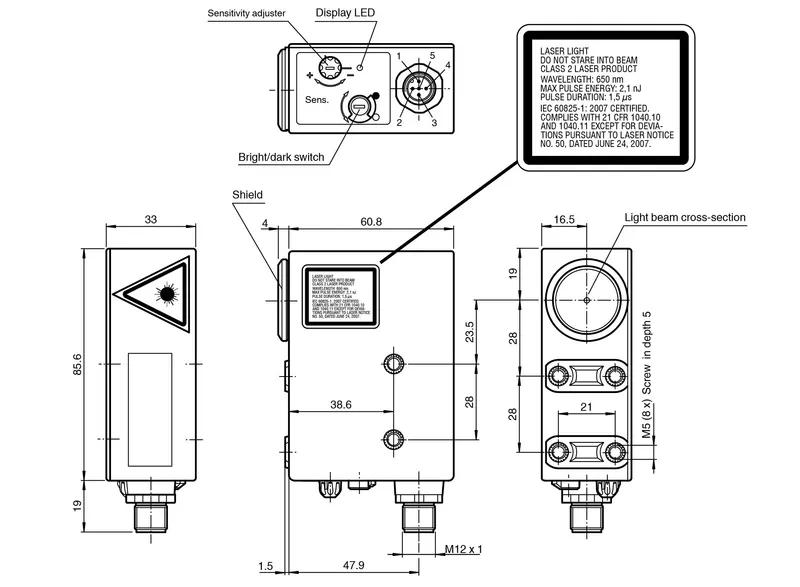

| Dimensions: Height | 85.6 mm |
| Dimensions: Width | 33 mm |
| Dimensions: Depth | 60.8 mm |
