Pepperl Fuchs CVS78E Mining – Singleturn absolute rotary encoder
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Absolute Rotary Encoders |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CVS78E Mining be shipped?
CVS78E Mining is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CVS78E Mining in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CVS78E Mining and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CVS78E Mining, subject to availability and destination.
• Up to 16 Bit singleturn
• ATEX-approval for mining
• IECEx approval
• Flameproof enclosure
• Removable connection cap
Up to 16 Bit singleturn, ATEX-approval for mining, IECEx approval, Flameproof enclosure, Removable connection cap, Enclosure type: 78 mm, Type of shaft: Solid shaft, Interface: CANopen, Application: Ex protection, Detection type: photoelectric sampling, Interface type: CANopen
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T162849 |
| Detection type | photoelectric sampling |
| Device type | Singleturn absolute rotary encoder |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 25 a |
| L10 | 7.7 E+9 at 3000 rpm |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| No-load supply current | max. 350 mA I0 |
| Linearity | ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit |
| Output code | binary code |
| Code course (counting direction) | cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending) |
Interface
| Interface type | CANopen |
| Resolution: Single turn | up to 16 Bit |
| Resolution: Overall resolution | up to 16 Bit |
| Transfer rate | max. 1 MBit/s |
| Standard conformity | communication profile: DS 301 Device profiles: DS 406 and DS 417 , programmable according to class 2 |
Connection
| Terminal compartment | with 2 threads for cable glands: each M20 x 1.5 6H, 17 mm thread depth |
Standard conformity
| Degree of protection | DIN EN 60529, IP66 |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation |
| Emitted interference | EN 61000-6-4:2007/A1:2011 |
| Noise immunity | EN 61000-6-2:2005 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz |
Approvals and certificates
| IECEx approval: Equipment protection level Mb | IECEx ITS 15.0060X |
| ATEX approval: Equipment protection level Mb | ITS 15 ATEX 18371X |
Ambient conditions
| Operating temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Material: Housing | Stainless steel 1.4404 / AISI 316L |
| Material: Flange | Stainless steel 1.4404 / AISI 316L |
| Material: Shaft | Stainless steel 1.4404 / AISI 316L |
| Mass | approx. 3900 g |
| Rotational speed | max. 3000 min -1 |
| Moment of inertia | 180 gcm2 |
| Starting torque | ≤ 4 Ncm |
| Shaft load: Axial | 60 N |
| Shaft load: Radial | 80 N |
General information
| Use in the hazardous area | see instruction manuals |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Instruction Manual | PDF · 170 kB |
Certificates (2)
| EU Intertek ATEX Category M (ITS15ATEX18371X) | PDF · 750 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 264 kB |
More Pepperl Fuchs parts
Available on requestMultiturn absolute rotary encoder CVM78EAvailable on requestMultiturn absolute rotary encoder CVM78E Mining
Available on requestSingleturn absolute rotary encoder CVS58Available on requestSingleturn absolute rotary encoder CVS78E
Available on requestProcess indicator DA5-IU-C

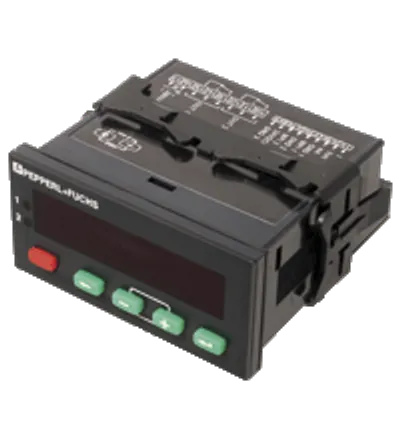

Available on requestProcess control and indication equipment DA6-IU-2K-CAvailable on requestProcess control and indication equipment DA6-IU-2K-V

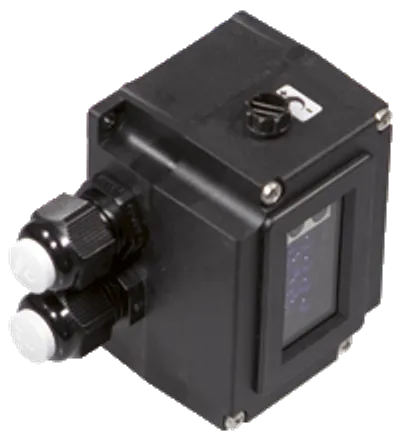

Available on requestOptical data coupler DAD15-8P
