Pepperl Fuchs CPS.GR*
Wireless Access Point (Ex nR)
- MPN
- CPS.GR*
- Category
- Wireless Access Point Solutions
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

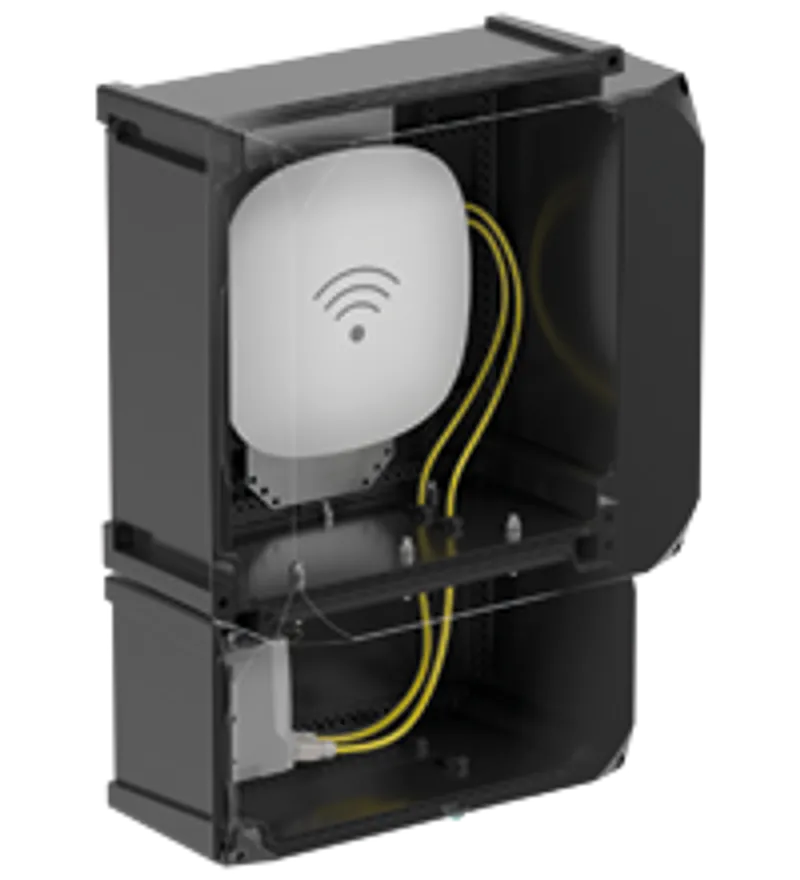

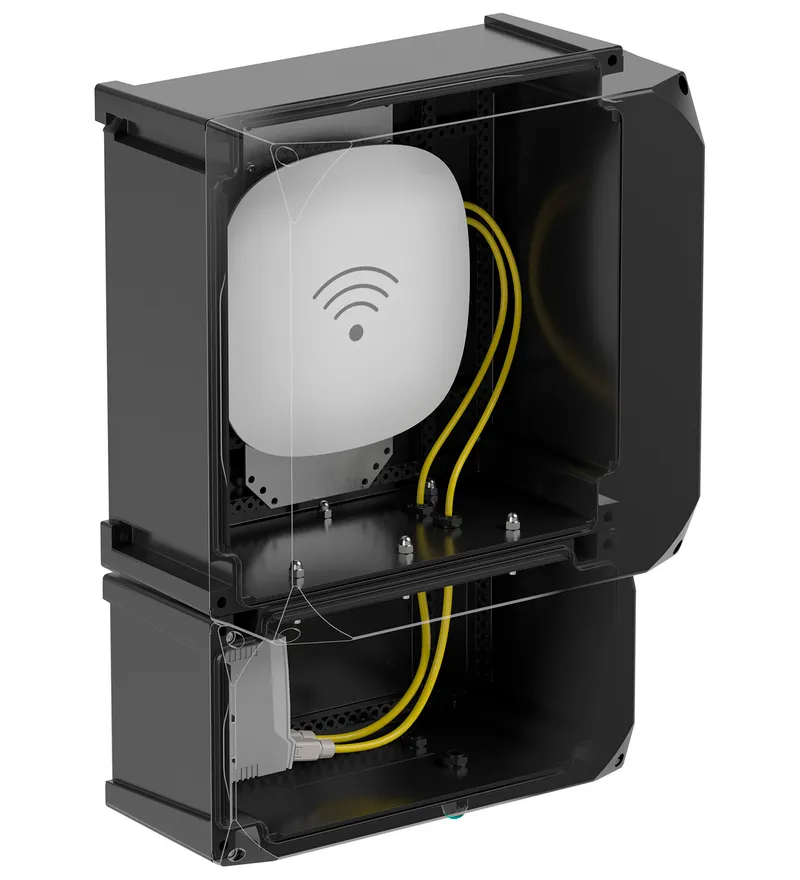

What is the Pepperl Fuchs CPS.GR*?
Glass-fiber reinforced polyester (GRP) enclosure
Installation in Zone 2
Installation in Zone 21 and Zone 22 (on request)
Use of industrial Wireless Access Points in hazardous areas
Separate connection enclosure allows for easy installation and maintenance
Lightweight solution
Customizable configuration of WI-FI and network devices and cable entries as per specification

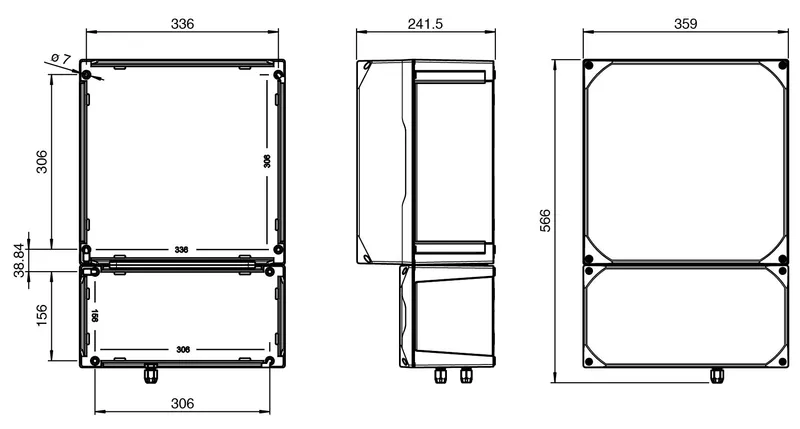

Image and drawing are generic for this device type and may deviate from the specific variant
Glass-fiber reinforced polyester (GRP) enclosure, Installation in Zone 2, Installation in Zone 21 and Zone 22 (on request), Use of industrial Wireless Access Points in hazardous areas, Separate connection enclosure allows for easy installation and maintenance , Lightweight solution, Customizable configuration of WI-FI and network devices and cable entries as per specification, Image and drawing are generic for this device type and may deviate from the specific variant
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T219285 |
| Operating voltage | 690 V AC / DC max. , depending on size for ATEX / IECEx |
| Operating current | 350 A max. , depending on size and certification |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Enclosure cover | fully detachable , optional hinges |
| Cover fixing | Stainless steel A4 (V4A) combination pozi driv and slotted screw |
| Cover seal | foamed silicone |
| Degree of protection | IP66 |
| Cable entry: Number of cable entries | 2 x M20 for standard variants As per specification for engineered solutions |
| Material: Enclosure | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) |
| Material: Finish | inherent color black |
| Material: Grounding plate | 2 mm brass optional |
| Mass | depending on integrated components and selected enclosure size |
| Shock resistance | IK09 (from GR.18.18.10 and larger, IK09, IK10 apply) |
| Dimensions | depending on integrated components see datasheets of relevant enclosures values might differ slightly due to casting and manufacturing tolerances |
| Mounting | wall mounting |
| Grounding | none as standard optional M6 or M8 internal/external brass nickel-plated grounding bolt optional M6 or M8 internal/external stainless steel grounding bolt |
Ambient conditions
| Ambient temperature | depending on integrated components |
Data for application in connection with hazardous areas
| EU-type examination certificate | FIDI 23 ATEX 0082X |
| Marking | II 3G Ex nR IIC T6...T4 Gc Ex II 3G Ex db nR [ia] IIC T6...T4 Gc Ex II 3G Ex nR [op is] IIC T6...T4 Gc |
International approvals
| Further approvals | available on request |
Conformity
| Degree of protection | EN60529 |
| CE marking | 0102 |
General information
| Order information | This Wireless Access Point solution will be delivered completely configured and assembled ready for use. For configuration details please contact customer service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
General specifications
| Installed components | All major WI-FI Access Point vendors such as Aruba, Cisco, ect. |
Accessories
| Optional accessories | M6 or M8 internal/external brass nickel-plated grounding bolts M6 or M8 internal/external stainless steel grounding bolts grounding plate, brass engraved traffolyte tag label engraved AISI 316L stainless steel tag label color in-fill stainless steel tag label |
