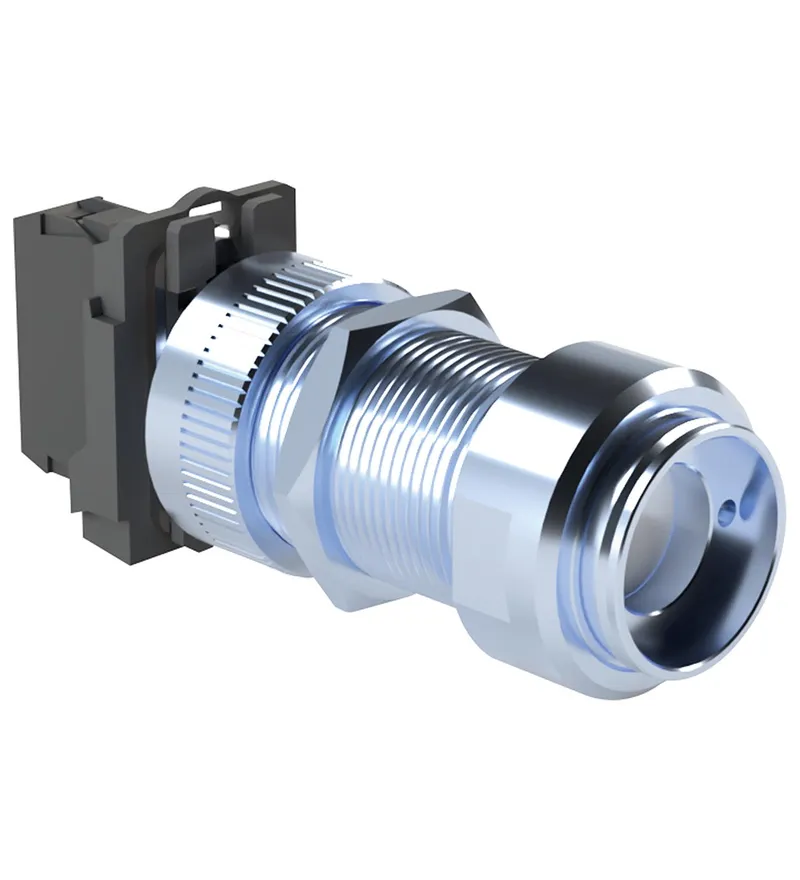

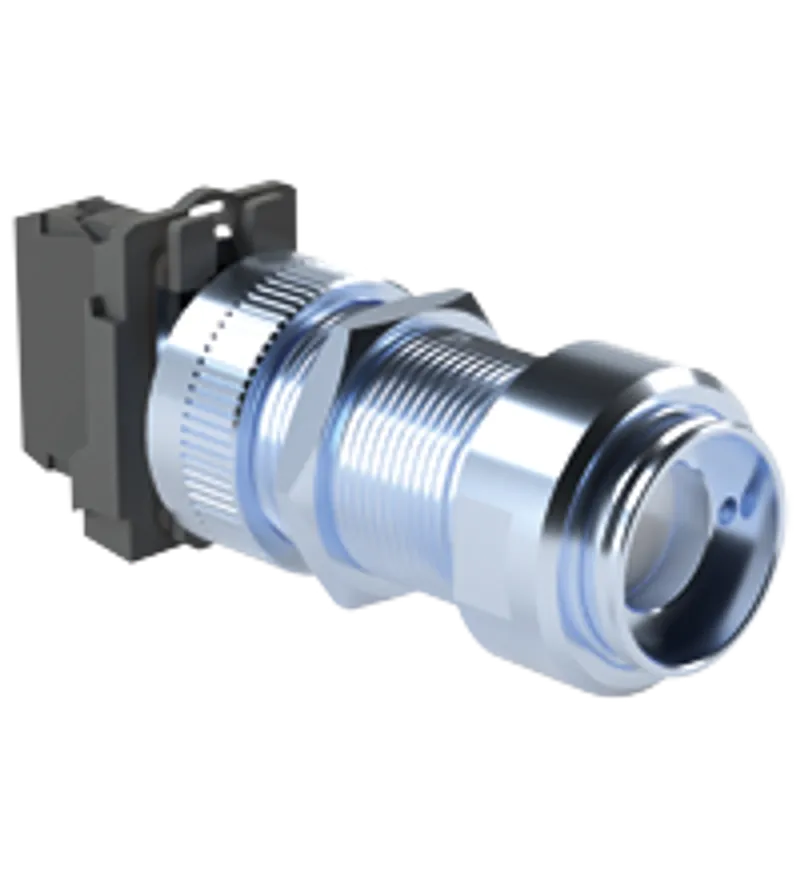

Pepperl Fuchs CFS.MOD.LCS.PI024V.K01.SP

LED indicator assembly

MPN
CFS.MOD.LCS.PI024V.K01.SP
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs CFS.MOD.LCS.PI024V.K01.SP?

Component for appropriately certified Ex d enclosures

Ex db and Ex tb certified

Polyamide and brass nickel-plated

Component for appropriately certified Ex d enclosures, Ex db and Ex tb certified, Polyamide and brass nickel-plated, Function: Pilot light with module, Housing: Polyamide (PA) , brass nickel-plated, Marking: [exsign] II 2 GD , Ex db IIC Gb , Ex tb IIIC Db

Specifications

Electrical specifications

Order code (Pepperl+Fuchs part number)70182758
Operating voltage24 V max. AC/DC
Operating current11 mA max.
Terminal capacity1.5 mm2
Terminal torque1.2 Nm
FunctionPilot light with module
Lens colorSee accessories section
Labelingnone
LifecycleActive (current Pepperl+Fuchs product)

Mechanical specifications

Thread size (TD)M28
Degree of protectionIP66
Material: HousingPolyamide (PA) , brass nickel-plated
Material: Finishinherent color black
Mass58 g

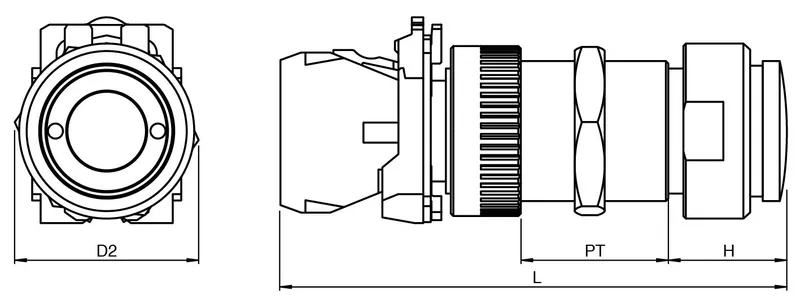

Dimensions: Actuator head diameter (D2)33.5 mm
Dimensions: Panel wall thickness (PT)15 ... 30 mm
Dimensions: Length outside enclosure (H)33 mm
Dimensions: Total length (L)109.5 mm
Tightening torqueActuator head : 2 Nm
Mountinguse with lid-mounted contact modules

Ambient conditions

Service temperature-40 ... 70 °C (-40 ... 158 °F)

Data for application in connection with hazardous areas

EU-type examination certificateCML 17 ATEX 1341U
MarkingII 2 GD Ex db IIC Gb Ex tb IIIC Db

International approvals

IECEx approvalIECEx CML 17.0181U
UKCA approvalCML 21 UKEX 1422U

Conformity

Degree of protectionEN 60529

General information

Supplementary informationEC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
Enclosure typeEJB , EJBX , GUB , GUBX

Accessories

Optional accessoriesCFS.LR.K50.SP CFS.LG.K50.SP CFS.LO.K50.SP CFS.LW.K50.SP

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

CFS.MOD.LCS.PI024V.K01.SP: frequently asked questions

When can CFS.MOD.LCS.PI024V.K01.SP be shipped?

CFS.MOD.LCS.PI024V.K01.SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CFS.MOD.LCS.PI024V.K01.SP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CFS.MOD.LCS.PI024V.K01.SP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFS.MOD.LCS.PI024V.K01.SP, subject to availability and destination.

More Pepperl Fuchs parts

Pepperl Fuchs CFP.XT.SP – Insert for Pushbutton
Pepperl Fuchs
CFP.XT.SP

Insert for Pushbutton

Pepperl Fuchs CFP.XU.SP – Insert for Pushbutton
Pepperl Fuchs
CFP.XU.SP

Insert for Pushbutton

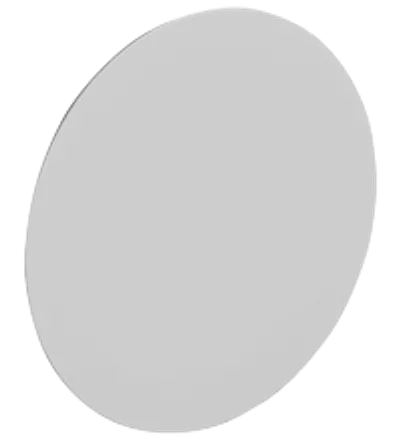

Pepperl Fuchs CFP.XW.SP – Insert for Pushbutton
Pepperl Fuchs
CFP.XW.SP

Insert for Pushbutton

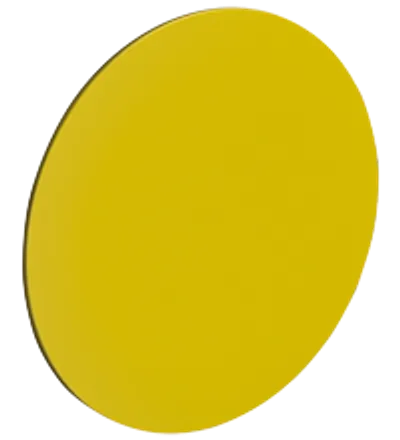

Pepperl Fuchs CFP.XY.SP – Insert for Pushbutton
