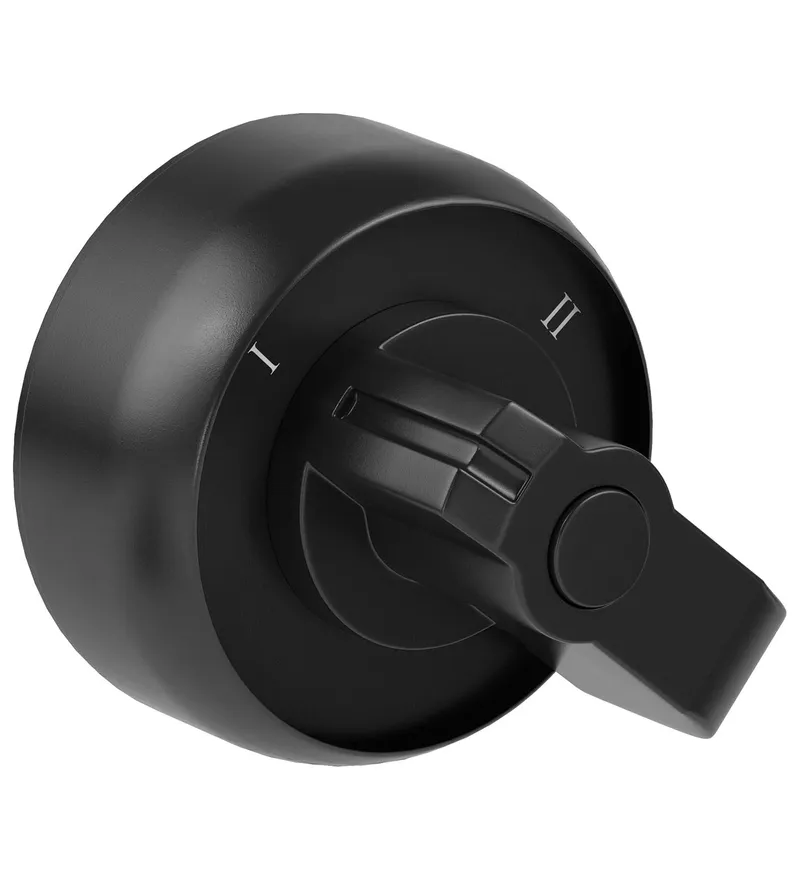

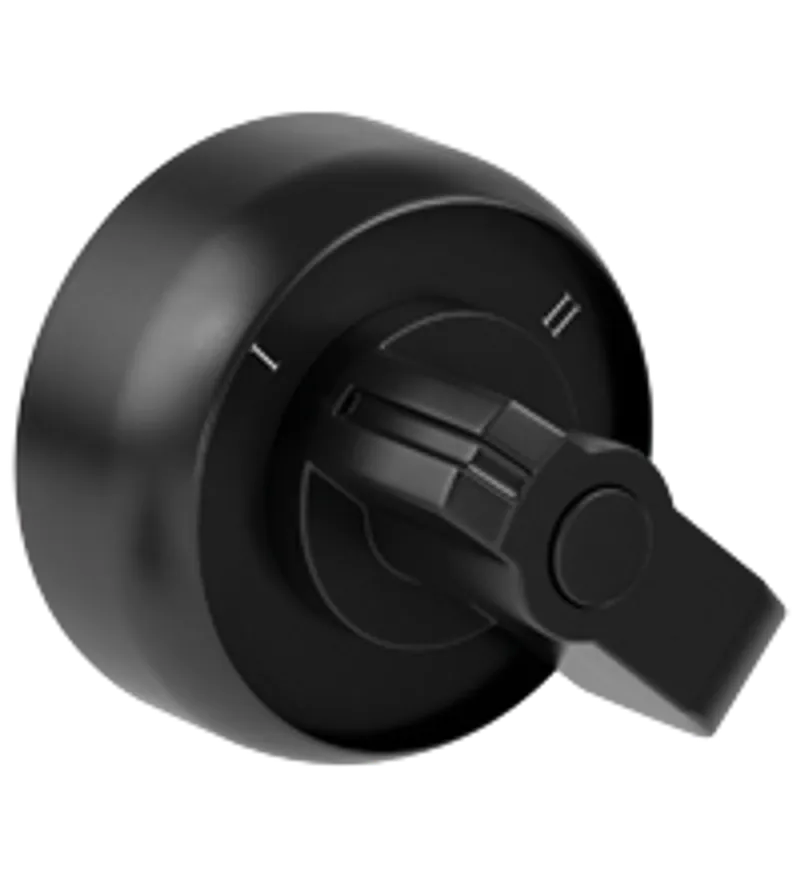

Pepperl Fuchs CFP.N7.SP
Actuator Head Ex e - Control Switch Rotary Small
- MPN
- CFP.N7.SP
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs CFP.N7.SP?
2 switching positions
Labeling 'I - II'
Component for appropriately certified Ex e enclosures
For use with cover-mounted contact modules
Ex e and Ex tb certified
Polyamide
2 switching positions, Labeling 'I - II', Component for appropriately certified Ex e enclosures, For use with cover-mounted contact modules, Ex e and Ex tb certified, Polyamide, Function: rotary actuator, Housing: Polyamide (PA), Marking: [exsign] II 2 GD , Ex e IIC Gb , Ex tb IIIC Db
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 290104 |
| Function | rotary actuator |
| Color | black |
| Switching configuration | 2 position changeover |
| Operator action | engage - engage |
| Labeling | I - II |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Degree of protection | IP66 |
| Material: Housing | Polyamide (PA) |
| Material: Finish | inherent color black |
| Material: Washer gasket | silicone |
| Mass | 30 g |
| Dimensions: Actuator head diameter (D2) | 39 mm |
| Dimensions: Panel wall thickness (PT) | 1 ... 6 mm |
| Dimensions: Diameter thru-hole (DT) | 30.6 mm |
| Dimensions: Length outside enclosure (H) | 30.6 mm |
| Dimensions: Total length (L) | 50.9 mm |
| Tightening torque | 2.8 ... 3.4 Nm |
| Mounting | use with cover-mounted contact modules |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
| Service temperature | -40 ... 65 °C (-40 ... 149 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx CML 16.0114U |
Conformity
| Degree of protection | EN 60529 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | SR.CS* GR.CS* |
Accessories
| Optional accessories | CFP.TP |
