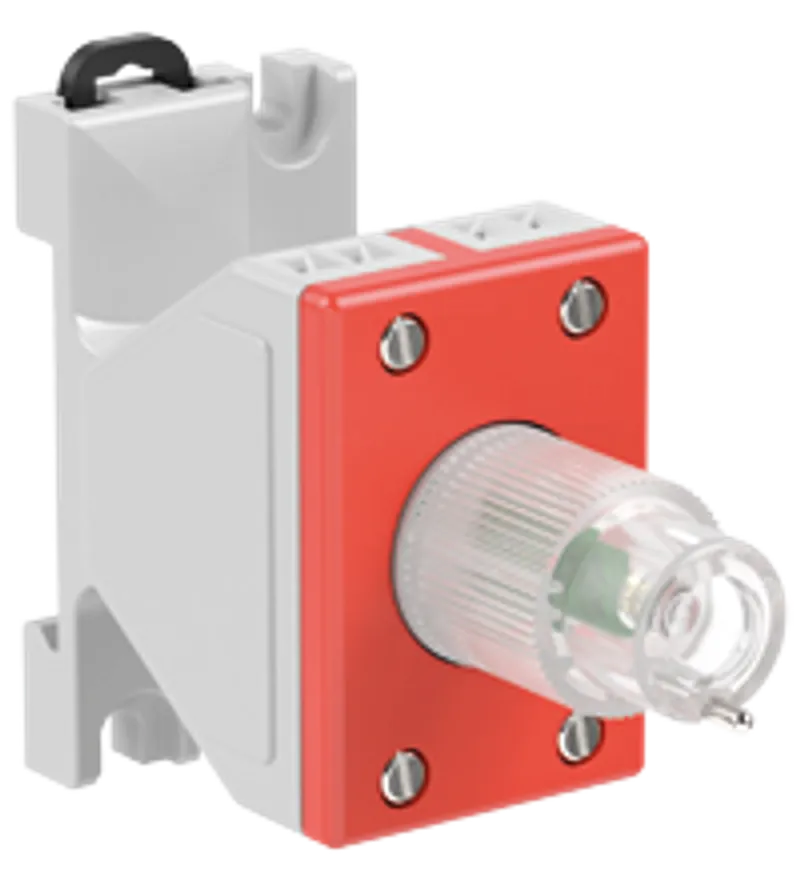

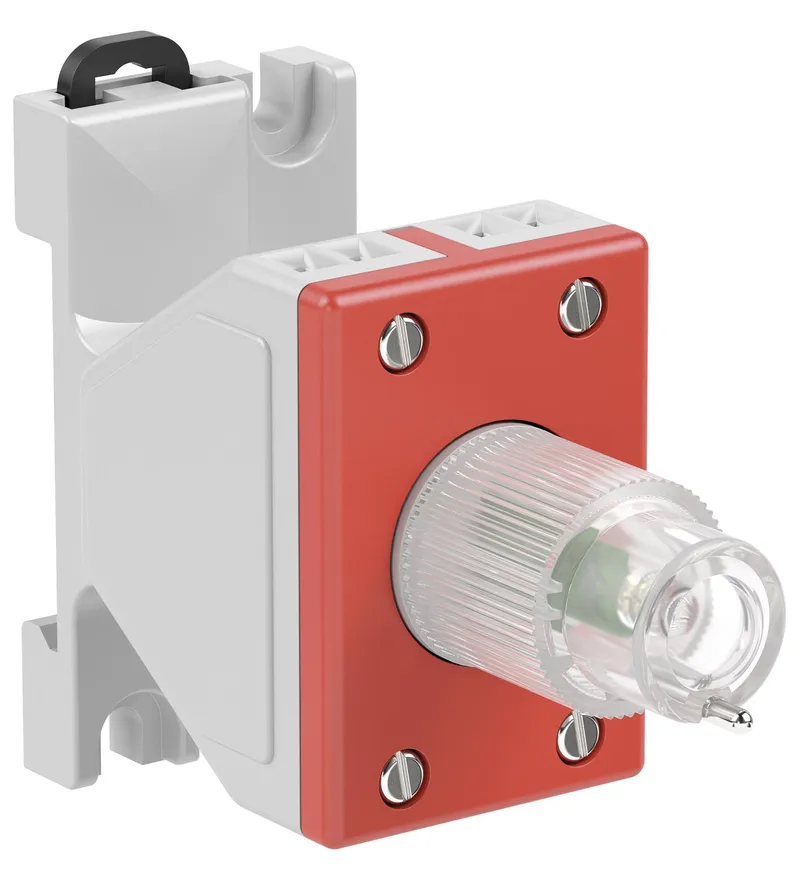

Pepperl Fuchs CFP.J.SP
LED Contact Module Ex e, 1 Pole, Base-mounted
- MPN
- CFP.J.SP
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs CFP.J.SP?
Contact block 1x NC
Component for appropriately certified Ex e enclosures
Mounting on enclosure base
DIN rail mountable
Ex de certified
Polyamide
Contact block 1x NC, Component for appropriately certified Ex e enclosures, Mounting on enclosure base, DIN rail mountable, Ex de certified, Polyamide, Function: Illuminated pushbutton module, Housing: Polyamide (PA), Marking: [exsign] II 2 G , Ex de IIC Gb
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 290215 |
| Operating voltage | 30 V max. AC/DC |
| Operating current | 10 A max. |
| Power consumption | 1 W |
| Terminal capacity | 2.5 mm2 |
| Terminal torque | 0.8 Nm |
| Function | Illuminated pushbutton module |
| Contact configuration | 1x NC |
| Usage category | AC15: 20 ... 250 V AC - 10 A DC13: 20 ... 24 V DC - 1 A |
| Number of poles | 1 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Degree of protection | IP20 |
| Material: Housing | Polyamide (PA) |
| Mass | 72 g |
| Mechanical life | 300000 switching operations |

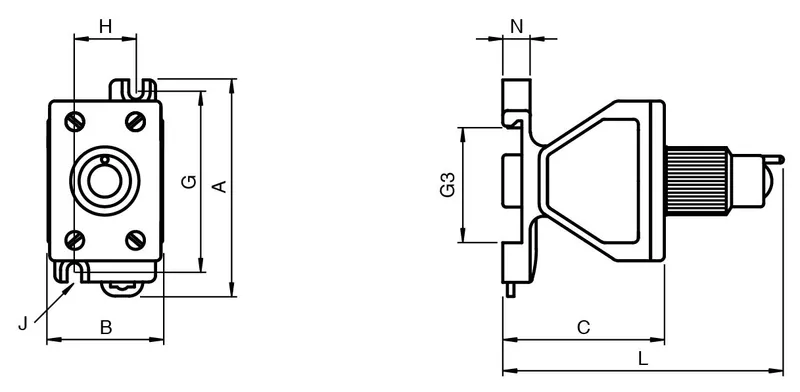

| Dimensions: External dimension (A) | 63 mm |
| Dimensions: External dimension (B) | 33.4 mm |
| Dimensions: External dimension (C) | 47 mm |
| Dimensions: Mounting holes distance (G) | 52 mm |
| Dimensions: DIN mounting rail receptacle (G3) | 35.6 mm |
| Dimensions: Mounting holes distance (H) | 18 mm |
| Dimensions: Mounting holes diameter (J) | 4.2 mm |
| Dimensions: Thickness of mounting brackets (N) | 8 mm |
| Dimensions: Total length (L) | 82 mm |
| Mounting | base-mounted DIN rail mounting |
Ambient conditions
| Ambient temperature | -55 ... 55 °C (-67 ... 131 °F) |
| Service temperature | -55 ... 85 °C (-67 ... 185 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking | II 2 G Ex de IIC Gb |
International approvals
| IECEx approval | IECEx CML 16.0114U |
Conformity
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Enclosure type | LR* GR.CS* |
