Pepperl Fuchs CFP.ZPR.SP – Padlockable Shroud (Ex e)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CFP.ZPR.SP be shipped?
CFP.ZPR.SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CFP.ZPR.SP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CFP.ZPR.SP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFP.ZPR.SP, subject to availability and destination.
• Plastic shroud with locking bar and padlock
• Ex e certified
• Polyamide
• Component for appropriately certified Ex e enclosures
Plastic shroud with locking bar and padlock, Ex e certified, Polyamide, Component for appropriately certified Ex e enclosures, Function: Emergency stop padlockable shroud, base-mounted, Marking: [exsign] II 2 GD , Ex e IIC Gb , Ex tb IIIC Db
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 290254 |
| Function | Emergency stop padlockable shroud, base-mounted |
| Color | yellow |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Degree of protection | IP66 |
| Material | Polyamide (PA) |
| Washer gasket | silicone |
| Mass | 75 g |

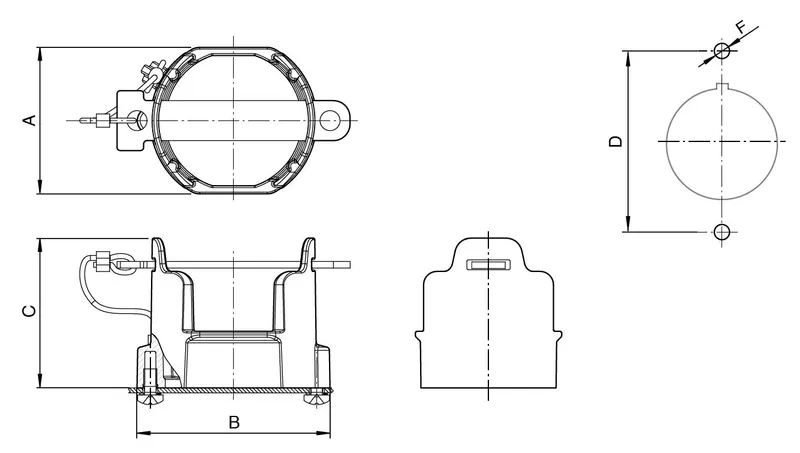

| Dimensions: External dimension (A) | 41 mm |
| Dimensions: External dimension (B) | 58 mm |
| Dimensions: External dimension (C) | 45 mm |
| Dimensions: Internal dimension (D) | 50 mm |
| Dimensions: Internal dimension (F) | 4.2 mm |
| Tightening torque | 0.6 ... 1 Nm |
| Mounting | use with base-mounted contact modules |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx CML 16.0114U |
General information
| Supplementary information | For more information please contact Pepperl+Fuchs. |
| Enclosure type | LR* SR*.CS* GR.CS* |
