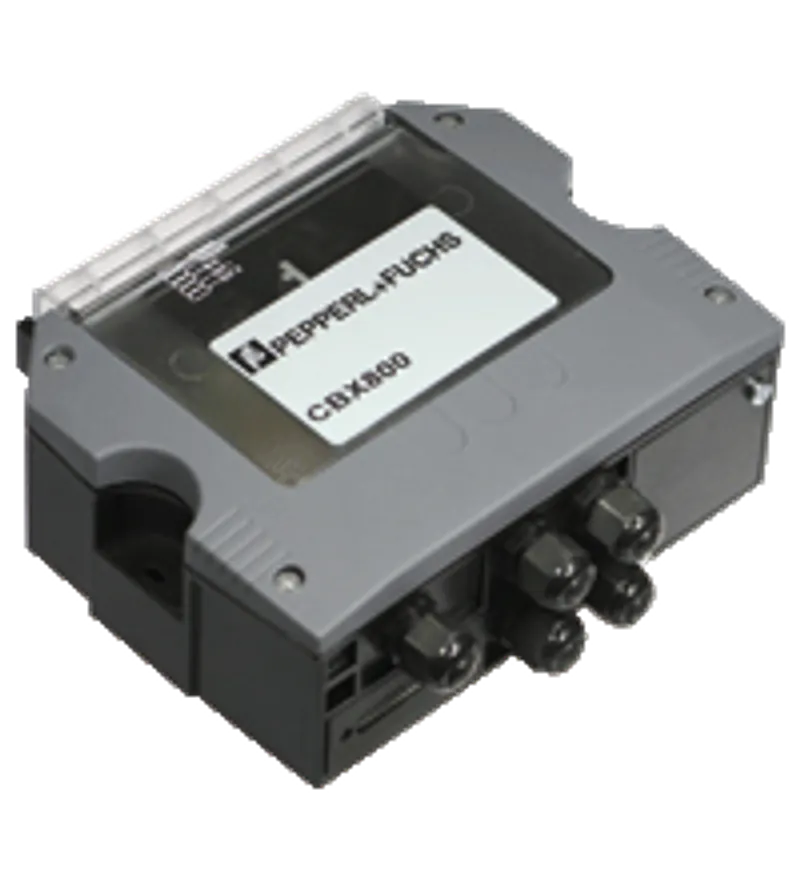

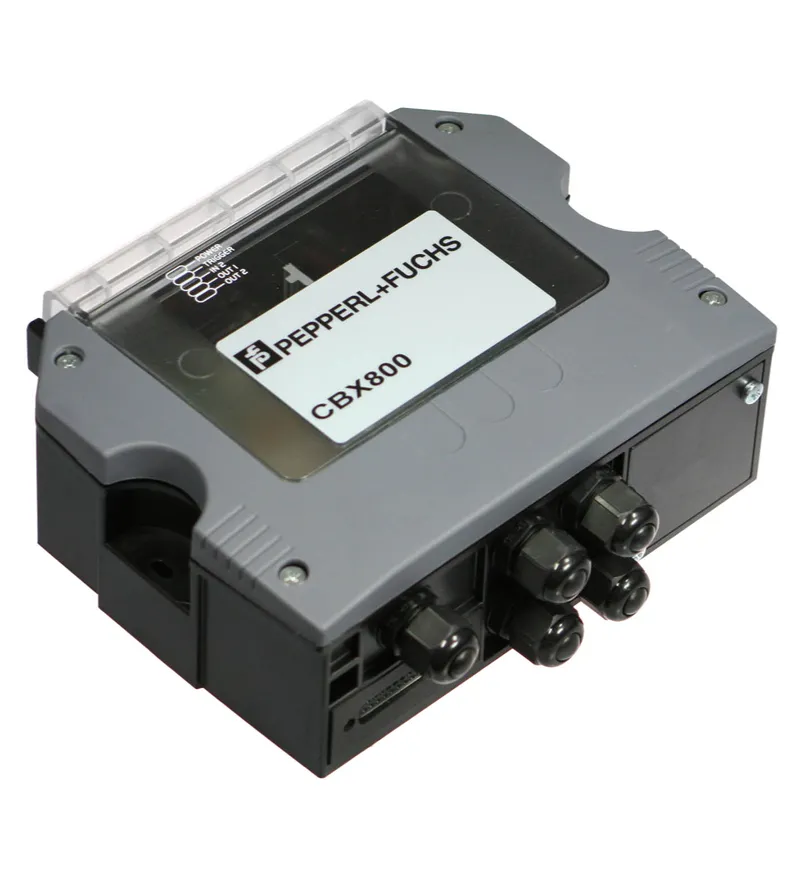

Pepperl Fuchs CBX800
Connector box
- MPN
- CBX800
Price and lead time confirmed within 1 business day
Discontinued by Pepperl Fuchs — we can still source the original CBX800 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs CBX800?
Easy scanner connection by means of clamp terminals
Degree of protection IP65
Option of upgrading with Profibus, Ethernet and DeviceNet module
Connection module for RS-232 and RS-485 enabled devices, Easy scanner connection by means of clamp terminals, Degree of protection IP65, Option of upgrading with Profibus, Ethernet and DeviceNet module
Pepperl+Fuchs has archived the CBX800: it is no longer part of the current range. PartnerPLC sources discontinued Pepperl+Fuchs parts on the surplus market for maintenance and repair of existing installations — request a quote for availability, condition, price and lead time.
Specifications
Indicators/operating means
| Order code (Pepperl+Fuchs part number) | 220506 |
| Display elements | 8 LEDs (POWER, ERROR, TRIGGER, IN 2, OUT 1, OUT 2, READY, HOST) |
| Lifecycle | Discontinued — archived by Pepperl+Fuchs |
Electrical specifications
| Operating voltage | 10 ... 30 V DC PELV UB |
| Current consumption | max. 2.5 A |
| Power consumption | max. 3 W P0 |
Interface
| Interface type | Modular upgrade option (e.g. PROFIBUS, Ethernet, DeviceNet) |
Compliance with standards and directives
| Directive conformity | 89/336 EWG |
| Standard conformity: Noise immunity | EN 61000-6-2 |
| Standard conformity: Degree of protection | EN 60529 |
| Standard conformity: Shock and impact resistance | EN 60068-2-27 |
| Standard conformity: Vibration resistance | EN 60068-2-6 |
Ambient conditions
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Relative humidity | 90 % , non-condensing |
| Shock resistance | 30G ; 11 ms ; 3 impacts on each axis |
| Vibration resistance | 1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis |
Mechanical specifications
| Degree of protection | IP65 |
| Connection | 25-pin Sub-D socket for Barcode scanner , M16 cable gland for system connection (5x) |
| Material: Housing | PC (Polycarbonate) |
| Mass | 780 g |
| Dimensions: Height | 71 mm |
| Dimensions: Width | 192 mm |
| Dimensions: Depth | 180 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

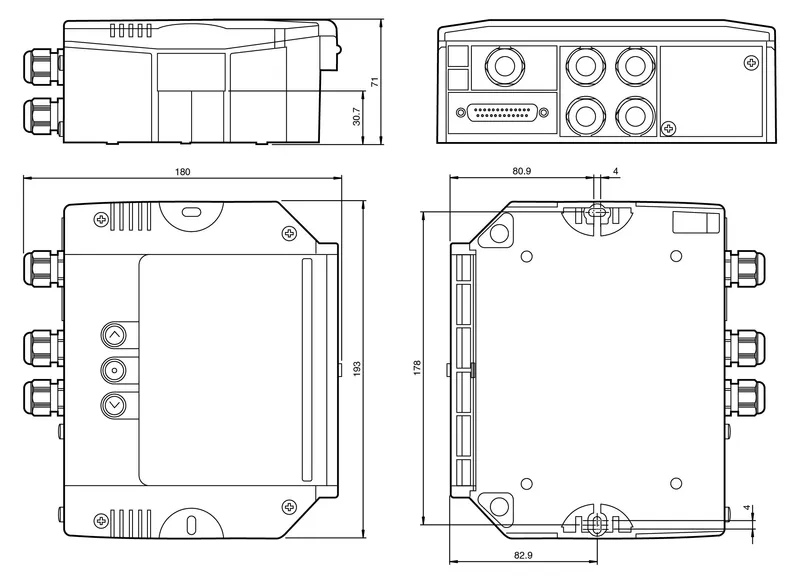

CAD & dimension drawings
CBX800: frequently asked questions
Can I still buy the CBX800 now that it is discontinued?
Yes. Pepperl Fuchs has discontinued the CBX800, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can CBX800 be shipped?
CBX800 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CBX800 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CBX800 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CBX800, subject to availability and destination.
