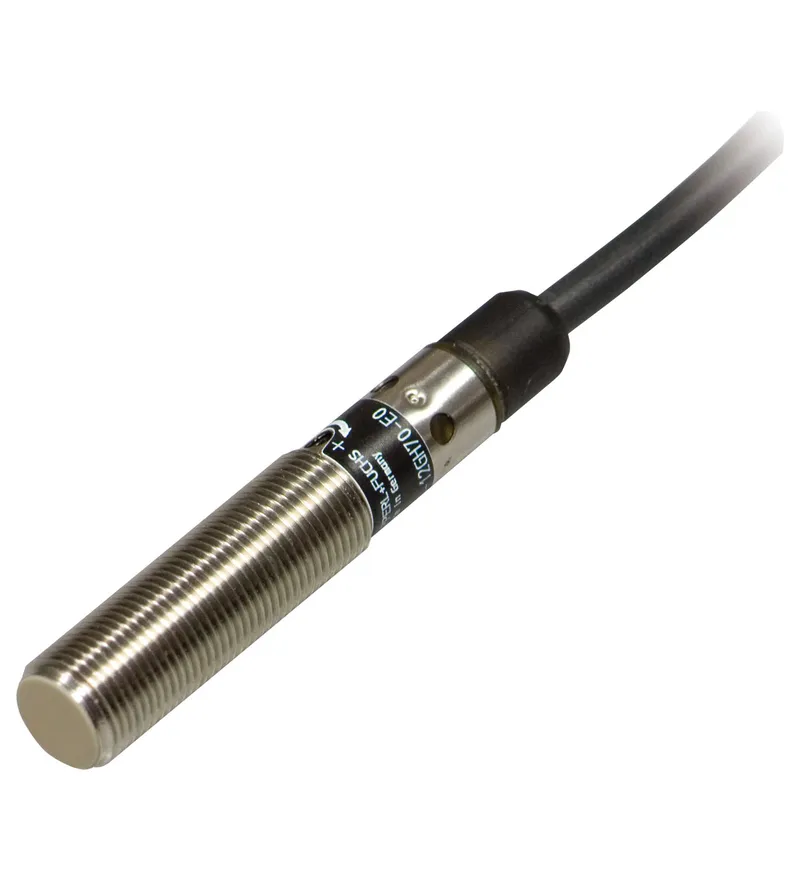

Pepperl Fuchs CBB4-12GH70-E2

Capacitive sensor

MPN
CBB4-12GH70-E2
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs CBB4-12GH70-E2?

4 mm flush

Operating distance adjustable via potentiometer

Suitable for foodstuff conditions

Resistant against aggressive media

Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 36 V DC, Potentiometer: sensitivity adjustment, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP65

Specifications

General specifications

Order code (Pepperl+Fuchs part number)210620
Switching functionNormally open (NO)
Output typePNP
Rated operating distance4 mm sn
Installationflush
Output polarityDC
Assured operating distance0 ... 2.88 mm sa
Output type3-wire
LifecycleActive (current Pepperl+Fuchs product)

Nominal ratings

Installation conditions: A0 mm
Installation conditions: B0 mm
Installation conditions: C15 mm
Installation conditions: F15 mm
Operating voltage10 ... 36 V DC UB
Switching frequency0 ... 50 Hz f
Reverse polarity protectionreverse polarity protected
Short-circuit protectionpulsing
Voltage drop≤ 2.5 V Ud
Operating current0 ... 100 mA IL
No-load supply current≤ 12 mA I0
Switching state indicatorLED, yellow

Safety-relevant product characteristics

MTTFd1272 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0 %

Indicators/operating means

Potentiometersensitivity adjustment

Compliance with standards and directives

Standard conformity: StandardsEN IEC 60947-5-2

Approvals and certificates

UL approvalcULus Listed

Ambient conditions

Ambient temperature-25 ... 70 °C (-13 ... 158 °F)

Mechanical specifications

Connection typecable
Housing materialStainless steel 1.4404 / AISI 316L
Sensing facePEEK
Degree of protectionIP65
Cable: MaterialPUR
Cable: Colorblack
Cable: Number of cores3
Cable: Core cross section0.34 mm2
Cable: Length2 m L

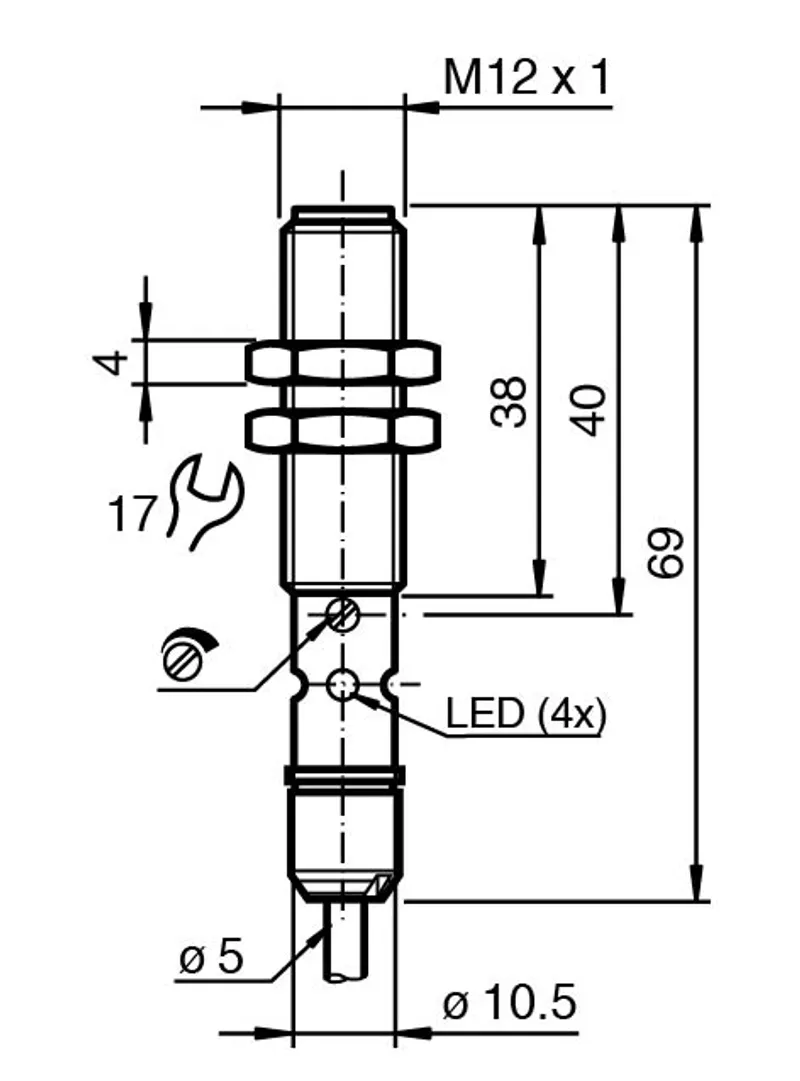

Dimensions: Length70 mm
Dimensions: Diameter12 mm

CBB4-12GH70-E2: frequently asked questions

When can CBB4-12GH70-E2 be shipped?

CBB4-12GH70-E2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CBB4-12GH70-E2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CBB4-12GH70-E2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CBB4-12GH70-E2, subject to availability and destination.
