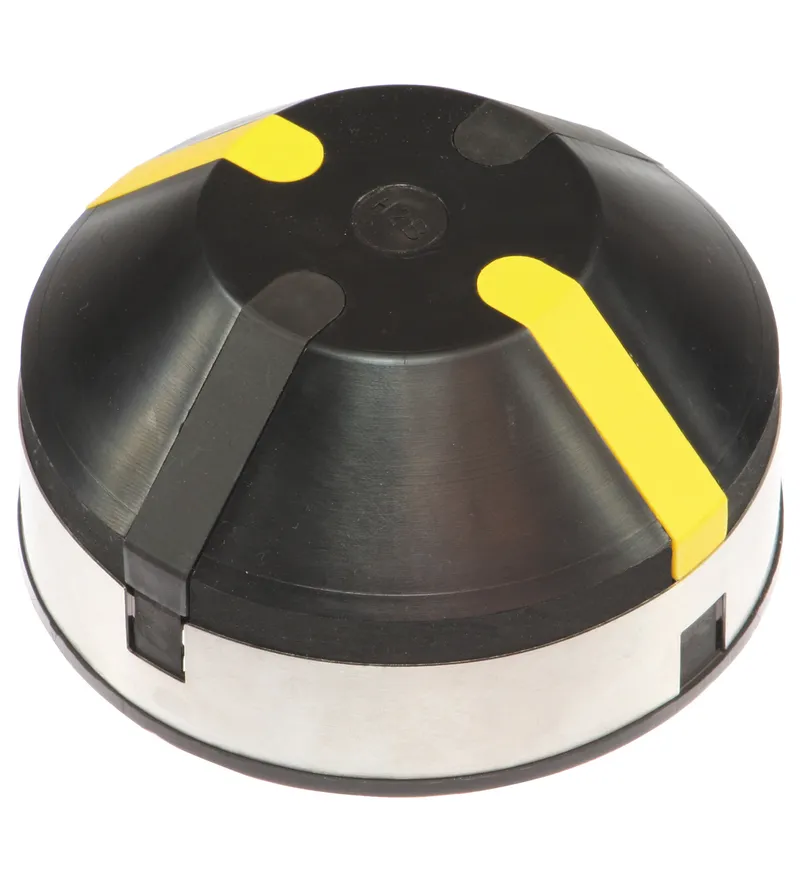

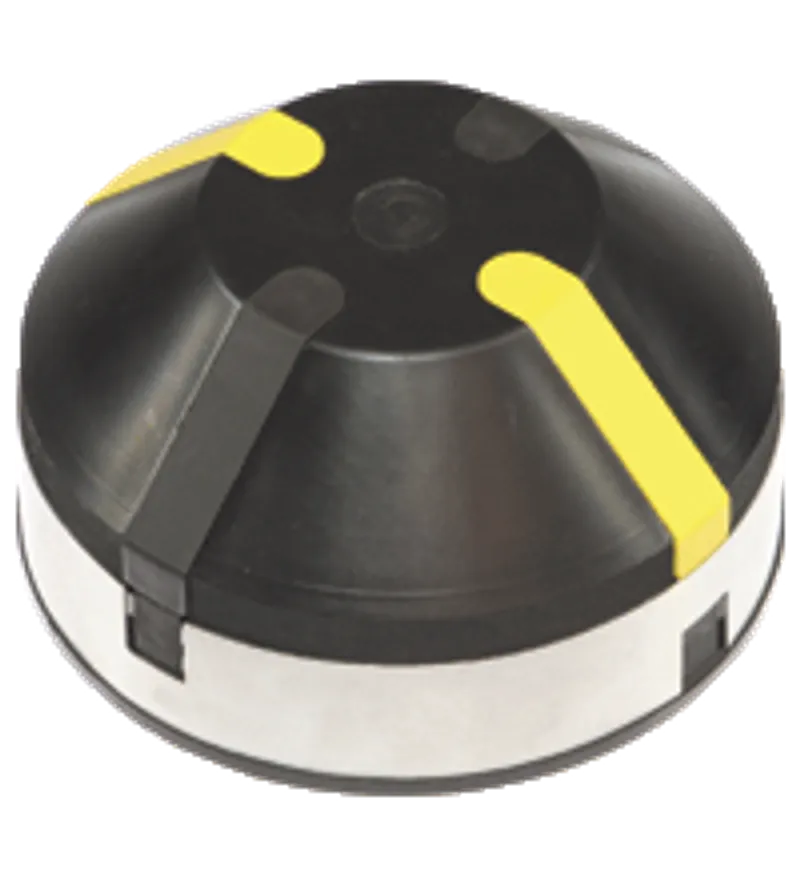

Pepperl Fuchs BT115X
Activator
- MPN
- BT115X
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs BT115X?
Suitable for right and left rotating drives
Action reversed (end position undamped)
Activator for F31 series
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 259055 |
| Ring diameter | max. 110 mm |
| Spring ring height | max. 7 mm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Shaft diameter | < 90 mm |
| Shaft height | 30 mm and 50 mm |
| Mounting hole pattern | 30 x 130 mm |
| Material: Housing | Mounting component: PA |
| Material: Spacer disk | PA (2 units, 10 mm strong) |
| Material: Stopper cap | PE (1 unit black) |
| Material: Identification stopper | PA (2 units yellow, 2 units black) |
| Material: Mounting screw | for activator: 1.4305 / AISI 303 (1 piece M6 x 25) for sensors - F31: 1.4305 / AISI 303 (2 pieces M5 x 16) (2 pieces M5 x 12) |
| Material: Activation target | Stainless steel 1.4305 / AISI 303 (integrated) |
| Mass | 140 g |
| Tightening torque, fastening screws | ≤ 1.5 Nm |

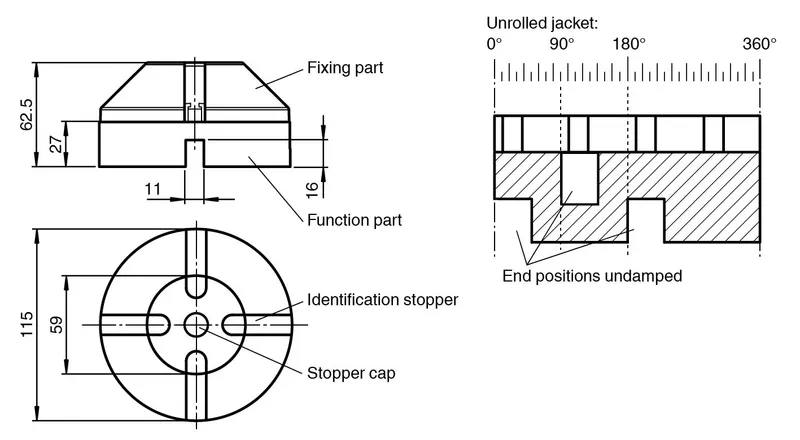

| Dimensions: Height | 62.5 mm |
| Dimensions: Diameter | 115 mm |
