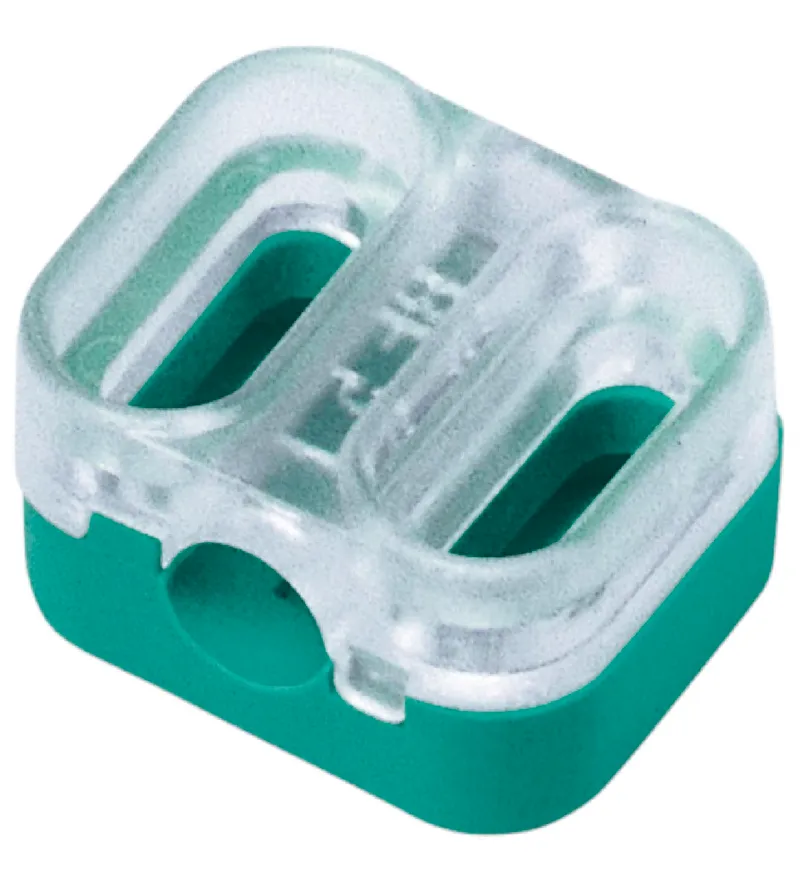

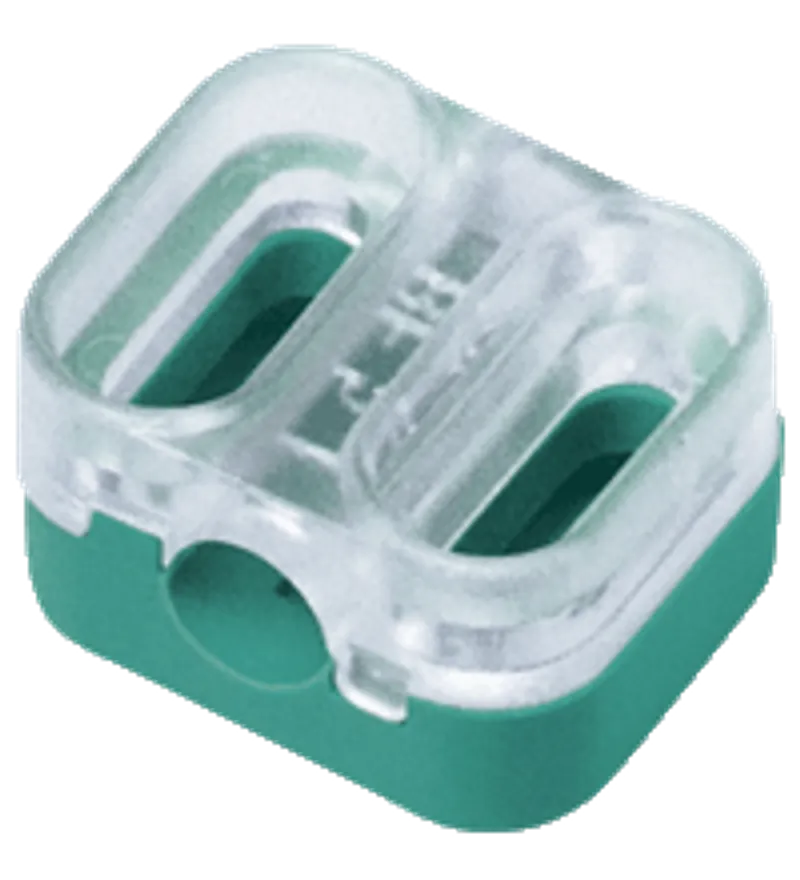

Pepperl Fuchs BF 5
Mounting flange
- MPN
- BF 5
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs BF 5?
Retainer for all cylindrical sensors with M5 thread
Simple installation and exact setting
Mounting flange, 5 mm, Retainer for all cylindrical sensors with M5 thread, Simple installation and exact setting
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 011844 |
| Inside diameter | 5 mm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Material | Base: PBTB (green)Upper section: PC (transparent) |
| Tightening torque, fastening screws | max. 0.5 Nm |
| Dimensions: Height | 10 mm |
| Dimensions: Width | 15 mm |
| Dimensions: Length | 18 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

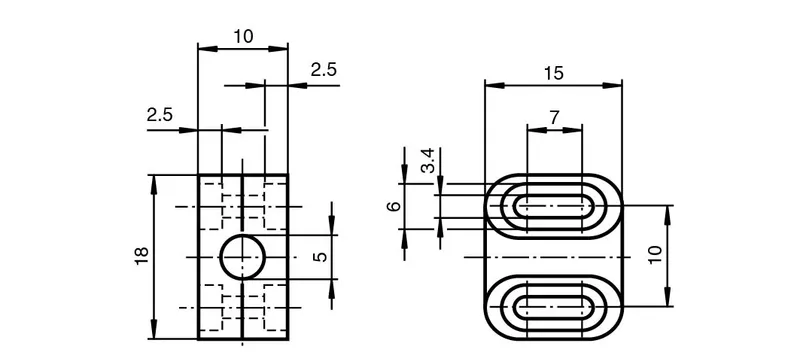

CAD & dimension drawings
BF 5: frequently asked questions
When can BF 5 be shipped?
BF 5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BF 5 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BF 5 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BF 5, subject to availability and destination.
